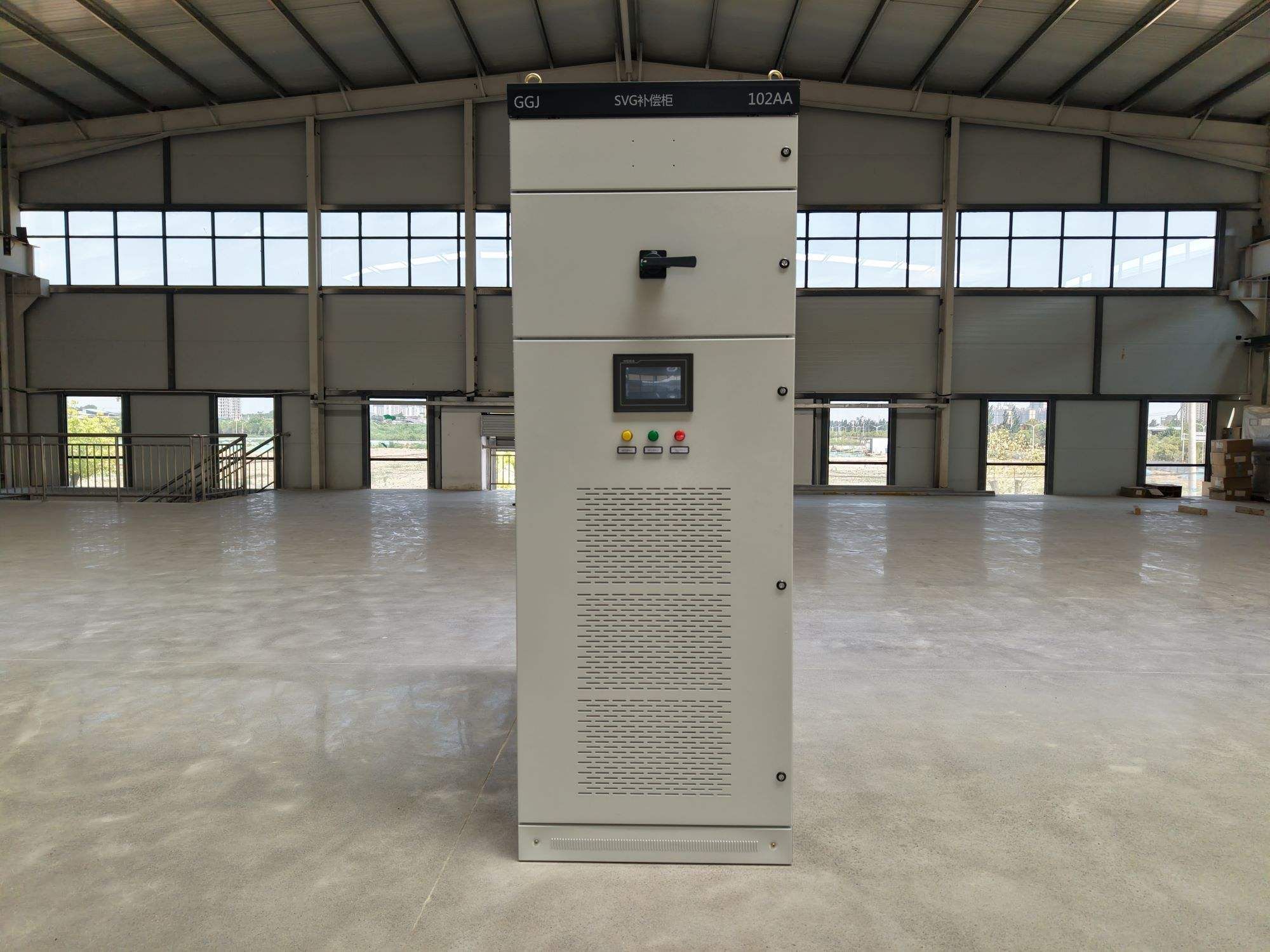

Intelligent Compensation Device with Filtering Function

Intelligent Compensation Device with Filtering Function - Professional Power Quality Solutions

Product Introduction

Meet the latest innovation in power quality management. The Intelligent Compensation Device with Filtering Function transforms how you handle reactive power compensation and harmonic distortion. Your facility deserves equipment that not only improves power factor but actively protects against harmful harmonics.

This advanced system combines intelligent microprocessor control with precision-tuned filtering capabilities. Unlike traditional capacitor banks that amplify harmonics and risk system resonance, our device integrates series reactors to suppress harmonic distortion while providing reliable reactive power compensation.

You'll experience enhanced equipment efficiency, reduced energy costs, and improved power supply reliability. The system operates seamlessly within voltage ranges below AC450V, making it perfect for your medium and low voltage applications.

Technical Specifications

Main Features and Advantages

Smart Harmonic Suppression: Your system benefits from precisely tuned LC filtering circuits that eliminate dangerous resonance conditions while maintaining optimal power factor correction.

Zero-Crossing Technology: Advanced switching ensures minimal electrical stress and extends component lifespan significantly beyond conventional systems.

Modular Design: Drawer-style capacitor-reactor modules enable hot-swapping for maintenance without system shutdown.

Comprehensive Protection: Built-in safeguards against over-voltage, under-voltage, over-temperature, and harmonic overload protect your investment.

Automatic Operation: Intelligent controllers continuously monitor power quality and adjust compensation automatically based on real-time conditions.

Practical Applications

Heavy Industrial Manufacturing: Steel plants and metallurgy operations rely on our Intelligent Compensation Device with Filtering Function to handle electric arc furnaces and large VFDs that generate severe harmonic distortion.

Data Centers: Critical IT infrastructure requires stable power. Our device prevents 3rd harmonic accumulation that threatens UPS systems and server reliability.

Petrochemical Operations: Hazardous environments demand robust solutions. The rugged design withstands corrosive elements while ensuring power transmission stability across long cable runs.

How It Works

The system continuously monitors your electrical network through sophisticated FFT analysis. When reactive power demand increases, the intelligent controller activates the appropriate compensation steps.

Series reactors tuned to specific frequencies create a controlled impedance that blocks harmful harmonics. This prevents the amplification effect common in standard capacitor installations.

Automatic phase sequence recognition ensures proper operation regardless of connection variations. The controller communicates seamlessly with existing building management systems through standard protocols.

Manufacturing Excellence

Xi'an Xidian Medium and Low Voltage Electric Co., Ltd. brings decades of expertise to every Intelligent Compensation Device with Filtering Function. Our comprehensive product line spans high and low voltage switchgear, transformers, and power electronics across 9 categories and over 100 varieties.

Quality certifications including ISO9001, ISO14001, and OHSAS18001 guarantee consistent manufacturing standards. Every unit undergoes rigorous testing including temperature rise verification, dielectric strength validation, and 72-hour aging tests.

Our rated current capacity ranges from 630A to 4000A, ensuring solutions for facilities of any size.

Why Choose Us

Proven Track Record: As a nationally recognized brand, we've earned trust through consistent delivery of reliable power distribution solutions.

Technical Innovation: Participation in national 863 projects demonstrates our commitment to advancing electrical technology.

Comprehensive Support: From initial consultation to ongoing maintenance, our technical team provides complete lifecycle support.

Global Compatibility: Our devices integrate seamlessly with international cabinet systems including MNS, GCK, and GGD configurations.

FAQ

Q: What maintenance does this device require?

A: Annual inspections should verify capacitor performance, electrical connections, and ventilation system cleanliness. Most maintenance can be performed without system shutdown thanks to modular design.

Q: How do I select the correct reactance rate?

A: Choose 7% for systems with motor loads and VFDs generating 5th/7th harmonics. Select 14% for facilities with significant single-phase loads producing 3rd harmonics.

Q: Can the device handle rapidly changing loads?

A: Yes, specify our dynamic model with thyristor switching for applications like welding equipment requiring sub-20ms response times.

Q: Why might I see harmonic alarms after installation?

A: External harmonic distortion exceeding 15-20% THDi triggers protective disconnection. Consider adding active filtering for extremely distorted environments.

Contact Us

Ready to improve your power quality with our Intelligent Compensation Device with Filtering Function? Our engineering team stands ready to design the perfect solution for your specific requirements.

Contact our technical specialists today at serina@xaxd-electric.com for detailed specifications, custom configurations, and comprehensive project support. Experience the difference that intelligent power quality management makes for your facility's efficiency and reliability.
