CKGKL Dry-type Air Core Series Reactor
1.Rated voltage:3464.1V
2.Reactor connected in series with the capacitors suppress harmonic voltage amplification
3. reduce system waveform distortion
4.limit inrush currents during capacitor switching
CKSC Dry-type Iron Core Series Reactor
1.The coil is made of epoxy resin vacuum casting, after high temperature curing. 2.The coil insulation performance is good, high mechanical strength, the ability after glass fiber reinforcement is impacted by the large current shock and hot and cold cracks. 3.Moistureproof performance is good.
SVG Using Reactor
1.Voltage Range:0.4kV,6V,10kV
2.altitude:1000m or less
3. the highest monthly average relative humidity: 95% or less
4. the highest temperature: +45 °C
5. the lowest ambient temperature: -10 °C
6. the maximum daily temperature difference: 25 °C
7. seismic intensity: 8 degrees
8. installation requirements: indoor
CKSG Series Low Voltage Reactor
7% reactance rate: Suppresses harmonics above the 5th order.
14% reactance rate: Suppresses harmonics above the 3rd order.
27% reactance rate: Suppresses harmonics above the 2nd order.
1.Available in three-phase and single-phase dry-type iron-core configurations.
2.Core: Imported cold-rolled silicon steel laminations segmented by epoxy-laminated glass spacers to stabilize air gaps.
3.Windings: Tightly wound with Class H/C enamel-coated flat copper wire for high-temperature resistance and silent operation.
4.Assembly: Non-magnetic fasteners; pre-baked, vacuum-impregnated, and thermally cured to bond core and windings, ensuring low losses and high harmonic suppression.
5.Corrosion-resistant terminals and enclosures; compact size, lightweight, and cabinet-compatible design for cost-effective installation.
CKSC Dry-type Iron Core Reactor
1.Rated voltages: 3kv,6kv,10kv,15kv,20kv,35kv
2.Insulation: Class F.
3.Uses epoxy resin casting or air insulation, eliminating fire and explosion hazards, making it ideal for indoor, subway, chemical plants, and other fire-sensitive environments
4.Typically consists of air-core coils (no iron core) or iron-core designs with air gaps, ensuring good magnetic linearity and avoiding saturation

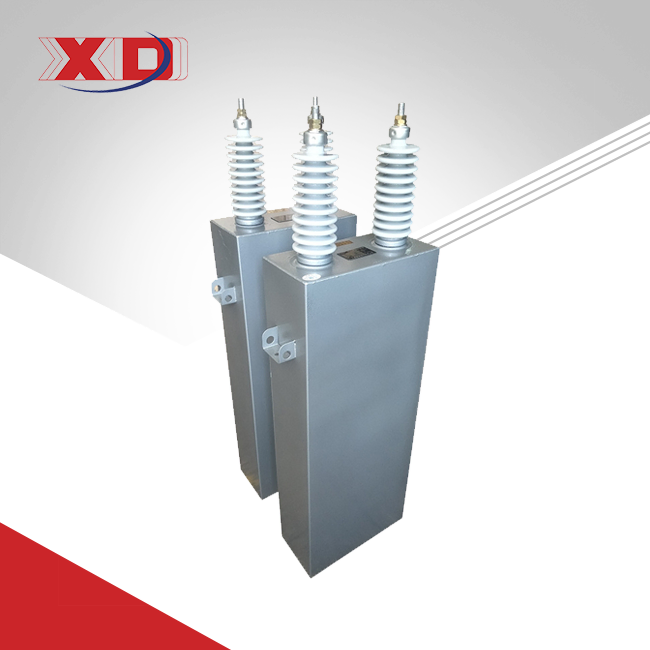

High voltage Single Phase Filter Capacitor
1.Equipped with discharge resistors
2.New structures and new technology, high reliability.
3.Low noise, high resistance to overload ability, electric property have reached the international advanced level.
4.With the international advanced technology of internal fuses, ensure product operation reliability.
Improved the connection method of discharge resistance and solved the over-voltage problem of series section.
5.No leakage, new type of bushings automatic argon arc welding tanks.
Self-Healing Low-Voltage Filter Capacitors
1.Uses metallized polypropylene film (MKP) as the dielectric. If a localized breakdown occurs, the surrounding metal layer evaporates instantly, restoring insulation and preventing failure 2.Encapsulated in epoxy resin or plastic housing, eliminating oil leakage risks and complying with environmental standards 3.rated voltage:440V, 480V, 525V, 690V 4.Rated Capacity: 5-100kvar(per unit)
10KV 3 Phase Filter Capacitor
1.rated voltage:10kv
2.Frequency: 50/60Hz
3.Operating: indoor or outdoor
4.Ambient temperature: -40°C ~ +45°C
( Freezing field can meet - 45C)
5.Wind load: not exceed 35m/s
6.Altitude: not exceed 2000m
7.Icing thickness: not exceed 10mm
8.Seismic strength: 8
9.Pollution level: III or IV
10KV High voltage Shunt High-Voltage Capacitors
1.Rated Voltage:6kV,10kV,35kV
2.Rated Capacity:1-100Mvar(per bank)
3.The capacitor is mainly consisted of container and device body.
4.The core is consisted of severalelements and insulation parts. The element is rolled, pressed andmade of two aluminum foilsand somepiece of thin dielectric polypropylene films sandwiched betweenthe two aluminum foils. In order to reach the differentdemand of voltage and capacity, the elements in core is connected by someseriesand parallelmethod. The technology of aluminum foiledge folding and protruding weldingare used to reduce the loss and increase the performance of partial discharging.
BKMJ0.4KV Submerged Arc Furnace Capacitor
1.Frequency 60Hz
2.Capacitance Deviation -5%~+10%
3.Max Current 2.5×In
Equipped with discharge resistors
4.Integrated with independent over-voltage protection devices
5.Superior self-healing performance and extended service life
6.Low-loss factor, dry-type design with leakage-free construction
7.Equipped with discharge resistors-square BKMJ_1758505876091.webp)
50KVAR Self-healing Capacitor for PFC(Power factor correction)-square BKMJ
1.Rated Voltage(Ue)：100v~1000v
2.Installation Indoor
3.Case material Galvanized steel sheet
4.Output Range 10~100kvar
5.Frequency 50/60Hz
6.Connection configuration D, Y, YN, III
7.Terminal Block ：M6, M8, M10 (According to capacitor power)
8.Lose tanδ<0.001 (20°C 50Hz)
9.Temprature -25°C~50°C
10.Highest Altitude 2000m
11.Capacitor (to wall) pitch ≥50mm
12.Capacitance Deviation -5%~+10%
400V Self-healing Capacitor-cylindrical BKMJ0.46-30-3
1.Rated Voltage(Ue)：250v~525v, up to 2000v
2.Frequency：50/60Hz
3.Compact design，equipped with grounding bolt
4.Potting material: PU resin (soft resin)
5.Easy installation and wiring
6.Small size, Light weight
7.Self-healing, Maintenance-free
