Xi'an Xidian is a professional customized China switchgears supplier and factory, specialized in providing wholesale customized switchgears with low price. For quotation, contact us now.
Switchgears
0

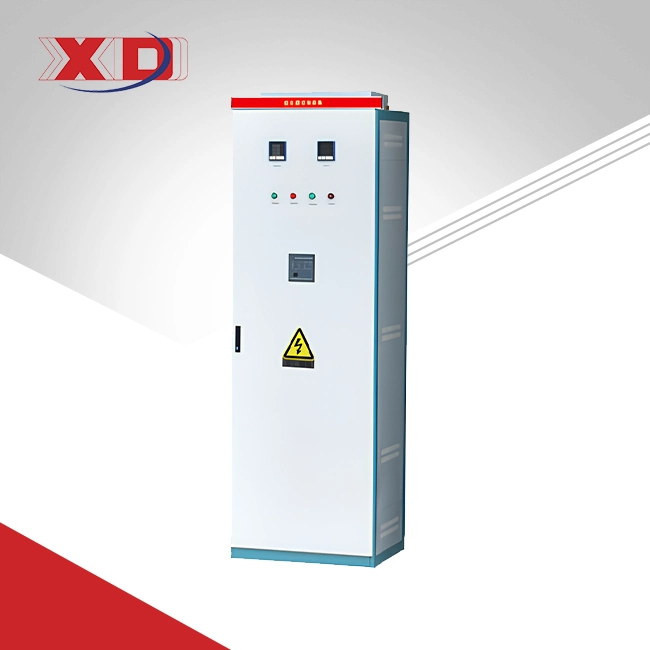

ATS Automatic Transfer Switch
1.Automatic switching between main and backup power.
2.Protection functions: Overvoltage, undervoltage, and phase-loss detection.
3.Mechanical & electrical interlock between breakers to prevent simultaneous closure.
4.Microprocessor-based control for precise voltage monitoring and delayed switching.
5.Generator start signal output for backup power activation.

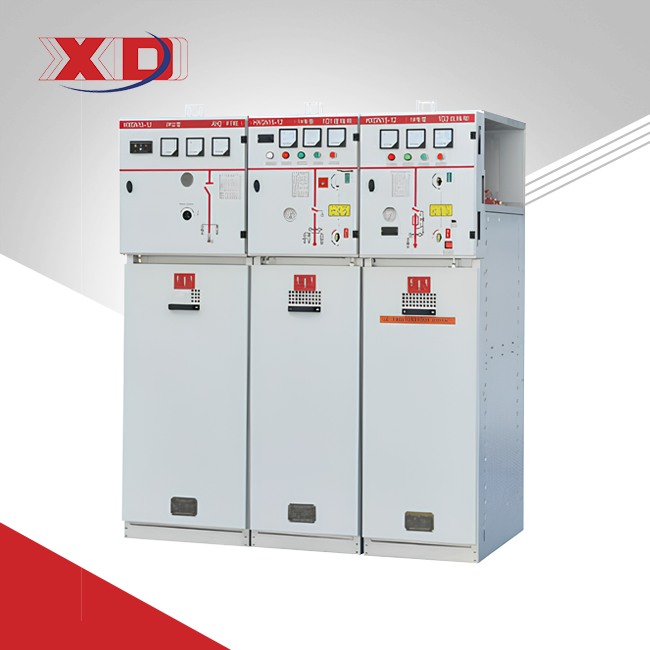

HXGN15-12SF6 Unit-Type AC Metal-Enclosed Ring Main Switchgear
1.Rated Voltage:12kV
2.Rated Frequency:50Hz
3.Altitude：≤2000m
4.Ambient temperature: -10°C ~ +40°C (temperature can be as low as -25°C during transportation and storage)
5.Relative humidity: daily relative humidity < 95% on average; monthly relative humidity < 90% on average
GGD Low Voltage Distribution Switchgear
1.Rated Voltage:380V
2.High breaking capacity & thermal stability.
3.Modular design with flexible configurations.
4.Compact structure, high protection rating.
5.Compliance: IEC60439-1/GB7251.1.
GCS-0.4 Withdrawable Low Voltage Switchgear
1.Rated Frequency:50,60Hz
2.Rated Insulation Voltage:660,1000V
3.High breaking capacity & stability.
4.Flexible configurations for diverse applications.
5.Competitive performance against imported alternatives.
MNS-0.4 Indoor Withdrawable Low Voltage Switchgear
1.Rated Voltage:380,660V
2.Rated Insulation Voltage:660,1000V
3.Configs: fixed or drawer-type.
4.Enclosures: steel or thermoplastic. Applications: Land facilities, power plants (conv./nuclear), marine vessels, offshore platforms.
5.Ambient temperature: -10°C ~ +40°C (temperature can be as low as -25°C during transportation and storage)
KYN61-40.5 Removable Metal-Clad Switchgear
1.Rated Voltage:40.5kV 2.Rated Current:630,1250,1600,2000,2500A 3.Altitude：≤2000m 4.Ambient temperature: -10°C ~ +40°C
KYN28-24 Removable Metal-Clad Switchgear
1.Rated Voltage:24kV 2.Rated Current:630,1250,1600,2000,2500,3150,4000A 3.Five Safety Interlocks (GB3906/IEC298): Prevents load switching errors, live compartment access, and grounding faults. 4.Control & Protection: For power transmission, motor startups, and distribution monitoring. 5.Compatibility: Integrates with NV1-24 vacuum circuit breaker.
KYN28-12 Removable Metal-Clad Switchgear
1.Rated Voltage:12kV
2.Rated Frequency:50Hz
3.Five Safety Interlocks: Blocks circuit breaker errors, live compartment access, and grounding faults.
Applications: Power distribution, motor startups, and grid monitoring.
Compatibility: ABB VD4, VS1 breakers, isolation trucks, and transformers.
