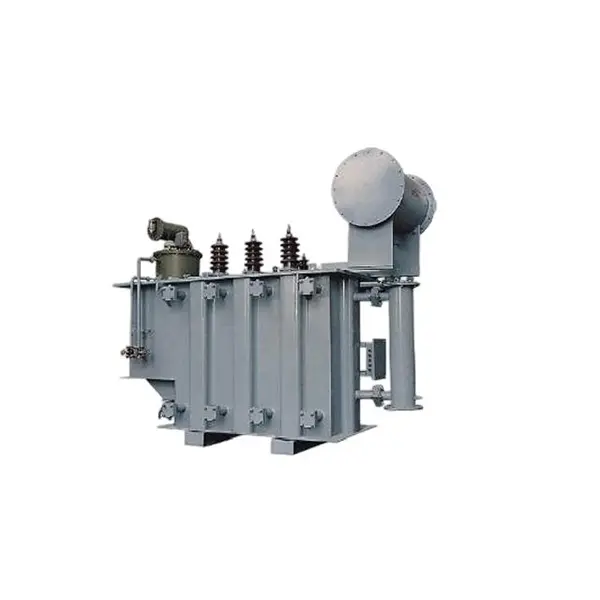

35kV Oil-immersed Power/Distribution Transformer

1.Input voltage:35kV,Output voltage:10.5/6.3/3.15kV
2.Frequency:50/60Hz
3.Capacity:800~31500kva
4.Rated voltage:35kV
5.Winding material:copper\Aluminum
6.Taping range of HV:±5%
7. Features S9 (off-circuit tap changer) and SZ9 (on-load tap changer) models.

Send Inquiry

Download

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

1.35kV Oil-immersed Power/Distribution Transformer: Reliable Energy Solutions for Modern Grids

The 35kV Oil-immersed Power/Distribution Transformer is engineered to deliver stable voltage conversion for industrial, utility, and infrastructure projects. With input voltages up to 35kV and output ranges from 3.15kV to 10.5kV, this transformer ensures efficient energy distribution across diverse applications. Built with copper or aluminum windings and available in capacities from 800kVA to 31,500kVA, it supports both S9 (off-circuit) and SZ9 (on-load) tap changers for precise voltage regulation.

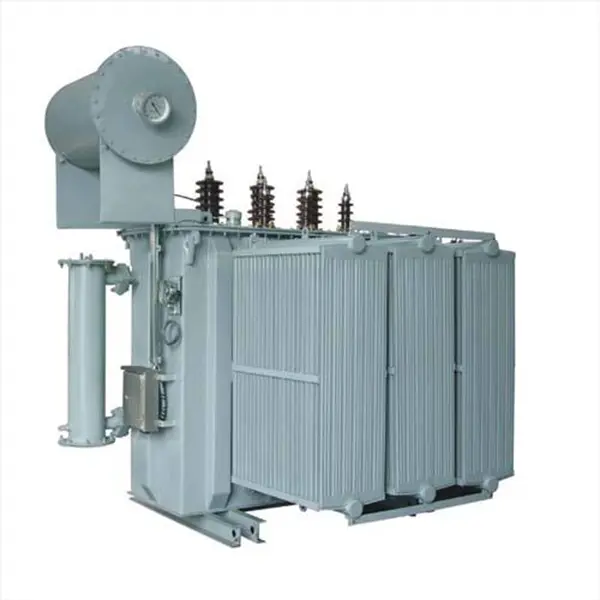

35kV Oil-immersed Power/Distribution Transformer

2.Technical Specifications

Parameter	Details
Input Voltage	35kV
Output Voltage	10.5kV / 6.3kV / 3.15kV/0.4KV
Frequency	50Hz / 60Hz
Capacity Range	800–31,500kVA
Tapping Range (HV)	±5%
Efficiency	≥98.5% at 50–100% load
Noise Level	≤65dB at 1m

Type	Rated Capacity (kVA)	Voltage combination			Connection Symbol	No-load Loss (kW)	Load Loss (kW)	No-load Current	Short-circuit impedance (%)
		HV(kV)	Tapping Range of HV	LV(kV)
SZ9-1000/35	1000	35	±3×2.5%	0.4	Yyn0	1.55	12.78	1.2	6.5
SZ9-1250/35	1250					1.88	15.41	1.2	6.5
SZ9-2500/35	2000		±3×2.5% ±2×2.5%	6.3 10.5	Ydll	2.88	20.25	1.1	6.5
SZ9-3150/35	2500					3.4	21.74	1.1	6.5

3.Key Features & Advantages

1. High Efficiency & Low Losses

Optimized core design reduces no-load losses by 20% compared to conventional models, aligning with global energy-saving mandates.

2. Robust Construction

Withstands short-circuit currents for ≥3 seconds (IEC 60076-5 certified).
Operates reliably in temperatures from -30°C to +45°C.

3. Smart Monitoring Ready

Pre-installed sensors for dissolved gas analysis (DGA) and temperature tracking enable predictive maintenance.

4. Eco-Friendly Design

Leak-proof tank sealing and biodegradable oil options minimize environmental risks.

4.Applications

Be used in a wide range of industries.

Industrial Plants

Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.

Substation

Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.

Commercial Buildings

Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.

5.Design & Construction

The transformer’s layered core structure minimizes magnetic flux leakage, while corrugated tank walls enhance cooling efficiency. Radiators are detachable for easier transportation, and the on-load tap changer (SZ9 model) allows voltage adjustments without interrupting supply.

6.Manufacturing & Quality Control

Every 35kV Oil-immersed Power/Distribution Transformer undergoes:

Material Testing: Grain-oriented silicon steel validated for low hysteresis.
Leak Checks: 24-hour pressure tests at 1.5x rated capacity.
Final Inspection: IEC 60076 compliance audits and load loss verification.

7.Why Choose Us?

Certifications: ISO 9001, ISO 14001,.
R&D Excellence: 15+ patents in transformer cooling and fault detection.
Global Support: 24/7 technical assistance and localized spare parts networks.

Certificate

8.FAQ

1. What tilt angles are safe during transportation?

Max 15° on the major axis and 10° on the minor axis to prevent oil displacement.

2. Can IoT sensors be added post-installation?

Yes—our modular design supports retrofitting for real-time monitoring.

3. How often should oil testing be done?

Annual dissolved gas analysis is recommended for early fault detection.

4. Are seismic-resistant models available?

Yes—units compliant with IEEE 693 are offered for earthquake-prone regions.

9.Contact Us

Email: xaxd_electric@163.com

Request a 35kV Oil-immersed Power/Distribution Transformer customized quote or technical datasheet today!

10.Factory Show

11.Equipment Display

Equipment

12.Application Cases

State Grid systems, power engineering, steel and metallurgy, petrochemicals, rail transportation, energy and water conservancy, construction, environmental protection, and renewable energy sectors
