Xi'an Xidian is a professional customized China capacitors supplier and factory, specialized in providing wholesale customized capacitors with low price. For quotation, contact us now.
Capacitors
0

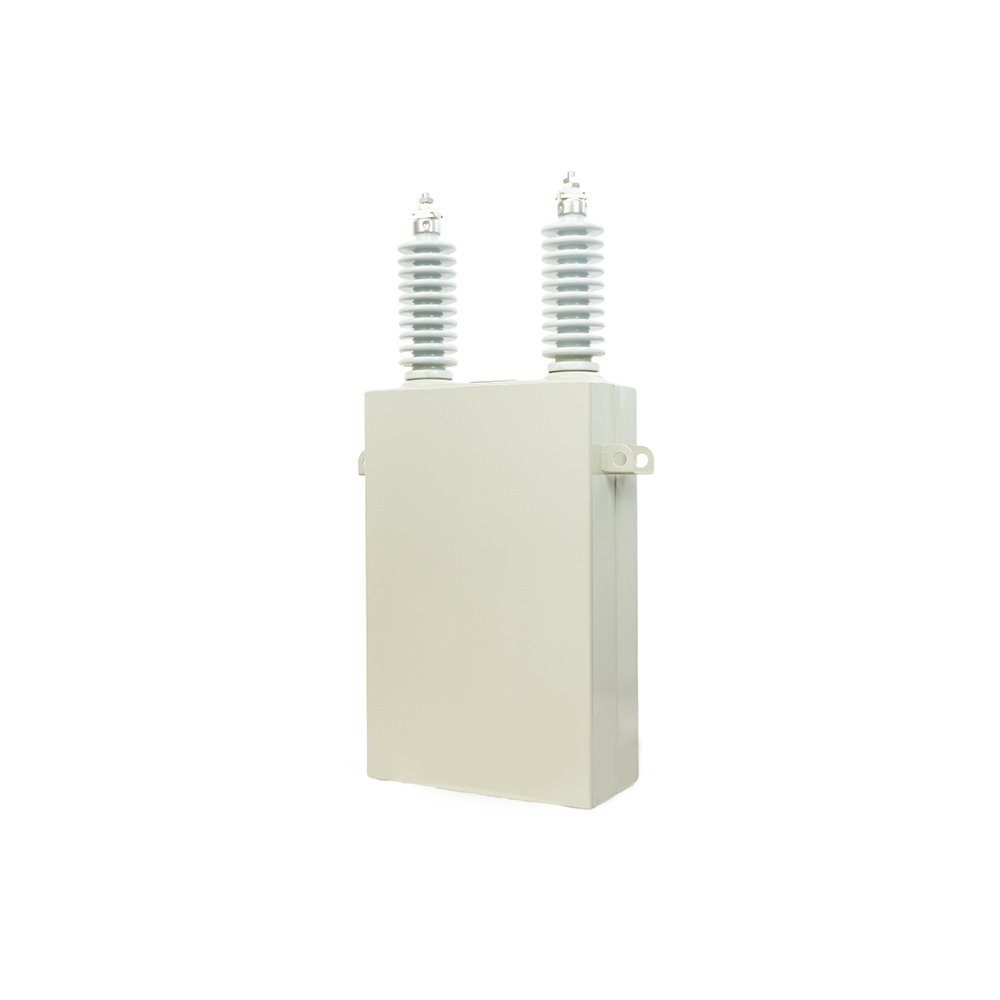

High voltage Single Phase Filter Capacitor
1.Equipped with discharge resistors
2.New structures and new technology, high reliability.
3.Low noise, high resistance to overload ability, electric property have reached the international advanced level.
4.With the international advanced technology of internal fuses, ensure product operation reliability.
Improved the connection method of discharge resistance and solved the over-voltage problem of series section.
5.No leakage, new type of bushings automatic argon arc welding tanks.
Self-Healing Low-Voltage Filter Capacitors
1.Uses metallized polypropylene film (MKP) as the dielectric. If a localized breakdown occurs, the surrounding metal layer evaporates instantly, restoring insulation and preventing failure 2.Encapsulated in epoxy resin or plastic housing, eliminating oil leakage risks and complying with environmental standards 3.rated voltage:440V, 480V, 525V, 690V 4.Rated Capacity: 5-100kvar(per unit)

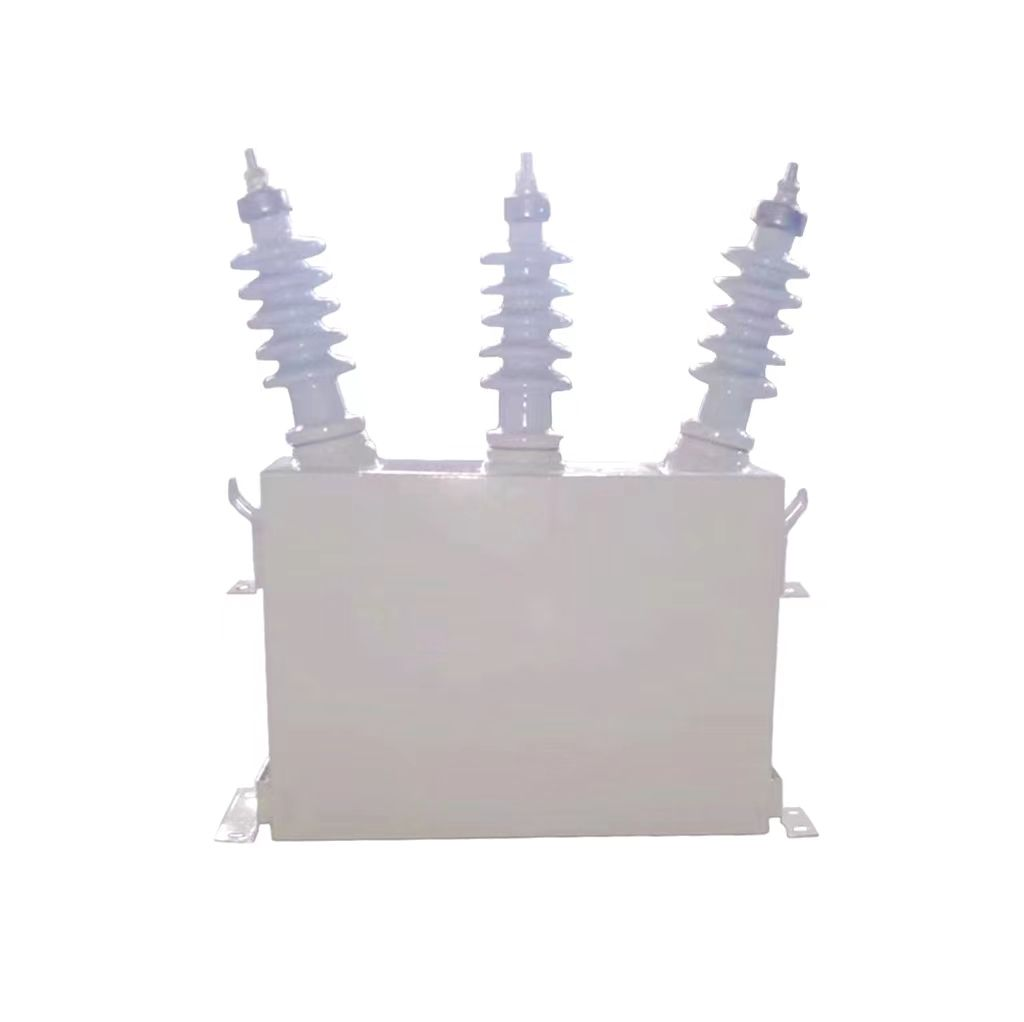

10KV 3 Phase Filter Capacitor
1.rated voltage:10kv
2.Frequency: 50/60Hz
3.Operating: indoor or outdoor
4.Ambient temperature: -40°C ~ +45°C
( Freezing field can meet - 45C)
5.Wind load: not exceed 35m/s
6.Altitude: not exceed 2000m
7.Icing thickness: not exceed 10mm
8.Seismic strength: 8
9.Pollution level: III or IV
10KV High voltage Shunt High-Voltage Capacitors
1.Rated Voltage:6kV,10kV,35kV
2.Rated Capacity:1-100Mvar(per bank)
3.The capacitor is mainly consisted of container and device body.
4.The core is consisted of severalelements and insulation parts. The element is rolled, pressed andmade of two aluminum foilsand somepiece of thin dielectric polypropylene films sandwiched betweenthe two aluminum foils. In order to reach the differentdemand of voltage and capacity, the elements in core is connected by someseriesand parallelmethod. The technology of aluminum foiledge folding and protruding weldingare used to reduce the loss and increase the performance of partial discharging.
BKMJ0.4KV Submerged Arc Furnace Capacitor
1.Frequency 60Hz
2.Capacitance Deviation -5%~+10%
3.Max Current 2.5×In
Equipped with discharge resistors
4.Integrated with independent over-voltage protection devices
5.Superior self-healing performance and extended service life
6.Low-loss factor, dry-type design with leakage-free construction
7.Equipped with discharge resistors-square BKMJ_1758505876091.webp)
50KVAR Self-healing Capacitor for PFC(Power factor correction)-square BKMJ
1.Rated Voltage(Ue)：100v~1000v
2.Installation Indoor
3.Case material Galvanized steel sheet
4.Output Range 10~100kvar
5.Frequency 50/60Hz
6.Connection configuration D, Y, YN, III
7.Terminal Block ：M6, M8, M10 (According to capacitor power)
8.Lose tanδ<0.001 (20°C 50Hz)
9.Temprature -25°C~50°C
10.Highest Altitude 2000m
11.Capacitor (to wall) pitch ≥50mm
12.Capacitance Deviation -5%~+10%
400V Self-healing Capacitor-cylindrical BKMJ0.46-30-3
1.Rated Voltage(Ue)：250v~525v, up to 2000v
2.Frequency：50/60Hz
3.Compact design，equipped with grounding bolt
4.Potting material: PU resin (soft resin)
5.Easy installation and wiring
6.Small size, Light weight
7.Self-healing, Maintenance-free
