Dry-type Air Core Reactor Applications in Renewable Energy Systems

Dry-type air core reactors have become indispensable in modern renewable energy infrastructure. Unlike oil-filled alternatives, these reactors rely on an air-insulated, coreless winding structure that delivers stable inductive reactance without the risk of magnetic saturation. In 110 kV to 500 kV substations, they manage capacitive reactive power generated by long transmission lines, suppress harmonic distortion from inverter-based generation, and protect grid integrity during fault events. As solar, wind, and energy storage capacity continues to grow globally, dry-type air core reactors provide a reliable, low-maintenance, and environmentally responsible solution for power quality management.

Understanding Dry-Type Air Core Reactors in Renewable Energy

What Makes Them Different from Conventional Reactors

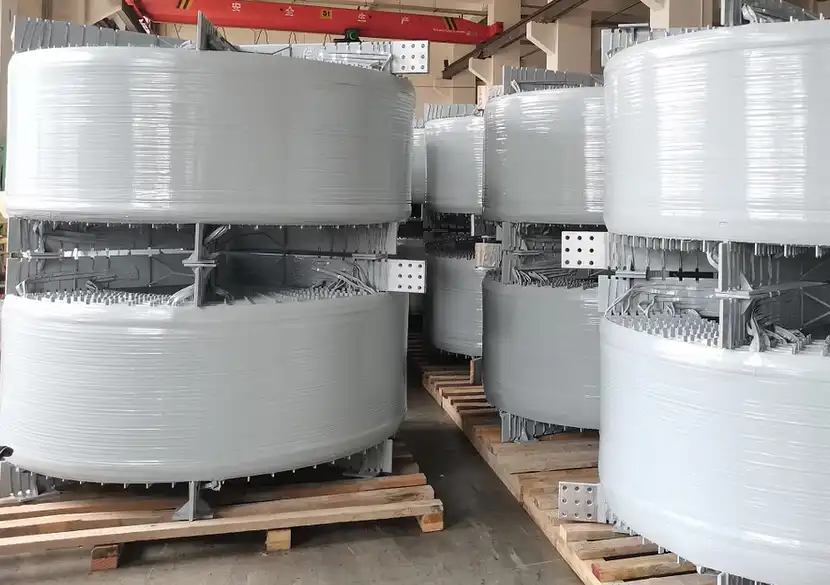

There is no iron core in a dry-type air core reactor. Its winding, which is usually made of crossed aluminum conductors, is surrounded by an epoxy matrix reinforced with fiberglass. This makes a rigid, temperature-stable cylinder. According to IEC 60076-6, insulation class is either F (155°C) or H (180°C), and the inductance stays constant no matter how much current is flowing. This zero-saturation property is something that iron-core designs just can't provide when there is a fault or a lot of load. This is why air-core construction is so valuable when precise current waveforms are needed.

Critical Specifications for Substation and Renewable Projects

When procurement engineers work on 110–330 kV substation projects, the specification sheet is mostly about three things: the ability to withstand dynamic and heat short-circuits, the inductance linearity limit (usually ±3%), and the Basic Impulse Insulation Level (BIL). Partially release levels below 10 pC are normal for good units, which proves that the insulation inside is clean. In parallel setups, current rates can go over 5,000 A. UV-resistant, hydrophobic silicone coats make sure long-term performance in polluted, coastal, or desert settings with temperatures as low as -40°C.

Key Applications of Dry-Type Air Core Reactors in Renewable Energy Systems

Making electricity from renewable sources comes with its own problems that standard grid equipment wasn't made to solve. When wind turbines and solar inverters connect to the grid, they add harmonics, cause voltage to drop quickly, and make a lot of capacitive reactive power through long cable runs. Dry-type air core reactors provide precise and consistent solutions to all three problems that have been tested in thousands of field operations.

Wind Power Plants and Grid Harmonic Mitigation

A lot of 5th and 7th harmonic material is made by groups of rotor inverters in large wind farms. These harmonics are absorbed by shunt-connected dry-type air core reactors and capacitor banks in tuned filter circuits, which stop them from reaching the transmission system. Because of their built-in uniformity in inductance, filters keep their resonance frequency fixed even when the load changes. This is an important requirement for grid code compliance in places like the US (IEEE 519) and Europe (EN 50160).

Solar PV Substations and Energy Storage Integration

Utility-scale PV solar plants usually connect to the power grid through 110 kV or 220 kV step-up substations. Long underground cables and reactive power from the inverter's output raise the voltage at the receiving end above what is safe. This is called the Ferranti effect. There is a dry-type air core shunt reactor attached to the substation's low-voltage bus. It draws inductive current, which directly fights this capacitive rise. In battery energy storage systems (BESS), reactors also control the flow of current at the AC coupling interface, which keeps switchgear safe from fault-level spikes.

Microgrids and Smart Grid Fault Current Limiting

When the amount of green energy goes over the original design margin, microgrids that are working in "islanded mode" are more likely to experience fault currents. Series-connected dry-type air core reactors lower the potential fault current to a level where existing circuit breakers can safely stop it. This makes old safety equipment last longer. More and more, smart grid designs connect these reactors to IoT sensors that let them monitor inductance and temperature trends in real time. This lets maintenance plans be made ahead of time.

Comparison and Selection Criteria for Dry-Type Air Core Reactors

Dry-Type vs. Oil-Filled vs. Iron-Core: A Practical Assessment

Oil-filled reactors hold dielectric fluid that needs to be samplified, dissolved gas analyzed (DGA), and inspected for leaks on a regular basis. These upkeep tasks add cost and complexity to remote green energy sites. When currents get too high, iron-core reactors saturate, which causes their own harmonic distortion and makes filters less effective. Both problems are solved by dry-type air core reactors. Their solid shielding system doesn't need to be managed with oil, and the air core makes sure that the inductance stays stable from zero to the highest short-circuit current.

Here are the core selection criteria engineering teams should evaluate during procurement:

• Dynamic and thermal short-circuit withstand: Under dynamic and thermal short-circuit conditions, the enclosed wire must be able to withstand electromagnetic forces in both directions during fault events without breaking or delaminating. IEC 60076-6 spells out both the amount of test power and how long it should last.
• BIL and pollution class: For outdoor installations, support insulators must have the right creepage distance and a surface layer that is rated for the pollution intensity level of the site (IEC 60815).
• Stray magnetic field clearance: Since there is no iron return path, the outside magnetic field goes farther than with iron-core options. To keep nearby structural steel, fencing, or control cable trays from getting too hot from eddy currents, manufacturers must include magnetic clearance maps.
• Type test documentation: Procurement managers at EPC companies and design schools always say that witnessed type test records that cover noise, temperature rise, impulse withstand, and partial discharge are a must-have for approval.

These standards set the technical bar for separating approved providers from those who can't meet the strict needs of 110–330 kV renewable energy substations. From the very beginning of the design process, making sure that standards are in line with IEC 60076-6 and IEEE C57.16 cuts down on rework and speeds up the approval process with grid operators.

Introducing the BKGKL Dry-Type Air Core Shunt Reactor

Parallel Compensation, Modular Design, and Global Compliance

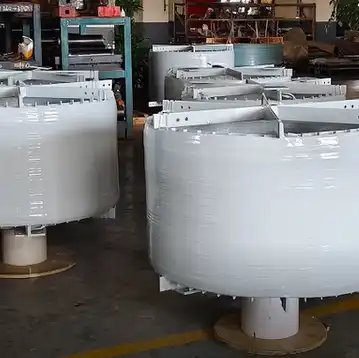

The BKGKL series from Xi'an Xikai is designed to be connected in parallel on the low-voltage bus of 110 kV, 220 kV, and 500 kV substations. It balances out capacitive reactive power on long transmission corridors and keeps the system voltage stable. The design combines aluminum windings with an epoxy coating system that can handle continuous use at high temperatures. With modular building, you can go from installing a single unit to banks of three or more units per job.

Here are the core advantages that distinguish the BKGKL reactor in competitive procurement:

• Overheating prevention: Aluminum wires encased in epoxy keep their thermal integrity under steady load and short-term overcurrents of up to 100 rated capacity for the given withstand time.
• Low operational cost: The dry-type air core reactor construction doesn't need any oil management, so there are no costs for lifecycle maintenance and no need for infrastructure for fire suppression.
• Global certification readiness: Units are already designed to meet the requirements for CE, UL/cUL, and GOST-R certification, which means they are ready for use on Belt and Road projects in a wide range of regulatory environments.
• Custom configuration options: versions that can withstand desert conditions (IP55), earthquakes (Zone 4), and internet of things (IoT) can be used to track inductance and temperature in real time.
• Environmental alignment: building without SF6 and choosing recyclable materials help meet project sustainability reporting requirements.

These advantages make the BKGKL a strong fit for EPC workers who are in charge of substation packages that need to show proof of performance, have licenses checked, and have access to full type test reports. There is a strict order to quality control: tier-1 aluminum and epoxy resin purchasing, automatic winding production for consistent dimensions, 100% impedance verification, partial discharge testing to below 10 pC, and approval to ISO 9001 and ISO 14001.

Maintenance and Operational Best Practices

Routine Inspection Protocol

It is much easier to maintain a dry-type air core reactor than an oil-filled one. As part of a regular inspection, the surface coating is looked at for UV damage or tracking marks. The torque on all primary and earthing terminals is checked, and support insulators that are in areas with a lot of pollution deposits are cleaned. There is no need to take oil samples, do a DGA, or fix leaks.

Stray Field Management and Installation Clearance

When planning the installation, the stray magnetic field that goes beyond the reactor shell must be taken into account. When planning the layout of a substation, the manufacturer's clearance map should be used to find the minimum distances to metal fences, concrete reinforcing rebar, control cable routes, and equipment next to the substation. Animal guards and bird caps on support insulators cut down on flashovers caused by wildlife in outdoor setups.

Conclusion

Grid infrastructure has to deal with demands that regular equipment wasn't made to handle by itself when renewable energy is added. Dry-type air core reactors help keep the voltage stable, get rid of harmonics, and limit fault currents for all types of power plants, from large-scale wind and solar to battery storage and microgrids. They are a good choice for 110–500 kV substation projects because they have a linear inductance, are oil-free, and have been tested and shown to meet the requirements of IEC 60076-6. Power grid operators around the world are making it more important to choose the right shunt or filter reactor early on in the planning process. This is still one of the most important decisions an EPC project team can make.

FAQ

1. How does a dry-type air core reactor improve power quality in renewable energy substations?

It adds exact inductive reactance that soaks up capacitive reactive power from networks with lots of cables and acts as the inductive part of tuned harmonic filters, lowering voltage harmonic distortion to levels that meet IEEE 519 and IEC standards.

2. What is the key difference between a dry-type air core reactor and an oil-filled shunt reactor?

For insulation and cooling, an oil-filled unit uses dielectric liquid, which needs DGA samples and leak control. A dry-type air core reactor has solid epoxy-encapsulated windings, so there is no need for oil-based upkeep or fire risk.

3. What magnetic clearance is required during outdoor installation?

Since there is no iron core inside the coil, the magnetic flux is spread out in all directions from the winding. During the plan design of a substation, the manufacturer's clearance paperwork must be looked over to make sure that eddy current doesn't heat up the metalwork and nearby cable systems.

Partner with Xi'an Xikai for Reliable Dry-Type Air Core Reactor Supply

Xi'an Xikai provides approved, project-specific dry-type air core reactor solutions for 110–500 kV substations. These solutions come with full type test documents and have been used in over 30 countries for more than 25 years. Our engineering team can help with both design confirmation and testing for your EPC project, whether it needs standard shunt reactors or harmonic filter reactors that are made for a specific application. Get in touch with us right away to talk about your needs and ask for a technology plan.

Visit xaxd-electric.com or contact our team directly: serina@xaxd-electric.com | amber@xaxd-electric.com | luna@xaxd-electric.com

References

1. International Electrotechnical Commission. IEC 60076-6: Power Transformers – Part 6: Reactors. IEC, 2007.

2. IEEE Power and Energy Society. IEEE C57.16: Standard Requirements, Terminology, and Test Code for Dry-Type Air-Core Series-Connected Reactors. IEEE, 2011.

3. International Energy Agency. Renewables 2023: Analysis and Forecast to 2028. IEA, 2023.

4. Mohan, N., Undeland, T. M., & Robbins, W. P. Power Electronics: Converters, Applications, and Design. Wiley, 2003.

5. Hingorani, N. G., & Gyugyi, L. Understanding FACTS: Concepts and Technology of Flexible AC Transmission Systems. IEEE Press, 2000.

6. Das, J. C. Power System Harmonics and Passive Filter Designs. Wiley-IEEE Press, 2015.
