22kV Line Compensation Capacitor Bank
2.Reliable Protection: Comprehensive high/low-voltage protection ensures safe and reliable operation with minimal maintenance.
3.Space-Saving & Cost-Effective: Compact footprint, reduced investment, short production cycle, and easy mobility.
4.Flexible Configurations: Supports diverse electrical wiring schemes.
5.Robust Structure:
5.1Unique honeycomb-structured double-layer (composite panel) enclosure for enhanced durability, thermal insulation, and ventilation.
5.2High ingress protection (IP) rating.
5.3Material options: Stainless steel soft alloy, aluminum alloy, cold-rolled steel, or color-coated steel.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
22kV Line Compensation Capacitor Bank
Product Introduction

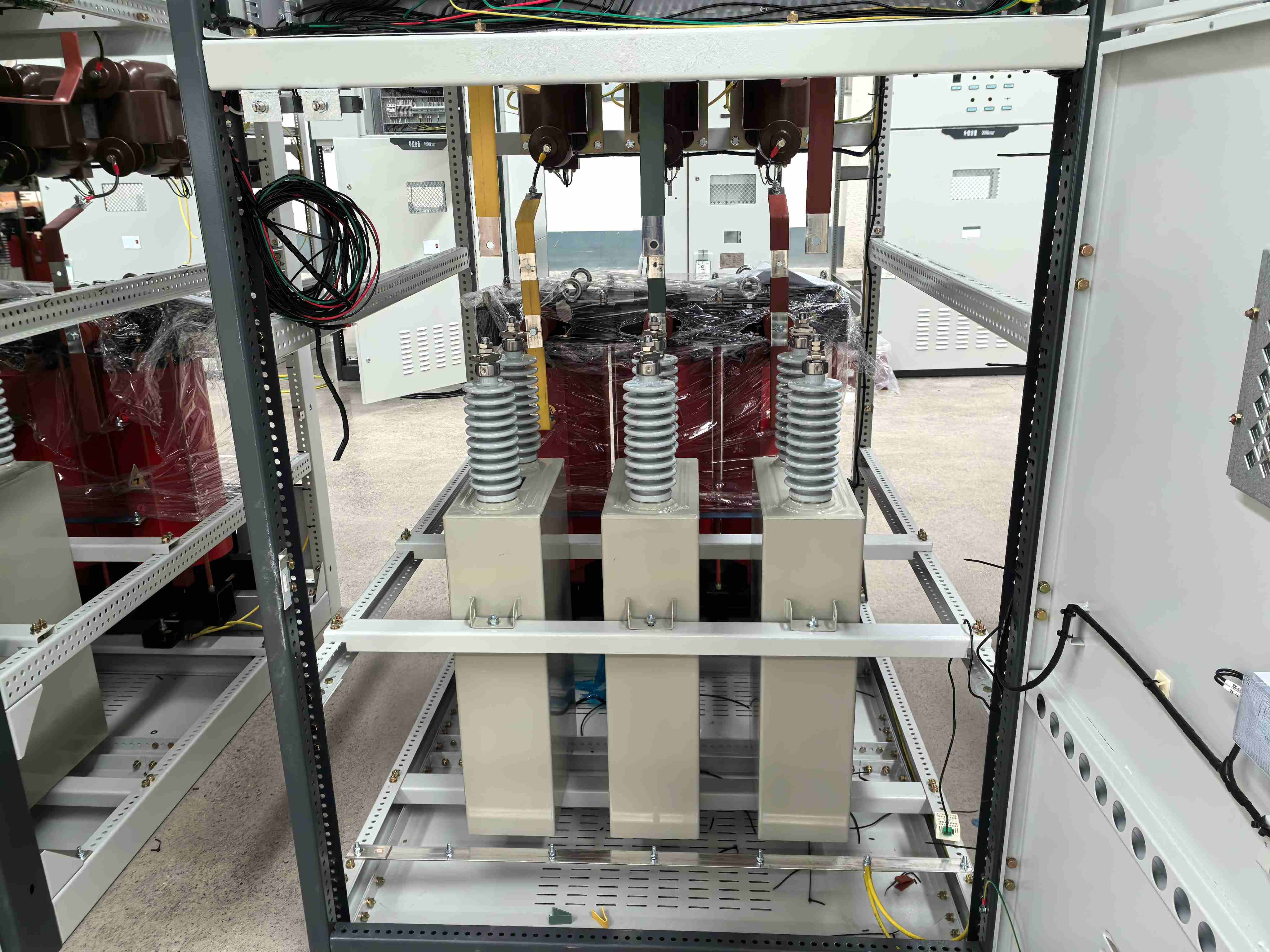

Your electrical distribution network deserves the best reactive power solution. Our 22kV Line Compensation Capacitor Bank is a sophisticated medium-voltage reactive power compensation system specifically engineered for 22kV distribution networks and industrial substations. This advanced equipment combines high-voltage capacitor units, intelligent protection devices, and robust switching mechanisms to deliver superior power factor correction. Unlike basic low-voltage capacitors, our banks integrate HRC fuses, unbalance protection, inrush limiting reactors, and vacuum switches within weather-resistant enclosures designed for demanding industrial environments.
You'll experience immediate benefits including voltage stabilization, reduced transmission losses, and enhanced system capacity. Our banks solve critical distribution management challenges by providing local reactive power support exactly where you need it most.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 22kV (24kV max system voltage) |
| Frequency | 50/60Hz |
| Power Rating | 100-5000 kVAR (customizable) |
| Basic Impulse Level (BIL) | 125kV/150kV |
| Dielectric Technology | All-film polypropylene with biodegradable oil |
| Dielectric Losses | <0.15 W/kvar |
| Environmental Rating | IP54/IP55 outdoor rated |
| Operating Temperature | -40°C to +50°C |
| Enclosure Material | Hot-dip galvanized steel/Stainless steel |
| Protection Class | Class IV pollution resistance |
| Standards Compliance | IEC 60871, IEEE 18 |
| Discharge Time | Residual voltage to 50V within 5 minutes |
Main Features and Advantages
Advanced Harmonic Protection
Our banks feature integrated detuned reactors (6%, 7%, or 13%) that prevent dangerous resonance with network harmonics. This protects your capacitor elements from overload and extends equipment lifespan significantly.
Intelligent Switching Technology
You benefit from Automatic Power Factor Controllers (APFC) with vacuum contactors for seamless, transient-free switching. The system automatically adjusts reactive power steps based on real-time demand.
Superior Protection Systems
Our banks include Neutral Voltage Displacement (NVD) and Neutral Current Sensing (NCS) for immediate fault detection. This prevents catastrophic failures and ensures safe operation.

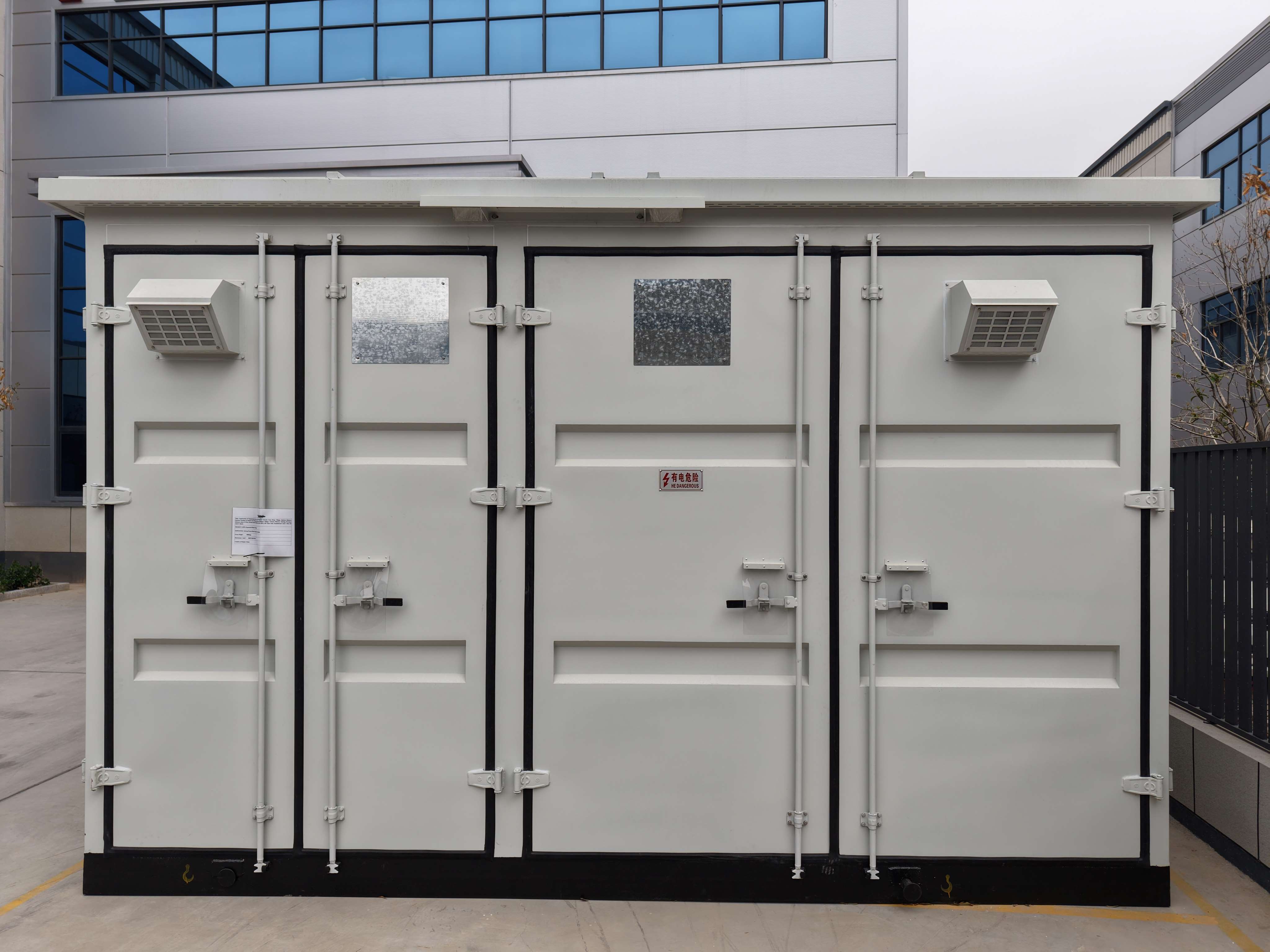

Robust Construction
Weather-resistant enclosures with high ingress protection ratings ensure reliable performance in harsh environments. Stainless steel options available for coastal installations.
Practical Applications
Industrial Facilities
Perfect for manufacturing plants with large motor loads requiring power factor correction to avoid utility penalties and reduce energy costs.
Distribution Networks
Ideal for utilities managing long radial feeders where voltage drops occur at remote locations. Our 22kV Line Compensation Capacitor Bank provides local voltage support.
Mining Operations
Excellent for remote mining facilities requiring reliable power quality and reduced transmission losses over long distances.
Commercial Buildings
Suitable for large commercial complexes with significant air conditioning and elevator loads requiring reactive power compensation.
How It Works
Your 22kV Line Compensation Capacitor Bank operates by injecting reactive power directly into the distribution network. When inductive loads create lagging power factor, our system automatically switches capacitor steps to provide leading reactive current.
The intelligent controller monitors real-time power factor and voltage levels. It activates the appropriate number of capacitor steps through vacuum contactors to maintain optimal power factor near unity.
Internal protection systems continuously monitor for faults. If an element fails, the protection relay immediately isolates the affected section while maintaining operation of healthy elements.
Manufacturing Excellence
Xi'an Xidian Medium and Low Voltage Electric Co., Ltd. brings decades of expertise to every 22kV Line Compensation Capacitor Bank we manufacture. Our state-of-the-art facility maintains strict quality control throughout production.
We utilize advanced all-film dielectric technology with non-PCB biodegradable insulating fluids. Every unit undergoes comprehensive testing including partial discharge verification and impulse withstand tests.
Our manufacturing processes comply with ISO9001 quality management standards. We maintain ISO14001 environmental certification and OHSAS18001 occupational safety standards.
Quality assurance includes thermal cycling tests, vibration testing, and environmental chamber validation to ensure your equipment performs reliably for 15-20 years of service life.
Why Choose Us
Proven Track Record
Our products serve customers across power, metallurgy, petrochemical, railway, and construction industries. We understand your specific application requirements.
Technical Innovation
As participants in China's National 863 Project, we continuously invest in research and development. Our engineering team holds multiple patents in medium-voltage technology.
Comprehensive Service
You receive complete support from initial consultation through installation and maintenance. Our technical team provides customized solutions for your unique requirements.
Global Standards
All products meet international standards while incorporating the latest technological advances. We ensure compatibility with existing systems worldwide.
FAQ
Q: How do you prevent harmonic resonance in our system?
A: We install series detuned reactors rated at 189Hz for 50Hz systems. This shifts resonant frequency below dominant harmonics, preventing amplification and protecting your equipment.
Q: What maintenance schedule do you recommend?
A: Annual comprehensive inspections including visual checks, thermal imaging of connections, and capacitance measurements. This ensures optimal performance and early fault detection.
Q: Can these banks operate in coastal environments?
A: Absolutely. We specify stainless steel enclosures, silicon rubber bushings with high creepage distance, and IP55 protection ratings for salt fog resistance.
Q: How do you handle switching transients?
A: Our vacuum contactors include pre-insertion resistors and inrush limiting reactors that dampen high-frequency currents during energization, protecting both capacitors and switchgear.
Q: What lifespan can we expect?
A: With proper maintenance and harmonic protection, expect 15-20 years of reliable service. Our design accounts for voltage fluctuations and temperature cycling.
Contact Us
Ready to optimize your power system with our advanced 22kV Line Compensation Capacitor Bank? Our technical specialists are standing by to discuss your specific requirements and provide customized solutions.
Contact our team today for detailed specifications, pricing, and technical consultation. We'll help you select the optimal configuration for your application.
Email: serina@xaxd-electric.com
Let us help you achieve superior power factor correction, reduced energy costs, and enhanced system reliability with our proven medium-voltage solutions.
