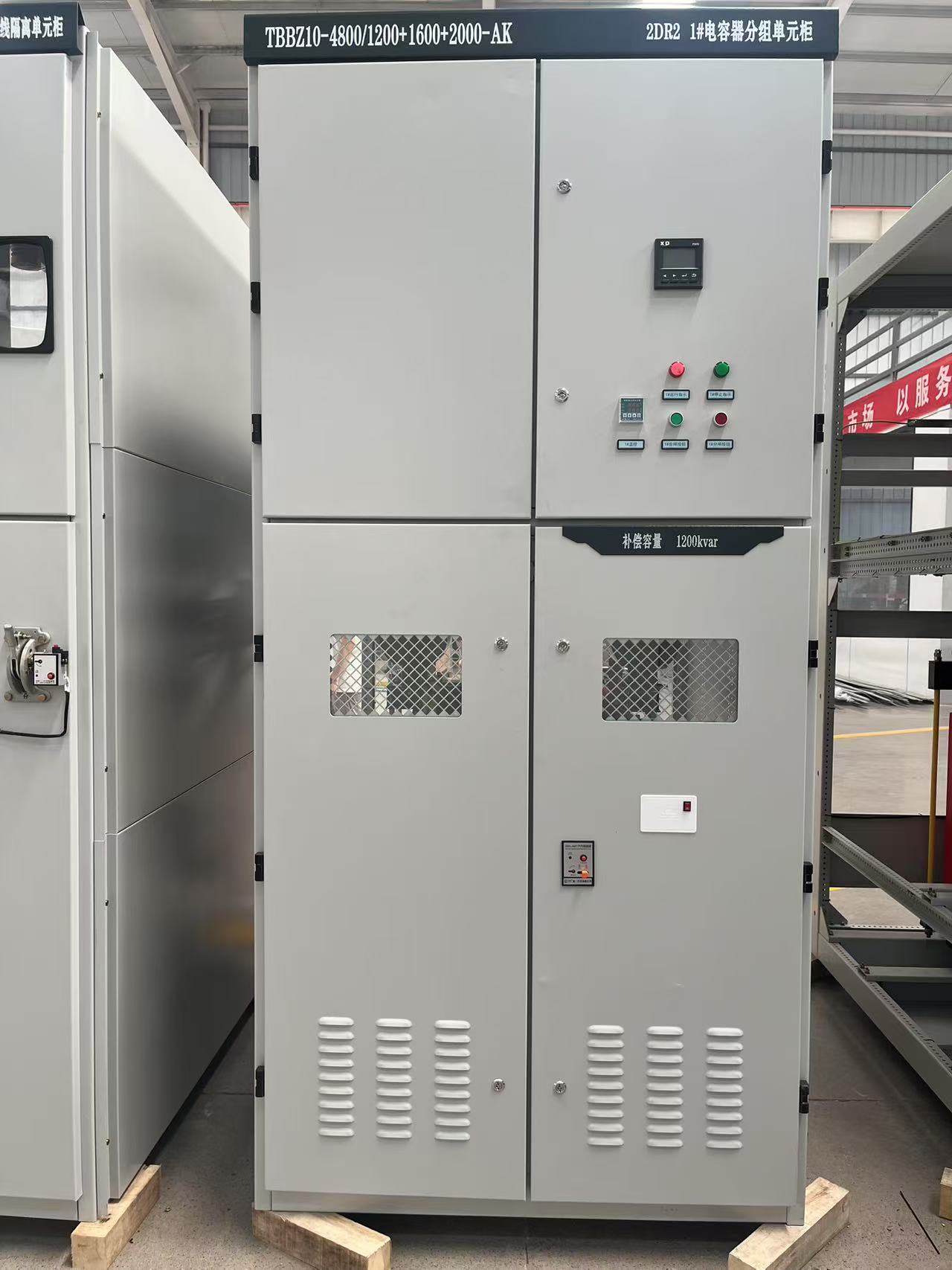

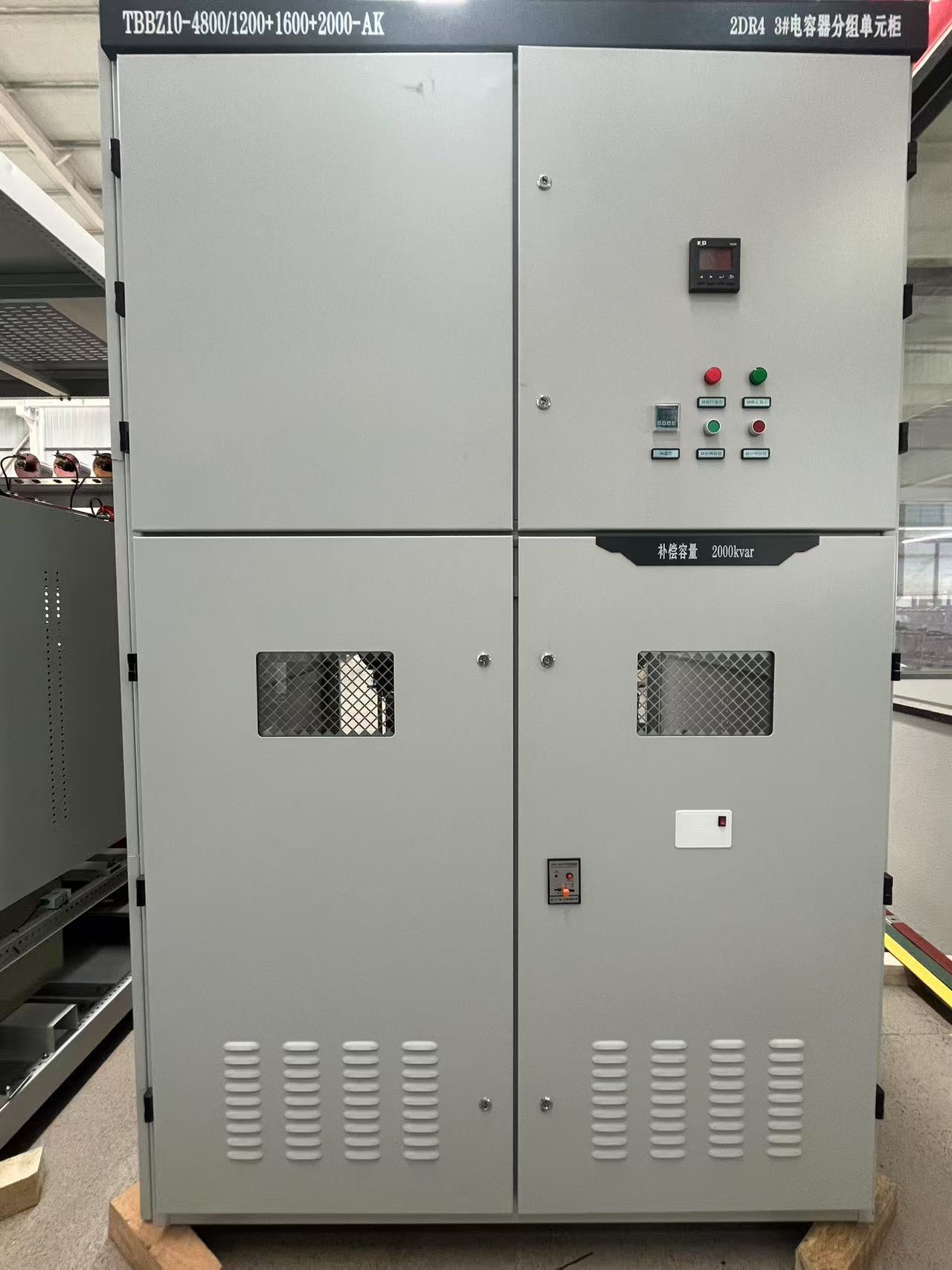

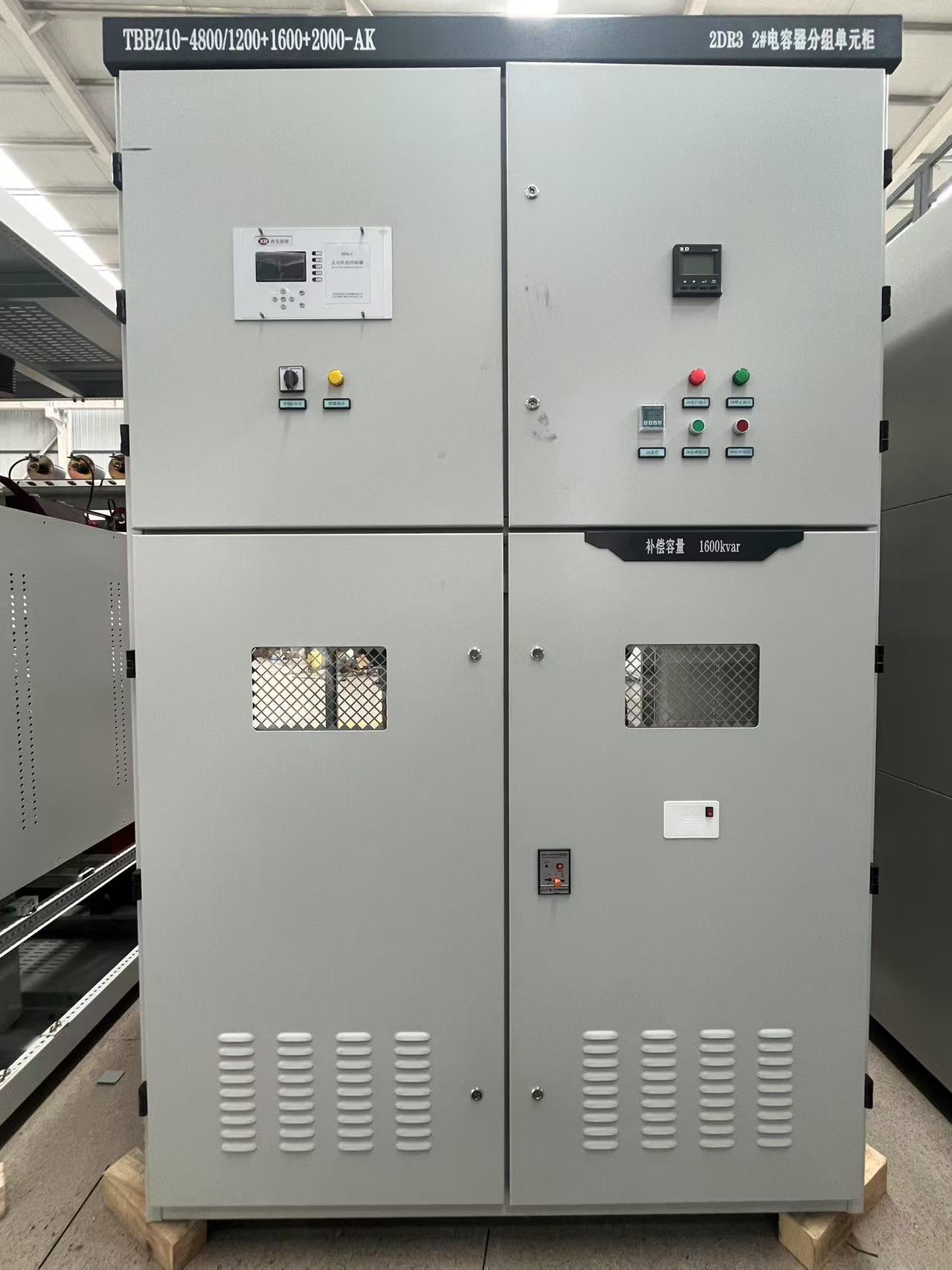

Automatic Capacitor Bank - Advanced Power Factor Correction Solution

Product Introduction

Are you struggling with high electricity bills due to poor power factor? Our automatic capacitor bank offers the perfect solution for your facility's reactive power management needs. This sophisticated electrical distribution component dynamically regulates your power factor by intelligently switching capacitor steps based on real-time load requirements. Unlike static compensation systems that provide fixed reactive power, our automatic capacitor bank utilizes advanced microprocessor-based controllers to continuously monitor your system's reactive power demand and phase relationships between voltage and current.

Your facility will benefit from eliminated utility power factor penalties, increased transformer and cable capacity, and stabilized voltage levels. This makes our system ideal for industrial applications with heavy inductive loads such as motors, transformers, and welding equipment.

Technical Specifications

Main Features and Advantages

Intelligent Control System: Our microprocessor-based controller provides precise reactive power management with real-time monitoring capabilities.

Zero-Crossing Technology: Advanced switching prevents inrush current transients, protecting your equipment and extending system life.

Harmonic Filtering: Built-in series reactors protect against grid pollution and prevent dangerous resonance conditions.

Modular Design: Easy installation and maintenance with compact, space-saving configuration that reduces your facility's footprint.

Self-Healing Capacitors: Metalized polypropylene film technology with overpressure disconnectors ensures maximum safety and reliability.

Weather Resistance: High mechanical strength with excellent sealing performance for outdoor applications.

Practical Applications

Heavy Industrial Manufacturing: Perfect for steel plants and automotive facilities where electric arc furnaces and spot welding machines create fluctuating loads. Our thyristor-switched banks provide real-time compensation to prevent voltage flicker.

Commercial Infrastructure: Data centers and hospitals benefit from clean power delivery. The system maximizes backup generator efficiency during outages while maintaining critical system operations.

Mining and Cement Operations: Specialized heavy-duty enclosures protect internal components in harsh environments while reducing transmission losses over long cable runs typical in mining applications.

Automotive Assembly Lines: Essential for facilities using variable frequency drives and robotics, where stable voltage prevents logic errors in PLCs and automation equipment.

How It Works

Your automatic capacitor bank continuously monitors the phase relationship between voltage and current in your electrical system. When the controller detects lagging power factor due to inductive loads, it automatically switches capacitor steps into the circuit. This process happens seamlessly without interrupting your operations.

The intelligent controller calculates the exact amount of reactive power compensation needed. It then activates the appropriate combination of capacitor steps to achieve optimal power factor correction. As your load conditions change throughout the day, the system automatically adjusts to maintain peak efficiency.

Manufacturing Excellence

Xi'an Xidian Medium and Low Voltage Electric Co., Ltd. brings decades of expertise in power distribution equipment manufacturing. Our facilities maintain ISO9001 quality management certification along with ISO14001 environmental and OHSAS18001 safety certifications.

We utilize advanced testing equipment to ensure every unit meets stringent quality standards. Our products comply with IEC 61921 and IEC 61439 international standards, guaranteeing reliable performance in demanding industrial environments.

Our experienced engineering team provides comprehensive system design support. We work closely with you to develop customized solutions that address your specific power quality challenges.

Why Choose Us

Proven Track Record: Our products serve customers across power, metallurgy, petrochemical, railway, and construction industries with exceptional reliability.

Comprehensive Product Range: We offer complete medium and low voltage solutions from 0.4kV to 40.5kV with rated currents from 630A to 4000A.

Technical Innovation: As participants in national technology development projects, we continuously integrate cutting-edge technologies into our products.

Professional Support: Our technical team provides expert consultation, custom design services, and comprehensive after-sales support.

Quality Assurance: Rigorous testing procedures and quality control systems ensure consistent product performance and longevity.

FAQ

Q: What power factor improvement can I expect?

A: Our systems typically improve power factor from 0.7-0.8 to 0.95 or higher, resulting in significant energy cost savings.

Q: How quickly does the system respond to load changes?

A: Response time varies by technology - contactors respond within 1-2 seconds, while thyristor systems respond in less than 20 milliseconds.

Q: Can the system handle harmonic distortion?

A: Yes, our detuned reactor designs prevent harmonic resonance and can actually help filter existing harmonics in your system.

Q: What maintenance is required?

A: Minimal maintenance is needed - annual visual inspections and periodic capacitor testing ensure optimal performance.

Q: Do you provide custom solutions?

A: Absolutely! We specialize in designing systems tailored to your specific load profile and facility requirements.

Contact Us

Ready to optimize your facility's power factor and reduce energy costs? Our technical experts are here to help design the perfect automatic capacitor bank solution for your application.

Email: serina@xaxd-electric.com

Let us analyze your power quality challenges and provide a customized proposal that delivers measurable results. Contact us today to schedule your consultation and take the first step toward improved electrical efficiency.
