capacitor bank for power factor correction
2.Capacity range: 300 kvar to 240 Mvar;
3.Large creepage distance, strong pollution resistance. High mechanical strength and seismic performance. Excellent sealing performance.
4.simple and compact structure, neat wiring, and aesthetically pleasing appearance reduce footprint and installation/maintenance workload.
5.Ambient temperature: -25℃ ~+45℃;
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

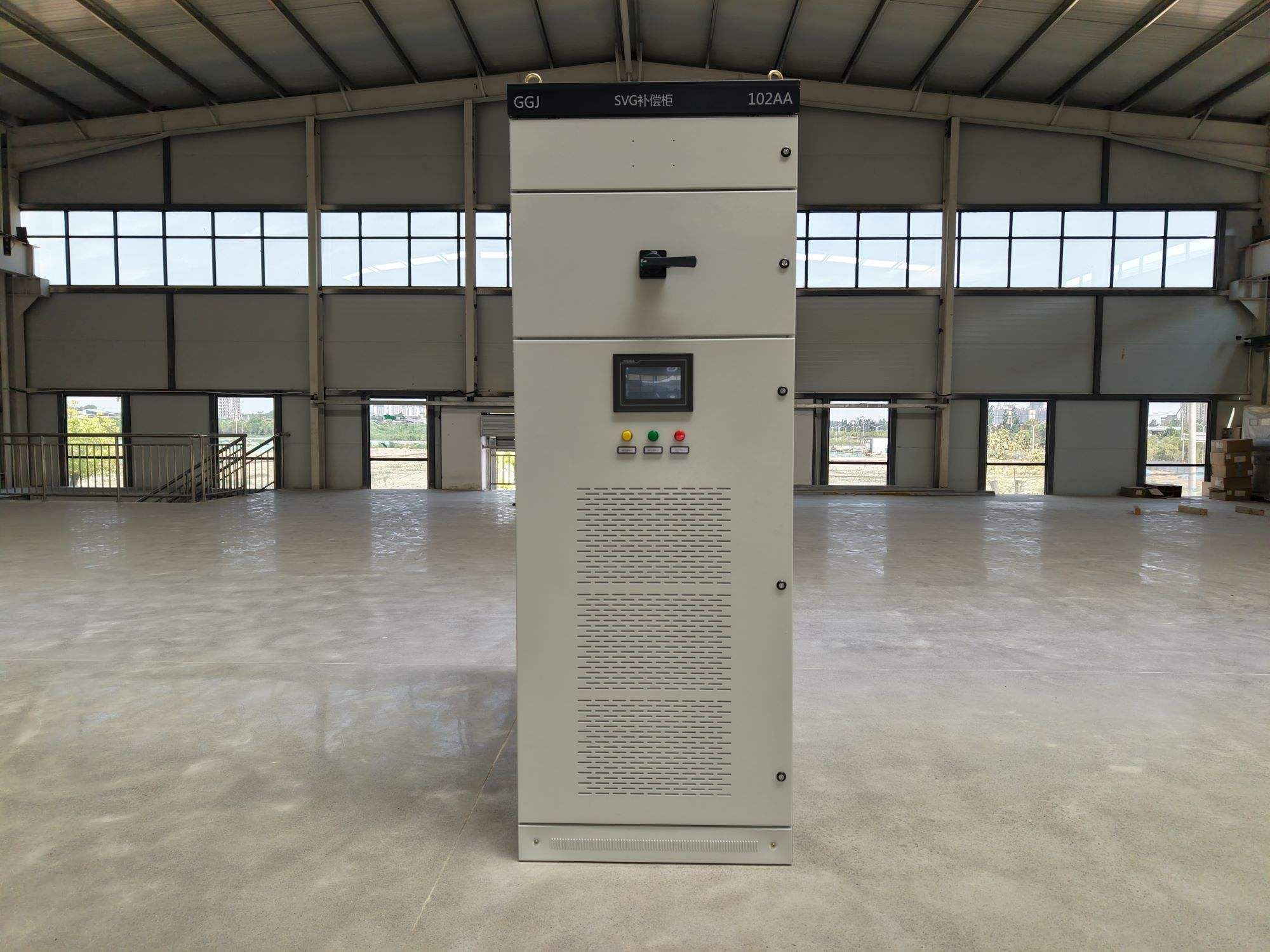

Capacitor Bank for Power Factor Correction
Product Introduction
Improve your electrical system's efficiency with our advanced capacitor bank for power factor correction. This engineered assembly combines high-quality capacitor units, intelligent switching devices, and smart controllers to optimize your power system performance. Our power factor correction solutions address the reactive power challenges that burden your electrical network, helping you eliminate utility penalties while enhancing overall system reliability. With proven technology and robust construction, our products deliver consistent results across diverse industrial applications.
Your electrical system deserves better performance. Our capacitor bank solutions provide the reactive power compensation your facility needs to operate at peak efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| System Voltage | 0.4kV - 40.5kV |
| Capacity Range | 300 kVAR - 240 MVAr |
| Rated Current | 630A - 4000A |
| Ambient Temperature | -25℃ to +45℃ |
| Altitude Performance | Up to 4000m above sea level |
| Dielectric Losses | <0.2W/kVAR |
| Temperature Class | Class D (55°C) |
| Switching Response | Within 20ms |
| Standards Compliance | IEC 60831, IEC 61921, National Standards |
| Operational Life | >100,000 hours |
Main Features and Advantages
Self-Healing Technology: Our metallized polypropylene film capacitors feature advanced self-healing capabilities. When localized breakdowns occur, the electrode vaporizes automatically to restore insulation integrity.
Intelligent Control System: Integrated Automatic Power Factor Controllers (APFC) provide precise multi-step switching. Your system responds dynamically to changing load conditions without manual intervention.
Harmonic Protection: Optional detuning reactors (7% or 14%) prevent dangerous resonance frequencies. This protection shields your equipment from harmonic distortion damage.
Robust Construction: Large creepage distances and high mechanical strength ensure reliable operation in challenging environments. Superior sealing performance protects internal components.
Compact Design: Space-efficient layout reduces your installation footprint. Neat wiring and aesthetic appearance simplify maintenance procedures.
High Current Handling: Exceptional inrush current withstand capabilities up to 200x rated current protect against switching transients.
Practical Applications
Heavy Industrial Manufacturing: Steel mills and cement plants benefit from real-time compensation for large induction furnaces and variable frequency drives. Our thyristor switching modules handle rapid load changes while filtering harmonic distortion.
Commercial Facilities: Data centers and buildings with extensive HVAC systems use our capacitor bank for power factor correction to maximize power usage effectiveness. Specialized configurations prevent resonance with IT equipment power supplies.
Utility Distribution: Outdoor pole-mounted and substation installations support voltage stability across long transmission lines. These systems reduce distribution losses during peak demand periods.
Manufacturing Plants: Motor-heavy environments rely on our solutions to eliminate utility penalty charges while releasing trapped transformer capacity for future expansion.
How It Works
Your electrical loads create two types of power demand: active power (measured in kW) that performs useful work, and reactive power (measured in kVAR) that magnetizes motors and transformers.
Poor power factor occurs when reactive power dominates your system. Utilities charge penalties because they must generate and transmit this non-productive power through their networks.
Our capacitor bank for power factor correction injects leading reactive power to offset your lagging loads. This compensation brings your power factor closer to unity (1.0), eliminating penalties and improving efficiency.
The intelligent controller continuously monitors your system conditions. It automatically switches capacitor steps in and out to maintain optimal power factor across varying load conditions.
Manufacturing Excellence
Xi'an Xikai Medium and Low Voltage Electric Co., Ltd. brings decades of power distribution expertise to every product we manufacture. Our comprehensive quality management ensures each capacitor bank meets the highest industry standards.
We maintain ISO9001 quality management, ISO14001 environmental management, and OHSAS18001 occupational health and safety certifications. These credentials demonstrate our commitment to excellence across all manufacturing processes.
Our product lines span nine categories with over 100 varieties of power distribution equipment. This extensive portfolio allows us to provide integrated system solutions tailored to your specific requirements.
Advanced testing facilities verify every product's performance before shipment. We conduct rigorous quality control from raw material selection through final inspection.
Why Choose Us
Proven Track Record: Our products have earned recognition as famous brand products in China. This reputation reflects consistent quality and reliable performance across thousands of installations.
Technical Leadership: As participants in national 863 projects, we continuously introduce new technologies and manufacturing processes. Our innovation keeps you ahead of industry developments.
Comprehensive Support: Our engineering team provides system solutions beyond individual products. We analyze your power quality challenges and recommend optimized configurations.
Altitude Performance: Specialized high-altitude products perform reliably at elevations up to 4000 meters. This capability serves challenging geographic installations.
Global Standards: All products meet national and international standards while achieving domestic and international advanced performance levels.
FAQ
Q: Will the capacitor bank cause harmonic resonance in my system?
A: Professional installation includes harmonic analysis to prevent resonance issues. We offer detuned reactor options that shift resonance frequencies away from problematic harmonics.
Q: How do I size the correct capacity for my facility?
A: Our engineers analyze your load profile and power factor history to recommend optimal sizing. We consider both steady-state and dynamic compensation requirements.
Q: What maintenance does the system require?
A: Annual inspections should include capacitance measurements, connection tightening, and controller verification. Our maintenance guidelines help maximize system lifespan.
Q: Can the system handle rapid load changes?
A: Yes, our automatic systems respond within 20 milliseconds to load variations. This fast response prevents over-compensation and maintains stable power factor.
Q: How quickly will I see return on investment?
A: Most installations achieve payback within 12-24 months through eliminated utility penalties and reduced demand charges. Energy savings continue throughout the system's operational life.
Contact Us
Ready to optimize your power system efficiency? Our technical team stands ready to analyze your requirements and recommend the ideal capacitor bank for power factor correction solution.
Contact our specialists today to discuss your project:
Email: serina@xaxd-electric.com
Let us help you eliminate utility penalties, improve system capacity, and enhance power quality with our proven power factor correction technology. Your facility's electrical performance and operational costs will benefit from our expert solutions.
