capacitor bank in 33/11kv substation
2. Reduce network loss, high efficiency and energy saving;
3. Control harmonics of the system or control harmonics according to user requirements;
4. Reduce reactive current, save transformer capacity cost, improve transformer output.
5. Voltage priority control, the voltage regulation function of the capacitor can be used to improve the voltage pass rate.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

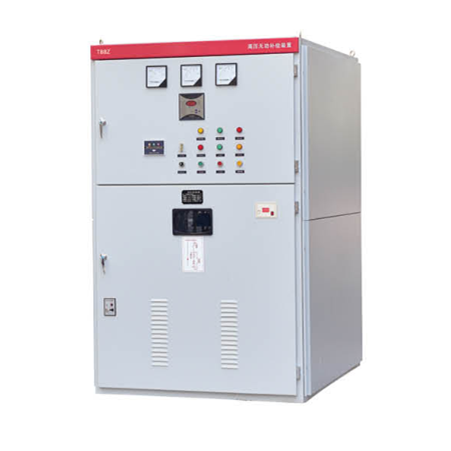

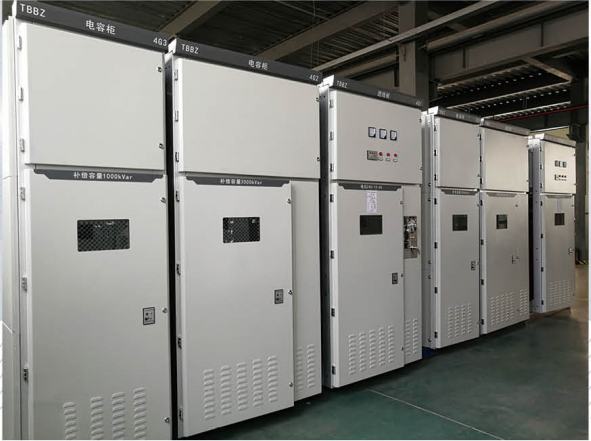

Capacitor Bank in 33/11kV Substation - Professional Power Factor Correction Solution
Product Introduction
When your electrical system faces power factor penalties and voltage stability issues, you need a reliable capacitor bank in 33/11kv substation. Our advanced power factor correction equipment delivers immediate reactive power compensation for medium-voltage distribution networks. This critical assembly of capacitor units connects in series or parallel configurations. It operates seamlessly within 11kV and 33kV systems to manage reactive power efficiently. You get leading reactive power generation that counteracts lagging power from inductive loads like transformers and motors.
Our solution addresses your most pressing electrical challenges. Low power factor penalties disappear when you achieve near-unity correction. Voltage drops at feeder endpoints become manageable through strategic bus voltage boosting. System capacity constraints ease as reduced reactive current flow releases valuable KVA capacity. You save significantly on infrastructure upgrades while reducing technical losses throughout your network.
Technical Specifications
| Parameter | 11kV System | 33kV System |
|---|---|---|
| System Voltage | 11kV | 33kV |
| Rated Voltage | 12kV | 36kV |
| Basic Insulation Level (BIL) | 75kVp | 170kVp |
| Reactive Power Range | 1-50 MVAR | 5-100 MVAR |
| Frequency | 50/60Hz | 50/60Hz |
| Connection Type | Delta/Star | Delta/Double Star |
| Operating Temperature | -40°C to +55°C | -40°C to +55°C |
| Discharge Time | ≤10 minutes to 50V | ≤10 minutes to 50V |
| Capacitance Tolerance | -5% to +10% | -5% to +10% |
| Dielectric Loss | <0.2 W/kVAR | <0.2 W/kVAR |
Main Features and Advantages
Advanced Dielectric Technology: Your equipment benefits from high-grade polypropylene film insulation. We use biodegradable synthetic oil impregnation for superior partial discharge resistance. This ensures long-term reliability in demanding substation environments.
Intelligent Switching Control: Automatic Power Factor Correction relays monitor your system continuously. They switch capacitor steps based on real-time load conditions. You maintain optimal power factor without manual intervention.
Harmonic Tolerance: Our designs handle voltage and current overloads effectively. You get 1.1x rated voltage and 1.3x rated current capability. This protects against network harmonics and switching transients.
Safety Integration: Built-in discharge resistors protect your personnel. Residual voltage drops to safe levels within required timeframes. You comply with all safety regulations automatically.
Practical Applications
Primary Distribution Substations: Utility operators install our systems on main busbars. You stabilize grid voltage during peak demand periods effectively. The capacitor bank in 33/11kv substation prevents voltage collapse through strategic reactive power injection.
Heavy Industrial Facilities: Steel mills, cement plants, and manufacturing complexes benefit significantly. You correct power factor despite challenging loads like arc furnaces and large motors. Series detuned reactors prevent harmonic resonance issues.
Renewable Energy Integration: Wind farms and solar installations require precise reactive power control. Our equipment helps you comply with grid codes seamlessly. You maintain unity power factor at connection points regardless of generation fluctuations.
How It Works
Your system operates through sophisticated reactive power management principles. Capacitor units generate leading reactive power to offset lagging power from inductive loads. Smart controllers monitor power factor continuously through current and voltage transformers.
When your load increases, additional capacitor steps energize automatically. During light load periods, steps disconnect to prevent over-compensation. Protection systems monitor for internal faults and unbalanced conditions. You get reliable operation with comprehensive fault detection.
Manufacturing Excellence
Xi'an Xikai Medium and Low Voltage Electric Co., Ltd. brings decades of expertise to every unit. Our manufacturing follows strict IEC 60871 and IEEE standards. Each component undergoes rigorous testing before assembly.
We maintain ISO9001 quality management certification alongside environmental and safety certifications. Our production capabilities cover 0.4kV to 40.5kV voltage ranges with currents up to 4000A. You receive products tested for operation up to 4000m altitude.
Quality control includes comprehensive tan delta measurements and high-voltage withstand tests. Sealing integrity verification ensures long-term reliability. Capacitance tolerance checks maintain system balance throughout operation.
Why Choose Us
Proven Track Record: Our products serve utilities and industries across diverse applications. You benefit from field-proven designs and continuous improvement programs.
Complete System Solutions: We provide integrated solutions beyond individual components. You get comprehensive support from design through commissioning and maintenance.
Technical Expertise: Our engineering team understands complex power system requirements. You receive customized solutions that address specific operational challenges.
Reliable Support: Comprehensive warranty coverage and responsive technical support ensure minimal downtime. Our service network provides prompt assistance when needed.
FAQ
Q: How do I choose between fixed and automatic configurations?
A: Fixed banks suit constant base loads like transformer compensation. Automatic systems handle varying loads effectively. You prevent over-compensation during off-peak periods with switched operation.
Q: What protection is required for safe operation?
A: Neutral displacement voltage protection detects internal element failures early. Current unbalance protection prevents catastrophic tank rupture. You need both for comprehensive safety coverage.
Q: Can these operate in harmonic-rich environments?
A: Standard units require detuned reactors in harmonic environments. These shift resonance frequency away from dominant harmonics. You prevent capacitor overheating and premature failure.
Q: What maintenance schedule should I follow?
A: Annual capacitance measurements detect fuse operations early. Busbar connection torque checks prevent overheating. Regular insulator cleaning maintains reliable operation. The capacitor bank in 33/11kv substation requires minimal but consistent maintenance.
Q: Why might circuit breakers trip during energizing?
A: High inrush currents cause nuisance tripping with standard breakers. Use Class C2 rated breakers designed for capacitor switching. Current limiting reactors also reduce inrush effectively.
Contact Us
Ready to improve your power system efficiency and reduce operating costs? Our technical team stands ready to design the optimal solution for your specific requirements.
Email: serina@xaxd-electric.com
Connect with us today to discuss your power factor correction needs. We provide detailed technical proposals, competitive pricing, and comprehensive support throughout your project lifecycle.
