XKGKL-1000/10 Reactor

XKGKL-1000/10 Reactor - Professional Medium Voltage Reactive Power Solution

Product Introduction

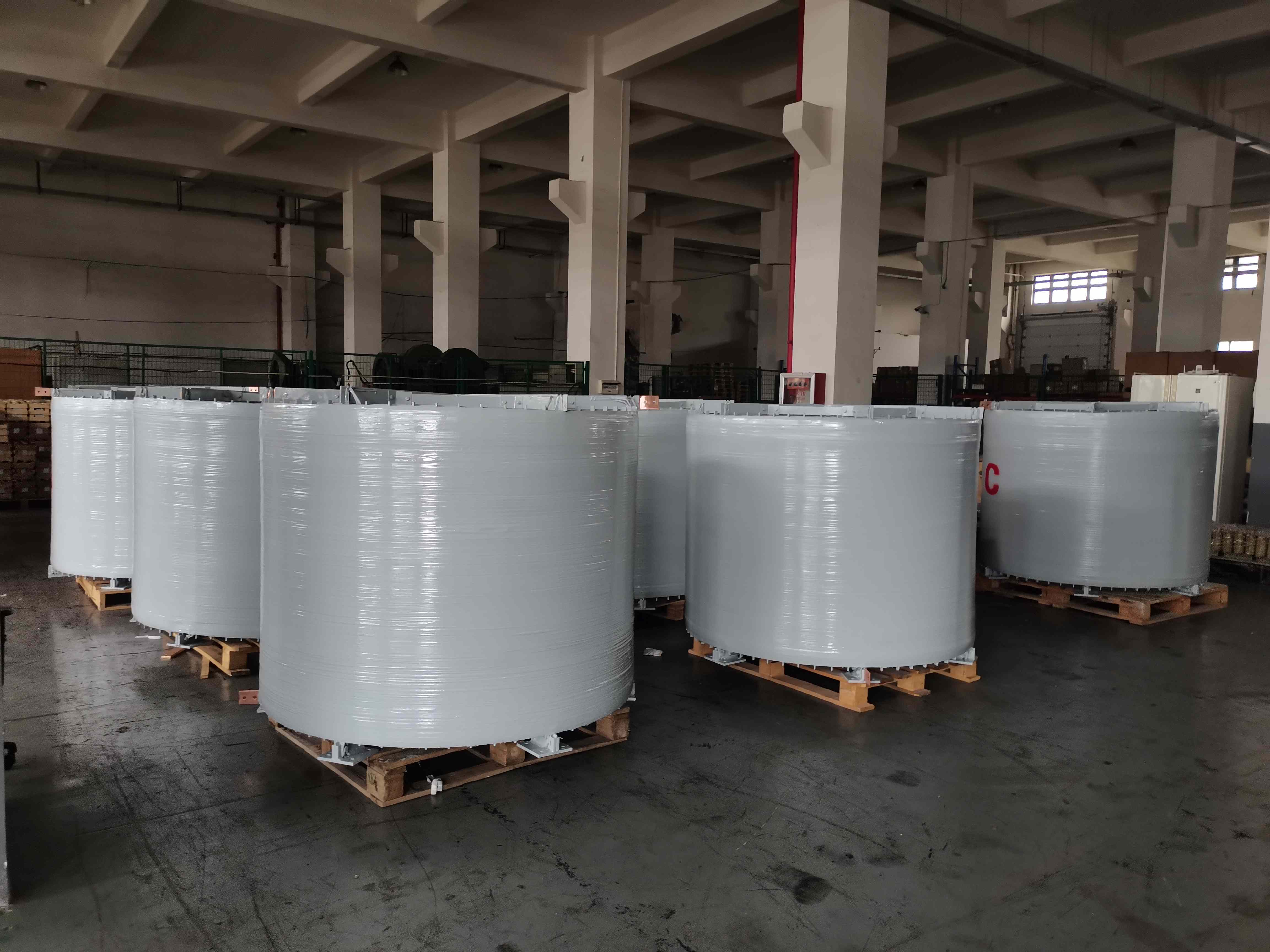

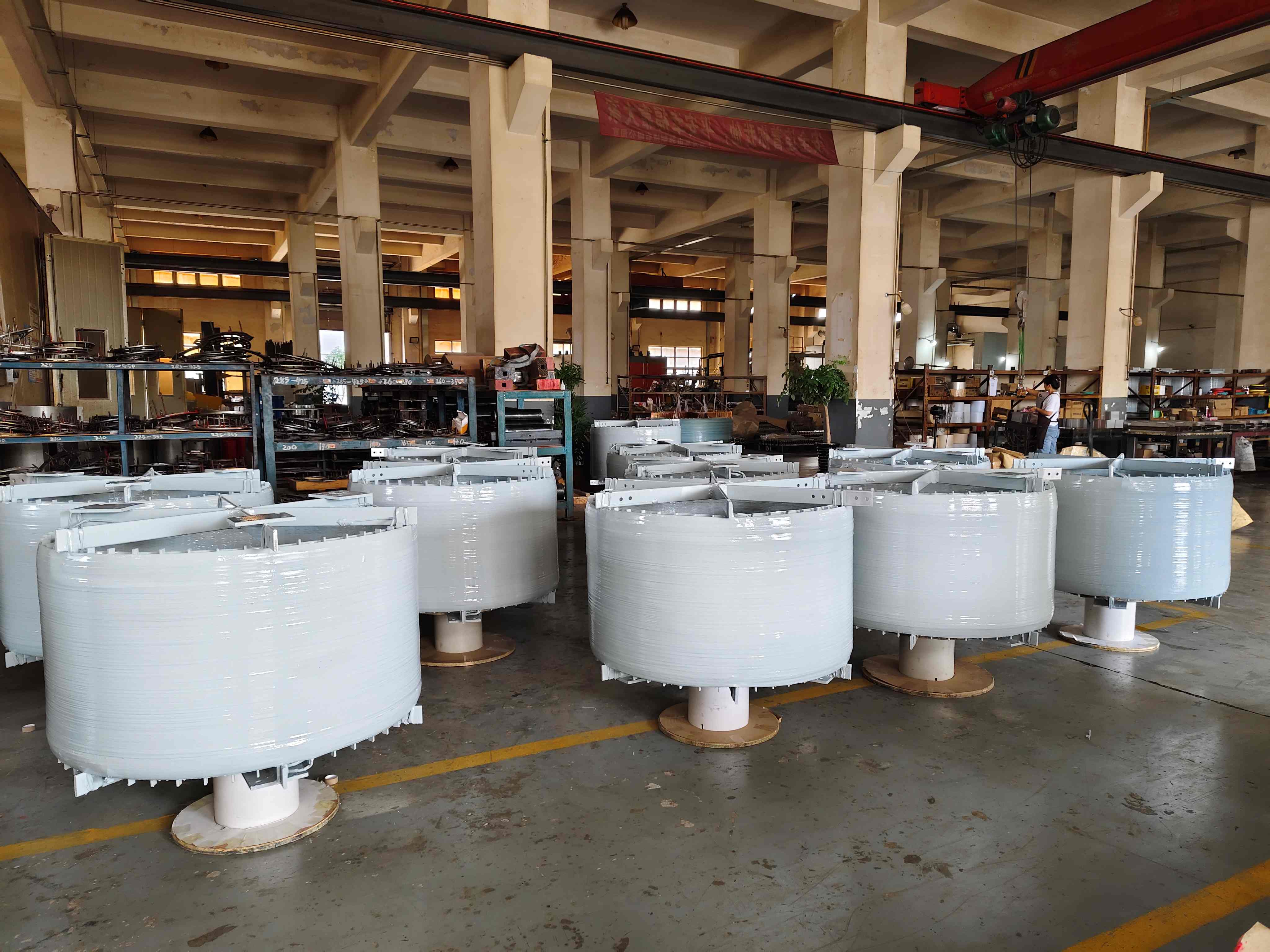

The XKGKL-1000/10 Reactor represents cutting-edge technology in medium voltage power systems. This specialized dry-type air-core series reactor delivers reliable reactive power compensation for your 10kV electrical infrastructure. You'll benefit from its innovative design that effectively manages power quality challenges in modern electrical networks. Our engineering team developed this reactor to address critical issues like harmonic filtering and inrush current suppression. When you install the XKGKL-1000/10 Reactor, you're investing in proven technology that enhances system stability and protects valuable equipment from electrical disturbances.

Technical Specifications

Main Features and Advantages

Air-Core Design Excellence: The air-core construction ensures linear reactance characteristics without magnetic saturation. You'll never worry about performance degradation during fault conditions.

Advanced Material Technology: High-grade aluminum conductors wrapped in UV-resistant epoxy resin provide exceptional durability. Your investment remains protected against environmental challenges.

Maintenance-Free Operation: The dry-type design eliminates oil-related maintenance concerns. You can focus on your core business while our reactor operates reliably.

Superior Harmonic Management: Effectively suppresses 3rd, 5th, and 7th harmonics that can destabilize your electrical system.

Fire Safety Compliance: Non-flammable construction makes it perfect for indoor substations where safety is paramount.

Practical Applications

Urban Substation Networks: You'll find our reactor essential for power factor correction in city electrical infrastructure. The compact design fits seamlessly into space-constrained installations.

Heavy Industrial Operations: Steel mills, mining operations, and manufacturing facilities rely on this reactor for managing load fluctuations. Your production processes stay stable even with varying electrical demands.

Renewable Energy Integration: Wind and solar installations use our reactor technology to smooth grid connections. The robust outdoor-rated construction withstands extreme weather conditions.

Commercial Building Systems: Large office complexes and shopping centers benefit from improved power quality and reduced utility charges.

How It Works

The reactor operates by introducing controlled impedance into your electrical system. When connected in series with capacitor banks, it limits inrush currents during switching operations. This protection extends the life of your switchgear and prevents nuisance tripping.

The air-core design maintains constant impedance characteristics across all operating conditions. You get predictable performance whether your system operates at normal load or experiences fault conditions.

Heat dissipation occurs through natural convection cooling. The aluminum windings efficiently transfer heat to the surrounding air, ensuring optimal operating temperatures.

Manufacturing Excellence

Our manufacturing facility employs advanced winding techniques and precision assembly methods. Each XKGKL-1000/10 Reactor undergoes comprehensive testing including inductance verification, temperature rise validation, and impulse withstand testing.

Quality control measures ensure every unit meets strict performance standards. Your reactor ships with complete test certificates documenting compliance with international standards.

We use environmentally responsible manufacturing processes. The dry-type construction aligns with modern sustainability requirements while delivering superior performance.

Why Choose Us

Proven Track Record: Xi'an Xidian Medium and Low Voltage Electric Co., Ltd. brings decades of experience in power system solutions. You're partnering with industry leaders.

Comprehensive Product Range: Our 34 series and 100+ varieties of electrical equipment ensure complete system compatibility.

Quality Certifications: ISO9001, ISO14001, and OHSAS18001 certifications demonstrate our commitment to excellence.

Technical Support: Our engineering team provides ongoing support throughout your reactor's operational life.

Customization Capabilities: We adapt products to meet your specific application requirements and environmental conditions.

FAQ

Q: What installation clearances does the reactor require?

A: You need to maintain clearance distances equal to half the reactor diameter from metallic structures to prevent induced heating from stray magnetic fields.

Q: Can the unit operate in outdoor environments?

A: Yes, the specialized hydrophobic coating protects against rain, salt fog, and industrial pollution. Annual cleaning maintains optimal performance.

Q: Why choose aluminum over copper conductors?

A: Aluminum provides excellent performance with significantly lower weight and cost. The cross-sectional area is optimized to handle the thermal load effectively.

Q: What noise levels can I expect during operation?

A: Normal operation produces less than 60dB at 2 meters distance, complying with international noise standards.

Q: How do you verify quality during manufacturing?

A: Every unit undergoes inductance testing (±3% tolerance), temperature rise testing, lightning impulse testing, and partial discharge verification (<10pC).
