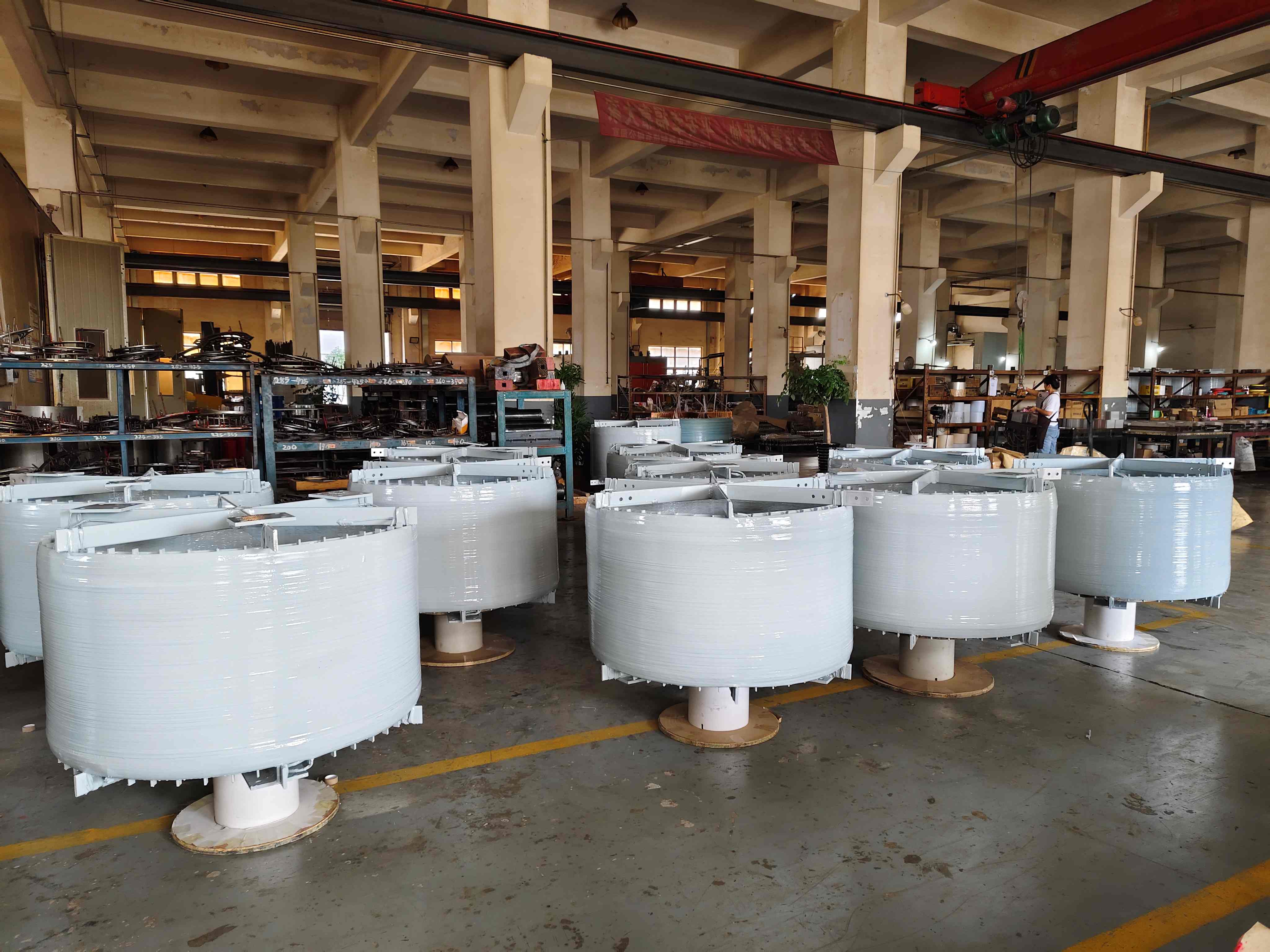

XKGKL Current Limiting Reactor for Outdoor Installation

XKGKL Current Limiting Reactor for Outdoor Installation

Product Introduction

The XKGKL Current Limiting Reactor for Outdoor Installation represents a cutting-edge solution for power system protection in challenging outdoor environments. This dry-type, air-core reactor is specifically engineered to limit short-circuit currents and enhance your electrical system's reliability. Unlike traditional oil-filled reactors, the XKGKL features advanced epoxy resin-impregnated construction that delivers superior performance while eliminating environmental hazards. When you install this reactor in series with your power lines, it effectively increases system impedance and controls fault currents to safe, manageable levels. This innovative design ensures optimal protection for your valuable electrical equipment while providing the durability you need for outdoor installations.

Technical Specifications

Main Features and Advantages

Superior Weather Resistance

Your outdoor installations demand equipment that can withstand harsh environmental conditions. The XKGKL features UV-resistant epoxy construction and hydrophobic surface coatings that maintain performance in high humidity and salt-fog environments.

Linear Performance Characteristics

The air-core design ensures consistent inductance regardless of current magnitude. This means you get predictable, reliable performance even during severe fault conditions.

Maintenance-Free Operation

You'll appreciate the minimal maintenance requirements. The solid insulation system eliminates oil changes and reduces inspection frequency to simple visual checks every 1-3 years.

Compact Design

The vertical cooling duct configuration maximizes heat dissipation while minimizing footprint requirements for your installations.

Enhanced Safety

With no flammable oil and robust encapsulation, you eliminate fire hazards and environmental contamination risks.

Practical Applications

Substation Outgoing Feeders

Your substations benefit from fault current protection when the reactor is installed in series with overhead transmission lines. This protects transformers and circuit breakers from lightning strikes and line faults.

Renewable Energy Integration

Wind and solar farms require reliable grid interconnection. The reactor manages fault contributions and circulating currents when connecting renewable sources to the main grid.

Industrial Power Systems

Heavy industry applications, including steel mills and chemical plants, use these reactors to limit inrush currents and dampen harmonic resonance in capacitor bank installations.

Grid Interconnection Points

When connecting multiple power sources or utility networks, the XKGKL Current Limiting Reactor for Outdoor Installation ensures fault isolation and voltage stability.

How It Works

The reactor operates on fundamental electromagnetic principles. When you connect it in series with your power lines, it introduces controlled impedance into the circuit. During normal operation, the voltage drop across the reactor remains minimal. However, when a short circuit occurs, the reactor limits current flow by creating a significant voltage drop proportional to the fault current magnitude.

The air-core design prevents magnetic saturation, ensuring the reactor maintains its protective characteristics even under extreme fault conditions. This linear response gives you predictable protection that traditional iron-core reactors cannot match.

Manufacturing Excellence

Our manufacturing process follows strict quality control protocols. Every XKGKL unit undergoes comprehensive testing including lightning impulse withstand, wet voltage tests, and short-circuit capability verification. We use advanced epoxy vacuum impregnation techniques to ensure void-free insulation and long-term reliability.

The winding process employs precision tension control and specialized bracing systems to withstand the enormous electromagnetic forces generated during fault conditions. This attention to detail ensures your reactor will perform reliably for decades.

Why Choose Us

Xi'an Xikai Medium and Low Voltage Electric Co., Ltd. brings over years of expertise in power system equipment manufacturing. We hold ISO9001, ISO14001, and OHSAS18001 certifications, demonstrating our commitment to quality, environmental responsibility, and safety.

Our comprehensive product range covers voltages from 0.4kV to 40.5kV with currents up to 4000A. We provide complete system solutions backed by experienced technical support and nationwide service capabilities.

You can trust our products to meet national and international standards while delivering the performance your critical applications demand. Our XKGKL Current Limiting Reactor for Outdoor Installation represents the pinnacle of our engineering excellence.

FAQ

Q: What maintenance is required for outdoor installations?

A: Minimal maintenance is needed. Perform visual inspections every 1-3 years to check for pollution accumulation and surface coating condition. Cleaning may be required in heavily polluted environments.

Q: Can the reactor handle seismic activity?

A: Yes, our reactors include reinforced mounting systems designed for seismic zones with acceleration ratings up to 0.5g.

Q: Is the unit suitable for coastal environments?

A: Absolutely. We provide heavy pollution grade specifications with specialized RTV silicone coatings for coastal installations with high salinity.

Q: How do you manage noise levels?

A: Our precision winding techniques and epoxy bonding minimize vibration, keeping noise levels under 65dB at 2 meters.

Q: What about magnetic field considerations?

A: We provide detailed magnetic clearance specifications to prevent inductive heating of nearby metal structures.

Contact Us

Ready to enhance your power system protection? Contact our technical team today to discuss your specific requirements. We'll help you select the optimal XKGKL configuration for your application.

Email: serina@xaxd-electric.com

Our experts are ready to provide technical support, custom solutions, and comprehensive project assistance for your outdoor reactor installations.
