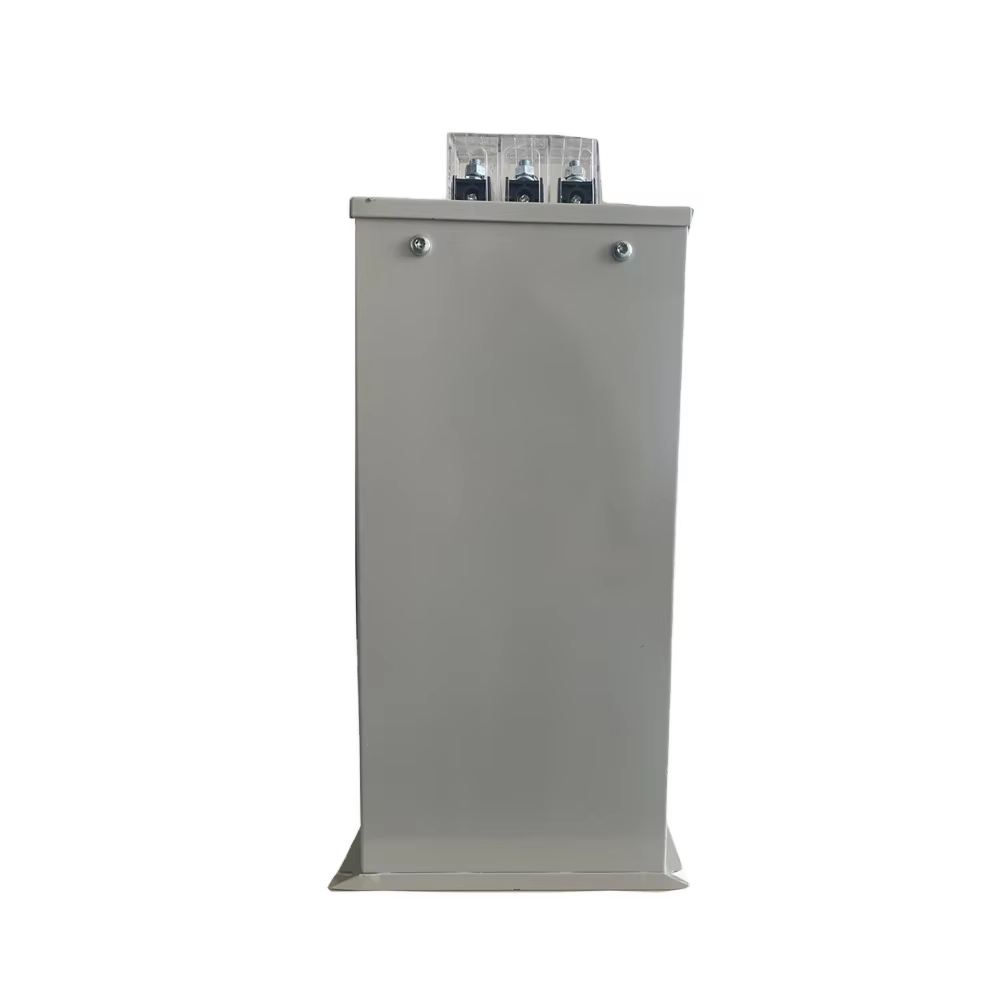

Harmonic Mitigation Capacitor - Advanced Power Quality Solution

Product Introduction

Modern industrial facilities face significant power quality challenges due to non-linear loads. Your electrical system deserves protection from harmonic distortion that damages equipment and increases costs. Our Harmonic Mitigation Capacitor provides the specialized solution you need for reliable power factor correction in contaminated electrical networks. Unlike standard capacitors that fail under harmonic stress, this heavy-duty component operates safely alongside detuned reactors. You get enhanced protection against parallel resonance, equipment overheating, and costly utility penalties. Our advanced design addresses critical industry pain points while ensuring stable operation in harsh industrial environments.

Technical Specifications

Main Features and Advantages

Enhanced Durability Design

Our capacitors feature reinforced dielectric systems that withstand voltage stresses from harmonic distortion. You benefit from extended equipment lifespan and reduced maintenance costs.

Superior Safety Features

Equipped with advanced overpressure disconnectors and internal fuses, these units prevent catastrophic failures. Your facility stays protected from fire hazards and equipment damage.

Optimized Thermal Management

Heavy edge metallization and improved heat dissipation ensure stable operation under high thermal loads. You get consistent performance even in demanding industrial environments.

No Leakage Technology

New-type bushings with automatic argon arc welding tanks eliminate leakage risks. You enjoy maintenance-free operation with enhanced reliability.

Low Noise Operation

Advanced construction techniques minimize operational noise. Your workplace maintains comfortable sound levels while achieving power quality improvement.

Practical Applications

Industrial Manufacturing

Steel plants, cement facilities, and automotive manufacturers rely on our Harmonic Mitigation Capacitor for stable power factor correction. You get protection against VFD-generated harmonics and arc furnace disturbances.

Data Centers and IT Infrastructure

Critical facilities with extensive UPS systems require specialized capacitors. Our solution ensures power usage effectiveness while preventing harmonic interference with sensitive equipment.

Renewable Energy Integration

Solar and wind installations use our capacitors to maintain grid code compliance. You achieve proper reactive power injection while handling inverter-generated harmonics.

How It Works

Your Harmonic Mitigation Capacitor operates within a detuned reactor system to shift resonance frequency away from dominant harmonics. The LC circuit configuration prevents parallel resonance that amplifies dangerous harmonic currents.

The metallized polypropylene dielectric handles voltage rises caused by series reactor connection. Internal safety mechanisms monitor pressure and temperature, automatically disconnecting during fault conditions.

You get reliable power factor improvement without the risks associated with standard capacitors in polluted networks.

Manufacturing Excellence

Xi'an Xikai Medium And Low Voltage Electric Co., Ltd. brings decades of expertise in electrical equipment manufacturing. Our ISO9001 quality management system ensures consistent product quality.

We utilize advanced materials and precision manufacturing techniques. Every capacitor undergoes rigorous testing under harmonic distortion conditions before shipment.

Our research and development team continuously improves designs based on field experience and customer feedback. You receive products that meet real-world application demands.

Why Choose Us

Proven Track Record

Our company serves power distribution markets with comprehensive system integration capabilities. You work with experienced professionals who understand your challenges.

Complete Product Range

We offer 9 categories and over 100 varieties of electrical equipment. Your projects benefit from single-source supply convenience and technical compatibility.

Technical Support

Our engineering team provides application guidance and customized solutions. You get expert assistance throughout project implementation.

Quality Assurance

All products meet national and international standards. You receive reliable equipment backed by comprehensive quality management systems.

FAQ

Q: How do these capacitors differ from standard power factor correction capacitors?

A: Standard capacitors cannot handle harmonic currents and often fail in polluted networks. Our Harmonic Mitigation Capacitor features enhanced voltage ratings and robust dielectric materials specifically designed for harmonic environments.

Q: What detuning percentage should I choose?

A: Common options include 7% and 14% detuning. The choice depends on your system's harmonic profile and dominant frequency components. Our engineers can help determine the optimal configuration.

Q: Can these capacitors operate without reactors?

A: No, they must work with detuned reactors to prevent resonance issues. The reactor-capacitor combination provides safe and effective harmonic mitigation.

Q: What maintenance is required?

A: Minimal maintenance is needed due to our sealed construction. Regular inspection of connections and discharge resistor function is recommended.

Q: How do I size the capacitor bank?

A: Sizing depends on your reactive power requirements and harmonic levels. We provide technical support to ensure proper system design.

Contact Us

Ready to solve your power quality challenges? Our technical team stands ready to help you select the right Harmonic Mitigation Capacitor solution for your application.

Contact our specialists today for personalized technical support and quotations. We provide comprehensive system analysis and custom recommendations.
