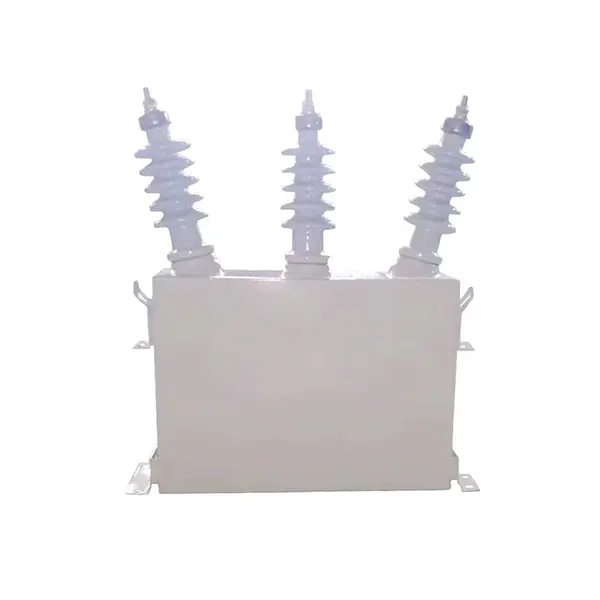

10KV 3 Phase Filter Capacitor

1.10KV 3 Phase Filter Capacitor: Powering Stable and Efficient Grids

When managing high-voltage power systems, reliability and precision are non-negotiable. Our 10KV 3 Phase Filter Capacitor is engineered to tackle harmonic distortions, optimize power factor correction, and enhance grid stability in demanding environments. Designed for utilities and industrial applications, this capacitor combines cutting-edge technology with rugged durability, ensuring seamless performance even under extreme temperatures (-40°C to +45°C) and harsh grid conditions. Whether you’re upgrading aging infrastructure or integrating renewable energy sources, our solution delivers unmatched efficiency and compliance with global standards.

2.Technical Specifications

Here's a quick overview of the product's key parameters:

3.Key Features & Benefits

1. Advanced Harmonic Filtering

• Reduces harmonic distortions by up to 70%, protecting sensitive equipment and improving grid reliability.
• Effective across a wide frequency range, ideal for systems with variable loads.

2. Robust Construction for Harsh Conditions

• Weatherproof design (IP54+) withstands dust, moisture, and temperature extremes.
• Explosion-proof safety mechanisms prevent catastrophic failures.

3. Energy Efficiency & Long Lifespan

• Low dissipation factor (<0.1%) minimizes energy loss, cutting operational costs.
• Self-healing dielectric technology extends service life beyond 15 years.

4. Global Compliance & Certifications

• Meets IEC 60871, IEEE 18, and UL 810 standards.
• Certified for CE (EU), GB/T (China), and other regional requirements.

4.Where It's Used？

Be used in a wide range of industries.



Industrial Plants

Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.

Substation

Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.

Commercial Buildings

Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.



5.How It Works？

This capacitor works by absorbing and neutralizing harmful harmonics in three-phase systems. When connected in parallel with reactors, it creates a low-impedance path for specific frequencies, effectively “trapping” distortions before they disrupt the grid. Its modular design allows easy integration into existing setups, while intelligent monitoring options provide real-time health insights.

6.Quality You Can Trust

Every product undergoes:

• Rigorous Testing: Dielectric strength, thermal cycling, and seismic simulations.
• ISO 9001-Certified Production: From raw materials to final assembly.
• Third-Party Validation: Independent labs verify performance and safety.

7.Why Choose Us?

• Patented Innovations: Developed through national R&D projects like the 863 Program.
• Custom Solutions: Tailored designs for unique voltage, capacity, or environmental needs.
• Global Support: 24/7 technical assistance and rapid spare-part logistics.
• Sustainability Focus: Eco-friendly manufacturing aligned with carbon-reduction goals.

8.FAQ

Q: How does this capacitor handle voltage spikes?

A: Built-in overvoltage protection disconnects the unit during surges, preventing damage.

Q: Can it operate in coastal areas with high salt exposure?

A: Yes! Anti-corrosion coatings and sealed terminals ensure resilience in salty, humid climates.

Q: What’s the lead time for bulk orders?

A: Standard orders ship in 4-6 weeks. Expedited options are available.

Q: Do you provide installation guidance?

A: Absolutely. Our engineers offer free technical consultations and step-by-step manuals.

9.Contact Us

Ready to Elevate Your Grid Performance with 10KV 3 Phase Filter Capacitor?

Email our team at xaxd_electric@163.com for quotes, technical specs, or custom project discussions. Let’s build a cleaner, more stable power future together!

10.Factory Show

11.Equipment Display

12.Application Cases

State Grid systems, power engineering, steel and metallurgy, petrochemicals, rail transportation, energy and water conservancy, construction, environmental protection, and renewable energy sectors

​​

Shanxi Yongchang Group Coal Chemical Project: 10kV Switchgear

​​

Gansu Jinhui Mining Project: 40.5kV Switchgear

​​

AVIC Turkey Project: 10kV Reactive Power Compensation Capacitor Bank

​​

Sekong Coal Mine (Phonesack Group), Laos: Capacitor Banks & Transformers for 22kV Line Compensation

​​

Heilongjiang Project: Capacitor Banks (Tower-Type)

​​

Xinjiang Project: Capacitor Banks (Tower-Type)
