TBB10 Series HV Compensation Device
2.Frequency: 50Hz.
3.Capacity: 100–10,000kVar.
4.Ambient temperature: -25℃ ~+45℃;
5.Reactor options:.
Inrush suppression: 0.1–1% reactance.
5th+ harmonic suppression: 6% reactance.
3rd+ harmonic suppression: 12% reactance.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

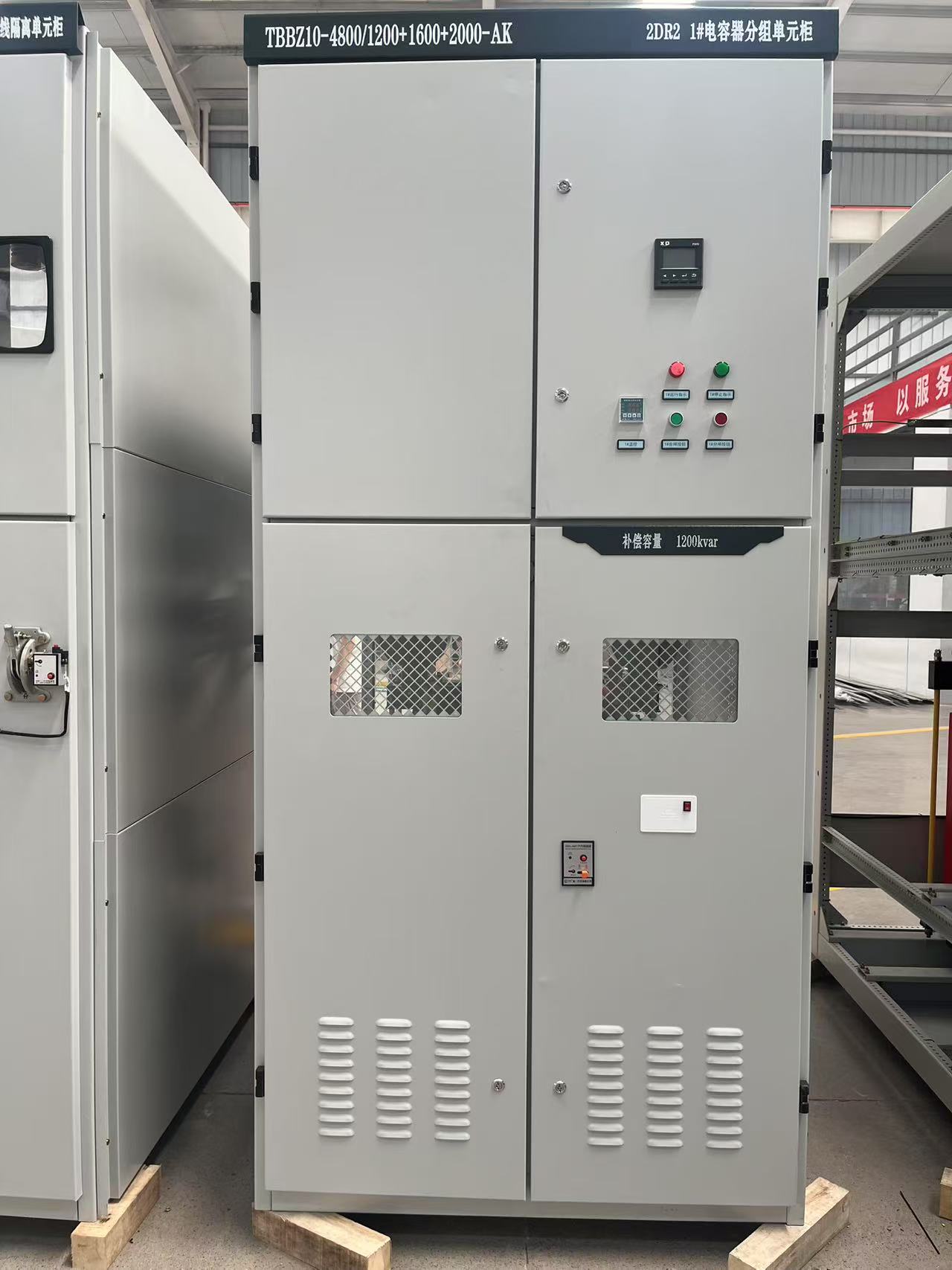

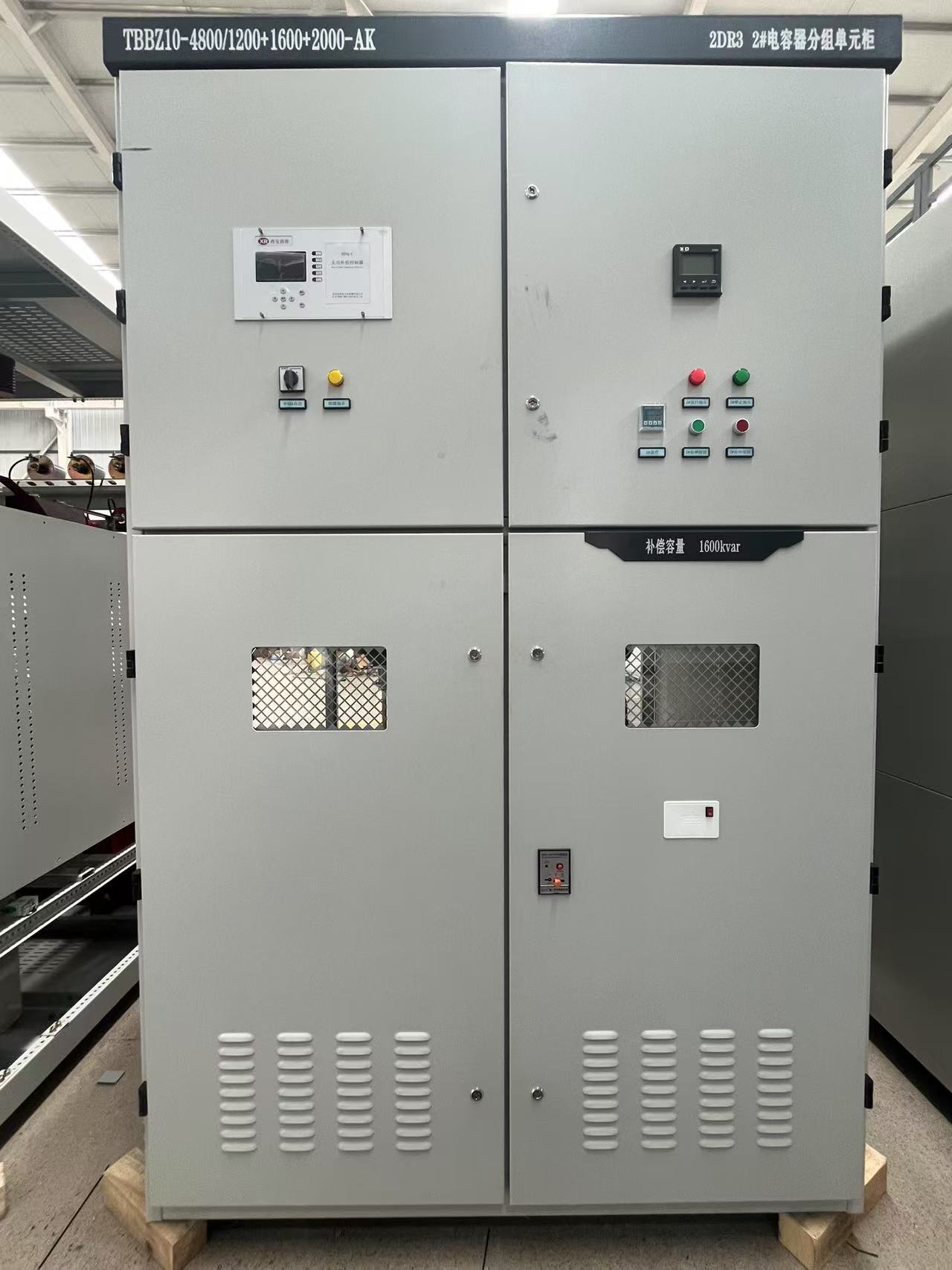

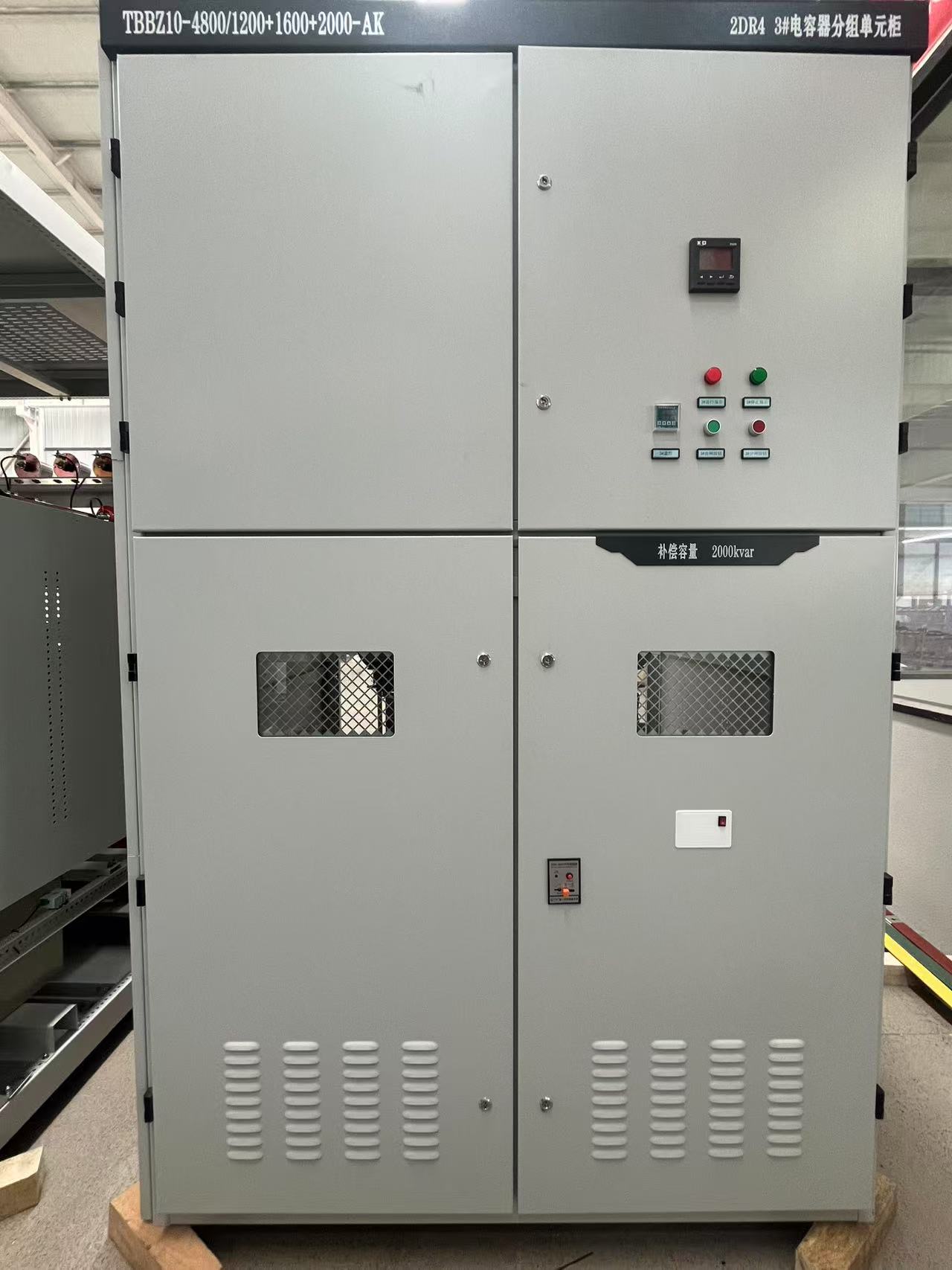

TBB10 Series HV Compensation Device - High-Voltage Reactive Power Compensation Solution
Product Introduction
When your industrial facility struggles with power factor penalties and voltage instability, the TBB10 Series HV Compensation Device delivers the solution you need. This specialized high-voltage reactive power compensation system is engineered for 6kV to 35kV power distribution networks, specifically designed to improve power factor and ensure voltage stability in demanding industrial environments. Our TBB10 Series addresses critical industry challenges including low power factor penalties, high line losses, and voltage fluctuations that impact your operations.
Built with high-voltage shunt capacitors, series reactors, discharge coils, and vacuum contactors, this compensation device ensures your inductive loads operate efficiently. Unlike standard low-voltage systems, our solution withstands high dielectric stress while providing comprehensive harmonic suppression capabilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 6kV - 10kV (up to 35kV available) |
| Frequency | 50Hz |
| Capacity Range | 100kVar - 10,000kVar |
| Operating Temperature | -25°C to +45°C |
| Protection Grade | IP4X (indoor), IP54 (outdoor option) |
| Reactor Options | 0.1-1% (inrush suppression) 6% (5th+ harmonic suppression) 12% (3rd+ harmonic suppression) |
| Standards Compliance | IEC 60871-1, GB/T 11024 |
| Dielectric Loss | <0.05% (tan δ) |
| Discharge Time | <5 minutes (√2Un to 50V) |
Main Features and Advantages
Your facility benefits from advanced engineering that sets our compensation device apart. The modular design allows flexible configuration based on your specific power requirements. Series reactors effectively limit switching inrush currents while suppressing harmful harmonics that can damage sensitive equipment.
Our comprehensive protection system includes over-voltage, under-voltage, and unbalance protection to ensure reliable operation. The vacuum contactors provide maintenance-free switching, while the discharge coils ensure safe handling during maintenance periods.
High-quality materials and robust construction deliver exceptional durability in harsh industrial environments. The system's intelligent control capabilities enable automatic power factor correction, optimizing your facility's electrical efficiency.
Practical Applications
Your industry can leverage our TBB10 Series HV Compensation Device across various demanding applications:
Metallurgy and Steel Mills: Electric arc furnaces and rolling mills create severe voltage fluctuations. Our device mitigates these issues while suppressing harmonics from non-linear loads, ensuring stable motor operation.
Mining Operations: Deep-shaft mining with extensive cable runs requires reactive power compensation. The device maintains proper voltage levels for hoists and ventilation systems, preventing equipment failures.
Petrochemical Plants: Massive motor loads in processing facilities benefit from power factor correction above 0.95, avoiding utility penalties while maximizing transformer capacity utilization.
How It Works
The compensation device operates by providing reactive power locally, reducing the burden on your electrical distribution system. When inductive loads create lagging power factor, the capacitor banks supply leading reactive current to balance the system.
Series reactors prevent harmonic resonance while limiting inrush currents during switching operations. The intelligent control system monitors power factor continuously, automatically engaging or disengaging capacitor steps to maintain optimal efficiency.
Protection relays monitor for unbalance conditions, immediately disconnecting faulty elements to prevent cascading failures and ensure system safety.
Manufacturing Excellence
Xi'an Xidian Medium and Low Voltage Electric Co., Ltd. brings decades of expertise to every TBB10 Series HV Compensation Device we manufacture. Our facility operates under ISO9001 quality management systems, ensuring consistent product quality and reliability.
Rigorous testing protocols including AC withstand voltage tests, capacitance measurements, and partial discharge testing validate each unit before shipment. Our experienced engineering team provides customized solutions tailored to your specific application requirements.
Quality control processes verify dielectric strength and system safety under fault conditions, strictly following international standards to deliver products you can trust.
Why Choose Us
You gain a reliable partner committed to your success when you choose our compensation solutions. Our comprehensive product portfolio covers 9 categories with over 100 varieties, ensuring we have the right solution for your application.
Technical support from our experienced engineers helps optimize system performance throughout the product lifecycle. Our proven track record in power distribution equipment spanning 0.4kV to 40.5kV demonstrates our capability to handle your most challenging requirements.
Competitive pricing combined with superior quality delivers exceptional value for your investment. Our commitment to innovation ensures you receive cutting-edge technology that meets evolving industry demands.
FAQ
Q: How do I select the correct reactor percentage for my application?
A: The choice depends on harmonic content in your system. Use 6% reactance for 5th harmonic suppression and above, or 12% for 3rd harmonic suppression and above.
Q: What maintenance is required for the TBB10 Series HV Compensation Device?
A: Monthly visual inspections and annual comprehensive maintenance including insulator cleaning, connection tightening, and capacitance measurements ensure optimal performance.
Q: Can the device operate in outdoor environments?
A: Yes, with IP54-rated enclosures specifically designed for outdoor installation, including weather-proofing and corrosion protection.
Q: How does the protection system respond to component failures?
A: Unbalance protection relays detect internal failures and automatically trip vacuum contactors to isolate faulty sections, preventing equipment damage.
