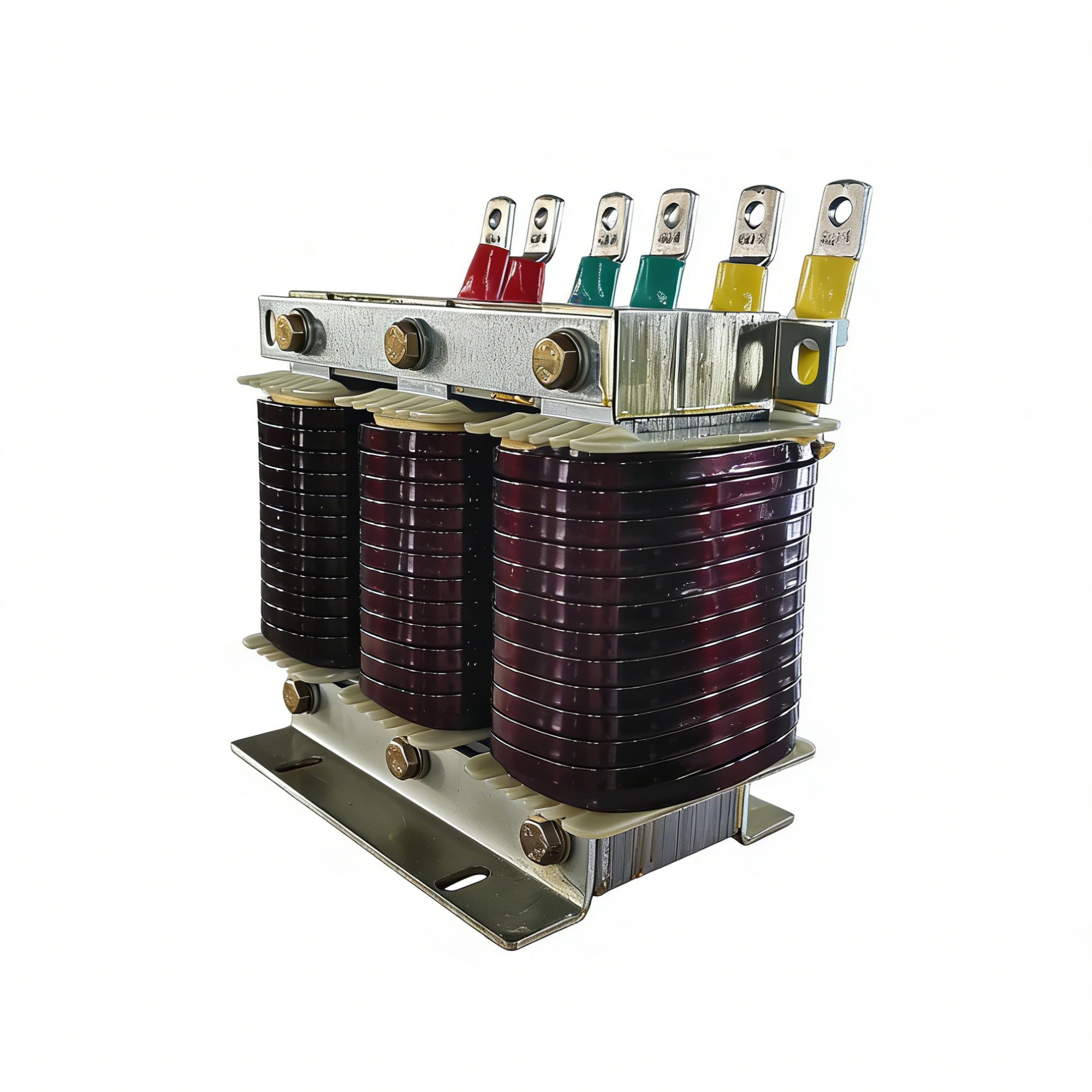

CKSG Reactor Matching with Capacitor
14% reactance rate: Suppresses harmonics above the 3rd order.
27% reactance rate: Suppresses harmonics above the 2nd order.
1.Available in three-phase and single-phase dry-type iron-core configurations.
2.Core: Imported cold-rolled silicon steel laminations segmented by epoxy-laminated glass spacers to stabilize air gaps.
3.Windings: Tightly wound with Class H/C enamel-coated flat copper wire for high-temperature resistance and silent operation.
4.Assembly: Non-magnetic fasteners; pre-baked, vacuum-impregnated, and thermally cured to bond core and windings, ensuring low losses and high harmonic suppression.
5.Corrosion-resistant terminals and enclosures; compact size, lightweight, and cabinet-compatible design for cost-effective installation.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
CKSG Reactor Matching with Capacitor - Superior Harmonic Suppression Solution
When your power system faces harmonic distortion challenges, our CKSG Reactor Matching with Capacitor provides the perfect solution. This specialized low-voltage series reactor works seamlessly with shunt capacitor banks to eliminate power quality issues that plague modern industrial facilities. You'll find this iron-core reactor essential for protecting your valuable equipment from harmonic-induced failures while maintaining optimal power factor correction.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 230V - 690V AC |
| Reactance Rates | 6%, 7%, 14%, 27% |
| Frequency | 50/60 Hz |
| Inductance Tolerance | ±3% to ±5% |
| Overload Capability | 1.35 × rated current |
| Insulation Class | Class F/H (155°C/180°C) |
| Temperature Rise | ≤ 120K |
| Noise Level | ≤ 60dB |
| Dielectric Strength | 3000V/min |
| Core Material | Cold-rolled silicon steel |
| Protection Rating | IP20 (higher ratings available) |
Main Features and Advantages
Superior Harmonic Suppression
Our reactor delivers exceptional performance across different harmonic frequencies:
- 7% reactance: Eliminates 5th and 7th harmonics effectively
- 14% reactance: Suppresses 3rd harmonic distortion completely
- 27% reactance: Controls 2nd harmonic issues comprehensively
Advanced Construction Design
You benefit from our premium engineering approach:
- High-grade core: Cold-rolled silicon steel with epoxy-laminated spacers
- Professional windings: Class H enamel-coated flat copper wire
- Vacuum impregnation: Enhanced moisture resistance and mechanical strength
- Non-magnetic fasteners: Prevents magnetic losses and ensures durability
Compact and Versatile Installation
We designed these reactors for practical implementation:
- Cabinet-compatible dimensions save valuable space
- Lightweight construction reduces installation costs
- Corrosion-resistant terminals ensure long-term reliability
Practical Applications
Heavy Industrial Manufacturing
Steel mills and metallurgy plants rely on our CKSG Reactor Matching with Capacitor to handle electric arc furnaces and rolling mills. These dynamic loads create rapidly fluctuating harmonic content that would otherwise destroy standard capacitors.
Data Centers and IT Infrastructure
Modern data centers depend on our 14% reactance solutions to manage UPS systems and switch-mode power supplies. You'll prevent neutral overheating while ensuring clean power for sensitive servers.
Automated Production Lines
Automotive facilities use our reactors with VFD-heavy robotics and welding systems. This combination extends your power distribution system's lifespan while maintaining optimal power factor correction.
How It Works
The reactor introduces calculated inductive reactance that detunes your circuit's resonant frequency below dominant harmonic frequencies. This process effectively:
- Prevents resonance amplification that damages equipment
- Limits inrush currents during capacitor switching (up to 100x reduction)
- Maintains stable power factor correction in complex electrical environments
- Protects capacitors from harmonic-induced overheating
Manufacturing Excellence
At Xi'an Xikai Medium And Low Voltage Electric Co., Ltd., we maintain rigorous quality standards throughout production. Our manufacturing process includes:
- Precision inductance testing within strict tolerance bands
- Comprehensive linearity validation under overload conditions
- Temperature rise verification for insulation class compliance
- Acoustic noise measurement confirming environmental standards
- High-potential testing ensuring safety and reliability
We follow IEC 60076-6 international standards and maintain ISO9001 quality certification for consistent excellence.
Why Choose Us
Proven Industry Experience
With expertise spanning voltage ranges from 0.4kV to 40.5kV and current ratings up to 4000A, we understand your power quality challenges. Our products serve successfully in demanding environments up to 4000m altitude.
Comprehensive Product Range
Beyond reactors, we offer complete power distribution solutions including switchgear, transformers, and circuit breakers. This integration capability means better system compatibility for your projects.
Technical Support Excellence
Our engineering team provides customized solutions based on your specific harmonic analysis requirements. We ensure proper reactor sizing and capacitor voltage ratings for optimal performance.
FAQ
Q: How do I select the correct reactance rate?
A: Choose 7% for typical VFD loads with 5th/7th harmonics, or 14% for systems with high 3rd harmonic content from IT equipment.
Q: Will the reactor affect my capacitor voltage rating?
A: Yes, series connection increases capacitor voltage by 1/(1-p) factor. Plan for higher voltage-rated capacitors accordingly.
Q: What causes reactor overheating?
A: Usually harmonic overload, poor ventilation, or loose connections. Verify your harmonic spectrum matches design specifications.
Q: Can I retrofit existing capacitor banks?
A: Often yes, but capacitors may need upgrading to handle increased voltage from the CKSG Reactor Matching with Capacitor configuration.
Q: What's the expected service life?
A: Under proper operating conditions, expect 10-15 years of reliable service with our Class H insulation systems.
Contact Us
Ready to solve your harmonic distortion challenges? Our technical specialists are standing by to help you select the perfect CKSG Reactor Matching with Capacitor solution for your application.
Email: serina@xaxd-electric.com
Contact us today for detailed technical consultation, custom sizing calculations, and competitive pricing on your power quality improvement project.
