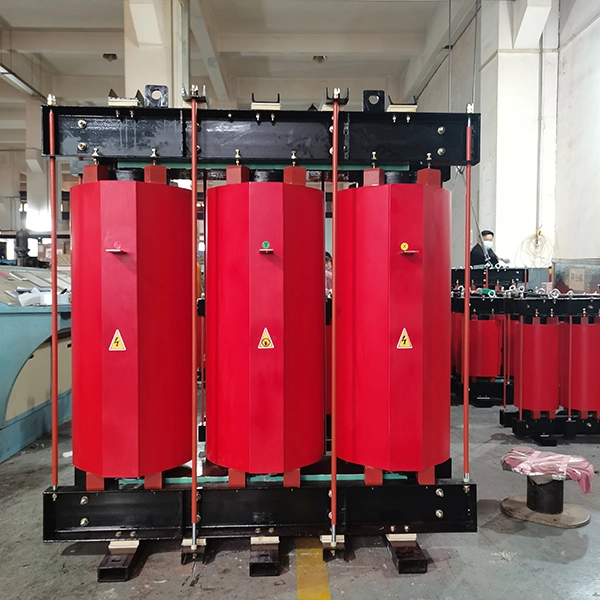

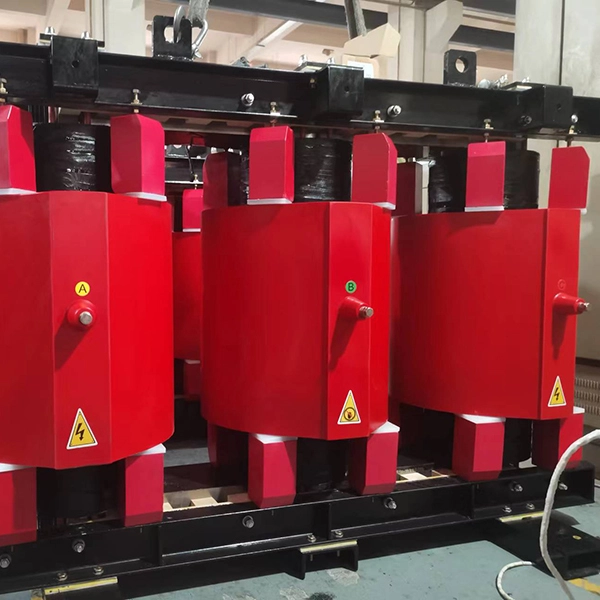

SVG Using Reactor
2.altitude:1000m or less
3. the highest monthly average relative humidity: 95% or less
4. the highest temperature: +45 °C
5. the lowest ambient temperature: -10 °C
6. the maximum daily temperature difference: 25 °C
7. seismic intensity: 8 degrees
8. installation requirements: indoor
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1.SVG Using Reactor: Power Grid Stability & Efficiency Redefined
In today’s energy-driven world, maintaining grid stability and efficiency is critical. The SVG Using Reactor stands at the forefront of solving modern power challenges, offering harmonic filtering, voltage stabilization, and reactive power compensation for medium/low-voltage grids. Designed for utilities and grid operators, this reactor ensures smoother operations, reduced downtime, and compliance with global energy standards. Whether you’re upgrading aging infrastructure or integrating renewable energy sources, the product delivers precision and reliability where it matters most.
 |
 |
 |
2.Technical Specifications
- Voltage Range: 0.4kV, 6kV, 10kV
- Altitude: ≤1000m
- Temperature Tolerance: -10°C to +45°C
- Humidity Resistance: ≤95% (monthly average)
- Insulation Class: H/F (humidity and contamination-resistant)
- Inductance Tolerance: ±3%
- Loss Characteristics: <0.5% at rated current
- Certifications: ISO 9001, IEC 60076-6, CE, UL, CCC
3.Key Features & Advantages
1. Grid Stability Under Pressure
Mitigate harmonic distortions caused by renewables like solar and wind. Our SVG Reactor maintains voltage consistency even during peak loads.
2. Energy Efficiency Boost
With ultra-low losses (<0.5%), reduce operational costs and align with sustainability goals.
3. Compact & Customizable
Ideal for space-constrained substations, our reactors come in modular designs for easy retrofitting.
4. Built to Last
Dry-type iron cores and Class H/F insulation ensure durability in harsh environments—from tropical heat to desert dust.
4.Real-World Applications
Be used in a wide range of industries.
Industrial Plants
Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.
Substation
Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.
Commercial Buildings
Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.
5.How It Works?
The SVG Using Reactor acts as a “shock absorber” for electrical grids. By dynamically adjusting reactive power, it neutralizes harmonics, corrects power factors, and prevents voltage fluctuations. Its dry-type iron core minimizes heat generation, ensuring stable performance even during 24/7 operations.
6.Precision Manufacturing & Quality Assurance
Every SVG Reactor undergoes rigorous testing:
- Material Checks: High-grade silicon steel and enameled wires.
- Production: Automated winding for consistent inductance.
- Testing: Thermal imaging, partial discharge tests, and humidity simulations.
- Certifications: ISO 9001 (quality), ISO 14001 (environmental), and 3C (safety).
7.Why Choose Us?
- Expertise: Over 15 years in grid solutions, backed by national R&D projects.
- Customization: Tailor reactors for voltage ranges (0.4kV–10kV) or space needs.
- Global Compliance: CE, UL, CCC, and BIS certifications included.
- End-to-End Support: From design to after-sales maintenance.
8.FAQs
Q: Can SVG Reactors work with existing switchgear?
A: Yes! Their modular design allows retrofitting without major infrastructure changes.
Q: How do they handle high temperatures?
A: Dry-type cores and Class H insulation ensure stability up to 180°C.
Q: Are smart-grid features supported?
A: Absolutely. IoT-enabled models offer real-time monitoring for predictive maintenance.
Q: What’s the lead time for urgent orders?
A: As fast as 6 weeks, even for bulk quantities.
9.Contact Us
Need a reactor that balances performance and reliability? Email our experts at xaxd_electric@163.com for a customized quote or technical consultation.
Optimize your grid today with the SVG Using Reactor—where innovation meets stability.

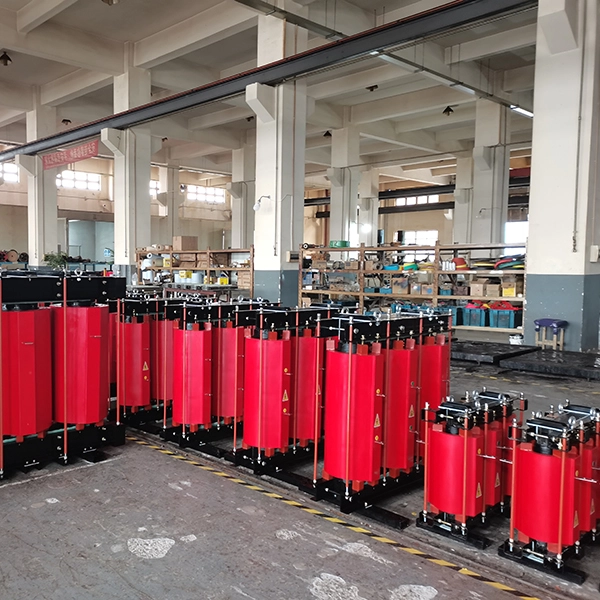

10.Factory Show
11.Equipment Display
12.Application Cases
State Grid systems, power engineering, steel and metallurgy, petrochemicals, rail transportation, energy and water conservancy, construction, environmental protection, and renewable energy sectors
