Dry-Type Iron Core Shunt Reactor

Dry-Type Iron Core Shunt Reactor - Advanced Power System Solution

Product Introduction

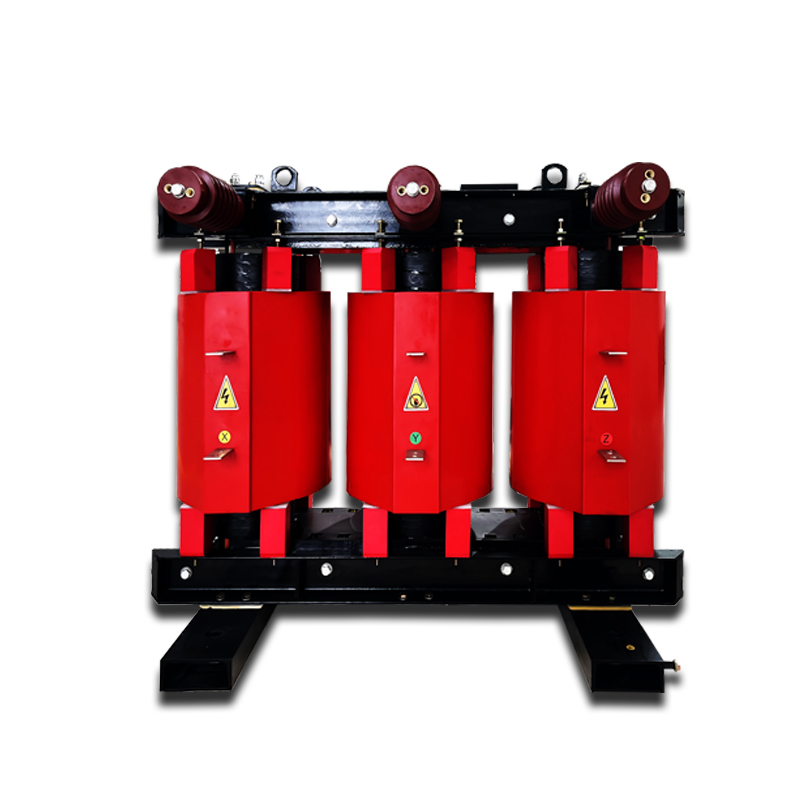

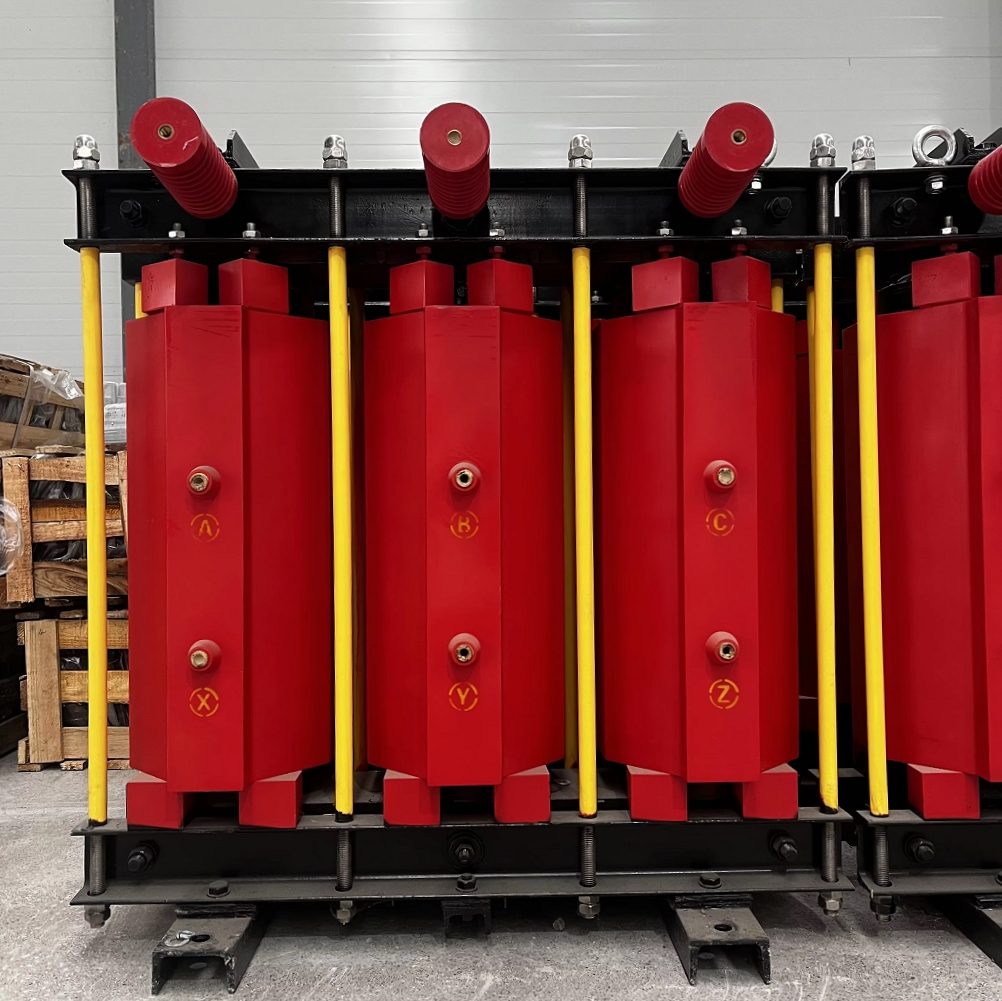

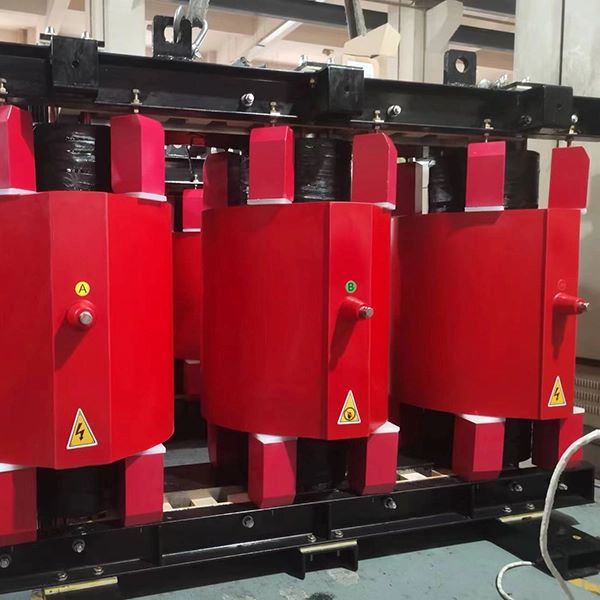

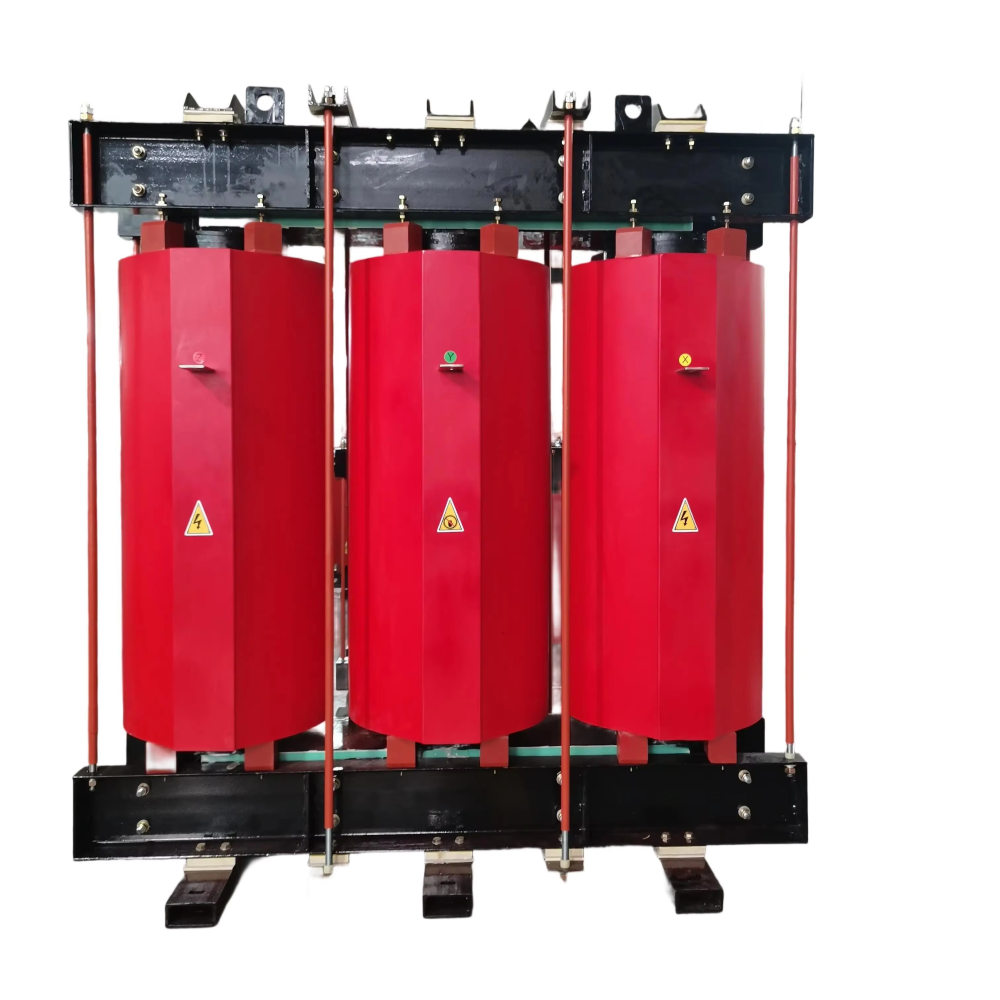

Looking for reliable reactive power compensation in your electrical grid? Our Dry-Type Iron Core Shunt Reactor delivers exceptional performance for high-voltage power transmission and distribution systems. This innovative device compensates for capacitive charging currents in long underground cables and lightly loaded transmission lines. Unlike traditional oil-immersed reactors, our solution uses advanced solid insulation technology with epoxy resin casting, completely eliminating fire and explosion risks. Perfect for indoor substations, subway systems, chemical plants, and other fire-sensitive environments where safety cannot be compromised.

Our reactor features high-permeability grain-oriented silicon steel cores with precisely engineered air gaps. This design ensures excellent magnetic linearity while preventing saturation issues common in conventional systems.

Technical Specifications

Main Features and Advantages

Zero Fire Risk: Solid insulation eliminates oil-related hazards completely. You get peace of mind in sensitive installations.

Superior Linearity: Iron core design with precision air gaps ensures consistent performance across all operating conditions.

Maintenance-Free Operation: No oil sampling or replacement required. This dramatically reduces your operational expenses.

Compact Design: Space-efficient footprint ideal for urban substations and underground facilities.

Environmental Safety: No risk of soil contamination from oil spills. Perfect for environmentally sensitive areas.

High Reliability: Advanced manufacturing processes ensure long-term stable operation in demanding conditions.

Practical Applications

Urban Substations: When you need safe operation in densely populated areas, our reactors meet strict fire safety regulations without compromising performance.

Renewable Energy Systems: Wind farms and solar plants benefit from reliable reactive power compensation. The robust design handles harsh environmental conditions with minimal maintenance requirements.

Railway Networks: High-speed rail systems rely on our reactors for harmonic filtering and reactive power compensation. They withstand frequent load cycling and mechanical vibration.

Industrial Facilities: Chemical plants, refineries, and manufacturing facilities choose our solution for its safety profile and operational reliability.

Underground Installations: Metro systems and underground power networks require our fire-safe technology to meet safety standards.

How It Works

Your Dry-Type Iron Core Shunt Reactor operates by providing controlled inductive reactance to your power system. The iron core with precisely positioned air gaps creates linear magnetic characteristics. This prevents saturation while maintaining consistent inductance values.

When connected to your transmission system, the reactor absorbs excess capacitive reactive power. This stabilizes voltage levels and prevents the Ferranti effect in long transmission lines. The epoxy resin insulation system provides excellent dielectric properties while the air cooling system maintains optimal operating temperatures.

Manufacturing Excellence

At Xi'an Xidian Medium and Low Voltage Electric Co., Ltd., we bring over years of expertise in power equipment manufacturing. Our facility operates under ISO9001 quality management, ISO14001 environmental management, and OHSAS18001 safety management systems.

We use advanced manufacturing techniques and high-grade materials. Every reactor undergoes rigorous testing to ensure it meets your performance requirements. Our technical team continuously innovates to improve product reliability and efficiency.

Why Choose Us

Proven Track Record: Our products serve customers across power, metallurgy, petrochemical, railway, and urban construction industries.

Technical Innovation: As participants in national 863 projects, we invest heavily in research and development. You benefit from cutting-edge technology.

Comprehensive Service: We provide complete system solutions from design through installation and maintenance support.

Quality Assurance: All products meet national standards with many achieving domestic and international advanced levels.

Customization Capability: We adapt our designs to meet your specific requirements and operating conditions.

FAQ

Q: What makes your Dry-Type Iron Core Shunt Reactor safer than oil-filled alternatives?

A: Our reactor uses solid epoxy resin insulation instead of oil. This completely eliminates fire and explosion risks, making it ideal for indoor and environmentally sensitive installations.

Q: How does the iron core design benefit my application?

A: The iron core with air gaps provides superior magnetic linearity compared to air-core designs. You get consistent performance and higher efficiency in a more compact package.

Q: What maintenance is required?

A: Minimal maintenance is needed. Unlike oil-filled reactors, there's no oil to sample or replace. Regular visual inspections and cleaning are typically sufficient.

Q: Can you customize the reactor for special applications?

A: Yes, we provide customized solutions based on your specific voltage, current, and environmental requirements.

Q: What support do you provide after installation?

A: We offer comprehensive technical support, maintenance guidance, and spare parts availability throughout the product lifecycle.

Contact Us

Ready to enhance your power system reliability and safety? Our technical experts are here to help you select the perfect Dry-Type Iron Core Shunt Reactor for your application.

Contact our sales team today for detailed specifications, custom solutions, and competitive pricing.

Email: serina@xaxd-electric.com

Let us help you achieve optimal power system performance with our advanced reactor technology. Your success is our commitment.
