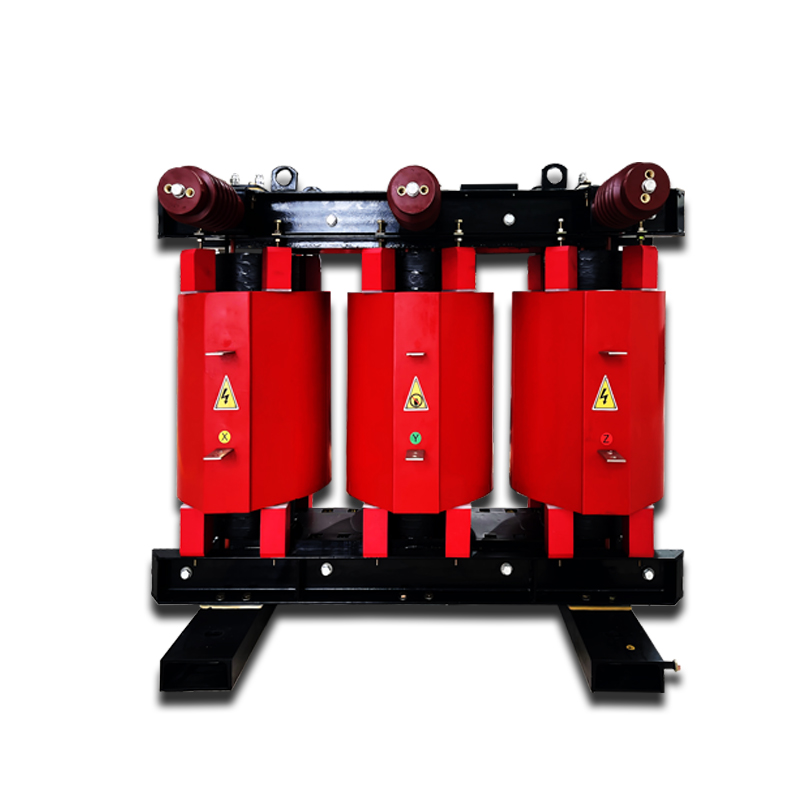

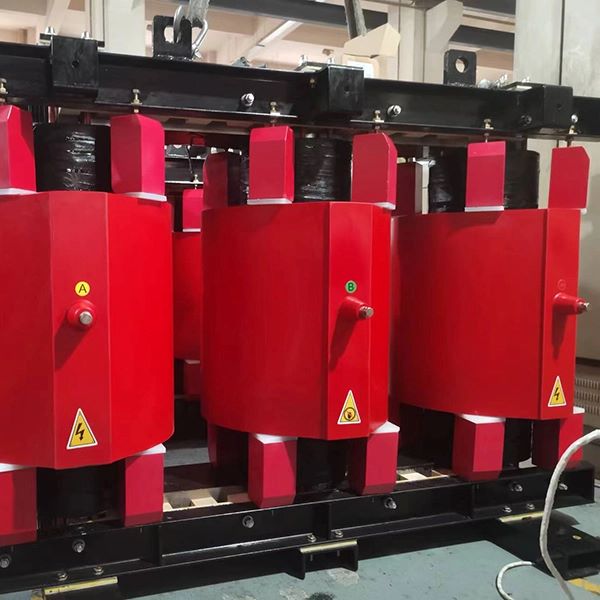

iron arc reactor core
2.The coil insulation performance is good, high mechanical strength, the ability after glass fiber reinforcement is impacted by the large current shock and hot and cold cracks.
3.Moistureproof performance is good.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Iron Arc Reactor Core - Professional Power Solution
Product Introduction
When you're dealing with high-power arc applications, you need a reliable iron arc reactor core that can handle extreme electrical conditions. Our iron arc reactor core is specifically engineered for arc-generating electrical systems like electric arc furnaces, welding inverters, and plasma stabilization units. Unlike standard transformer cores, this specialized component manages non-linear loads and massive transient currents without reaching magnetic saturation.
Built with premium grain-oriented electrical steel, our core features precision-engineered air gaps that control inductance effectively. The design addresses critical industry challenges including thermal stress management, acoustic noise reduction, and current volatility stabilization in arc discharge processes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Core Material | High-grade Grain-Oriented Electrical Steel (GOES) |
| Saturation Flux Density | ≥ 2.03T |
| Core Loss | < 0.9 W/kg at 1.7T, 50Hz |
| Lamination Thickness | 0.23mm - 0.30mm |
| Operating Temperature | Class H (180°C) / Class N (200°C) |
| Stacking Factor | >97% |
| Rated Voltage Range | 0.4kV - 40.5kV |
| Rated Current Range | 630A - 4000A |
| Insulation System | Epoxy resin vacuum casting |
| Curing Process | High temperature curing |
Main Features and Advantages
Our iron arc reactor core delivers exceptional performance through several key features. The epoxy resin vacuum casting construction provides superior insulation performance and high mechanical strength. After glass fiber reinforcement, the core resists large current shocks and thermal cycling without cracking.
The moisture-proof design ensures reliable operation in challenging industrial environments. The distributed air gap technology minimizes fringing flux while preventing localized overheating. High saturation flux density maintains linearity during peak arc currents, ensuring consistent performance.
Advanced lamination techniques reduce eddy current losses significantly. The precision stacking with vacuum pressure impregnation bonding resists Lorentz forces and vibration effectively.
Practical Applications
You'll find our iron arc reactor core essential in various demanding applications. In electric arc furnaces and metallurgy operations, it buffers the grid against violent current fluctuations during scrap metal melting. The core endures rapid electrical transients in harsh conductive dust environments.
High-power welding fabrication centers use our cores in DC link chokes and AC output reactors. This ensures smooth arc ignition and stability, directly improving weld quality while reducing spatter in automotive and aerospace assembly.
Renewable energy grid interconnection systems benefit from our iron arc reactor core in line reactors for photovoltaic inverters and wind turbine converters. It filters high-frequency harmonics from switching events, ensuring IEEE 519 compliance for power quality.
How It Works
The iron arc reactor core functions as the magnetic nucleus of electrical reactors. High-permeability ferromagnetic materials provide a low-reluctance path for magnetic flux. This allows significantly higher inductance values in compact designs compared to air-core alternatives.
The precision-engineered air gaps control magnetic flux distribution while preventing saturation. Laminated construction minimizes eddy current losses during high-frequency operations. The core operates near the knee-point of the saturation curve, ensuring linear impedance stability under heavy load conditions.
During arc events, the iron arc reactor core maintains magnetic linearity despite current surges. The distributed gap design spreads magnetic stress evenly, preventing hot spots and mechanical failure.
Manufacturing Excellence
Our manufacturing process ensures consistent quality and reliability. We use advanced lamination techniques with premium electrical steel materials. Vacuum pressure impregnation provides superior bonding and moisture resistance.
Quality control measures include rigorous testing at each production stage. From raw material selection through final assembly, every step meets strict international standards. Our facility maintains ISO9001 quality management certification.
Precision machining creates accurate air gaps and smooth lamination surfaces. High-temperature curing processes guarantee long-term stability and performance. Each core undergoes comprehensive electrical and mechanical testing before shipment.
Why Choose Us
Xi'an Xikai Medium And Low Voltage Electric Co., Ltd. brings decades of experience in power equipment manufacturing. Our comprehensive product range covers 9 categories with over 100 varieties of electrical equipment. We maintain leading technical indicators that meet both national and international standards.
Our research and development team continuously innovates to meet evolving industry needs. As participants in national 863 projects, we integrate cutting-edge technology into practical solutions. Multiple patents demonstrate our technical leadership in the industry.
Quality certifications include ISO9001, ISO14001, and OHSAS18001 systems. Our products operate reliably at altitudes up to 4000 meters. Customization capabilities ensure solutions perfectly match your specific requirements.
FAQ
Q: How does the core handle high-frequency harmonics?
A: We utilize 0.23mm laminations and specialized iron-silicon alloys to increase resistivity, significantly reducing eddy current losses from harmonic frequencies.
Q: What's the expected lifespan in vibrating environments?
A: With proper epoxy resin impregnation and mechanical clamping, our cores deliver over 20 years of service life, resisting magnetostrictive vibration fatigue.
Q: Can you customize for liquid cooling systems?
A: Yes, we engineer cores with internal cooling channels or adapt them for oil/ester-filled tank immersion for enhanced heat dissipation.
Q: How do you prevent fringing flux overheating?
A: Our distributed gap design splits reluctance into smaller sections, reducing fringing field intensity and protecting structural components.
Q: What determines material choice between amorphous iron and silicon steel?
A: Silicon steel offers superior mechanical strength and cost-effectiveness for high-current applications. We select materials based on your specific performance requirements.
Contact Us
Ready to enhance your power system performance with our premium iron arc reactor core? Our technical team is ready to discuss your specific requirements and provide customized solutions.
Contact us today at: serina@xaxd-electric.com
Our experts will help you select the optimal core configuration for your application and provide comprehensive technical support throughout your project lifecycle.
