Iron Core Series Reactor
2.The coil insulation performance is good, high mechanical strength, the ability after glass fiber reinforcement is impacted by the large current shock and hot and cold cracks.
3.Moistureproof performance is good.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Iron Core Series Reactor - Professional Power Quality Solutions
Product Introduction

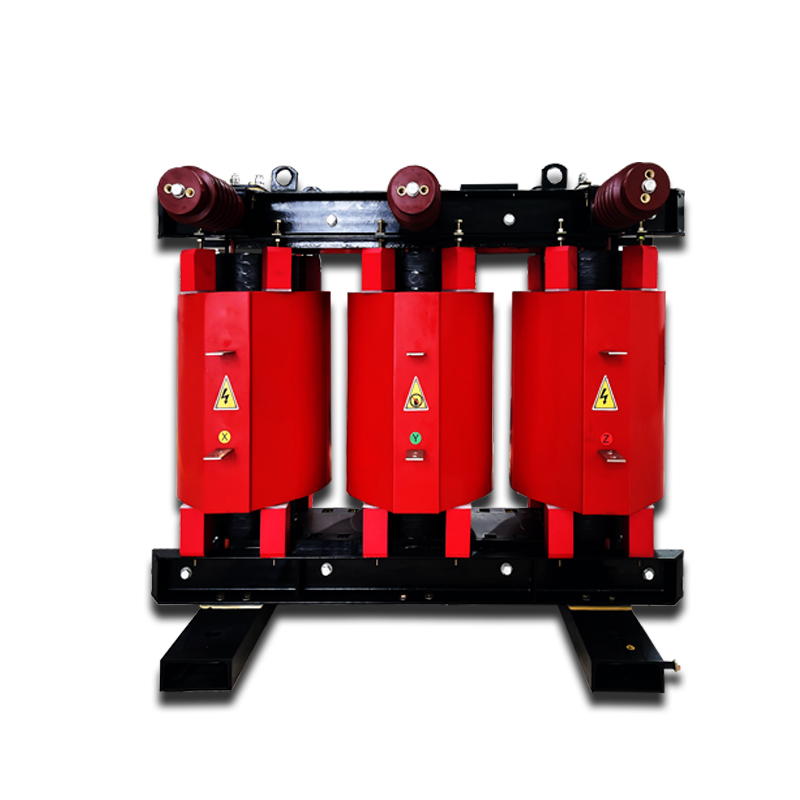

When you're facing power quality challenges in your electrical systems, our Iron Core Series Reactor delivers the reliability you need. This specialized inductive component features a high-permeability magnetic core constructed from premium cold-rolled grain-oriented silicon steel laminations. Unlike traditional air-core alternatives, our Iron Core Series Reactor concentrates magnetic flux efficiently, providing you with a compact footprint and reduced electromagnetic interference.
Our reactor connects seamlessly in series with your shunt capacitor banks. It addresses critical industry pain points by limiting dangerous switching inrush currents that can reach 100 times rated capacity. Additionally, it suppresses harmful harmonics and prevents parallel resonance between capacitor banks and grid impedance.
The coil construction uses epoxy resin vacuum casting technology. After high-temperature curing, you get exceptional insulation performance and superior mechanical strength. Glass fiber reinforcement protects against large current shocks and thermal cycling damage. The moisture-resistant design ensures long-term reliability in challenging environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.4kV - 40.5kV |
| Rated Current | 630A - 4000A |
| Frequency | 50/60 Hz |
| Insulation Level | Up to 40.5kV |
| Operating Temperature | -40°C to +40°C |
| Altitude | Up to 4000m above sea level |
| Protection Class | IP20 - IP54 |
| Cooling Method | Natural air cooling / Forced air cooling |
| Core Material | Cold-rolled grain-oriented silicon steel |
| Insulation Material | Epoxy resin vacuum cast |
| Reactance Tolerance | ±5% |
| Standards Compliance | GB, IEC, IEEE |
Main Features and Advantages
Superior Magnetic Design
Our iron core construction provides exceptional inductance stability. The high-permeability core material ensures consistent performance across varying load conditions.
Advanced Insulation System
The epoxy resin vacuum casting process creates a moisture-proof barrier. This protects your investment from environmental degradation and extends service life significantly.
Robust Mechanical Strength
Glass fiber reinforcement handles extreme electrical stresses. Your reactor withstands large current impacts and thermal cycling without structural damage.
Compact Footprint
The concentrated magnetic flux design reduces space requirements. You save valuable real estate in your electrical installations.
Low Electromagnetic Interference
The iron core minimizes stray magnetic fields. This protects sensitive equipment in your facility from unwanted interference.
Practical Applications
Heavy Industrial Metallurgy
In arc furnace and rolling mill operations, our Iron Core Series Reactor controls voltage fluctuations. It filters harmonics effectively, preventing capacitor overload and utility penalties.
Renewable Energy Systems
Wind and solar installations benefit from our harmonic filtering capabilities. The reactor smooths inverter output waveforms and ensures grid-code compliance for power factor correction.
Data Centers
High-density electronic loads create significant harmonic distortion. Our reactors block third harmonics, preventing neutral conductor overheating and ensuring zero-downtime reliability.
Manufacturing Facilities
Motor drives and variable frequency drives generate harmonics that damage equipment. Our solution protects your investment while improving power quality.
How It Works
The reactor operates on electromagnetic induction principles. When current flows through the windings, the iron core creates a controlled magnetic field. This field opposes current changes, providing the inductive reactance needed for your application.
During capacitor switching events, the reactor limits inrush currents to safe levels. It prevents the massive current spikes that damage contactors and reduce capacitor life. The Iron Core Series Reactor also creates a detuning effect that shifts resonant frequencies away from problematic harmonics.
The epoxy resin encapsulation provides both electrical insulation and mechanical support. This construction withstands the forces generated during fault conditions while maintaining electrical integrity.
Manufacturing Excellence
Xi'an Xidian Medium and Low Voltage Electric Co., Ltd. brings decades of expertise to every reactor we produce. Our ISO9001 quality management system ensures consistent manufacturing standards. Environmental management certification demonstrates our commitment to sustainable production practices.
We use advanced vacuum casting equipment for precise resin application. High-temperature curing ovens provide complete polymerization for maximum mechanical strength. Every unit undergoes comprehensive testing before shipment to verify performance specifications.
Our manufacturing facility handles the complete production process. From core lamination stacking to final assembly, we control every aspect of quality. This vertical integration ensures you receive reliable, high-performance products.
Why Choose Us
Proven Track Record
Our products serve customers across power generation, industrial manufacturing, and infrastructure projects. The technical performance meets national and international standards consistently.
Comprehensive Product Range
Beyond reactors, we offer complete medium and low voltage solutions. This includes switchgear, transformers, circuit breakers, and integrated systems tailored to your needs.
Technical Support
Our engineering team provides application assistance and custom solutions. We work with you to optimize reactor specifications for your specific requirements.
Quality Assurance
Multiple management system certifications demonstrate our commitment to excellence. Every Iron Core Series Reactor undergoes rigorous testing to ensure reliable operation.
FAQ
Q: What's the difference between iron core and air core reactors?
A: Iron core reactors provide higher inductance in a smaller package. They're ideal when space is limited and electromagnetic interference must be minimized.
Q: How do I select the correct reactance value?
A: Reactance selection depends on your capacitor bank size and harmonic filtering requirements. Our engineers can help you calculate the optimal specification.
Q: What maintenance is required?
A: The dry-type construction requires minimal maintenance. Visual inspections and periodic cleaning are typically sufficient for long service life.
Q: Can you customize reactors for special applications?
A: Yes, we provide custom designs for unique voltage, current, or environmental requirements. Our engineering team works with you to develop optimal solutions.
Q: What's the typical delivery time?
A: Standard products ship within 4-6 weeks. Custom designs may require 8-12 weeks depending on specifications and testing requirements.
Contact Us
Ready to improve your power quality with our Iron Core Series Reactor solutions? Our technical team is standing by to assist with your application requirements.
Email: serina@xaxd-electric.com
Contact us today for detailed specifications, pricing information, or technical consultation. We're committed to providing the power quality solutions that keep your operations running smoothly and efficiently.
