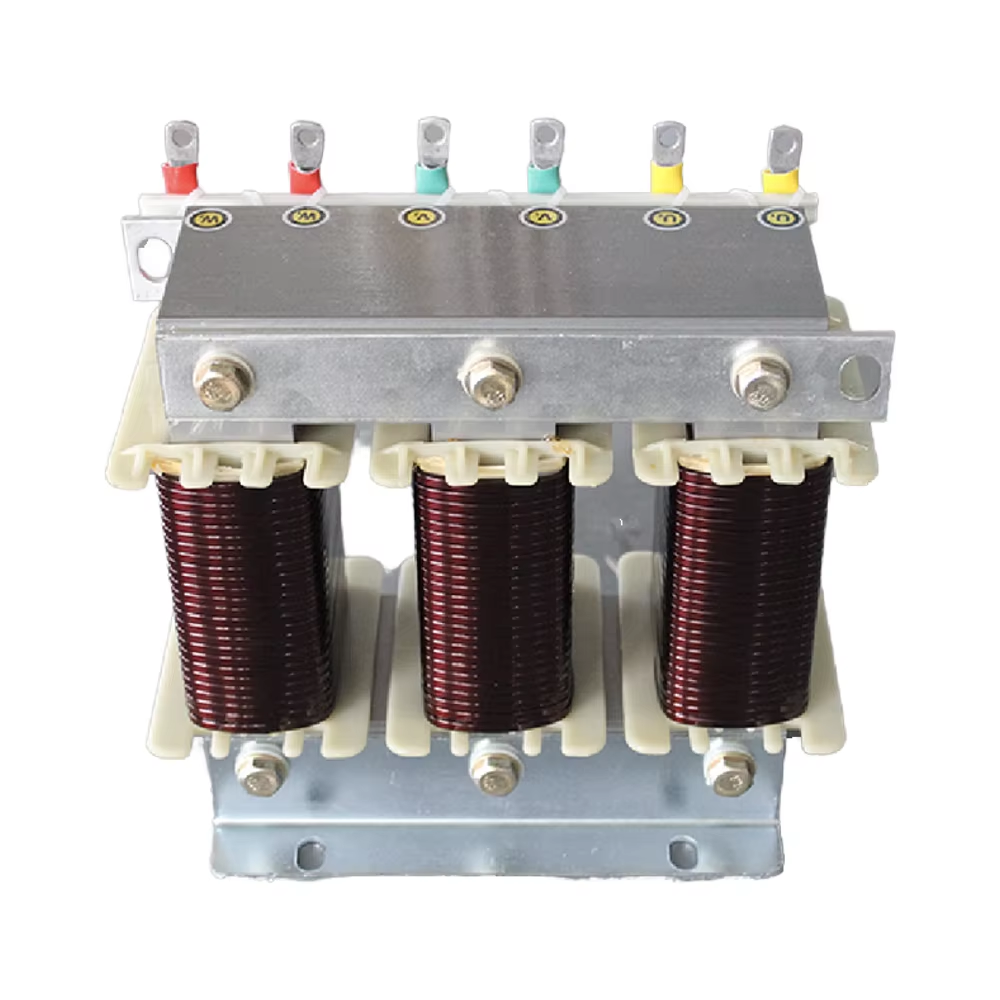

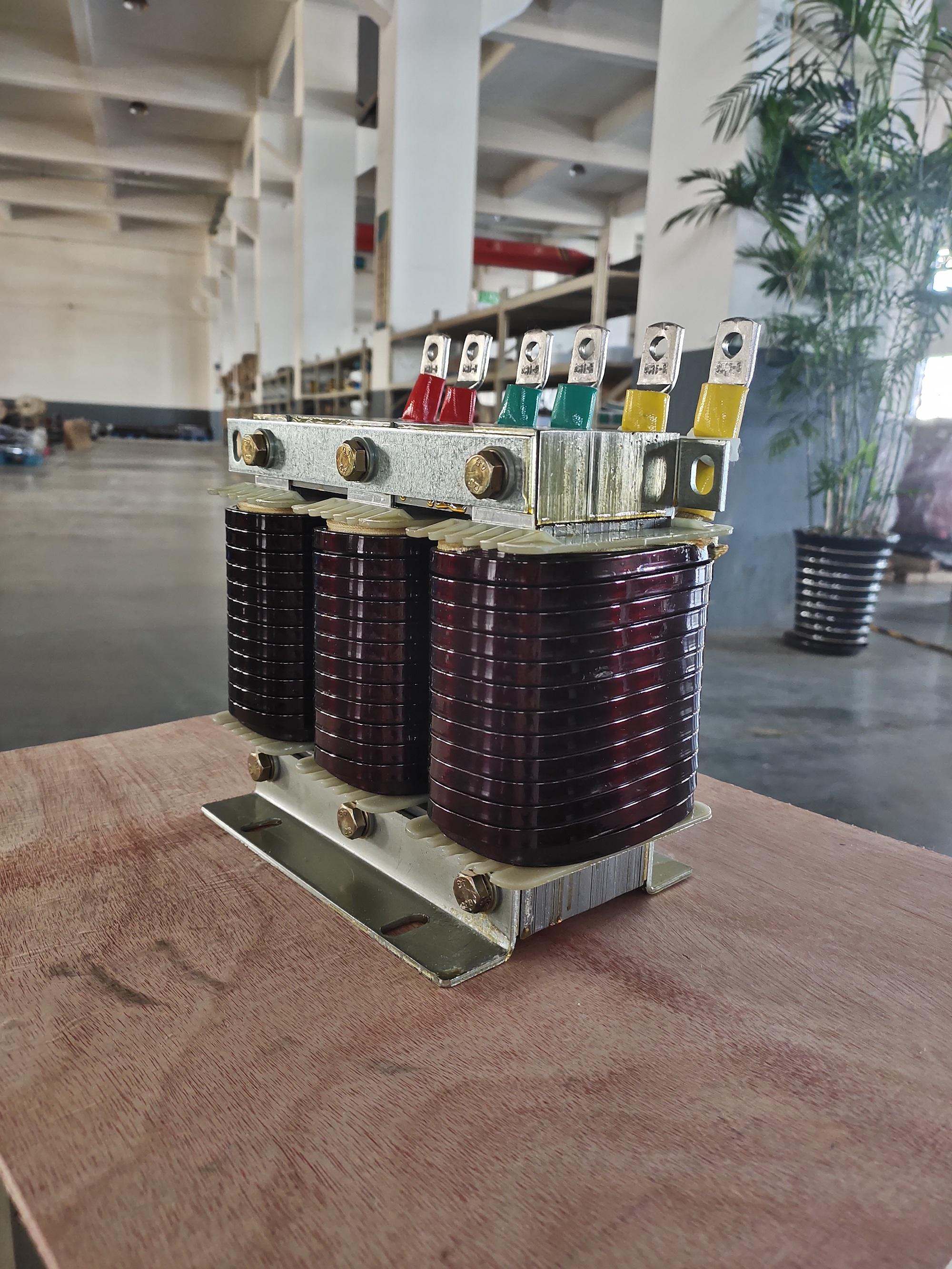

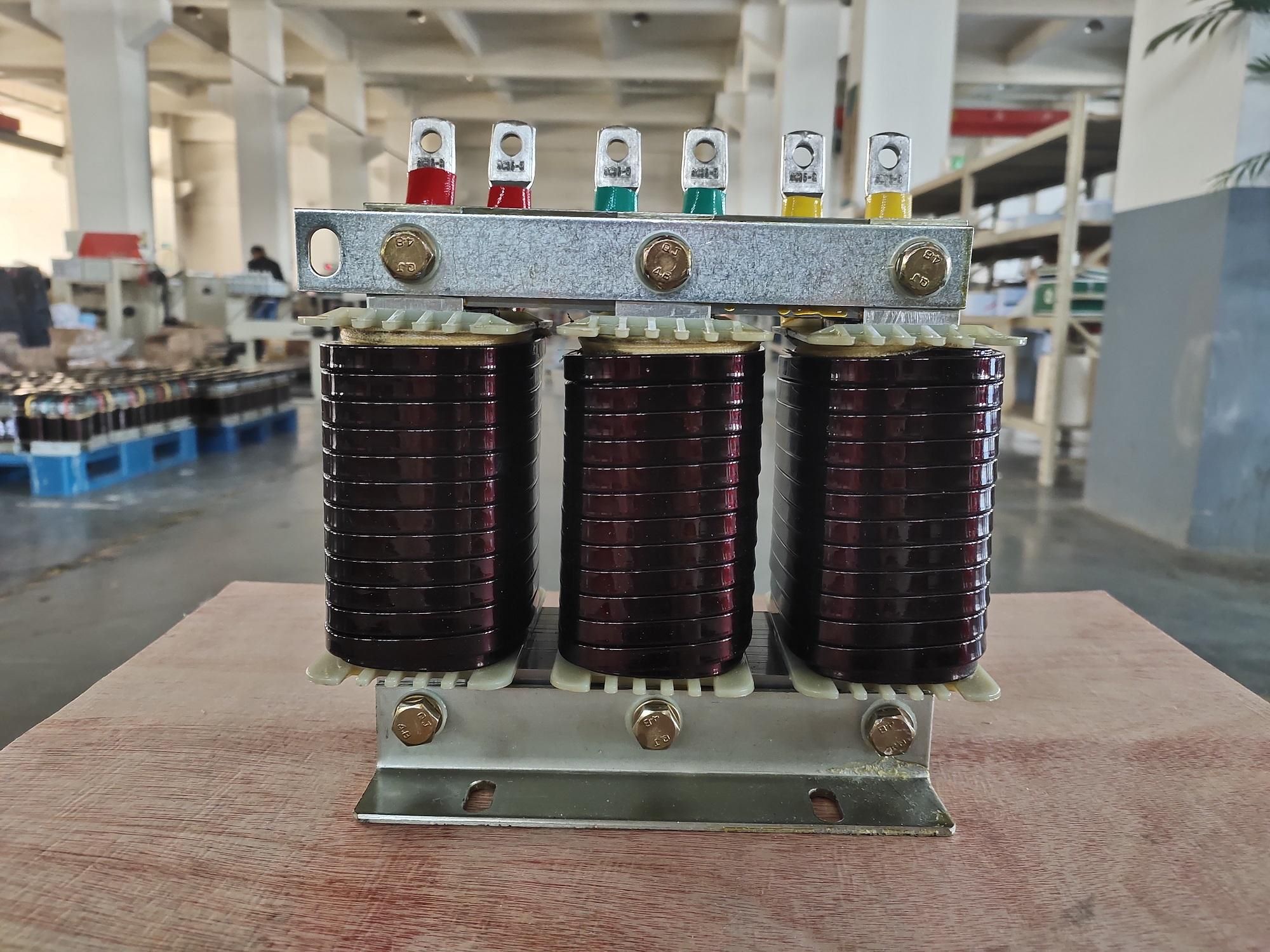

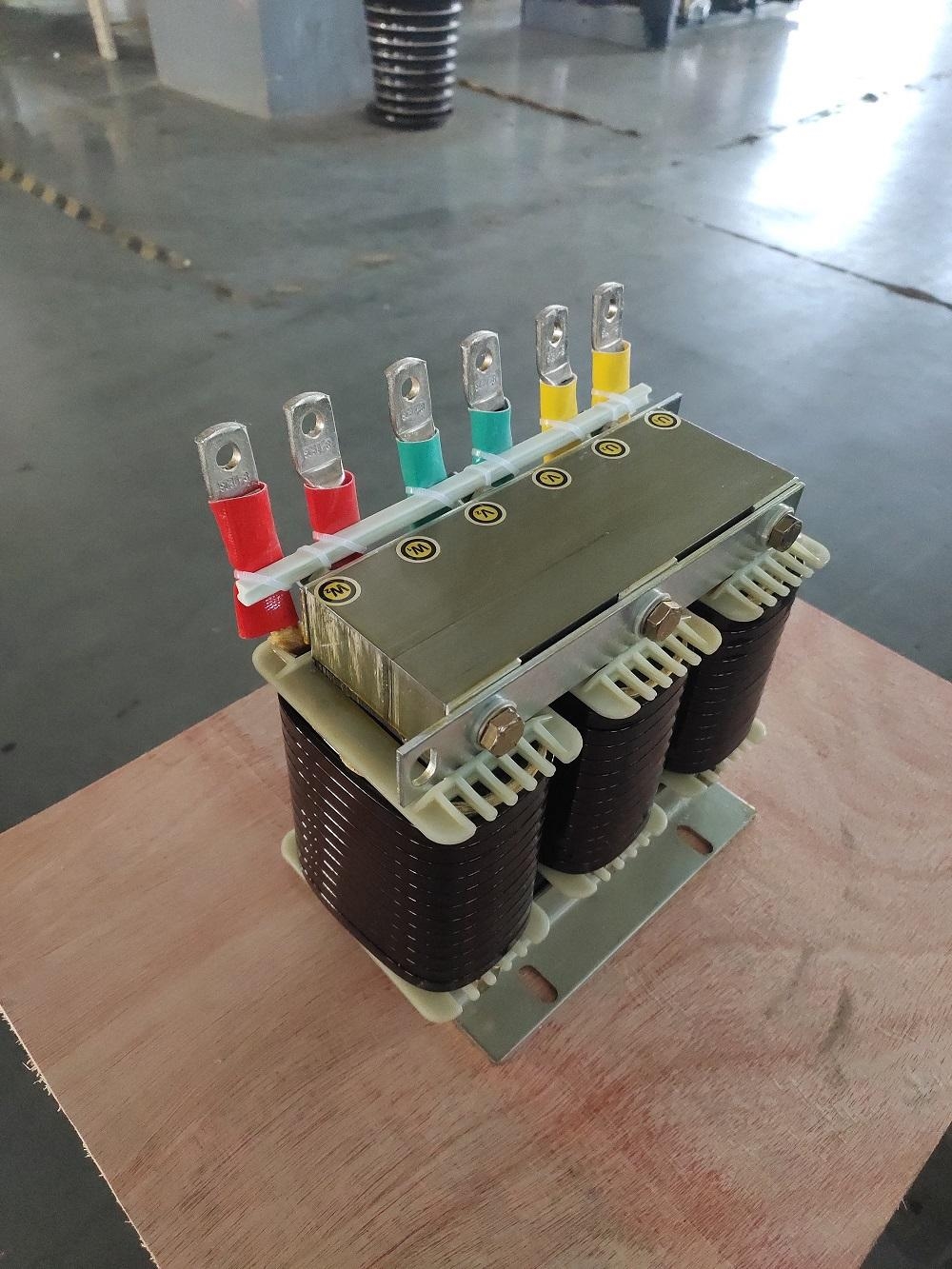

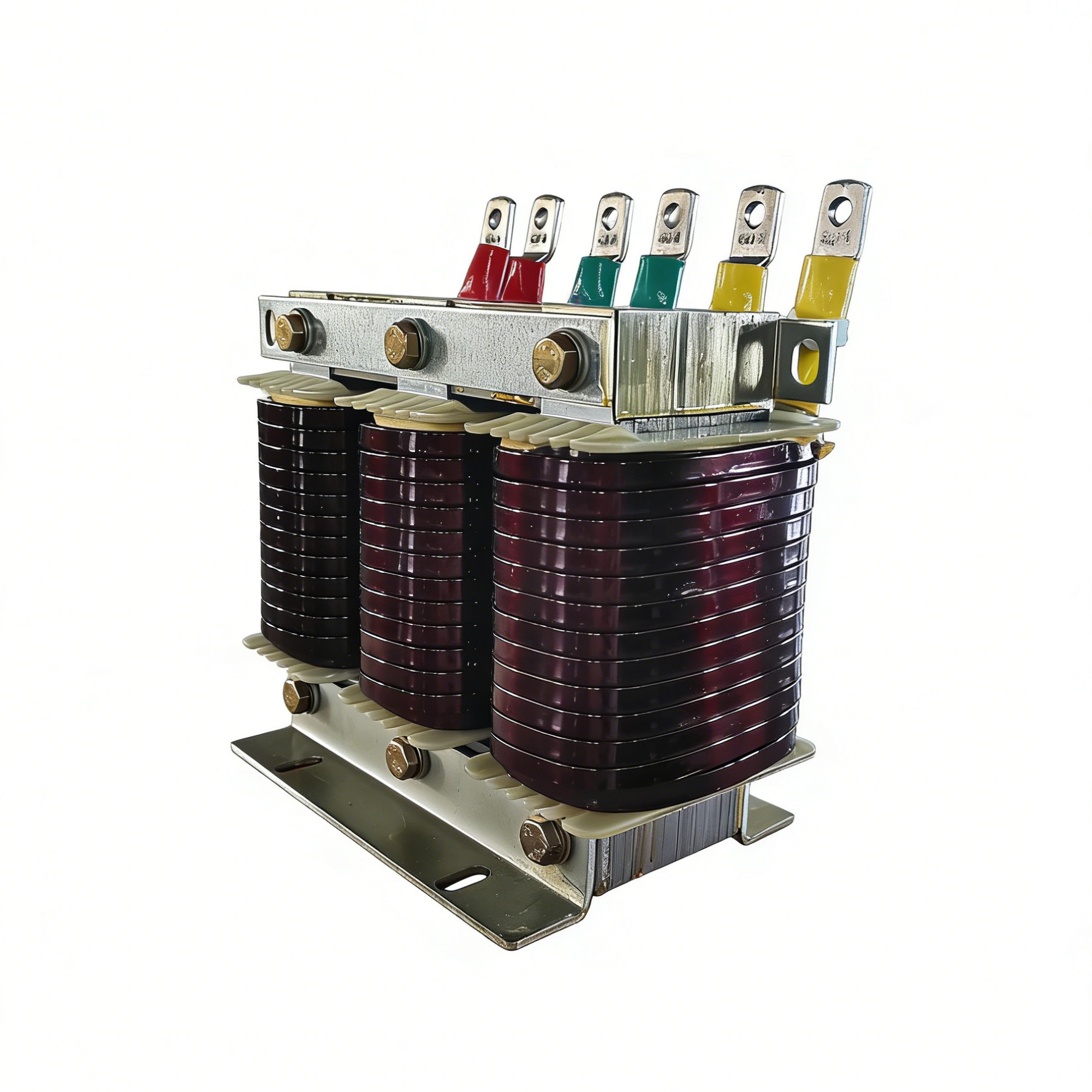

Low Voltage Filter Reactor
3kv,6kv,10kv,15kv,20kv,35kv
2.Insulation: Class F.
3.Uses epoxy resin casting or air insulation, eliminating fire and explosion hazards, making it ideal for indoor, subway, chemical plants, and other fire-sensitive environments.
4.Typically consists of air-core coils (no iron core) or iron-core designs with air gaps, ensuring good magnetic linearity and avoiding saturation.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Low Voltage Filter Reactor - Professional Power Quality Solutions
Product Introduction
When your electrical system suffers from harmonic distortion and power quality issues, you need a reliable Low Voltage Filter Reactor to restore stability and efficiency. Our premium filter reactors are specifically engineered to work in series with capacitor banks, creating detuned LC circuits that prevent harmful resonance phenomena in your power distribution system. These specialized inductive components eliminate the risk of capacitor failure caused by harmonic amplification while significantly improving your overall power factor correction performance.
Our filter reactors feature advanced epoxy resin casting technology, eliminating fire and explosion hazards completely. This makes them perfect for indoor installations, subway systems, chemical plants, and other fire-sensitive environments where safety is paramount.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 380V, 415V, 480V, 690V |
| Frequency | 50/60Hz |
| Detuning Factor | 5.67%, 7%, 14% |
| Insulation Class | Class F (155°C) / Class H (180°C) |
| Inductance Tolerance | ±3% |
| Current Rating | 25A - 1000A |
| Protection Degree | IP20 / IP54 |
| Ambient Temperature | -25°C to +45°C |
| Altitude | Up to 4000m above sea level |
| Standards Compliance | IEC 60076-6, EN 61558 |
| Noise Level | ≤60dB |
Main Features and Advantages
Our filter reactors deliver exceptional performance through innovative design and superior materials. The air-core construction with strategically placed air gaps ensures excellent magnetic linearity, preventing saturation even under extreme overload conditions.
The Vacuum Pressure Impregnation (VPI) process creates outstanding dielectric strength and heat dissipation capabilities. This advanced manufacturing technique significantly reduces audible noise and mechanical vibration, making our reactors ideal for noise-sensitive environments.
High-grade silicon steel laminations minimize hysteresis losses while maintaining consistent performance across varying load conditions. The robust construction withstands harmonic currents up to 200% of rated capacity without performance degradation.
Integrated thermal protection switches provide automatic disconnection when core temperatures exceed safe operating limits, protecting your investment and ensuring system reliability.
Practical Applications
Industrial Manufacturing Plants: Steel mills, automotive factories, and heavy manufacturing facilities rely on our reactors to support Automatic Power Factor Correction panels. These environments generate substantial 5th and 7th harmonic distortions from arc furnaces, welding equipment, and extensive VFD installations.
Data Centers and IT Facilities: Critical infrastructure like data centers use our 14% detuning factor reactors to handle massive 3rd harmonic currents generated by server farms, UPS systems, and switching power supplies.
Commercial Buildings: Office complexes, shopping centers, and hospitals benefit from improved power quality and reduced electrical stress on sensitive equipment like elevators, HVAC systems, and medical devices.
Renewable Energy Systems: Solar and wind installations integrate our reactors on inverter AC outputs to smooth waveforms before grid connection, ensuring compliance with utility interconnection standards.
How It Works
Your Low Voltage Filter Reactor operates by creating a precisely tuned LC circuit when connected in series with power factor correction capacitors. This configuration shifts the system's resonance frequency below the lowest dominant harmonic, typically the 5th harmonic at 250Hz.
The reactor's inductance combines with capacitor reactance to create a controlled impedance path. During normal operation, fundamental frequency current flows freely while harmonic frequencies encounter high impedance, effectively blocking their circulation.
This prevents dangerous parallel resonance that could amplify harmonic currents and damage equipment. The reactor also limits inrush currents during capacitor switching, extending contactor life and reducing mechanical stress on your electrical system.
Manufacturing Excellence
Our state-of-the-art manufacturing facility employs rigorous quality control processes aligned with international standards. Every reactor undergoes comprehensive testing including inductance accuracy verification, linearity assessment, and temperature rise evaluation.
We utilize premium copper and aluminum conductors with advanced connection technologies to prevent oxidation and ensure long-term reliability. Our experienced engineering team continuously improves designs based on real-world field performance data.
The production facility maintains ISO9001 quality management certification, ISO14001 environmental management compliance, and OHSAS18001 occupational health and safety standards, ensuring consistent product excellence.
Why Choose Us
Xi'an Xidian Medium and Low Voltage Electric Co., Ltd. brings decades of expertise in power distribution equipment manufacturing. Our comprehensive product portfolio spans 9 categories with over 100 varieties, serving customers across multiple industries worldwide.
We understand that every application has unique requirements. Our engineering team provides customized solutions tailored to your specific harmonic profile and power system characteristics. From initial consultation through installation support, we're committed to your success.
Our nationwide service network ensures rapid response times and local technical support. We maintain extensive spare parts inventory and offer comprehensive training programs for your maintenance personnel.
FAQ
Q: What detuning factor should I choose for my application?
A: For balanced three-phase loads with VFDs where 5th and 7th harmonics dominate, select 7% detuning. For environments with significant single-phase loads generating 3rd harmonics, choose 14% detuning.
Q: Can I add reactors to my existing capacitor bank?
A: Existing standard capacitors typically require replacement with reactor-duty rated units due to voltage rise effects. The reactor causes approximately 7-15% voltage increase across capacitor terminals.
Q: Why might my reactor overheat despite normal current levels?
A: Overheating often indicates high-frequency harmonic content or insufficient cabinet ventilation. Ensure ambient temperature stays below 40°C and maintain proper airflow.
Q: How do I verify reactor performance after installation?
A: Monitor harmonic distortion levels, capacitor temperatures, and system power factor. Properly functioning reactors should eliminate resonance peaks and maintain stable operation.
Q: What maintenance is required for optimal performance?
A: Annual visual inspections, connection tightness checks, and thermal imaging surveys ensure reliable operation. Clean air filters regularly to maintain proper cooling airflow.
Contact Us
Ready to improve your power quality with professional-grade filter reactors? Our technical specialists are standing by to discuss your specific requirements and recommend optimal solutions for your application.
For detailed technical specifications, custom engineering support, or pricing information, contact our expert team at serina@xaxd-electric.com. We're committed to delivering superior power quality solutions that enhance your system reliability and operational efficiency.
