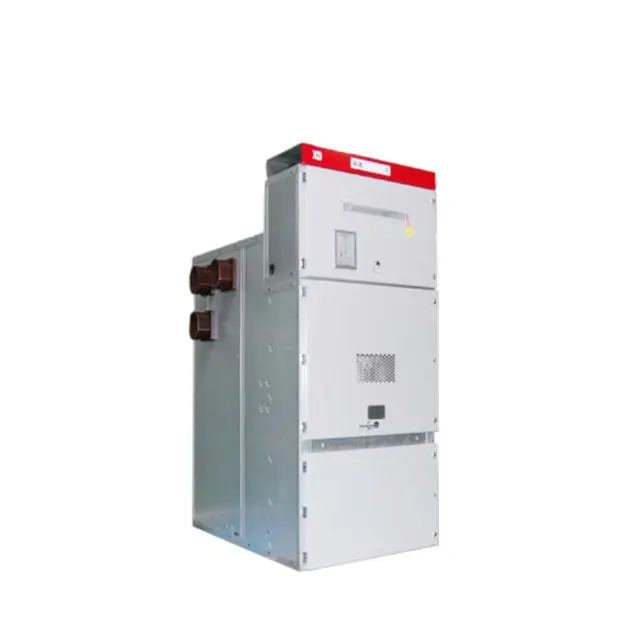

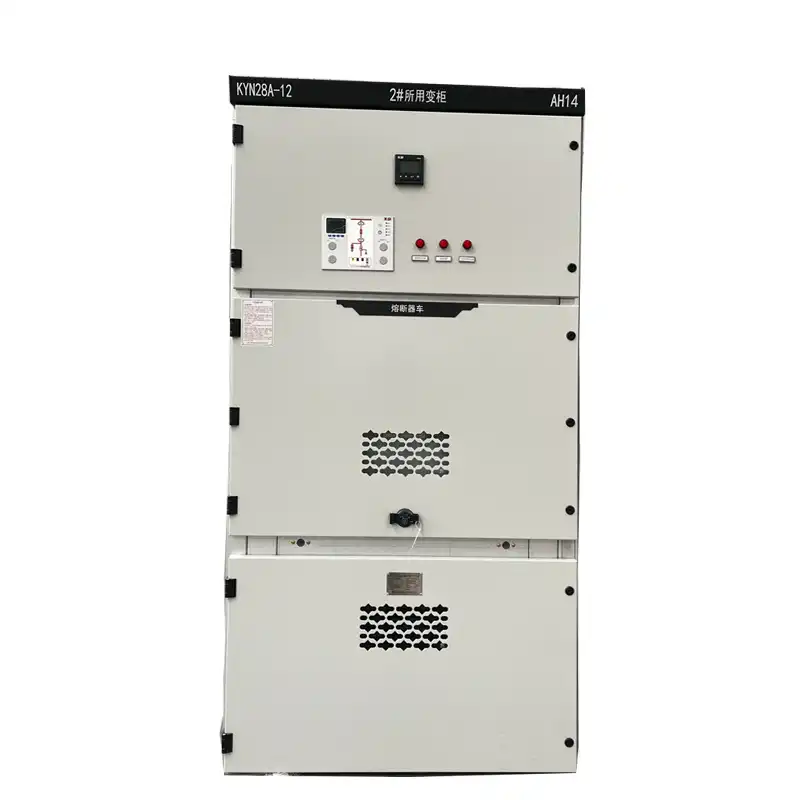

Domestic Withdrawable Switchgear: Design, Operation, and Uses

Domestic withdrawable switchgear refers to a category of low-voltage electrical distribution equipment where individual functional units — such as circuit breakers, contactors, and protection relays — can be physically extracted from the cabinet without de-energizing the entire system. This modular architecture distinguishes it from fixed switchgear by enabling live maintenance, rapid unit replacement, and scalable expansion. Widely adopted in industrial plants, commercial buildings, and substations, domestic withdrawable switchgear delivers a practical balance between operational continuity, personnel safety, and long-term cost control that procurement engineers and project managers increasingly prioritize.

Understanding Domestic Withdrawable Switchgear: Design and Features

Core Architecture and Components

A low-voltage switchgear cabinet that can be taken out has three main areas: the busbar area, the domestic withdrawable switchgear unit area, and the cable connection area. Insulated walls keep each zone physically separate, which greatly lowers the risk of an arc flash spreading. The units that can be taken out move through connected, test, and isolated positions using a precise racking mechanism. This design has been proven to work by being tested mechanically up to 2,000 times according to IEC 62271-1.

There are important structural parts like mechanical and electrical interlocks, grounding rails, primary contact assemblies (first-level plugs), and secondary control wiring connectors (second-level plugs). Standard industrial grids and higher-demand distribution networks can both use insulation systems that are rated at 660V or 1,000V. Domestic models meet the requirements of GB 7251 and IEC 60439-1, and are made to fit the power patterns of each country's grid and the weather. The frame is modular, so cabinet sizes and heights can be changed to fit the needs of the project. This supports both normal buying and custom-engineered solutions.

GCS-0.4: A Practical Example of Domestic Engineering

The GCS-0.4 Withdrawable Low Voltage Switchgear from Xi'an Xikai shows how domestic withdrawable switchgear is made to work in the real world. IEC 60439-1-certified, it works at rated speeds of 50 Hz and 60 Hz, can handle insulation voltages of 660V and 1,000V, and can break currents of up to 50kA. Its IP40+ grade means that dust and rust can't get in, so it can be used in dirty industrial settings. Up to 2,000 meters above sea level, temperatures ranging from -10°C to +40°C, and daily averages of less than 95% relative humidity are all normal working conditions.

How Domestic Withdrawable Switchgear Works: Operation and Safety

Racking Mechanisms and Interlock Systems

There is a set order for operating a domestic withdrawable switchgear unit that keeps it from turning on by accident when it is being inserted or taken out. The breaker truck can be fully engaged with main contacts when it is attached, fully isolated for offline service when it is in test mode, and fully disconnected when it is fully withdrawn. When the unit is attached, mechanical interlocks stop the compartment door from opening, and when the circuit breaker is closed, electrical interlocks stop the rack from moving.

Grounding contacts engage before main contacts do during insertion and disconnect last during removal to protect people from residual charge. Ionized gasses are kept away from operator zones by the partitioned structure, which keeps the arc fault contained. These multiple safety measures meet the needs of IEC 61439-2 and UL 1558. To avoid thermal hotspots, contact resistance in primary circuits should stay below 100 μ. Facilities that use a micro-ohmmeter to test contact resistance on a regular basis at rated current can find degradation before it gets bad enough to cause a fault.

Advantages and Applications of Domestic Withdrawable Switchgear

When you compare domestic withdrawable switchgear directly to fixed switchgear and foreign options, you can see how valuable it is. Here are the main performance benefits that make this type of tools stand out:

• Maintenance without total shutdown: Withdrawable units can be fixed or replaced while they are in the test or isolated position and the feeders next to them are still live. This cuts planned downtime in continuous-process facilities by a huge amount.
• Drawer interchangeability: Frames with standard sizes for domestic withdrawable switchgear let units of the same grade be moved from one cabinet to another. You don't have to keep as many spare parts on hand, and it's easier to get replacements in case of an emergency.
• High breaking capacity: A 50kA short-circuit breaking capability is enough to clear faults in most industrial and commercial distribution networks, keeping equipment further downstream from getting damaged.
• Scalable configuration: With standard current rates of up to 4,000A and high-capacity versions of above 5,000A, the same product family can be used in both small substations and big industrial hubs.

These benefits lead to measured results in the workplace. A factory that used to have eight hours of planned downtime for maintenance can cut that time down to less than two hours by fixing individual withdrawable units instead of the whole distribution board. Industrial plants that manage CNC machine lines and production processes are common places where this technology is used because surge currents require strong fault tolerance. The switchgear's ability to keep harmonics stable is useful for substations that use renewable energy sources. Withdrawable configurations are used to update old distribution systems in commercial buildings like hospitals and shopping malls with little trouble for the people who live or work there.

Comparison and Procurement Guidance: Choosing the Right Switchgear

Domestic vs. Imported: What Procurement Engineers Should Know

Imported switchgear from European or North American manufacturers has a well-known brand name, but domestic withdrawable switchgear has made the performance gap much smaller. The dielectric withstand, temperature rise, and making/breaking short-circuit standards for products approved under GB 7251 and IEC 60439-1 are the same as those for imported products.

When buying domestic withdrawable switchgear, you should think about a number of useful factors. A common problem is the lead time for non-standard drawer configurations. For custom orders, imported units may take 12–20 weeks, but local makers can usually deliver within 6–10 weeks, depending on how complicated the specifications are. Another thing to think about is the availability of spare parts. Getting secondary connector assemblies and racking components locally cuts down on the time it takes for maintenance to be done by a large amount.

Some good factors for evaluating suppliers are ISO 9001 certification, compliance test reports according to IEC 60439-1, paperwork from mechanical endurance tests, and references from projects that are similar to the one being evaluated. Requesting factory acceptance testing (FAT) witness opportunities is a good idea when 5–50 cabinets are committed to a project. This way, the project engineer can check the contact resistance, interlock sequencing, and dielectric performance before the cabinets are shipped.

Maintenance Best Practices for Domestic Withdrawable Switchgear

Inspection Intervals and Key Checkpoints

With a structured maintenance program, domestic withdrawable switchgear can work for many more years than the 20-year design baseline. The frequency of routine inspections depends on the load and the surroundings, but every six months is enough for most commercial uses.

Technicians should check that the racking mechanism works mechanically by inserting and withdrawing it at least five times without any load. They should also measure the contact resistance on the primary circuits, look for oxidation or deformation on the secondary connector pins, and make sure the interlock works. Cleaning the insulation on a busbar with dry compressed air gets rid of conductive particles before they can connect to the insulation surfaces.

Using the right dielectric grease to grease the racking guides and contact rails stops metal wear at the contact points. Recording each inspection, along with contact resistance readings and any strange things seen, creates a maintenance log that can be used to support warranty claims and guide choices about future upgrades.

When second-level plugs in control circuits show signs of intermittent contact or oxidation, they should be replaced as soon as possible to keep protection switches from falsely tripping, which is one of the most annoying problem modes in withdrawable switchgear systems. Keeping a small stock of standard drawer units and connector assemblies on hand is a good way to protect against unplanned outages.

Conclusion

For the transfer of industrial and commercial power, domestic withdrawable switchgear is an established, technically sound option. Its modular design, high fault-clearing ability, and mechanical interchangeability meet the main needs of project engineers who are in charge of difficult electrical installations. Products like the GCS-0.4 show that withdrawable switchgear made in the United States can meet international performance standards while also having short lead times and quick customer service after the sale. When procurement workers are looking at switchgear choices for projects with five to fifty cabinets, knowing these basic rules about design, operation, and maintenance helps them make better decisions about where to buy and lowers the total cost of ownership.

FAQ

1. What is the difference between withdrawable and fixed switchgear?

Circuit breakers are securely linked to the busbar and wire terminations by fixed switchgear. For servicing, the whole part of the panel needs to be turned off. Withdrawable switchgear lets you move individual units to a test or separated position while the circuits next to them stay live. This cuts down on repair downtime by a large amount.

2. What breaking capacity does the GCS-0.4 support?

It has been verified by IEC 60439-1 that the GCS-0.4 can break up to 50kA. This grade is good enough for most distribution networks in industrial plants and business buildings.

3. How do I verify drawer unit interchangeability before procurement?

Ask for the manufacturer's type test results to check the frame dimensions and contact engagement requirements. Mechanically, units with the same frame series and current rating should be able to be switched out. A practical interchange demonstration can be part of factory acceptance testing.

Partner with Xi'an Xikai for Your Next Switchgear Project

Xi'an Xikai offers approved domestic withdrawable switchgear options. They have been making these products for more than 15 years and have been used in more than 30 countries. No matter if you need standard GCS-0.4 cabinets or a domestic withdrawable switchgear supplier arrangement that is made just for your industrial or commercial project, our engineering team is ready to help with specification, FAT witness, and on-site coordination. You can email our team at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com, or you can go to xaxd-electric.com to ask for a project consultation.

References

1. IEC 60439-1: Low-Voltage Switchgear and Controlgear Assemblies — Part 1: Type-Tested and Partially Type-Tested Assemblies. International Electrotechnical Commission, 2011.

2. IEC 61439-2: Low-Voltage Switchgear and Controlgear Assemblies — Part 2: Power Switchgear and Controlgear Assemblies. International Electrotechnical Commission, 2011.

3. GB 7251.1: Low-Voltage Switchgear and Controlgear Assemblies — General Rules. Standardization Administration of China, 2013.

4. Schneider Electric. Electrical Installation Guide: Low-Voltage Switchgear Selection and Maintenance. Schneider Electric SE, 2020.

5. IEEE Std C37.20.1: Standard for Metal-Enclosed Low-Voltage Power Circuit Breaker Switchgear. Institute of Electrical and Electronics Engineers, 2015.

6. Chapman, S. J. Electric Machinery Fundamentals, 5th ed. McGraw-Hill Education, 2012.
