Domestic Withdrawable Switchgear vs Fixed Switchgear: Key Differences

When selecting low-voltage switchgear for an industrial plant or commercial building project, one of the most consequential decisions is choosing between a withdrawable and a fixed configuration. Domestic withdrawable switchgear allows individual functional units—circuit breakers, contactors, and protection relays—to slide out of the cabinet chassis without de-energizing the entire distribution system. Fixed switchgear, by contrast, permanently bolts all components in place. That structural distinction drives significant differences in maintenance access, operational flexibility, safety protocol, and total lifecycle cost. Understanding these differences helps procurement engineers and project managers specify the right solution from the outset.

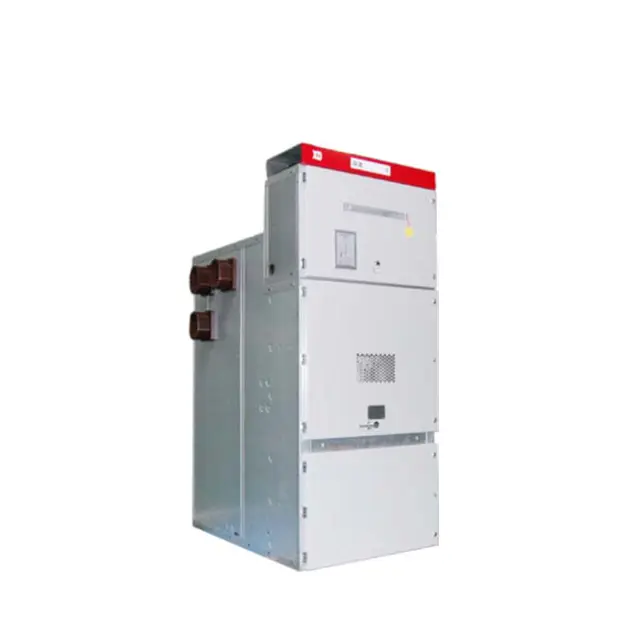

Understanding Domestic Withdrawable Switchgear and Fixed Switchgear

How Each Type Is Configured

A modular truck-and-rail design is used for domestic withdrawable switchgear. Each functional drawer or carriage moves through three separate positions: connected, test, and withdrawn. During the change, mechanical interlocks keep the system from accidentally turning on. Every part of the cabinet is bolted straight to the frame by fixed hardware. There are no middle positions because maintenance needs to completely cut off the circuit in question, which usually means a planned outage.

For example, the GCS-0.4 Withdrawable Low Voltage Switchgear shows how the withdrawable principle works. Its divided design keeps busbars, circuit breakers, and control wires separate. It has an insulation voltage of 660 V/1000 V and a breaking capacity of up to 50 kA, as required by IEC 60439-1. That compartmentalization limits arc flash energy and keeps neighboring circuits live during a drawer swap.

Fixed assemblies are a good choice for simple distribution panels in smaller businesses that can handle planned shutdowns because they cost less up front and take up a little less floor space.

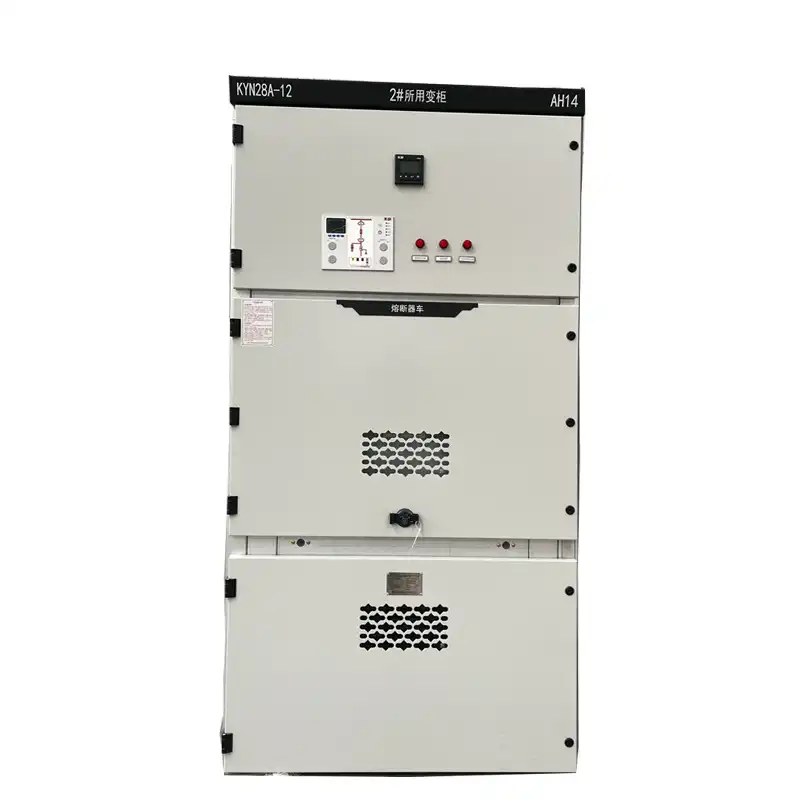

Comparing Operational Performance and Benefits

Flexibility During Maintenance and Replacement

The withdrawable mechanism is where the speed gap between the two types becomes most obvious in day-to-day activities. A skilled tech can take out a broken drawer, replace it with a replacement unit that has already been tried, and get service back up and running—often in less than sixty minutes—without turning off the power to the rest of the board. Racking mechanisms are approved by IEC 62271-1 mechanical endurance testing after 2,000 cycles, which is about twenty years of normal use.

With fixed hardware, you have to change how you do things. Before turning the power back on, the feeding circuit must be disconnected, lockout/tagout procedures must be followed, and each new part must work properly. When facilities like CNC machine lines, data centers, or hospital critical circuits depend on being up all the time to make money, planned downtime adds up to a real cost.

Here are the main performance benefits of domestic withdrawable switchgear that matter most to B2B procurement teams:

• Reduced unplanned downtime: Because of hot-swap, a problem with one box doesn't cause the whole system to go down. It has been studied over and over again that modular switchgear architectures cut the average time it takes to fix by 40–60% compared to fixed alternatives.
• Drawer unit interchangeability: Standardized rail lengths for domestic withdrawable switchgear make it possible for a spare drawer from one project to fit straight into another cabinet in the same series. This cuts down on the need to keep extra spare parts on hand and makes logistics easier for contracts that span multiple sites.
• Enhanced arc flash protection: Construction with separate sections stops faults from spreading. People should stay away from high-voltage areas during live repair because the GCS-0.4 has an IP40+ security class and meets IEC 61439-2 and UL 1558 standards.
• IoT-ready monitoring: Smart modules that can be added support real-time tracking of load profiles, harmonic distortion, and energy efficiency indicators. This lets you plan maintenance ahead of time instead of reacting to problems as they happen.

When electrical engineers and project managers choose switchgear for industrial plants, substations, and big business buildings, uptime and safety are the two most important things to them. These benefits directly address those needs.

Maintenance, Safety, and Technical Considerations

Routine Inspection Protocols

A structured repair program is rewarded with domestic withdrawable switchgear. Contact resistance on primary circuits should stay below 20 µΩ. Readings above that level show that the primary plug-in connections are oxidized or not lined up correctly. At every scheduled service interval, the secondary control plug contacts should be visually checked and cleaned. These contacts are a common cause of intermittent relay faults. Testing for partial discharge at 1.5 times the rated voltage and acceptance levels below 10 pC (IEC 60270) can find insulation degradation before it gets worse and causes a fault.

Comparative Technical Specifications

Parameter	GCS-0.4 Withdrawable	Typical Fixed LV Switchgear
Rated Insulation Voltage	660 V / 1000 V	660 V
Breaking Capacity	Up to 50 kA	Typically 25–36 kA
Protection Class	IP40+	IP30–IP40
Maintenance Access	Live drawer withdrawal	Full circuit isolation required
Operational Lifespan	20+ years	15–20 years

At temperatures ranging from -10 °C to +40 °C and daily relative humidity levels below 95%, the GCS-0.4 works reliably at heights of up to 2,000 m. For locations that aren't within these normal ranges—for example, at high elevations, in tropical coastal areas, or in seismic zones below scale 8—the maker can arrange special-condition variants, such as tropicalized and seismic-rated versions.

Procurement Insights: Choosing the Right Switchgear for Your Needs

Evaluating Suppliers and Configurations

When buying five to fifty cabinets for a project, buyers who are used to this struggle know the feeling: standard setups ship faster, but non-standard drawer arrangements often work better with the design institute's load plan. A reliable domestic withdrawable switchgear supplier can ease this stress by keeping extra standard drawer frames on hand and providing flexible internal assemblies with lead times that work with the building plan.

Certifications are very important for domestic withdrawable switchgear. Checklists for purchases should include GB 7251, IEC 60439-1, ISO 9001, and, for export projects, regional approvals for grid codes in Southeast Asia or the Middle East. For factory acceptance testing, the primary current should be injected at the rated current, the dielectric should be tested at 1.5 times the rated voltage, and all mechanical interlocks should be checked to make sure they work.

Real weight is given to bulk order factors. Ordering the same line of drawers for multiple project sites makes it easier to set up, handle extra parts, and train field technicians. A company with ISO 9001-certified CNC machining and robotic welding lines can make OEM customizations like custom busbar ratings, specific relay packages, or branded panel labeling, as long as the buyer tells the company about the need during the proposal stage.

Making the Decision: When to Opt for Withdrawable vs Fixed Switchgear

Matching Configuration to Project Type

Withdrawable configurations work well in places where uninterrupted operations are essential, like manufacturing plants with continuous processes, substations that manage the integration of renewable energy, and commercial buildings that are occupied 24 hours a day, seven days a week, like hospitals or data centers. The higher unit cost is worth it over the life of the installation because you can switch out a drawer without having to shut down the system.

Fixed switchgear is still a good choice for smaller distribution boards, sheds, or extra circuits where it's easy to set up repair windows and the lower cost of capital makes the job more cost-effective. For example, a petrochemical secondary center that doesn't switch loads very often might not get much use out of the withdrawable device while paying the extra cost.

A useful rule that many electrical design institutes follow is to specify switchgear that can be removed when the downstream load includes critical processes that must run all the time or when the board serves more than four outgoing feeders that can't all be turned off at the same time.

Conclusion

Three things determine whether to use domestic withdrawable switchgear or fixed low-voltage switchgear: how often it needs to be maintained, how much downtime is acceptable, and the total cost of the equipment over its entire life. Domestic withdrawable switchgear offers practical benefits—live drawer service, standardized unit interchangeability, and better fault containment—making it a good fit for industrial and big commercial projects. Fixed switchgear has a cheaper starting cost in situations where those benefits are not needed. Long-term success is most likely to happen when the configuration matches the facility's real working profile and is checked against certified technical standards and the quality track record of a reputable provider.

FAQ

1. Can withdrawable drawers be retrofitted into an existing fixed switchgear cabinet?

Usually, retrofitting is not possible because the frame geometries and busbar connection places for the two designs are very different. Most of the time, replacing the whole cabinet assembly is needed to go from fixed to domestic withdrawable switchgear. Plan the right type at the project definition stage to avoid changes that cost a lot in the middle of the project.

2. What are typical lead times for domestic withdrawable switchgear orders?

Standard setups normally ship four to six weeks after the order is confirmed. It could take eight to twelve weeks for non-standard or highly customized drawers like specific busbar grades, specialized relay packages, or certifications for a certain area. Procurement delays can be avoided by confirming the configuration scope during the proposal stage and making sure it fits with the project schedule.

3. How does warranty coverage differ between the two switchgear types?

Both types usually come with 18 to 24 months of guarantee coverage from reputable makers. This covers problems with the materials or the work. Most warranties for domestic withdrawable switchgear cover the main plug-in contacts and the racking mechanism, which are the parts that wear out the fastest. Always ask for clear warranty paperwork that covers the secondary control plug contacts, as this is a frequent place where problems happen that field techs point out.

Request a Customized Switchgear Proposal from Xi'an Xikai

You can trust Xi'an Xikai's GCS-0.4 series as a domestic withdrawable switchgear supplier for business and industrial projects in China, Southeast Asia, and the Middle East. It has been tested in the field for more than 15 years, is certified by IEC 60439-1, and can break 50 kA. This makes it competitive with foreign options at a more reasonable price. For a custom quote, email serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com with the details of your project. You can also go to xaxd-electric.com.
