Filter Capacitor vs Bypass Capacitor: Key Differences Explained

When engineers and procurement professionals evaluate capacitor selection, the distinction between a filter capacitor and a bypass capacitor is not always immediately obvious — yet it fundamentally shapes circuit performance. A filter capacitor smooths ripple voltage in power supply circuits, maintaining stable DC output by shunting AC components to ground. A bypass capacitor, placed close to active device power pins, suppresses transient noise and stabilizes local voltage during switching events. Understanding which component to deploy — and why — directly impacts system reliability, harmonic distortion levels, and long-term equipment lifespan.

Understanding the Basics of Filter Capacitors and Bypass Capacitors

Capacitors have many jobs to do in electrical circuits, but their exact job is defined by where they are placed and how they are rated. By understanding the basic difference between these two types, buying teams can avoid making mistakes that cost a lot of money.

What Does a Filter Capacitor Do?

Right after the rectifier step, there is a filter capacitor in parallel with the load. Its main job is to take in the pulsing ripple current that is made when AC voltage is changed to DC voltage. It keeps the DC rail pretty flat by charging during voltage peaks and discharging during troughs. In high-voltage passive filter banks, like those found in electric railroad traction substations or electrolytic aluminum smelting lines, a single-phase filter capacitor has to deal with high ambient temperatures, high harmonic current, and constant AC stress all at the same time.

What Does a Bypass Capacitor Do?

A bypass capacitor works at a level that is much more limited. Engineers put it right on top of an integrated circuit's power supply pins to make a low-impedance path for high-frequency noise. Microprocessors and driver ICs draw short, sharp spikes of current when they switch on and off quickly. If there isn't a bypass capacitor nearby, these spikes will travel along power lines and cause electromagnetic interference, which can mess up data or hurt sensitive parts. Most bypass capacitors are between 10 nF and 100 µF. Ceramic layered types are best because they have low ESL and stable capacitance across frequency.

Core Functional Comparison: Filter Capacitor vs Bypass Capacitor

Capacitance Range, ESR, Voltage Margin, and Dielectric Type

By knowing how these two parts are technically different, procurement managers can accurately specify parts instead of guessing what they are.

Both parts use capacitance to change the voltage, but they work at very different frequencies, have very different capacitance ranges, and fail in very different ways. Here is an organized comparison of the most important factors:

• Capacitance Range: The capacitance range of a filter capacitor in a high-voltage passive filter circuit is usually between a few hundred and a few thousand microfarads, based on the harmonic order that is being weakened. Most of the time, a bypass capacitor works with 10 nF to 10 µF of high-frequency noise above 1 MHz.
• Equivalent Series Resistance (ESR): Bypass capacitors need to have low ESR because high ESR lets noise energy build up across the part instead of being blocked. Low ESR is also good for filter capacitors used in power supplies, but what they care about most is the ability to handle ripple current and dielectric loss, which is often shown as tan δ (dissipation factor). There is an accepted standard for tan δ values at or below 0.0005 for high-voltage single-phase filter capacitor units used in railroad and industrial settings.
• Voltage Rating and Margin: High harmonic voltages are used by filter capacitors in traction substations. According to IEC 60871-1, capacitors in passive filter banks need to have a voltage rating that is much higher than the nominal system voltage. This is usually between 1.1× and 1.3×. This is to account for harmonic amplification at resonance. This kind of voltage stress doesn't happen very often to bypass capacitors; as a matter of fact, they are usually lowered by 20–50% of their rated voltage.
• Dielectric Material: Most high-voltage filter capacitors are made of metallized polypropylene film. Ceramic (Class I or Class II), tantalum, or aluminum electrolytic dielectrics are used in bypass capacitors. Each has its own unique capacitance stability properties.

These are not small differences. If you use a bypass-grade ceramic capacitor in a high-voltage filter application, the dielectric will fail catastrophically within hours of use. If you did the opposite and used a bulk film filter capacitor for bypass decoupling, it would add too much parasitic inductance, making the part useless at blocking high-frequency noise.

Practical Applications and Circuit Integration

In a power supply with a rectifier, the filter capacitor is directly connected to the DC bus output. When the corrected voltage drops between half-cycles, the filter capacitor's stored charge keeps the voltage steady, lowering ripple to a safe level. Multiple filter capacitor banks are set to specific harmonic orders, usually the 5th, 7th, 11th, and 13th, in three-phase industrial rectifiers that power aluminum electrolysis cells. This stops harmonic currents from spreading into the utility grid.

Bypass Capacitors in PCB Design

There are groups of bypass capacitors on a printed circuit board, one near each IC's VCC pin. Usually, there is a 100 nF ceramic capacitor paired with a 10 µF bulk capacitor. The ceramic takes care of RF noise, and the bulk capacitor handles transients at lower frequencies. The difference between a design that passes EMC testing and one that doesn't is the proper placement, which should be within 1–2 mm of the IC pin and have very little trace inductance.

Filter Capacitors in Traction Substations

One of the toughest places for a single-phase filter capacitor to work is in a railroad power center. The load isn't balanced, changes a lot, and has a lot of odd-order harmonics that come from the train thyristor converters. The capacitor has to be able to handle repeated changes in temperature, mechanical shaking, and short bursts of overvoltage. Discharge resistors are needed to safely get rid of stored charge when the bank is turned off. This keeps people safe and reduces insulation stress when the bank is connected again.

Selecting the Right Capacitor: Procurement Considerations for B2B Clients

Electrical Specifications, Test Certificates, and Compliance Documentation

For technical buying experts, choosing the right filter capacitor requires a methodical approach that takes into account a number of factors. If you do this wrong, you could end up with resonance shift, early failure, and expensive guarantee claims.

Some important things to look at when judging something are its capacitance tolerance (usually ±5% for film types used in tuned filter banks), its rated voltage with enough room for error, its maximum allowable peak voltage, its allowable harmonic current, its dissipation factor (tan δ), and how long it is expected to work at its rated conditions for. Buyers should also ask for type test certificates that say the product meets the requirements of IEC 60871-1 or IEC 60831, as needed, and results of a partial discharge test that show the product has a low partial discharge inception voltage.

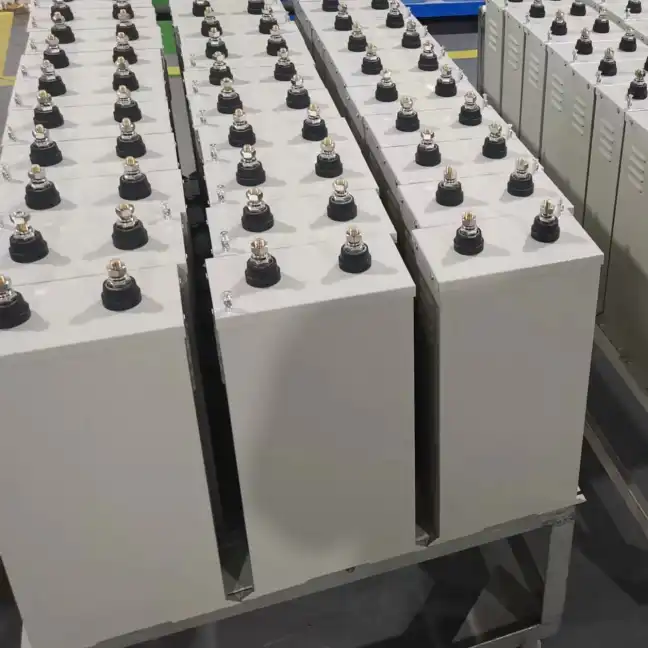

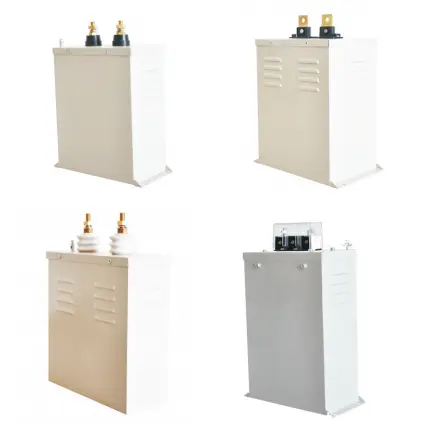

Xi'an Xikai's High Voltage Single Phase Filter Capacitor

The High Voltage Single Phase Filter capacitor from Xi'an Xikai is designed to work with passive harmonic filter banks and railroad traction substations. Here are some of the most important technical benefits of this device:

• Internal fuse protection with better discharge resistor connection methods and internal fuse safety, the overvoltage problem that often happens across series sections in multi-unit filter banks is fixed.
• Argon arc welded hermetic tanks for the filter capacitor with new-type bushings and argon arc welding, hermetic tanks are completely sealed and can't leak, even when they are under a lot of thermal and mechanical stress for a long time.
• Self-healing metallized polypropylene film dielectric lets the capacitor fix itself when the dielectric breaks down in one place without failures spreading to other parts.
• Low dissipation factor and electrical properties that meet worldwide advanced performance levels are necessary to meet the tan δ ≤ 0.0005 standard that high-end filter system integrators expect.
• Overload resistance it has a lot more overload protection than the norm and very little noise, so it can be installed in substations close to places where people live.

These benefits directly address the problems that technical chief engineers have when they need to buy capacitors for projects like traction substations or high-voltage passive filters. Before it is shipped, every unit goes through 72 hours of load cycling, thermal shock tests, and impulse voltage tests on materials that are ISO 9001-certified.

Advanced Insights: Filter Capacitor vs Bypass Capacitor in High-Frequency and Specialized Applications

Dielectric Stability, Thermal Stress, and Application-Specific Demands

When designing audio power amplifiers, engineers argue a lot about which bypass capacitors to use. Because its capacitance stays the same when voltage is applied, a film bypass capacitor made of polyester or polypropylene causes less distortion than a ceramic Class II type. This stability is important for signal-path decoupling because changes in capacitance directly affect the signal's amplitude.

On the other end of the spectrum, high-voltage industrial filter capacitors that work at power frequencies (50/60 Hz) and their harmonics have very different issues to worry about. These include dielectric aging under continuous AC stress, gas formation in sealed tanks, and the mechanical integrity of internal winding connections that are subjected to repeated thermal expansion cycles. New research into vapor-deposited dielectric films offers higher capacitance densities and longer operating lives at high temperatures. Xi'an Xikai is keeping a close eye on this development through its 12 foreign patent-backed R&D program.

Conclusion

It's not a matter of personal choice between a filter capacitor and a bypass capacitor; it depends on the engineering requirements and the use case. In power systems, filter capacitors control the overall voltage ripple and harmonic energy, and bypass capacitors stop noise that is close to sensitive active parts. When industrial procurement engineers are looking for parts for high-voltage passive filter banks or railroad traction substations, they have to meet strict technical standards. To make sure a supplier is qualified, they have to do type tests, show that they have certified documentation, and show that their products have been reliable in the field. Every project goes more smoothly when the right partner is chosen—one who knows both the physics and the buying process.

FAQ

1. Can a bypass capacitor substitute for a filter capacitor in a high-voltage circuit?

No, bypass capacitors are made to block high-frequency, low-voltage noise close to IC power pins. Using them in high-voltage filter bank settings would cause the dielectric to fail right away. There are voltage ratings, capacitance values, and dielectric materials that don't work with the way a power frequency filter circuit works.

2. What tan δ value should I specify for a high-voltage single-phase filter capacitor?

For traction substations and passive harmonic filter banks, you need to set tan δ ≤ 0.0005. This low dissipation factor keeps the inside of the capacitor from getting too hot when the AC current stays steady. This directly extends the life of the capacitor and makes managing heat in the filter assembly easier.

3. Why do filter capacitors in traction substations require discharge resistors?

There is still charge stored across the dielectric when a capacitor bank is turned off. Discharge resistors lower this charge to a safe voltage level within a certain amount of time, usually below 75 V within three minutes according to IEC 60871-1. This stops the risk of electric shock and dielectric stress when the power is turned back on.

Partner With Xi'an Xikai for Your Next Filter Capacitor Project

Xi'an Xikai makes high-voltage single-phase filter capacitors that have been used successfully in passive harmonic filter systems and railroad traction substations. We have been making filter capacitors for a long time and have 12 international patents, as well as ISO 9001 and 14001 certifications. We can support custom specifications from design to type testing. You can get in touch with our tech team at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com. You can see all of our products at xaxd-electric.com.

References

1. IEC 60871-1: Shunt Capacitors for AC Power Systems Having a Rated Voltage Above 1 000 V — Part 1: General, International Electrotechnical Commission, 2014.

2. IEC 60831-1: Shunt Power Capacitors of the Self-Healing Type for AC Systems Having a Rated Voltage Up to and Including 1 000 V, International Electrotechnical Commission, 2014.

3. Mohan, N., Undeland, T. M., & Robbins, W. P. Power Electronics: Converters, Applications, and Design, John Wiley & Sons, 2003.

4. Kundur, P. Power System Stability and Control, McGraw-Hill, 1994.

5. Grover, F. W. Inductance Calculations: Working Formulas and Tables, Dover Publications, 2004.

6. IEEE Std 18-2012: IEEE Standard for Shunt Power Capacitors, Institute of Electrical and Electronics Engineers, 2012.
