If you are sourcing a zero sequence current transformer for earth leakage protection, you already know how much is at stake. A missed ground fault in a medium-voltage switchgear panel can cause equipment damage, personnel injury, and extended downtime. The right zero sequence current transformer detects residual current imbalances early — before a fault escalates. This guide is written for OEM switchgear manufacturers, technical procurement teams, and electrical engineers who need accurate specifications, honest comparisons, and a trustworthy supplier to back their selection.
Understanding Zero Sequence Current Transformers
A normal current transformer and a zero sequence current transformer do not work the same way. It doesn't just measure one phase; it goes around all three phase conductors at the same time. There is no current in any of the three phases when the system is healthy. When there is a ground fault, that sum stops being zero, and the transformer sends out a proportional secondary signal that sets off safety switches.
How the Magnetic Core Detects Ground Faults
All phase conductors are wrapped around the toroidal core. Any leftover current from an earth fault creates a net magnetic flux, which is then turned into a secondary signal that can be measured by the core. Because of this physical principle, zero sequence current transformers are much more aware of low-level earth flaws than other types of safety devices.
Integration Into Protection Circuits
The secondary output of medium-voltage switchgear usually connects directly to earth fault relays or protection IEDs. It can be 1A or 5A. For example, the LJZ-4 series has different winding ratios (S1-S2 at 200:1, S1-S3 at 100:1, and S1-S4 at 40:1), which gives engineers the freedom to find the right relay sensitivity for each application. If you test the insulation resistance between the winding and the bracket at 2500V, it must be at least 100 MΩ.
Accuracy Classes and Sensitivity
The accuracy class of zero sequence current transformers can be either 0.2S, 0.5, 5P, or 10P. In switchgear protection circuits, protection-grade classes (5P and 10P) are common. Measuring classes (0.2S and 0.5) are used for monitoring or making money. If you pick the wrong class, the link might not work right or a fault might not be found.
Comparing Zero Sequence Current Transformers With Other Protection Devices
There is more than one way to fix an earth leaking problem. When buying teams know where a zero sequence current transformer fits in relation to other devices, they can avoid over-specifying or not protecting enough.
ZSCT vs. Residual Current Transformer
A residue current transformer checks the sum of phase currents too, but it's usually made for systems with less than 1000V of power. A zero sequence current transformer, on the other hand, is rated for medium-voltage networks like 11kV and has higher primary current ranges (20A to 1000A) and strong epoxy-cast insulation that can be used in switchgear environments.
ZSCT vs. Earth Fault Relay Alone
To work, an earth fault relay needs a signal to be sent to it. The detecting part that sends that signal is a zero sequence current transformer. Even a well-specified switch won't trip if it doesn't have the right transformer for its load and sensitivity. If you connect the LJZ-Φ65 series straight to the DL-11/2 relay, for example, you can get a main operating current of 60A when the relay coils are set to 1A and connected in parallel.
ZSCT vs. Differential Current Transformer
Comparing the currents at two ends of a safe zone is what differential current transformers do. They can be used for differential protection on transformers or cables. A zero sequence current transformer can find single ground faults anywhere along a feeder. This makes it better for protecting motor circuits and distribution feeders in switchgear panels.
How to Choose the Best Zero Sequence Current Transformer for Earth Leakage Protection
It's never enough to just pick something off a shelf. For OEM switchgear makers, the zero sequence current transformer needs to physically fit the cabinet, electrically match the relay, and come on time. Before you contact any suppliers, make a list of these requirements:
- Rated primary current: 20A to 1000A range covers most medium-voltage feeder applications.
- Secondary current: pick 5A for analog relay circuits and 1A for digital IEDs for protection.
- Accuracy class: 5P or 10P for safety; 0.2S or 0.5 for measuring.
- Rated secondary burden: must be the same as or greater than the transfer load. The LJZ-4 line can handle loads between 1.5 and 20 Ω, based on the winding ratio.
- Core inner diameter: can be anywhere from 65 mm to 300 mm to accommodate different wire sizes and cabinet room.
- Voltage rating: make sure that the protection for medium-voltage equipment is rated at 11kV.
Physical Fit and Cabinet Compatibility

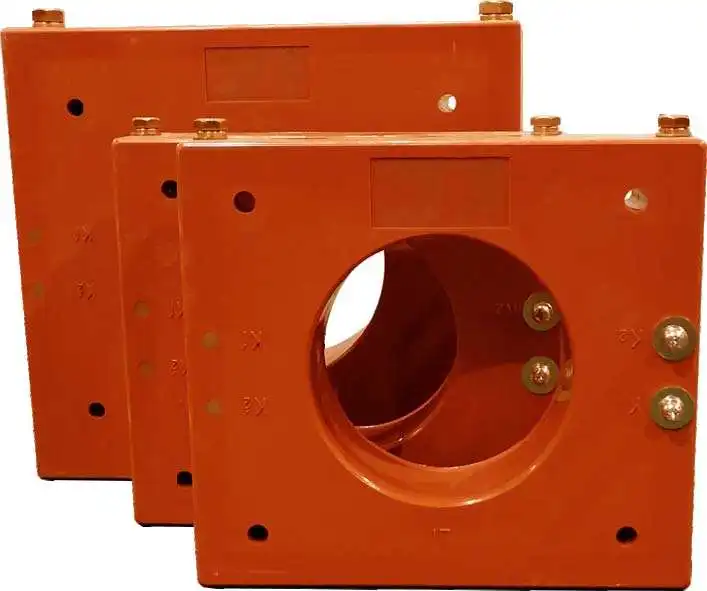

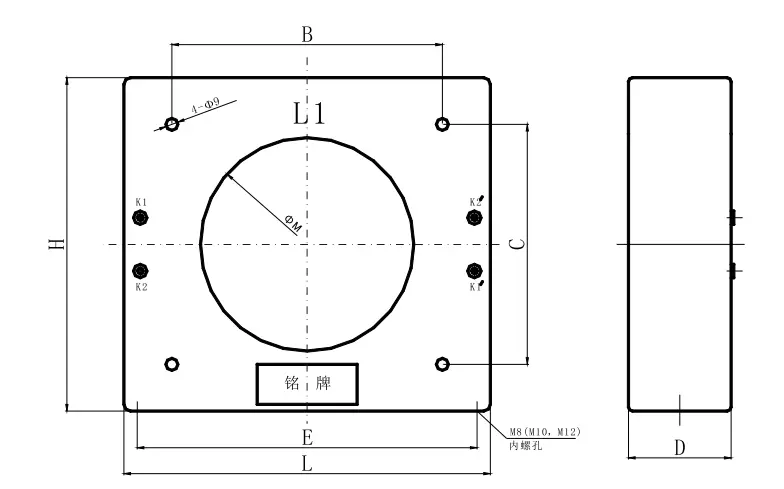

For OEMs of switchgear, the accuracy class is just as important as the inner bore diameter. A transformer that fits the measurements but not the wire clamp position causes the whole cabinet assembly to be held up. When you ask for samples, you need to include the electrical parameters as well as the mounting hole pattern and height.
Standards Compliance for Market Access
Products going to be bought by State Grid or Southern Grid, as well as utilities in South Asia and the Middle East, must meet the requirements of GB 20840.2-2014, IEC 61869-1, and IEC 61869-2. Get written proof of these certificates from any possible seller.
These factors together tell you if a zero sequence current transformer will work reliably in your protection scheme, not just when it's being designed but also after years of use in the field.
Installation Guide and Best Practices for Zero Sequence Current Transformers
Whether a zero sequence current transformer works as it should or causes fake trips and missed problems depends on how well it was installed.
Step-by-Step Installation Checklist
Before turning on, make sure of the following:
- Route all three phase wires to the transformer through the hole in the case. If you run the protective earth conductor through the core, you will keep getting false readings for the residual current.
- Point the polarity mark (P1 → P2) in the way that current normally flows from the source to the load.
- To keep things simple, keep extra wires short. When there is too much lead resistance, the effective secondary load moves above its rating value.
Avoiding Common Wiring Errors
Most of the time, the site error is putting the shield or armor ground for the cable through the transformer bore with the phase conductors. This adds a signal that stays there permanently and acts like a fault. Another common mistake is switching the secondary terminals S1 and S2. This changes the direction of the relay's operation and could lead to a failure to trip.
Maintenance and Periodic Verification
A low-current injection tester should be used once a year to check the integrity of the secondary circuit. Make sure that the resistance to insulation between the wire and the ground stays above 100 MΩ. Epoxy-cast transformers don't need any care on the inside, but after the first year of use, the mounting gear and terminal connections should be checked to make sure they are tight.
Procurement Insights: Where and How to Buy the Best Zero Sequence Current Transformer
When you have yearly framework contracts with monthly buy orders, the stability of your suppliers and their ability to make things mean just as much as the unit price. A good zero sequence current transformer supplier should have ISO 9001 certification, keep records of where the copper windings' materials come from, and have IEC 61869-2 test reports from a third party. Ask for the results of a partial discharge test. Values below 5pC mean that the epoxy casting process is well under control.
Managing Lead Times for OEM Schedules
It usually takes four to eight weeks to wind and cast new specification samples. The production lead time for regular part numbers over a year is two to four weeks. Fit your monthly order cycle with the supplier's production plan to keep cabinet assembly from being held up.
Total Cost of Procurement
The unit price is just one step. Think about the cost of re-qualification if a supplier changes the core material, the number of dimensional nonconformances that lead to scrap, and the number of relay mis-operations that happen because of poor accuracy. If a supplier has both silicon steel and nanocrystalline core options and can show you the differences in how they excite, you can use that information to figure out how to set the relays.
Conclusion
A zero sequence current transformer is a very accurate way to measure. In the process of making switchgear, getting the accuracy class, secondary load, inner bore diameter, and insulation standard right on the first sample saves months of work that has to be redone. Standard compliance and written test results are musts for OEM makers working on utility projects in South Asia, the Middle East, or the State Grid. The only way to protect your production plan and your end customer's grid is to choose a provider with real manufacturing depth, not just trading capability.
FAQ
1.What accuracy class should I specify for switchgear earth fault protection?
For circuits that guard against earth faults, 5P or 10P accuracy class is normal. These classes describe the total error at the stated accuracy limit factor. This keeps the transformer from getting too hot before the switch works. You might want to use a 0.5 class measurement winding for the fault recorder or power quality meter if the same transformer supplies power to them.
2.Can one transformer serve both measurement and protection functions?
Yes, multi-winding designs with different secondary windings for measurement and safety can do both from a single core. From a single unit, the LJZ-4 series can handle up to three different winding ratios. This need should be stated in the RFQ stage because it impacts the core cross-section and winding window.
3.What certifications are required for State Grid supply chain approval?
The national standard that everyone must follow is GB 20840.2-2014. IEC 61869-1 and IEC 61869-2 cover what is the same around the world. Products on the approved source list for State Grid or Southern Grid must have test results from recognized labs. Check to see if the test reports are specific to the product or only apply to its representative sample.
4.What is the minimum order quantity for custom specifications?
Not all suppliers do this. A lot of companies will take orders as low as 50 units for standard bore sizes like 75mm, 120mm, and 150mm. For non-standard bore diameters or multi-winding configurations, the minimum order quantity (MOQ) is usually between 100 and 200 units.
Partner With Xi'an Xikai for Your Zero Sequence Current Transformer Supply
Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. manufactures zero sequence current transformers covering primary currents from 20A to 1000A, rated for 11kV/400V networks, compliant with GB 20840.2-2014 and IEC 61869-1/2. Our epoxy resin-cast designs deliver high accuracy, large capacity, and stable performance across the full operating range. Whether you need standard stocking units or application-specific configurations for your switchgear production line, our engineering team responds within 48 hours.
Contact our sales team directly as your zero sequence current transformer supplier:
