How Active Power Filters Contribute to Sustainable Energy Systems？

Active Power Filters (APFs) represent a pivotal technology in advancing sustainable energy systems by dynamically addressing power quality challenges that compromise operational efficiency and environmental performance. These sophisticated electronic devices actively monitor and correct harmonic distortions, voltage fluctuations, and reactive power imbalances in real-time, enabling industrial facilities to optimize energy consumption while reducing their carbon footprint. By ensuring cleaner power delivery and enhanced grid stability, Active Power Filters serve as essential components for organizations pursuing both operational excellence and environmental responsibility across manufacturing, commercial, and utility applications.

Understanding Active Power Filters and Their Role in Sustainable Energy Systems

Active Power Filters significantly modify how industrial facilities address power quality concerns in current electrical systems. In contrast to conventional passive filtering techniques, these intelligent devices instantly neutralize detrimental disturbances by continually analyzing electrical characteristics and injecting correcting currents. The powerful control algorithms inside APFs allow them to react to fluctuating load levels and power system disruptions, making them vital assets for maintaining excellent power quality in competitive industrial settings.

Real-Time Power Quality Management

The main functionality of current APFs focuses on its capacity to do immediate harmonic calculation and compensation. These devices leverage advanced digital signal processing methods to detect undesirable resonances in electrical circuits and create accurate counter-signals that efficiently cancel out those disturbances. This real-time adjustment feature guarantees that sensitive equipment gets clean, consistent power independent of shifting load circumstances or upstream disruptions.

Types and Configuration Options

Industries may benefit from three basic APF setups, each tailored to meet distinct power quality concerns. Shunt-interconnected Active Power Filters link in parallel with the electrical circuit and excel at rectifying current-related disturbances especially harmonic currents and compensating for reactive power. Series-connected setups solve voltage-related concerns like voltage sags, swells, as well as harmonic voltages. Hybrid systems utilize both types of filtering mechanisms to maximize performance while handling cost concerns efficiently.

Integration with Renewable Energy Systems

Active Power Filters serve a significant role in simplifying the integration of green power sources on existing electrical wiring. Inverting solar and hydroelectric systems typically pose power quality difficulties that might disrupt grid operations and impact sensitive device performance. APFs reduce these difficulties by smoothing fluctuations in electricity and preserving stable voltage profiles, allowing larger penetration of green power sources while ensuring system stability.

Advantages of Active Power Filters for Industrial and Energy Sustainability

The implementation of Active Power Filters delivers substantial benefits that directly support sustainability objectives while enhancing operational performance. These advanced power conditioning devices address multiple power quality issues simultaneously, providing comprehensive solutions that traditional filtering methods cannot match. Manufacturing facilities and commercial operations experience immediate improvements in equipment performance, energy efficiency, and regulatory compliance through strategic APF deployment.

Enhanced Energy Efficiency and Cost Reduction

Active Power Filters significantly improve overall system efficiency by correcting power factor imbalances and reducing harmonic-induced losses in electrical distribution systems. Facilities typically observe energy cost reductions ranging from 5-15% following APF installation, as improved power quality reduces unnecessary energy consumption in motors, transformers, and other electrical equipment. The dynamic harmonic suppression capability eliminates the need for oversized electrical infrastructure, reducing both capital expenditure and ongoing operational costs.

Equipment Protection and Lifecycle Extension

Harmonic heating, voltage anxiousness, and current distortion cause industrial equipment working in low-quality power conditions to wear out more quickly and fail more often. Active Power Filters generate clean power conditions that prolong equipment operating lifespans by between twenty and thirty percent while decreasing unscheduled maintenance needs. This protection becomes especially helpful for sensitive industrial equipment, data center buildings, and healthcare products that need steady power conditions for dependable operation.

Regulatory Compliance and Standards Adherence

Power quality standards, such IEEE 519 along with IEC 61000 series requirements, are becoming more and more demanding for modern industrial facilities. Active Power Filters allow firms to achieve these regulatory criteria consistently thus avoiding power factor fines levied by utility providers. The capacity to maintain compliance decreases regulatory risks and indicates company commitment to prudent energy management practices.

Comparing Active Power Filters with Other Power Quality Solutions

When considering power conditioning technology, procurement managers must grasp the particular benefits that Active Power Filters provide compared to competing alternatives. Traditional correction of power factor capacitors and passive hum filters have limited capability and cannot adjust to changing system circumstances. This comparison demonstrates why APFs offer better long-term investments for firms considering efficiency and sustainability.

Performance Advantages Over Passive Solutions

Passive filtering techniques depend on set tuned networks that target certain harmonic frequencies, rendering them useless against variable load circumstances and system changes. Active Power Filters continually change their compensating features to fit real-time system needs, ensuring consistent performance independent of load fluctuations. This flexibility precludes the resonance circumstances that typically arise with passive filters, minimizing the possibility of harmonic development that might damage sensitive equipment.

Total Cost of Ownership Analysis

While electricity Filters need greater initial investment in contrast to passive options, their improved performance and fewer upkeep needs result in advantageous total cost for ownership during operating lifecycles. APFs remove the need for frequent capacitor changes and tuning changes needed by passive systems, cutting ongoing maintenance expenses dramatically. The modular architecture of current APF s allows for capacities growth as facility requirements develop, safeguarding earlier investments while supporting future demands.

Operational Flexibility and Scalability

The natural adaptability that Active Energy Filters provide to process modifications and equipment additions is advantageous for manufacturing plants. Unlike passive filtering methods that need system redesign anytime load characteristics fluctuate, APFs automatically update their compensation settings to maintain optimum performance. For operations with changing equipment configurations or fluctuating production schedules, this flexibility is important.

Procurement Considerations for Active Power Filters in B2B Supply Chains

Selecting appropriate Active Power Filter solutions requires careful evaluation of technical specifications, supplier capabilities, and long-term support requirements. Procurement professionals must balance performance requirements with budget constraints while ensuring chosen solutions align with organizational sustainability objectives. Understanding key selection criteria enables informed decision-making that delivers optimal value for power quality investments.

Technical Specification Requirements

A thorough examination of current power quality problems, load characteristics, & future growth plans is necessary for proper APF sizing. Facilities should undertake complete power quality studies to establish specified harmonic ranges, reactive power specifications, and voltage stability demands before defining equipment requirements. The chosen Active Power Separator must provide sufficient compensating capacity while continuing to operate steadily in the face of fluctuating loads and system disruptions.

Supplier Evaluation and Quality Assurance

Successful APF adoption and continuous operational support across equipment lifecycles are guaranteed by dependable supplier relationships. Evaluation factors ought to incorporate manufacturing quality certificates, technical support skills, installation knowledge, and replacement parts availability. Suppliers having ISO 9001 as well as ISO 14001 certifications exhibit dedication to operational excellence and ecological consciousness that corresponds with sustainability goals.

Installation and Commissioning Support

Specialized knowledge of power system analysis, safeguard coordination, and commissioning processes is necessary for the successful deployment of Active Power Filters. Supplier-provided installation help enables optimal integration of existing electrical installations while reducing installation hazards and commissioning durations. Facility staff may maximize the effectiveness of equipment and operational dependability by operating and maintaining APF systems with the help of thorough training programs.

Xi'an Xidian: Leading Active Power Filter Solutions Provider

Xi'an Xidian Medium & Low Voltage Electric Co., Ltd. stands as a premier manufacturer of advanced Active Power Filter solutions designed to meet the demanding requirements of global industrial applications. Our comprehensive product portfolio encompasses cutting-edge APF technologies that address diverse power quality challenges across manufacturing, commercial, and utility sectors. With over 100 product variants spanning 34 series, we provide customized solutions that optimize energy efficiency while supporting sustainable operational practices.

Advanced Technology and Product Features

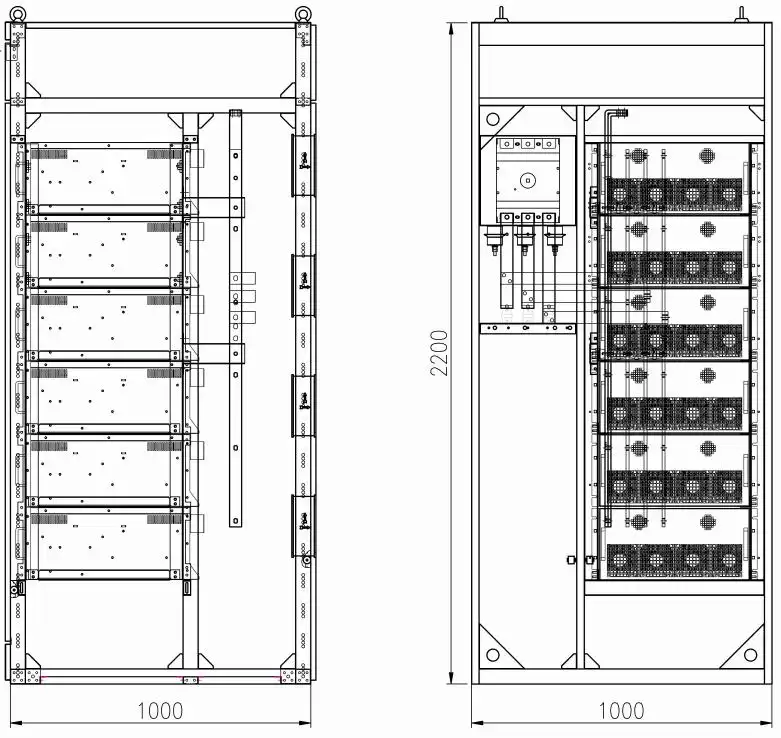

Our Active Power Filter systems incorporate advanced technology that prevents resonance and harmonic amplification while maintaining efficient operation even under low-voltage conditions. The modular design offers flexible installation options with both rack-mounted and wall-mounted configurations to accommodate various facility requirements. These core advantages distinguish our APF solutions in competitive markets.

Dynamic harmonic suppressor capabilities allow real-time adjustment of harmonic distortions over large frequency ranges, guaranteeing constant power quality independent of load fluctuations. Our solutions display excellent resilience to grid fluctuations, sustaining steady operation throughout voltage sags, spikes, and other forms of power system disruptions. Benefits from lower energy costs usually fall between 10% and 20% due to better power factor adjustment and lower harmonic losses. Rugged reliability enables continued operation in tough industrial situations with low maintenance needs.

These technical advantages allow our clients to achieve improved power quality while decreasing operating costs and adverse ecological effects across varied applications.

Real-World Application Success Stories

Our powered Filter solutions give proven results across diverse industrial sectors, delivering actual advantages in real-world applications. By using our APF systems, industrial facilities may avoid power factor penalties and shield assembly line machinery and CNC machines from harmonic disturbances. The robust design absorbs surge currents at least 100 times rated capacity, guaranteeing dependable protection during equipment starts and fault circumstances.

Utility substations utilize voltage stabilization skills that offset harmonics created by renewable energy modules and other distributed generating sources. Our APF systems preserve grid stability while permitting increasing renewable energy penetration costs, supporting utility sustainability targets. Commercial facilities, including hospitals and retail complexes, successfully replace old electrical systems with our quiet operation APF units that emit less than 45dB noise levels while surpassing NFPA 70 fire safety requirements with flame-retardant capacitor technology.

Manufacturing Excellence and Quality Assurance

Our dedication to manufacturing excellence guarantees every Active Power Filter passes high quality requirements before distribution to client locations. Our quality management methods and sustainable development practices are validated by our extensive certifications, which include ISO 9001:2008, ISO 14001:2004, CE, UL, and CCC. Rigorous quality control processes include 72-hour aging test and 100% load confirmation for every unit manufactured, providing dependable performance throughout operating lifecycles.

Our plateau-certified equipment runs reliably at elevations up to 4,000 meters while keeping full technical standards, making our solutions appropriate for tough geographical regions. When compared to other products on the market, our APF designs bring advantages in competitiveness in efficiency, efficacy, and dependability thanks to a number of unique technology.

Conclusion

Active Power Filters represent essential technologies for organizations pursuing sustainable energy management while maintaining operational excellence in competitive industrial markets. These sophisticated devices deliver comprehensive power quality solutions that reduce energy consumption, extend equipment lifecycles, and enable renewable energy integration across diverse applications. The proven benefits of dynamic harmonic suppression, voltage stabilization, and adaptive compensation make APFs valuable investments for facilities prioritizing both economic performance and environmental responsibility. Strategic implementation of Active Power Filter technologies positions organizations to achieve their sustainability objectives while enhancing operational efficiency and regulatory compliance in evolving energy landscapes.

FAQ

1. What industries benefit most from Active Power Filter implementation?

Manufacturing facilities with variable frequency drives, data centers with sensitive IT equipment, hospitals requiring uninterrupted power quality, and renewable energy installations gain significant advantages from APF deployment. These industries experience immediate improvements in equipment reliability, energy efficiency, and operational cost reduction through enhanced power quality management.

2. How do Active Power Filters impact energy efficiency in industrial plants?

Active Power Filters typically improve overall energy efficiency by 5-15% through power factor correction, harmonic loss reduction, and voltage optimization. These improvements translate to substantial cost savings in facilities with high electrical demand while reducing environmental impact through lower energy consumption.

3. What are typical installation timeframes and requirements for APF systems?

Standard Active Power Filter installations require 2-5 days depending on system complexity and facility requirements. Installation involves electrical connections, control system integration, and commissioning procedures that require minimal production downtime when properly planned with experienced installation teams.

Partner with Xi'an Xidian for Superior Active Power Filter Solutions

Xi'an Xidian invites industrial procurement teams to discover how our advanced Active Power Filter technologies can transform your facility's power quality while supporting sustainability objectives. Our experienced engineering team provides comprehensive consultations to identify optimal solutions that address specific power quality challenges and operational requirements. As a leading Active Power Filter manufacturer, we deliver proven technologies backed by extensive certifications and rigorous quality assurance processes that ensure reliable performance in demanding industrial environments. Contact our technical specialists at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to discuss your power quality requirements and explore customized APF solutions.
