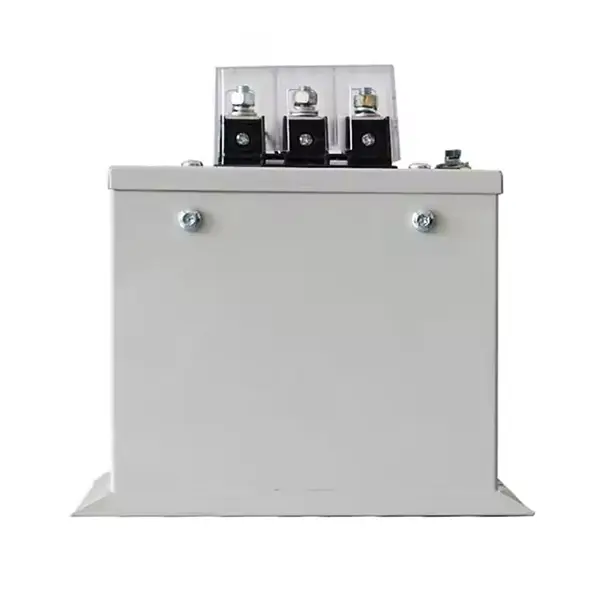

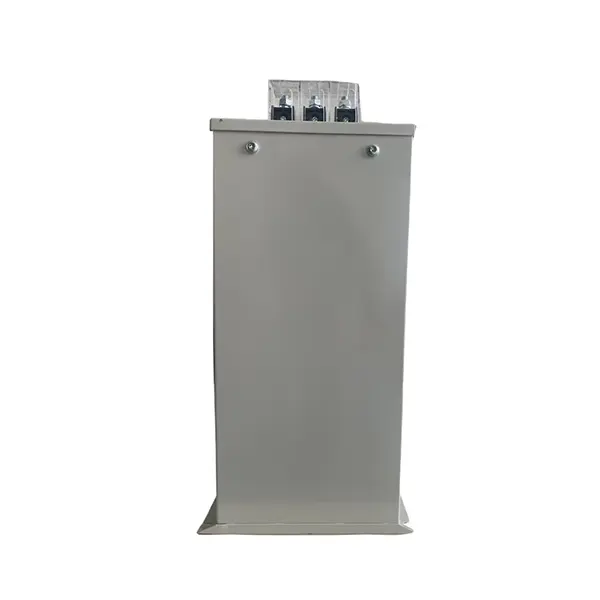

BKMJ0.4KV Submerged Arc Furnace Capacitor

1.Frequency 60Hz
2.Capacitance Deviation -5%~+10%
3.Max Current 2.5×In
Equipped with discharge resistors
4.Integrated with independent over-voltage protection devices
5.Superior self-healing performance and extended service life
6.Low-loss factor, dry-type design with leakage-free construction
7.Equipped with discharge resistors
View details
10KV High voltage Shunt High-Voltage Capacitors

1.Rated Voltage:6kV,10kV,35kV
2.Rated Capacity:1-100Mvar(per bank)
3.The capacitor is mainly consisted of container and device body.
4.The core is consisted of severalelements and insulation parts. The element is rolled, pressed andmade of two aluminum foilsand somepiece of thin dielectric polypropylene films sandwiched betweenthe two aluminum foils. In order to reach the differentdemand of voltage and capacity, the elements in core is connected by someseriesand parallelmethod. The technology of aluminum foiledge folding and protruding weldingare used to reduce the loss and increase the performance of partial discharging.
View details

BKMJ0.4KV Submerged Arc Furnace Capacitor

1.Frequency 60Hz
2.Capacitance Deviation -5%~+10%
3.Max Current 2.5×In
Equipped with discharge resistors
4.Integrated with independent over-voltage protection devices
5.Superior self-healing performance and extended service life
6.Low-loss factor, dry-type design with leakage-free construction
7.Equipped with discharge resistors

Send Inquiry

Download

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

1.BKMJ0.4KV Submerged Arc Furnace Capacitor: Powering Industrial Efficiency

If you’re managing submerged arc furnaces in metallurgy, steel, or alloy production, the BKMJ0.4KV Submerged Arc Furnace Capacitor is engineered to solve your toughest energy challenges. Designed for 0.4KV systems, this capacitor optimizes power factor correction, reduces energy waste, and withstands extreme industrial environments—all while complying with global safety standards. Let’s explore why it’s a game-changer for heavy industries.

Parallel capacitor

2.Technical Specifications

Rated Voltage: 0.4KV
Frequency: 60Hz
Capacitance Tolerance: -5% to +10%
Max Current: 2.5×In

Self-Healing Performance: Ensures longevity under electrical stress

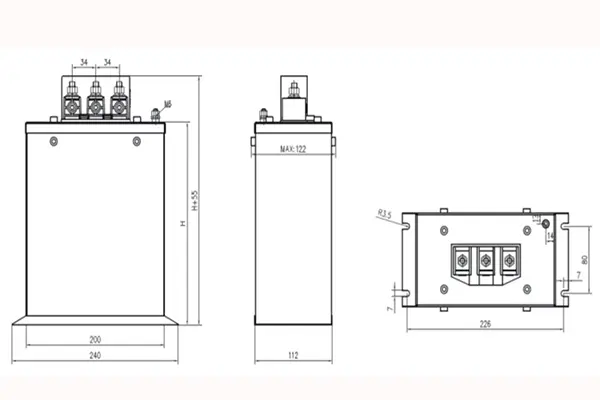

Type	（Q_N) kvar	(C_N) µF	(U_N) VAC	(I_N) A	L	B	B1	H	lead-out electrode	Packaging quantity
BKMJ0.4-10-1	10	199.0	400	25.0	250	75	40	185	Terminal M8 or copper bar	5 units/case
BKMJ0.4-15-1	15	298.5	400	37.5	250	75	40	235	Terminal M8 or copper bar	5 units/case
BKMJ0.4-20-1	20	398.0	400	50.0	250	75	40	265	Terminal M8 or copper bar	5 units/case
BKMJ0.4-25-1	25	497.4	400	62.5	250	75	40	300	Terminal M10 or copper bar	5 units/case
BKMJ0.4-30-1	30	597.0	400	75.0	250	75	40	345	Terminal M10 or copper bar	5 units/case
BKMJ0.4-35-1	35	696.3	400	87.5	250	135	80	265	Terminal M10 or copper bar	3 units/case
BKMJ0.4-40-1	40	796.0	400	100.0	250	135	80	265	Terminal M12 or copper bar	3 units/case
BKMJ0.4-45-1	45	895.3	400	112.5	250	135	80	300	Terminal M12 or copper bar	3 units/case
BKMJ0.4-50-1	50	995.0	400	125.0	250	135	80	300	Terminal M12 or copper bar	5 units/case
BKMJ0.4-55-1	55	1094.2	400	137.5	250	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.4-60-1	60	1194.0	400	150.0	250	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.4-70-1	70	1392.6	400	175.0	315	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.4-75-1	75	1492.0	400	187.5	315	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.4-80-1	80	1591.5	400	200.0	315	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.2-10-3	10	795.8	200	50	250	75	40	235	Terminal M8 or copper bar	5 units/case
BKMJ0.2-15-3	15	1193.7	200	75	250	75	40	265	Terminal M10 or copper bar	5 units/case
BKMJ0.2-20-3	20	1591.5	200	100	250	75	40	300	Terminal M10 or copper bar	5 units/case
BKMJ0.2-25-3	25	1989.5	200	125	250	75	40	345	Terminal M12 or copper bar	5 units/case
BKMJ0.2-30-3	30	2387.3	200	150	250	135	80	265	Terminal M12 or copper bar	3 units/case
BKMJ0.2-35-3	35	2785.2	200	175	250	135	80	300	Terminal M12 or copper bar	3 units/case
BKMJ0.2-40-3	40	3183	200	200	250	135	80	300	Terminal M14 or copper bar	3 units/case
BKMJ0.2-45-3	45	3581	200	225	250	135	80	345	Terminal M14 or copper bar	3 units/case
BKMJ0.2-50-3	50	3979	200	250	250	135	80	345	Terminal M16 or copper bar	3 units/case
BKMJ0.25-10-3	10	509.3	250	40	250	75	40	185	Terminal M8 or copper bar	5 units/case
BKMJ0.25-15-3	15	764	250	60	250	75	40	235	Terminal M8 or copper bar	5 units/case
BKMJ0.25-20-3	20	1018.6	250	80	250	75	40	265	Terminal M10 or copper bar	5 units/case
BKMJ0.25-25-3	25	1273.2	250	100	250	75	40	345	Terminal M10 or copper bar	5 units/case
BKMJ0.25-30-3	30	1528	250	120	250	75	40	345	Terminal M10 or copper bar	5 units/case
BKMJ0.25-35-3	35	1782.5	250	140	250	135	80	265	Terminal M12 or copper bar	3 units/case
BKMJ0.25-40-3	40	2037.3	250	160	250	135	80	265	Terminal M12 or copper bar	3 units/case
BKMJ0.25-45-3	45	2292	250	180	250	135	80	300	Terminal M12 or copper bar	3 units/case
BKMJ0.25-50-3	50	2546.5	250	200	250	135	80	345	Terminal M14 or copper bar	3 units/case
BKMJ0.25-55-3	55	2801.1	250	220	250	135	70	345	Terminal M14 or copper bar	3 units/case
BKMJ0.25-60-3	60	3055.8	250	240	250	135	70	345	Terminal M14 or copper bar	3 units/case
BKMJ0.28-10-3	10	406	280	35.7	250	75	40	185	Terminal M8 or copper bar	5 units/case
BKMT0.28-15-3	15	609	280	53.6	250	75	40	235	Terminal M8 or copper bar	5 units/case
BKMJ0.28-20-3	20	812	280	71.4	250	75	40	265	Terminal M10 or copper bar	5 units/case
BKMJ0.28-25-3	25	1015	280	89.3	250	75	40	300	Terminal M10 or copper bar	5 units/case
BKMJ0.28-30-3	30	1218	280	107.2	250	75	40	345	Terminal M10 or copper bar	5 units/case
BKMJ0.28-35-3	35	1421	280	125	250	135	80	265	Terminal M12 or copper bar	3 units/case
BKMJ0.28-40-3	40	1624	280	143	250	135	80	265	Terminal M12 or copper bar	3 units/case
BKMJ0.28-45-3	45	1827	280	161	250	135	80	300	Terminal M12 or copper bar	3 units/case
BKMJ0.28-50-3	50	2030	280	178.6	250	135	80	300	Terminal M12 or copper bar	3 units/case
BKMJ0.28-55-3	55	2233	280	196.5	250	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.28-60-3	60	2436	280	214.3	250	135	80	345	Terminal M14 or copper bar	3 units/case
BKMJ0.3-10-３	10	353.7	300	33.4	250	75	40	185	Terminal M8 or copper bar	5 units/case
BKMJ0.3-15-３	15	530.5	300	50	250	75	40	235	Terminal M8 or copper bar	5 units/case
BKMJ0.3-20-３	20	707.4	300	66.7	250	75	40	265	Terminal M8 or copper bar	5 units/case
BKMJ0.3-25-３	25	884.2	300	83.4	250	75	40	300	Terminal M10 or copper bar	5 units/case
BKMJ0.3-30-３	30	1061	300	100	250	75	40	345	Terminal M10 or copper bar	5 units/case
BKMJ0.3-35-３	35	1238	300	116.7	250	135	80	265	Terminal M12 or copper bar	3 units/case
BKMJ0.3-40-３	40	1414.7	300	133.3	250	135	80	265	Terminal M12 or copper bar	3 units/case
BKMJ0.3-45-３	45	1591.5	300	150	250	135	80	300	Terminal M12 or copper bar	3 units/case
BKMJ0.3-50-３	50	1768.4	300	166.7	250	135	80	300	Terminal M12 or copper bar	3 units/case
BKMJ0.3-55-３	55	1945.3	300	183.3	250	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.3-60-３	60	2122	300	200	250	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.35-10-3	10	260	350	28.6	250	75	40	185	Terminal M8 or copper bar	5 units/case
BKMJ0.35-15-3	15	390	350	43	250	75	40	235	Terminal M8 or copper bar	5 units/case
BKMJ0.35-20-3	20	520	350	57.2	250	75	40	265	Terminal M8 or copper bar	5 units/case
BKMJ0.35-25-3	25	650	350	71.5	250	75	40	300	Terminal M10 or copper bar	5 units/case
BKMJ0.35-30-3	30	780	350	86	250	75	40	345	Terminal M10 or copper bar	5 units/case
BKMJ0.35-35-3	35	910	350	100	250	135	80	265	Terminal M10 or copper bar	3 units/case
BKMJ0.35-40-3	40	1040	350	114.4	250	135	80	265	Terminal M12 or copper bar	3 units/case
BKMJ0.35-45-3	45	1170	350	128.6	250	135	80	300	Terminal M12 or copper bar	3 units/case
BKMJ0.35-50-3	50	1300	350	143	250	135	80	300	Terminal M12 or copper bar	3 units/case
BKMJ0.35-55-3	55	1430	350	157.2	250	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.35-60-3	60	1560	350	171.5	250	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJT0.4-10-3	10	199	400	25	250	75	40	185	Terminal M8 or copper bar	5 units/case
BKMJT0.4-15-3	15	298.5	400	37.5	250	75	40	235	Terminal M8 or copper bar	5 units/case
BKMJT0.4-20-3	20	398	400	50	250	75	40	265	Terminal M8 or copper bar	5 units/case
BKMJT0.4-25-3	25	497.4	400	62.5	250	75	40	300	Terminal M8 or copper bar	5 units/case
BKMJT0.4-30-3	30	597	400	75	250	75	40	345	Terminal M10 or copper bar	5 units/case
BKMJT0.4-35-3	35	696.3	400	87.5	250	135	80	265	Terminal M10 or copper bar	3 units/case
BKMJT0.4-40-3	40	796	400	100	250	135	80	265	Terminal M10 or copper bar	3 units/case
BKMJT0.4-45-3	45	895.3	400	112.5	250	135	80	300	Terminal M12 or copper bar	3 units/case
BKMJT0.4-50-3	50	995	400	125	250	135	80	300	Terminal M12 or copper bar	3 units/case
BKMJT0.4-55-3	55	1094.2	400	137.5	250	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJT0.4-60-3	60	1194	400	150	250	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJT0.4-70-3	70	1392.6	400	175	315	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJT0.4-75-3	75	1492	400	187.5	315	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJT0.4-80-3	80	1591.5	400	200	315	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.42-10-3	10	180.5	420	23.8	250	75	40	185	Terminal M8 or copper bar	5 units/case
BKMJ0.42-15-3	15	270.7	420	35.7	250	75	40	235	Terminal M8 or copper bar	5 units/case
BKMJ0.42-20-3	20	361	420	47.6	250	75	40	265	Terminal M8 or copper bar	5 units/case
BKMJ0.42-25-3	25	451.2	420	59.5	250	75	40	300	Terminal M8 or copper bar	5 units/case
BKMJ0.42-30-3	30	541.4	420	71.4	250	75	40	345	Terminal M10 or copper bar	5 units/case
BKMJ0.42-35-3	35	631.6	420	83.4	250	135	80	265	Terminal M10 or copper bar	3 units/case
BKMJ0.42-40-3	40	722	420	95.2	250	135	80	265	Terminal M10 or copper bar	3 units/case
BKMJ0.42-45-3	45	812	420	107.2	250	135	80	300	Terminal M12 or copper bar	3 units/case
BKMJ0.42-50-3	50	902.4	420	119	250	135	80	300	Terminal M12 or copper bar	3 units/case
BKMJ0.42-55-3	55	992.5	420	131	250	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.42-60-3	60	1082.8	420	142.8	250	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.42-70-3	70	1263.2	420	166.7	315	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.42-75-3	75	1353.4	420	178.6	315	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.42-80-3	80	1443.5	420	190.5	315	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.45-10-3	10	157.2	450	22.2	250	75	40	185	Terminal M8 or copper bar	5 units/case
BKMJ0.45-15-3	15	235.8	450	33.3	250	75	40	235	Terminal M8 or copper bar	5 units/case
BKMJ0.45-20-3	20	314.4	450	44.4	250	75	40	265	Terminal M8 or copper bar	5 units/case
BKMJ0.45-25-3	25	393	450	55.5	250	75	40	300	Terminal M8 or copper bar	5 units/case
BKMJ0.45-30-3	30	471.6	450	66.6	250	75	40	345	Terminal M8 or copper bar	5 units/case
BKMJ0.45-35-3	35	550.2	450	77.7	250	135	80	265	Terminal M10 or copper bar	3 units/case
BKMJ0.45-40-3	40	628.8	450	88.8	250	135	80	265	Terminal M10 or copper bar	3 units/case
BKMJ0.45-45-3	45	707.4	450	100	250	135	80	300	Terminal M10 or copper bar	3 units/case
BKMJ0.45-50-3	50	786	450	111.1	250	135	80	300	Terminal M12 or copper bar	3 units/case
BKMJ0.45-55-3	55	864.5	450	122.2	250	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.45-60-3	60	943.2	450	133.3	250	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.45-70-3	70	1100.4	450	155.5	315	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.45-75-3	75	1179	450	166.6	315	135	80	345	Terminal M12 or copper bar	3 units/case
BKMJ0.45-80-3	80	1257.5	450	177.7	315	135	80	345	Terminal M12 or copper bar	3 units/case

Safety Features: Integrated discharge resistors, independent over-voltage protection
Design: Dry-type, leak-proof construction with low-loss materials

3.Key Features & Advantages

1. Built for Extreme Conditions

The BKMJ0.4KV capacitor handles ambient temperatures up to 60°C and voltage fluctuations of ±10%, making it ideal for steel mills and foundries. Its explosion-proof design prioritizes safety in high-risk environments.

2. Energy Efficiency You Can Trust

With a loss factor below 0.2W/kVar, this capacitor cuts energy costs by minimizing reactive power waste. Its modular design allows seamless integration into existing systems, reducing downtime during upgrades.

3. Smart Self-Healing Technology

Micro-damage from voltage surges? The self-healing dielectric layer automatically repairs minor faults, extending service life to over 100,000 hours—even in 24/7 operations.

4. Global Compliance, Local Reliability

Certified to IEC 60831, UL, CE, and CCC standards, our capacitors meet regional requirements from North America to Asia-Pacific. Optional GOST and RoHS certifications ensure adaptability to niche markets.

4.Real-World Applications

Be used in a wide range of industries.

Industrial Plants

Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.

Substation

Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.

Commercial Buildings

Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.

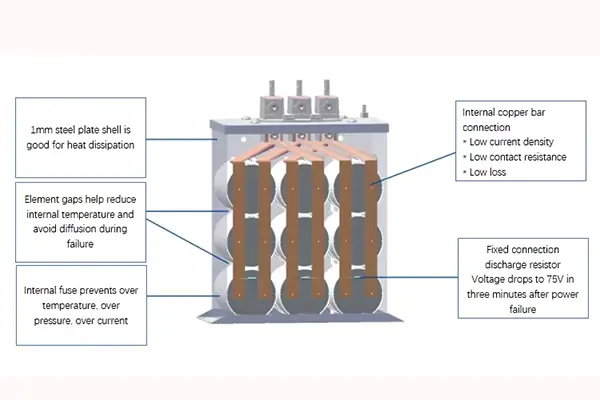

5.How It Works?

The BKMJ0.4KV Submerged Arc Furnace Capacitor uses advanced metallized polypropylene film to store and release energy efficiently. Its dry-type design eliminates oil leaks, while discharge resistors ensure safe voltage reduction post-operation. Over-voltage protection modules guard against grid instabilities, keeping your systems running smoothly.

6.Manufacturing & Quality Assurance

Every BKMJ0.4KV capacitor undergoes:

ISO 9001-Certified Testing: Rigorous checks for capacitance stability, thermal endurance, and safety.
Patented Production Lines: Automated assembly ensures precision and consistency.
Third-Party Validation: Independent labs verify compliance with IEC and UL standards.

7.Why Choose Us?

30+ Years of Expertise: Trusted by leading metallurgy and power companies worldwide.
Custom Solutions: Tailored voltage ratings or harmonic filters for unique furnace setups.
24/7 Support: Installation guidance and emergency maintenance to minimize downtime.
Eco-Friendly Focus: Energy-saving designs align with global sustainability goals.

Certificate

8.FAQs

Q1: How does this capacitor improve energy efficiency?

It reduces reactive power consumption by up to 30%, lowering electricity bills and CO2 emissions.

Q2: Can it handle high harmonic distortion?

Yes! The self-healing design and low-inductance construction mitigate harmonic impacts.

Q3: What’s the lead time for bulk orders?

Standard orders ship in 3–4 weeks. Expedited options are available for urgent needs.

Q4: Is retrofitting complicated?

Not at all. Our team provides step-by-step integration guides for hassle-free upgrades.

9.Contact Us

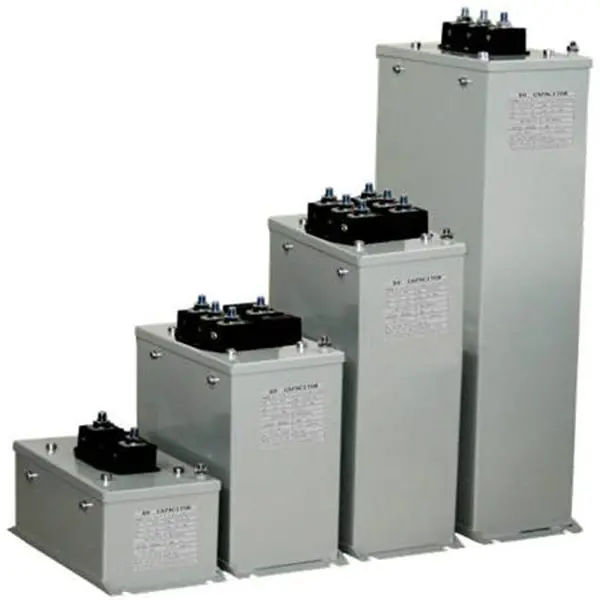

Upgrade your submerged arc furnace with the BKMJ0.4KV Submerged Arc Furnace Capacitor—where innovation meets reliability.

Custom Quotes & Technical Support Available

10.Factory Show

11.Equipment Display

Equipment

12.Application Cases

State Grid systems, power engineering, steel and metallurgy, petrochemicals, rail transportation, energy and water conservancy, construction, environmental protection, and renewable energy sectors
