Key Uses of AHF in Modern Manufacturing

These days, power quality is very important for making sure that equipment works well and lasts a long time in modern industry. Active Harmonic Filters (AHF) have become an important way to fix power quality problems in a range of commercial settings. These high-tech gadgets reduce harmonic distortion, improve power factor, and make the whole electrical system more efficient. By using AHF technology, today's makers can save a lot on energy, keep their equipment from being damaged, and meet strict power quality standards. This piece talks about how Active Harmonic Filters are used in factory settings and why they are important for making sure that processes in a range of industries are reliable and efficient.

Fixing power quality problems in CNC machining centers and motors driven by VFDs

In today's factories, CNC (Computer Numerical Control) cutting machines and VFD (Variable Frequency Drive) motors are very common. These exact tools, on the other hand, can cause a lot of harmonic distortion in electrical systems, which can lead to power quality problems that impact the tool itself and machines nearby.

Reducing harmonic distortion in CNC operations

CNC machines use complicated electronics for control and drive. These create harmonics, which can cause current shifts and voltage changes. Active Harmonic Filters work by adding currents that go the other way to the system, getting rid of these harmonics and stopping the distortion before it starts. This leads to a cleaner power source, less stress on the tools, and better cutting accuracy.

Optimizing VFD Performance and Longevity

Variable Frequency Drives are known for creating harmonic currents, but they are still very important for controlling motors in a way that saves energy. AHF systems track and fix harmonic distortions all the time so that they can adapt to changing load circumstances. This lowers temperature stress and electrical wear, which not only helps VFD-driven motors work better but also makes them last longer.

Increasing the stability of the power system as a whole

Using Active Harmonic Filters in places where there is a lot of CNC and VFD equipment can help make power systems more stable and reliable. This stability means that machines always work the same way, which leads to better product quality, lower upkeep costs, and fewer stops in production.

Preventing Transformer Overheating and Capacitor Bank Failures in Industrial Plants

Industrial plants often face challenges related to power system components, particularly transformers and capacitor banks. Harmonics can make these important parts boil, break, or fail too early. This can cause expensive downtime and possible safety issues.

Transformers: Protection and How Well They Work

Transformers can have higher core losses and more heat in the wound because of harmonic currents. By lowering the harmonic content in the power system and avoiding transformer burning, Active Harmonic Filters help to address these problems. This not only makes transformers last longer but also makes them more efficient. This lets them run closer to their rated capacity without the danger of heat overload.

Protecting Capacitor Banks

Capacitor banks are used to fix power factor and are very sensitive to harmonic interference. Capacitors can boil, live shorter lives, and even fail in very dramatic ways if there are too many harmonics. By constantly adapting to different harmonic loads, AHF technology is able to protect capacitor banks from harmful resonance conditions and extend their operating life.

All-Around Power Quality Management

Active Harmonic Filters are a full solution for managing the power quality of industrial plants because they deal with both transformers and capacitor banks. This all-around approach not only safeguards the system's separate parts, but also makes the whole electricity distribution system more reliable and efficient.

Ensuring Compliance with IEEE Standards for Harmonic Distortion

Following industry standards is very important for making sure that operations run smoothly and the rules are followed in modern manufacturing. The IEEE (Institute of Electrical and Electronics Engineers) has set very strict rules for how much harmonic distortion is acceptable in electrical systems. One example is the standard IEEE 519-2014.

Following the IEEE 519-2014 Guidelines

Active Harmonic Filters are very important for helping factories meet these strict standards. AHF systems keep an eye on and fix harmonic distortions in real time to make sure that Total Harmonic Distortion (THD) levels stay within the right limits. This compliance not only avoids fines, but it also builds an image for environmental duty and operating excellence.

Ongoing Oversight and Flexible Fixing

One of the best things about current AHF systems is that they can keep an eye on power quality factors and change to fit the situation at any time. This method makes sure that harmonic prevention efforts are always at their best, even when the way things are made and the loads on the system change during the day. This kind of flexibility is very important for making sure that IEEE guidelines are always followed, no matter what the conditions are.

Keeping delicate lab and medical tools safe in factories

Many places where things are made, especially in the drugs and biotechnology industries, have lab and medical tools that can be damaged easily. These precise tools need clean, stable power to do their jobs correctly and dependably.

Ensuring Precision in Analytical Instruments

Quality control and study labs use analytical tools that are very sensitive to problems with power quality. Harmonics can mess up measurements and change the way sensitive equipment is calibrated. Active Harmonic Filters make the power situation more stable, which makes these important tools more accurate and reliable.

Protecting the Ways Medicine is Made

In places that make medical equipment or medicines, the quality of the power is important to keep things clean and make sure that products are always the same. AHF technology helps keep clean rooms working properly by lowering electrical noise that could change how important HVAC and filtering systems work.

Allowing Energy Savings and Lowering Fines on Production Lines with High Precision

To stay competitive in today's market, high-precision industry must have clean power and make good use of energy. By making the most of power and lowering energy costs, Active Harmonic Filter systems greatly advance these objectives.

Raising the Energy Efficiency of Everything

AHF systems lower energy loss in electrical systems by reducing harmonic distortion. In other words, it uses less energy generally and makes production lines more efficient. Manufacturers are seeing their energy bills go down, which helps them save money and reach their green goals.

Avoiding Fees for Power Factor

A bad power factor can lead to fines from many utility companies. Harmonic distortion can make this worse. Active Harmonic Filters help keep a high power factor by fixing both shift and distortion power factor. This not only keeps them from getting in trouble, but it can also get them rewards from utility companies for keeping power quality standards high.

Conclusion

In order to handle a variety of power quality issues, Active Harmonic Filters have become important tools in modern production. AHF technology offers a full range of options for the complicated industrial settings of today. It protects delicate tools, makes sure that industry standards are met, saves energy, lowers the costs of running a business, and more. Active Harmonic Filters will play an even more important role in keeping power quality as manufacturing processes change and become more complex. These filters are a very important investment for manufacturers who want to stay competitive in a market that is becoming more demanding.

FAQ

Q: What are the differences between an Active Harmonic Filter and a Passive One?

A: Active Harmonic Filters can handle a wide range of harmonic frequencies at once and change flexibly to meet changing load conditions. On the other hand, inactive filters are set to certain frequencies and can't be changed to work with other frequencies easily. AHFs provide better and more complete harmonic reduction. This is especially true in changing load settings that are common in industry.

Q: Can Active Harmonic Filters be added to manufacturing plants that are already in use?

A: Yes, Active Harmonic Filters can be added to current electricity systems without needing to make big changes. Because they are portable, they can be installed in a variety of ways, making them appropriate for both new and older industrial settings.

Q: What maintenance is required for Active Harmonic Filters in manufacturing settings?

A: Active Harmonic Filters usually don't need to be taken care of as much as old ways of fixing power quality. Regular checks, cleaning of air filters (if needed), and software updates are usually enough to keep things working well. But the manufacturer's upkeep instructions may change depending on where and how the device is used.

Partner with Xi'an Xidian for Advanced Harmonic Mitigation Solutions

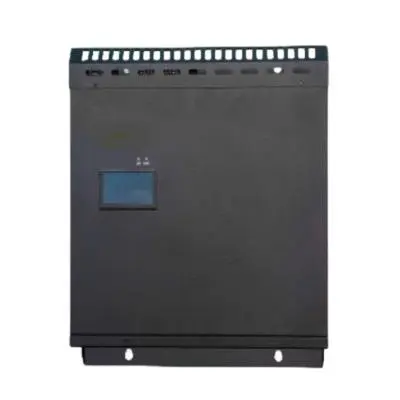

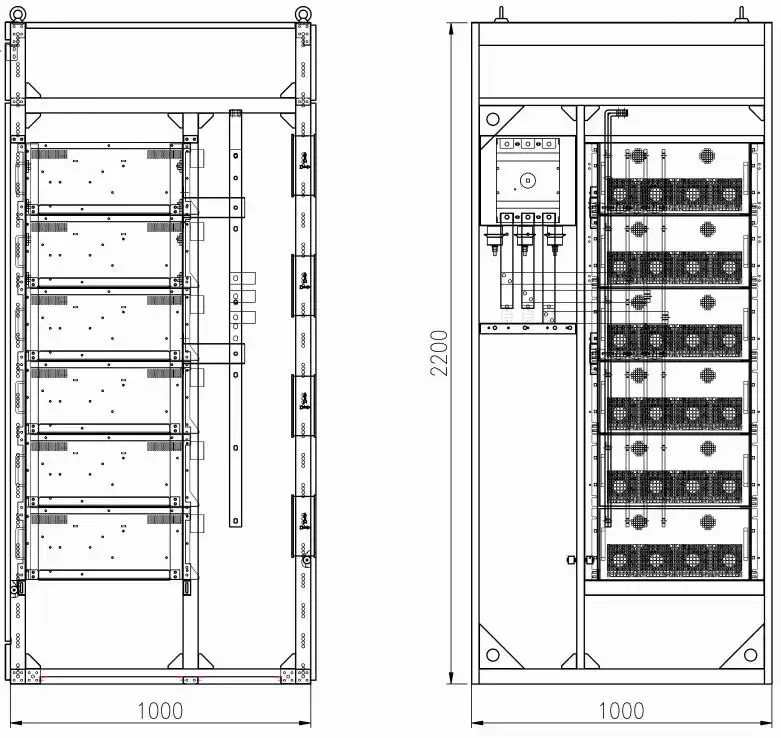

As a leading manufacturer of power quality solutions, Xi'an Xidian offers state-of-the-art Active Harmonic Filter systems designed to meet the demanding needs of modern manufacturing environments. Our AHF products feature advanced active technology, modular designs, and robust construction to ensure optimal performance and reliability in diverse industrial applications. With Xi'an Xidian's expertise in power distribution solutions and commitment to innovation, you can trust our Active Harmonic Filters to deliver superior harmonic suppression, energy efficiency, and compliance with international standards. Experience the difference of Xi'an Xidian's cutting-edge technology in your manufacturing facility today.

For more information on our Active Harmonic Filter solutions or to discuss your specific power quality needs, please contact our expert team at xaxd_electric@163.com. As a trusted Active Harmonic Filter manufacturer, we're ready to help you optimize your power system for peak performance and reliability.

References

1. IEEE Power and Energy Society. (2014). IEEE Std 519-2014: IEEE Recommended Practice and Requirements for Harmonic Control in Electric Power Systems.

2. Akagi, H., Watanabe, E. H., & Aredes, M. (2017). Instantaneous Power Theory and Applications to Power Conditioning. Wiley-IEEE Press.

3. Dugan, R. C., McGranaghan, M. F., Santoso, S., & Beaty, H. W. (2012). Electrical Power Systems Quality. McGraw-Hill Education.

4. Grady, W. M., & Santoso, S. (2001). Understanding Power System Harmonics. IEEE Power Engineering Review, 21(11), 8-11.

5. Chatterjee, K., Fernandes, B. G., & Dubey, G. K. (1999). An instantaneous reactive volt-ampere compensator and harmonic suppressor system. IEEE Transactions on Power Electronics, 14(2), 381-392.

6. Sharma, V., & Tayal, V. K. (2018). Active Power Filter: A Review. International Journal of Engineering Research & Technology (IJERT), 7(5), 164-168.
