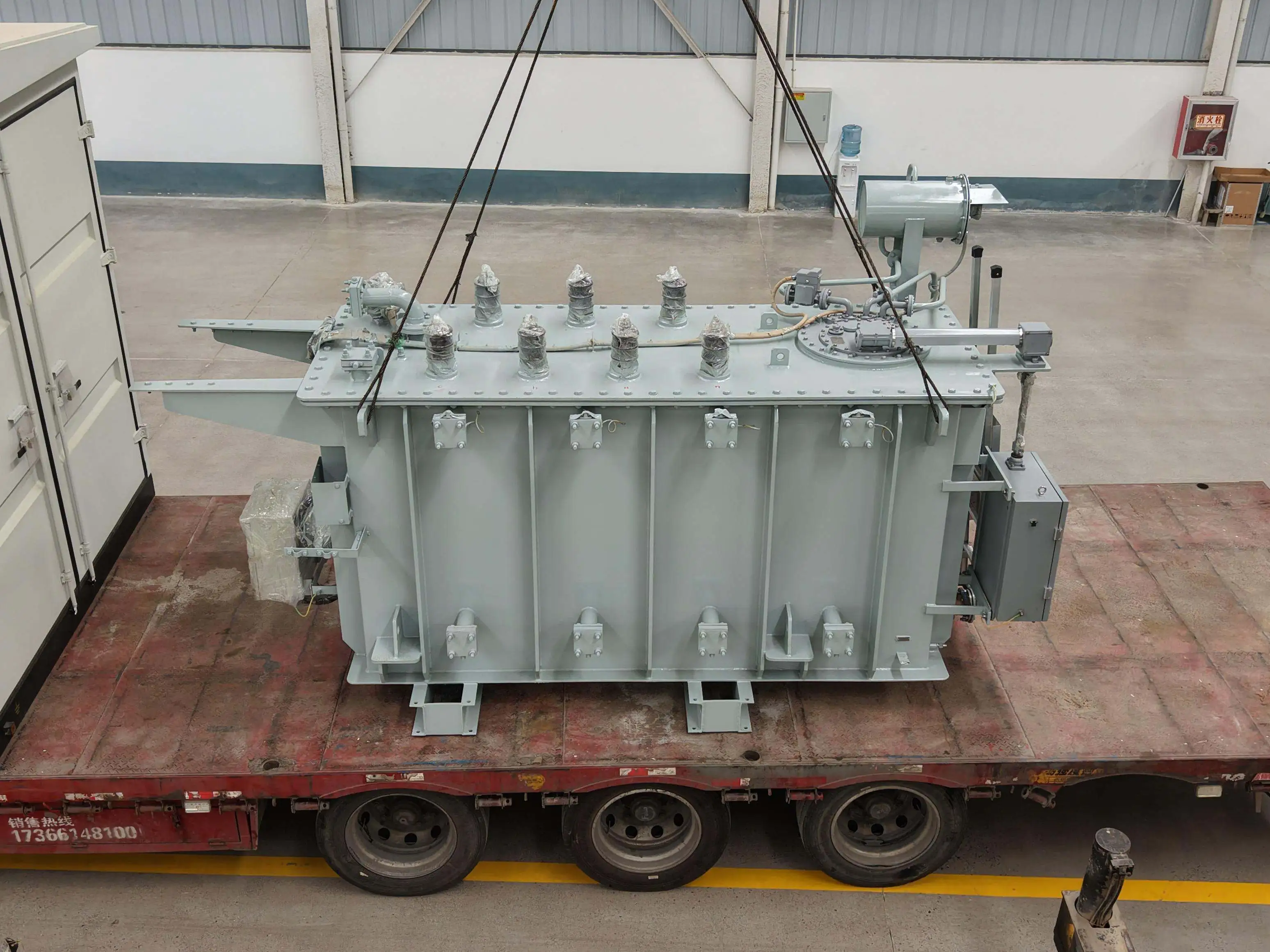

OEM Oil-Immersed Transformers for Utility Grid Projects

In emerging markets, OEM oil-immersed transformers for power grid projects are the most important part of current electricity systems. These very important parts of power transfer use mineral oil insulation technology that is tried and true and also use modern heat management systems. An oil-immersed transformer cools better and has a higher insulating strength than a dry-type transformer. When utility companies and factories need dependable voltage control options, custom-made transformers give them exactly what they need for their one-of-a-kind work settings. Strong build quality for the transformer tank and a complex oil drainage system together guarantee decades of reliable service in tough grid uses.

Understanding OEM/ODM Power Transformer Manufacturing Excellence

The electrical equipment business needs to be able to precisely tailor its products to meet the needs of different power grids in Southeast Asia, Central Asia, the Middle East, and Africa. OEM (Original Equipment Manufacturer) partnerships let utility companies and industry users get specialized transformer designs without having to make them themselves. ODM (Original Design Manufacturer) services go further with this idea by helping to create new solutions that are tailored to the needs of specific markets.

Adding green energy, higher power needs, and tough weather make things harder for today's power lines. These complicated needs are often too much for standard transformer options. Custom oil-immersed transformers deal with these issues by using built-in cooling systems, unique winding configurations, and better electrical insulation qualities.

Xi'an Xidian's OEM can do anything from 10kV distribution transformers to 110kV transmission units. Our experience in making means that each transformer meets exact standards for voltage control and heat absorption. Load tap switches and advanced dissolved gas analysis tools make it possible for utilities to keep an eye on things, which is necessary for today's grid management.

Xi'an Xidian's OEM/ODM Manufacturing Strengths

Xi'an Xidian is a top OEM partner for power grid projects because we have over 25 years of experience making transformers. The plateau-style gear from the company works well at heights of up to 4,000 meters, which makes it perfect for the tough landscapes that are popular in target markets. Transformer design includes many unique technologies that give OEM partners an edge in their local markets.

Advanced quality control methods make sure that the performance of a lot of output is always the same. Each transformer's tank is tested with high pressure for 24 hours to make sure it is not damaged. Grain-oriented steel cores keep the best magnetic qualities for the whole time the transformer is in use and lower hysteresis losses at the same time.

Our research and development tools let us make prototypes of unique transformer setups very quickly. Our engineers make sure to meet all the needs of our clients, whether they need small urban power distribution units or explosion-proof designs for the petroleum industry. The factory meets IEC 60076, ISO 9001, CE, UL, and GOST-R norms.

Supply chain management makes sure that big OEM orders get the parts they need. Strategic relationships with companies that make mineral oil and cooling systems make sure that the standard of the materials is always the same. This unified method allows for good prices while keeping the high standards expected in utility apps.

Comprehensive Customization Options for Every Application

Transformer tanks must be designed for specific placement settings in order to start physical design customization.

• IP55-rated housings made of materials that won't corrode protect the parts inside from dust, humidity, and very hot or cold temperatures between −40°C and 55°C. For places where the ground moves around a lot, if you use seismic-resistant designs, your building will be safe during earthquakes that happen in Zone 4.
• Modern power lines have a lot of different operating needs. Functional feature customization takes care of these needs. When the load changes, high-tech voltage control systems keep the accuracy within ±0.5%. Specialized winding settings deal with 125% short-term loads that are typical in green energy settings. For two-hour times, the overload capacity can go up to 150%, which is necessary for power plants whose power needs change.
• Thermal control methods change based on where they are and how much they need to cool down. Better oil flow systems help get rid of heat in places where the temperature is high. Silica gel breathers and better oil filter systems make equipment last longer in areas where dust and salt can be a problem.
• The addition of complex systems for finding faults and the ability to watch from afar are examples of technology integration. Dissolved gas analysis equipment lets you use predictive maintenance methods that cut down on unwanted downtime. Digital communication tools make it easy for utility companies to use current SCADA systems.
• Branding and compliance customization makes sure that OEM partners can sell transformers under their own brand name while still following the rules in their area. Custom logo designs, paperwork packages, and help with certification make the approval process easier in target markets.

The ODM Benefit: Working Together to Make New Solutions for the Future

ODM relationships with Xi'an Xidian open up chances to create new transformer technologies that will work better for customers' needs in the market. When we work together on engineering projects, we blend what we know about making things with our partners' knowledge of the rules and needs in their markets.

Recently, ODM projects have included making ultra-efficient transformers that use amorphous core technology to get 99% efficiency. These oil-immersed transformers are compliant with EU EcoDesign standards and also save customers a lot of money on energy costs. When compared to standard transformers, low-loss designs can cut no-load losses by as much as 30%.

ODM makes new products in areas like offshore wind farm transformers, mine operation units, and data center power systems. These are all specialized uses that help make ODM more innovative. Every application has its own problems that can't be fixed with common goods.

Intellectual property growth through ODM agreements makes assets that are useful to both sides. When two or more people share a patent for a new transformer design, it helps both of them in the market and makes it clear who owns the new technology. This method speeds up market launch and lowers the chances of growth problems at the same time.

Our OEM/ODM Process Made Easy

1. The first meeting is all about discussing the details of the project, the conditions in which it will operate, and the performance goals. A technical specs review makes sure that the project can be done and looks for ways to make it better. Environmental review looks at things like altitude, weather changes, and pollution risks that affect how things are built.
2. During the design step, tech teams have to talk to each other a lot. Before making a real prototype, 3D models and computer tools are used to test performance. Choosing materials based on local supply and upkeep needs helps save money over the lifetime of a project.
3. Prototype creation and testing show how well the concept works in situations that are similar to the real thing. Electrical performance proof, temperature cycles, and mechanical stress analysis are all parts of comprehensive testing. Involvement of customers in testing makes sure that it meets their standards.
4. Production scaling uses Xi'an Xidian's production ability to meet delivery deadlines. Quality assurance methods make sure that all production runs are the same. Regular reports on progress let OEM partners know what's going on during production.
5. After delivery support includes help with setting things up, getting them to work, and giving people expert help whenever they need it. With 24/7 technology support, you can get help with your work-related questions right away. OEM partners and their customers get long-term peace of mind with a ten-year guarantee.

Strategic Gains for OEM Partners

Market launch speeding gives OEM partners the ability to offer transformers without having to spend a lot of money on manufacturing sites. Access to ideas that are known to work makes the time and risk of technology problems lower when launching a new product. Better supply chain management and production methods that save money on costs will help you make more money. Price per unit systems keep quality up and make big projects more competitive. The minimum amount that can be ordered varies, so it can be used for both big and small tasks.

Xi'an Xidian's patented technologies make it easier to stand out in local markets. Installations in places where noise matters, like hospitals and schools, are possible with advanced features that allow the machine to work quietly (under 65 dB). Quality control and extensive tests that ensure reliability will lower the number of guarantee claims and calls to customer service. Customers trust businesses that have shown they can work in tough conditions, which helps build long-term relationships. Support for scalability lets OEM partners grow their transformer business without running out of resources. Flexible production timing lets you deal with changes in demand based on the season and needs for important projects.

Conclusion

OEM oil-immersed transformers are a useful way for companies that want to get into or grow their business in utility grid markets to do so. Xi'an Xidian's complete OEM/ODM skills offer the manufacturing knowledge, customization options, and quality checks needed for success in challenging applications. Our over 25 years of knowledge, cutting-edge production sites, and dedication to new ideas make the relationships that last. OEM partners can be sure they are serving their customers well and helping their businesses grow because of the mix of tried-and-true technology, dependable performance, and quick support. To start your journey toward making great transformers, get in touch with Xi'an Xidian today.

Frequently Asked Questions

Q1: What input voltage ranges can be customized for OEM oil-immersed transformers?

A: For input voltages of 10kV, 35kV, and 110kV, Xi'an Xidian makes special oil-immersed transformers. Each voltage class can be changed even more with certain winding setups and tap changer choices to make sure they fit the needs of each grid.

Q2: How do you make sure that the generator works in very hot or cold weather?

A: Our transformers work well in temperatures from −40°C to 55°C thanks to better cooling system design and specialized mineral oil formulas. IP55-rated shelters keep out dust and moisture, and materials that don't rust make sure they last a long time in coastal areas.

Q3: For OEM transformer jobs, what are the minimum order quantities?

A: The amount of minimum order changes depending on how hard it is to customize and the power ratings. We work with our OEM partners to figure out reasonable order numbers that take into account both the needs of the market and the ease of production. To talk about a certain project, please get in touch with our team.

Partner with Xi'an Xidian for Your Oil-Immersed Transformer Manufacturing Needs

Xi'an Xidian stands ready to support your utility grid projects with world-class OEM oil-immersed transformer for sale. Our proven manufacturing capabilities, extensive customization options, and commitment to quality make us the ideal partner for distributors and utility companies seeking reliable power transformer supplier relationships.

Whether you need standard distribution transformers or specialized units for challenging applications, our engineering team delivers solutions that exceed performance expectations. Advanced thermal management systems, superior electrical insulation properties, and robust transformer tank construction ensure decades of reliable operation.

Take the next step toward establishing your transformer supply capabilities. Our experienced OEM specialists are ready to discuss your specific requirements and develop customized solutions that drive your business success. Ready to explore how Xi'an Xidian can enhance your project portfolio? We invite you to contact us at xaxd_electric@163.com and discover why leading companies choose our OEM partnership for their critical infrastructure needs.
