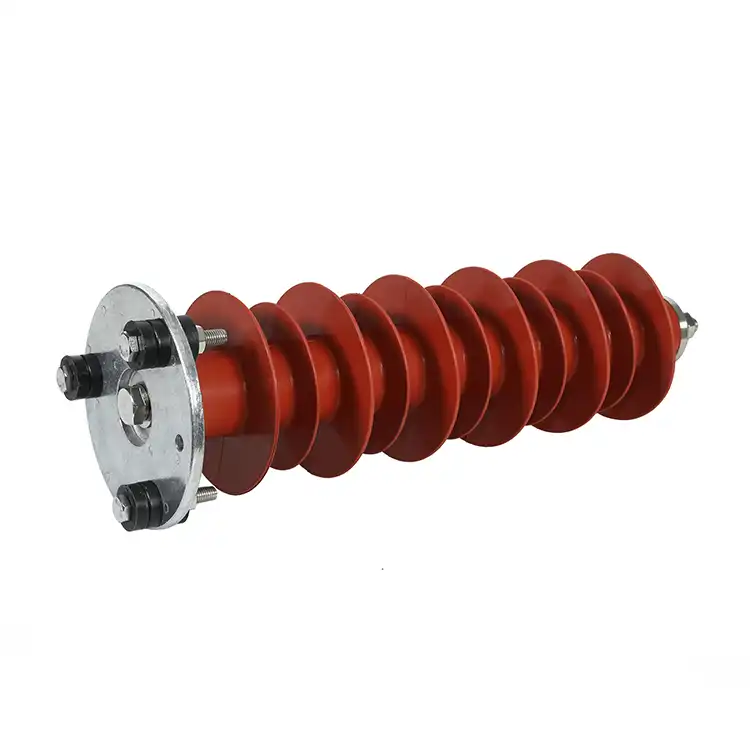

Polymeric Lightning Arrester Applications in Substations

Polymeric lightning arresters have become fundamental components in present-day substation foundations, giving solid security against voltage surges caused by lightning strikes and switching operations. These progressed gadgets utilize polymer housing combined with metal oxide varistor innovation to protect basic electrical hardware. Not at all like conventional porcelain-housed arresters, polymeric plans offer lightweight development, prevalent mechanical quality, and upgraded contamination resistance, making them progressively well-known over mechanical offices, utility systems, and commercial establishments all through the United States.

Understanding Polymeric Lightning Arresters in Substation Environments

How Polymeric Surge Protection Technology Works

Polymeric Lightning Arrester devices use zinc oxide varistors that immediately move from tall to low resistance amid surges, securely redirecting current to ground and ensuring basic hardware. Their silicone elastic lodging includes mechanical quality and hydrophobic execution, repulsing dampness and anticipating spillage streams. This makes them profoundly solid in contaminated or coastal situations, guaranteeing long-term cover keenness and steady assurance against lightning and exchanging overvoltages.

Differentiating Polymer Technology from Conventional Designs

Compared to porcelain units, Polymeric Lightning Arrester designs are lighter, impact-resistant, and less demanding to introduce. Porcelain is delicate and overwhelming, whereas polymer materials progress adaptability and solidity. Cutting-edge models meet IEC and IEEE guidelines, advertising adequate creepage separate and voltage coordination. By coordinating arrester appraisals to framework cover levels, these gadgets viably constrain remaining voltage, guaranteeing hardware security and solid framework execution beneath surge conditions.

Types and Material Composition Variations

Polymeric Lightning Arrester types include station-class units for high-voltage frameworks and distribution-class models for lower voltages. Silicone elastic lodgings give UV resistance and long-lasting hydrophobicity, whereas added substances improve fire and following resistance. Inside plans may utilize strengthened centers or lightweight empty structures. Progressed fixing avoids dampness entrance, keeping up varistor steadiness. These highlights empower benefit lives surpassing 25 a long time with negligible support over assorted substation applications.

Advantages of Polymeric Lightning Arresters Over Traditional Solutions

Performance Metrics That Matter for Operations

Polymeric Lightning Arrester units decrease remaining voltage altogether, bringing down separator push and making strides hardware assurance. They handle high-energy surges, including different lightning events, without corruption. Moo spillage current upgrades proficiency, minimizing framework misfortunes over time. Their wide working temperature range guarantees steady execution over climates, from cold locales to hot coastal zones, making them dependable arrangements for basic framework like hospitals, manufacturing plants, and information centers.

Cost-Effectiveness and Operational Benefits

Although initial costs may be higher, Polymeric Lightning Arrester systems offer lower lifecycle costs due to decreased support and longer benefit life. Lightweight development streamlines establishment and brings down labor costs. Expanded assessment interims decrease operational workload. Progressed unwavering quality minimizes downtime dangers, avoiding expensive generation misfortunes. These points of interest make them appealing for utilities and mechanical clients looking for tough, cost-efficient surge security solutions.

Real-World Application Success Stories

Utilities and industries report strong results with Polymeric Lightning Arrester adoption. Coastal substations accomplished progressed unwavering quality and decreased support costs after supplanting porcelain units. Fabricating offices disposed of voltage-related disappointments, expanding uptime and ROI. Clinics upgraded control security without auxiliary updates due to lightweight establishment. These real-world cases illustrate quantifiable changes in framework solidness, operational productivity, and security against surge-related disruptions.

Installation and Maintenance Best Practices for Substation Use

Pre-Installation Assessment and Environmental Considerations

Proper installation begins with evaluating pollution levels, altitude, and environmental conditions. Polymeric Lightning Arrester selection must match creepage distance requirements and site-specific stresses. High-altitude locations require adjusted ratings due to reduced air density. Temperature extremes and seismic conditions must also be considered. Flexible mounting designs improve resilience, ensuring reliable operation while accommodating environmental challenges in modern substations.

Step-by-Step Installation Procedures

Correct mounting alignment and torque application are critical for Polymeric Lightning Arrester installation. Electrical connections must prevent corrosion and ensure low resistance using proper materials and conductive compounds. Ground leads should remain short to minimize inductance. Pre-energization testing verifies insulation integrity and installation quality. Accurate documentation of installation data establishes a baseline for future maintenance and ensures compliance with operational standards.

Maintenance Protocols for Extended Service Life

Routine inspections help maintain Polymeric Lightning Arrester performance by identifying surface damage, contamination, or hydrophobic loss. Thermographic analysis detects abnormal heating, indicating potential internal issues. Leakage current monitoring provides insight into varistor aging and condition. When values exceed limits, timely replacement prevents unexpected failure. These proactive maintenance strategies extend service life and ensure consistent surge protection.

Regulatory Compliance and Safety Standards

Polymeric Lightning Arrester products must comply with IEEE and IEC standards to ensure safety and interoperability. Certifications confirm performance through standardized testing, supporting reliable application in global projects. Environmental regulations, including RoHS and ISO 14001, influence material selection and sustainability practices. Polymer designs are often preferred for recyclability and reduced environmental impact, aligning with modern regulatory and operational requirements.

Procurement Guide: Selecting and Buying Polymeric Lightning Arresters

Critical Decision Criteria for Specifiers

Voltage rating is the key factor when selecting a Polymeric Lightning Arrester. It should match or slightly exceed the system’s maximum operating voltage to handle temporary overvoltages. Undersized units fail early, while oversized ones reduce protection efficiency. Discharge current rating influences performance—10kA suits most applications, while 20kA+ is ideal for high-risk areas. Creepage distance must align with environmental pollution levels to prevent flashover while maintaining cost and design efficiency.

Manufacturer Evaluation and Supply Chain Considerations

Manufacturer experience strongly impacts long-term Polymeric Lightning Arrester reliability. Established suppliers with proven field performance offer lower risk than newer entrants. Procurement teams should assess technical support responsiveness, customization capabilities, and engineering expertise. Flexible design options improve project fit. Manufacturing quality systems, such as ISO 9001, ensure consistency, but facility audits reveal real capability. Advanced automated production and strict testing—like impulse, salt fog, and discharge tests—guarantee product reliability and compliance.

Pricing Dynamics and Bulk Purchasing Strategy

Polymeric Lightning Arrester pricing depends on raw materials like zinc oxide and silicone rubber, as well as order volume. Bulk purchases significantly reduce unit costs, with major discounts for large-scale projects. Standard lead times range from 6–8 weeks, while customized orders may require up to 12 weeks. Strategic procurement uses forecast-based contracts to balance inventory and pricing. Warranty terms, typically 18–36 months, and responsive after-sales support are essential for long-term value and project reliability.

Future Trends and Innovations in Polymeric Lightning Arrester Technology

Material Science Advancements Driving Performance

Nanotechnology can be used to improve the electrical and mechanical properties of polymer compounds. Nanoparticles mixed into silicone rubber improves its ability to resist tracking, erosion, and water absorption beyond what is currently possible. Researchers are working on composite materials that can fix small surface problems on their own. This could make the Polymeric Lightning Arrester last longer in harsh environments and require less maintenance.

Varistor formulation improvements keep raising the energy absorption density, which lets designs be smaller without lowering the protection performance. Advanced sintering methods create zinc oxide microstructures with better grain boundaries, which results in lower residual voltages and better performance over time. These improvements make it possible to put higher voltage ratings into existing packages, which is helpful for retrofitting that doesn't have a lot of room.

Bio-based polymers and compounds that can be recycled are the materials that are most often chosen because they are better for the environment. Next-generation designs use renewable materials that lower the product's carbon footprint over its entire lifecycle while still meeting electrical performance standards. More and more, manufacturing processes focus on using less energy and making less waste, which is in line with corporate sustainability commitments across all industries.

Integration with Smart Grid Infrastructure

With the ability to monitor digitally, arresters go from being passive security devices to being active sources of grid intelligence. Leakage current, operating duty, and environmental conditions are all tracked by embedded sensors, which send data to central monitoring systems over wireless networks. Utilities can see more than ever before about the health of Polymeric Lightning Arrester units across thousands of installations. This lets them do predictive maintenance that replaces devices before they break instead of after disasters.

Intelligent arresters and other grid equipment can talk to each other in real time as part of coordinated protection schemes. When sensors notice that an arrester is failing, automated systems can change the settings for relays or move loads around to lower the risk until maintenance crews can fix the problem. This integration makes the grid more reliable overall and makes the best use of maintenance resources.

When surge protection and renewable energy integration come together, they create new problems and chances. Along with delivering power, solar inverters and wind turbine converters make high-frequency switching transients. Modern Polymeric Lightning Arrester designs have frequency-responsive features that effectively block both lightning surges and noise generated by power electronics. This keeps the power quality high for sensitive industrial processes and shields generation equipment from grid disturbances.

Market Evolution and Regulatory Drivers

Reliable power infrastructure is more important than ever as more transportation and manufacturing are powered by electricity. Networks for charging electric cars, data centers that support cloud computing, and automated factories all need higher levels of power quality and continuity than what is normally expected. This need leads to the spread of high-end surge protection technologies, with Polymeric Lightning Arrester units gaining market share thanks to their better performance.

The effects of climate change can be seen in more frequent and severe weather events, such as more lightning in areas that haven't had much lightning in the past. Better safety margins are built into design standards by infrastructure planners, who require higher-capacity arresters even for low-risk distribution applications. This trend is good for companies that make strong technologies that have been tested and shown to work well in the field.

Regulatory focus on grid resilience after major outages speeds up the replacement of old infrastructure. As a result of being required to improve reliability metrics, utilities prioritize substation upgrades, which keeps the need for new protective gear high. Procurement programs like technologies that have been shown to improve performance and save money over time. This puts advanced Polymeric Lightning Arrester solutions ahead of traditional options.

Conclusion

Polymeric Lightning Arrester units have completely changed how substations are protected because they work better, last longer, and cost less than traditional solutions. The advanced polymer housing and optimized metal oxide varistor technology work together to protect against voltage surges reliably, while also making maintenance easier and increasing service life. Facility managers, utility companies, and engineering firms can make better decisions that improve the reliability of the power system if they understand the technical principles, application requirements, and procurement issues. As material science and smart grid integration improve, these important safety devices will keep changing to meet the needs of a power infrastructure that is becoming more complex.

Frequently Asked Questions

1. What distinguishes polymeric surge arresters from porcelain models?

The main difference is the type of housing. Polymer designs use silicone rubber compounds that make the design lighter, better at cleaning up pollution because they don't absorb water, and more durable because they don't break easily. While porcelain has great electrical properties, it is more likely to break and weighs more. Polymeric Lightning Arrester units are becoming more popular in modern applications because they are easier to install, require less maintenance, and are safer when they fail.

2. How do I determine the appropriate voltage rating?

Match the rated voltage of the Polymeric Lightning Arrester to the highest continuous voltage that your system can handle, plus a safe amount. A device rated at 102kV protects systems that run continuously at 82kV or less. You can look at the application guides that the manufacturer provides or talk to experienced suppliers. They will be able to give you good ratings based on your voltage class, how you plan to ground the device, and how much temporary overvoltage you expect.

3. What maintenance activities are essential for long service life?

The main parts of the maintenance program are visual checks to find damage, thermographic surveys to find strange heating, and leakage current measurements to check the inside condition. The number of inspections depends on how bad the environment is, but they are usually done once a year or twice every three years. Keeping careful records of what was found during inspections and test results lets you use trend analysis to figure out when a Polymeric Lightning Arrester will fail unexpectedly.

Partner with Xi'an Xikai for Reliable Polymeric Lightning Arrester Solutions

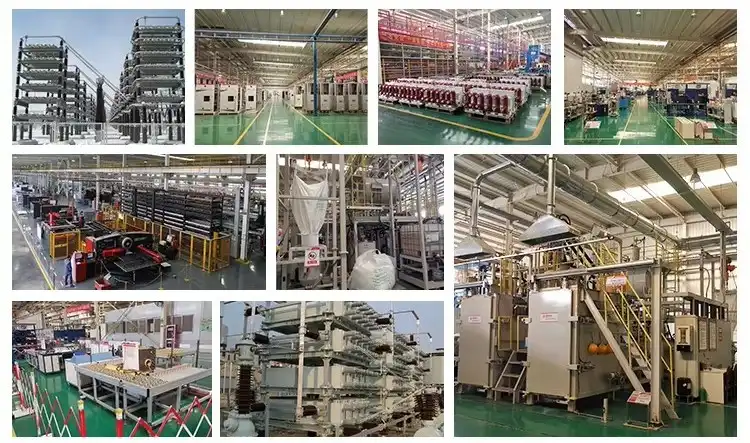

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. is ready to help you with your substation protection needs with Polymeric Lightning Arrester technology that has been tried and tested over twenty years of excellent manufacturing. Our YH10W-102/266W series and wide range of products are used in many different situations, from factories to utility transmission systems. They provide excellent safety by using designs that have been tested to the limit. As a top manufacturer of Polymeric Lightning Arrester solutions, we can make changes to the creepage distances, voltage ratings, and connector configurations so that they fit the needs of your project. During the procurement process, our engineering team provides expert application support to make sure that the right equipment is chosen and installed correctly. Send an email to serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about your surge protection needs and get detailed technical advice for your next project.

References

1. IEEE Std C62.11-2012, "IEEE Standard for Metal-Oxide Surge Arresters for AC Power Circuits," Institute of Electrical and Electronics Engineers, New York, 2012.

2. IEC 60099-4, "Surge Arresters - Part 4: Metal-Oxide Surge Arresters Without Gaps for AC Systems," International Electrotechnical Commission, Geneva, 2014.

3. Hinrichsen, V., "Metal-Oxide Surge Arresters: Fundamentals," Siemens AG Energy Sector Technical Report, Berlin, 2011.

4. CIGRE Working Group A3.17, "Guide for Application of Metal Oxide Surge Arresters in Distribution and Transmission Systems," Conference Internationale des Grands Reseaux Electriques, Paris, 2010.

5. IEEE Std 998-2012, "IEEE Guide for Direct Lightning Stroke Shielding of Substations," Institute of Electrical and Electronics Engineers, New York, 2012.

6. Latiff, N.A.A., et al., "Performance Analysis of Polymeric and Porcelain Housed Metal Oxide Surge Arresters Under Tropical Conditions," Electric Power Systems Research Journal, Volume 142, 2017.
