Uses of Metal-Clad Withdrawable Switchgear in Power Plants

Heavy-duty Metal-Clad Withdrawable Switchgear is an important part of safe power distribution in power plants around the world. It protects, controls, and isolates medium-voltage electrical systems. This specialized gear makes it possible to do safe maintenance and quick part replacements without having to shut down the whole system. This solves important operational problems that facility managers, utility engineers, and EPC contractors face. Its compartmentalized design and mechanically interlocked racking systems keep operations safe while giving modern power plants the flexibility they need to keep up their generation capacity and meet strict safety standards.

​

​​​​​​​​

Understanding Metal-Clad Withdrawable Switchgear in Power Plants

Defining the Technology and Its Core Components

Metal-Clad Withdrawable Switchgear is medium-voltage gear with breakers mounted on detachable trucks interior fixed metal compartments, isolating conductors, rebellious, and controls for improved security. The withdrawable component permits development between associated, test, and disconnected positions without reaching live parts. Ordinarily separated into breaker, transport, and cable chambers, each segment underpins free get to and separation. Cutting edge frameworks utilize vacuum or SF6 interference, taking care of 4.16kV–38kV and up to 63kA blame levels, guaranteeing secure operation, upkeep adaptability, and dependable execution beneath requesting electrical conditions in mechanical and utility applications.

Technical Specifications That Matter for Procurement

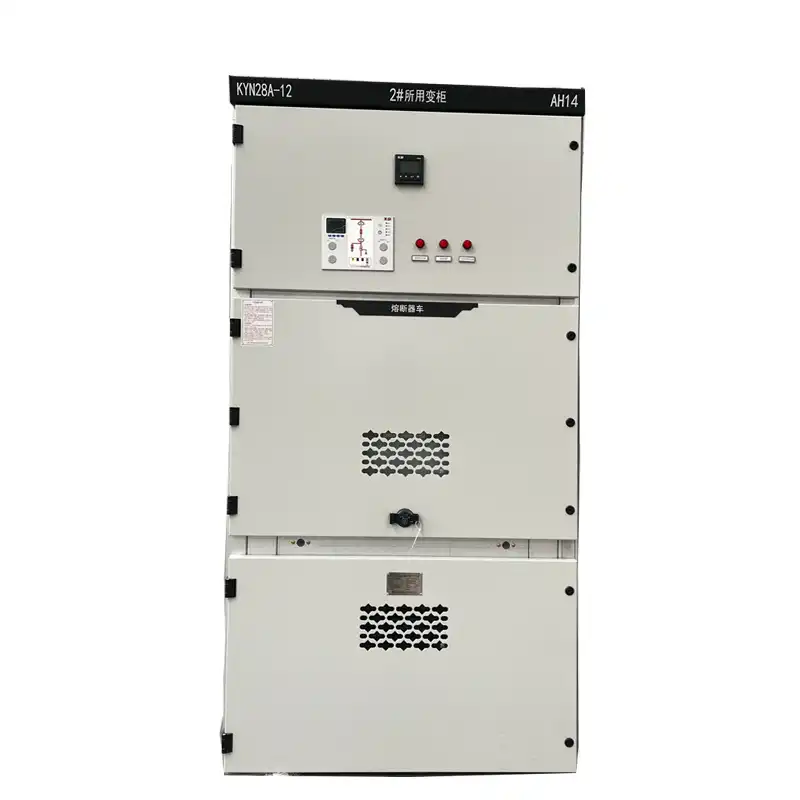

Procurement choices depend on coordinating evaluated voltage, current, and separator levels to framework requests. The KYN28-12 Metal-Clad Withdrawable Switchgear, appraised at 12kV and 50Hz, suits standard mechanical and utility systems and bolsters ABB VD4 and VS1 breakers. Cover coordination is basic to withstand transitory overvoltages from exchanging or lightning. High-quality units illustrate 42kV control recurrence withstand voltage, advertising solid security edges. This guarantees strength beneath rehashed electrical stretch, ensuring gear and keeping up long-term unwavering quality in situations where network unsettling influences and blame conditions regularly challenge separator performance.

Safety Features and Operational Interlocks

Advanced Metal-Clad Withdrawable Switchgear incorporates five-layer interlock systems that prevent unsafe operations, such as inserting breakers under load or accessing energized compartments. These interlocks guide operators through safe sequences, reducing human error during maintenance. Arc-resistant construction enhances safety by containing and redirecting fault energy away from personnel through pressure relief channels. Reinforced enclosures withstand internal arc forces, while compliance with IEEE C37.20.7 validates performance. Together, these features provide critical protection against electrical hazards, ensuring operational safety and meeting stringent regulatory and insurance requirements in medium-voltage installations.

Maintenance Lifecycle Considerations

Metal-Clad Withdrawable Switchgear essentially decreases upkeep time compared to settled plans. Circuit breakers can be racked out, disconnected, and expelled without aggravating adjoining hardware, minimizing downtime. This empowers speedier reviews, repairs, and substitutions, progressing plant accessibility and operational effectiveness. Measured compartments permit focused on overhauling of transfers, transformers, and instrumented whereas keeping basic circuits dynamic. This adaptability is particularly profitable in continuous-process businesses and control plants, where lessening blackout term specifically impacts benefit and framework unwavering quality, supporting proficient lifecycle administration over decades of operation.

Key Uses of Metal-Clad Withdrawable Switchgear in Power Plants

Flexible Power Distribution Architecture

Metal-Clad Withdrawable Switchgear underpins adaptable framework plans, counting outspread and ring-bus setups, empowering excess for basic applications. Its secluded structure permits staged extension as plant capacity develops, including feeders without major overhauls. This flexibility benefits free control makers overseeing long-term ventures. Integration with computerized transfers, SCADA frameworks, and condition checking upgrades centralized control, empowering real-time stack following, breaker execution examination, and prescient upkeep. These capabilities progress operational productivity, bolster data-driven decision-making, and guarantee dependable control dissemination over complex era and mechanical systems.

Protection and Fault Isolation

Metal-Clad Withdrawable Switchgear guarantees dependable blame discovery and separation utilizing facilitated security plans such as overcurrent, differential, and separate transfers. It bolsters specialized assurance for generators and feeders, tending to deficiencies like turn around control or ground flaws. Tall hindering capacity handles blame streams surpassing 40kA, with vigorous transport structures and tried breakers assembly IEEE C37.09 measures. Fast substitution of harmed breakers minimizes downtime, particularly amid top request periods, straightforwardly affecting plant financial matters by keeping up era capacity and anticipating expanded blackouts in basic control systems.

Maintenance Advantages Supporting Uptime Goals

The withdrawable plan empowers quick circuit breaker adjusting, with expulsion, assessment, and reinstallation regularly completed inside 30 minutes. This productivity permits upkeep amid brief blackouts, decreasing income misfortune. Errands like contact resistance testing are more secure and more precise, as breakers can be tried remotely or maybe than in restricted energized spaces. Secluded development too underpins updates, such as supplanting bequest transfers with computerized frameworks or introducing modern breakers. These highlights expand hardware life expectancy, upgrade security, and keep up tall accessibility in control plants and mechanical facilities.

Comparing Metal-Clad Withdrawable Switchgear to Other Types in Power Plants

Design Distinctions and Performance Characteristics

Compared to fixed switchgear, Metal-Clad Withdrawable Switchgear offers superior maintenance flexibility despite slightly higher initial costs. Fixed designs require lengthy shutdowns for breaker replacement, increasing operational disruption. Low-voltage draw-out systems differ in scale and durability, while gas-insulated switchgear (GIS) offers compact size but at significantly higher cost and maintenance complexity. Metal-clad systems balance performance, cost, and maintainability, making them ideal for most industrial and power plant applications where space is sufficient and long-term operational efficiency is prioritized.

Cost-Efficiency Analysis for Plant Applications

Although Metal-Clad Withdrawable Switchgear costs 15–25% more upfront than fixed designs, lifecycle savings are substantial. Maintenance labor can be reduced by up to 75%, as tasks are completed faster and more efficiently. Shorter outage durations minimize lost generation revenue, significantly improving economic returns over 30–40 years. These savings quickly offset initial investment differences, making withdrawable designs more cost-effective for facilities prioritizing uptime, operational efficiency, and long-term financial performance in competitive energy markets.

Operational Pros and Cons for Different Plant Types

Metal-Clad Withdrawable Switchgear enhances reliability by enabling quick fault isolation and component replacement, reducing outage durations. Combined-cycle plants benefit from minimal downtime due to integrated thermal and electrical operations. Coal plants undergoing modernization can upgrade systems incrementally without full shutdowns, spreading costs over time. Hydroelectric facilities gain safety advantages from compartmentalized designs. While all systems require maintenance, the flexibility and rapid serviceability of withdrawable switchgear improve overall plant availability and adaptability across diverse generation technologies.

Procurement Considerations for Power Plant Switchgear Buyers

Critical Decision Metrics Beyond Basic Specifications

Beyond voltage and current ratings, factors like short-circuit withstand capacity, environmental conditions, and future expansion influence procurement decisions. High fault currents above 40kA require robust breaker and bus designs. High-altitude installations demand insulation adjustments due to reduced air dielectric strength. Modular switchgear designs supporting future expansion reduce long-term costs by avoiding system redesigns. Considering these factors ensures reliable performance and adaptability throughout the equipment’s lifecycle in evolving power plant environments.

Supplier Evaluation and Quality Assurance

Reliable suppliers demonstrate quality through certifications like ISO 9001 and compliance with IEEE and IEC standards. Comprehensive type testing validates design integrity, while routine production testing ensures consistent performance. Advanced manufacturing methods, including robotic assembly and precision welding, improve reliability. Mechanical endurance and dielectric testing confirm durability and insulation integrity. Choosing experienced manufacturers ensures equipment meets performance expectations, reducing risks of early failure and supporting long-term operational stability in demanding industrial and utility applications.

Warranty Terms and After-Sales Service

Standard warranties cover 12–24 months, addressing manufacturing defects, but extended warranties provide better protection for critical operations. Comprehensive coverage including labor reduces maintenance burden on operators. Spare parts availability and responsive technical support are essential for minimizing downtime during failures. Suppliers offering 24/7 service and fast parts delivery ensure operational continuity. Evaluating warranty terms and support capabilities helps mitigate risks and ensures reliable long-term performance in high-value power generation environments.

Best Practices for Metal-Clad Withdrawable Switchgear Maintenance in Power Plants

Routine Inspection Protocols

Quarterly visual inspections identify early issues such as enclosure damage, overheating connections, or moisture ingress. Annual detailed inspections involve breaker removal, contact resistance measurement, lubrication checks, and functional testing. Thermographic surveys detect hidden hot spots under load, enabling early intervention. These routine inspections prevent minor issues from escalating, ensuring safe and reliable operation of Metal-Clad Withdrawable Switchgear while supporting predictive maintenance strategies that improve system longevity and reduce unexpected failures.

Preventive Maintenance Checklists

Maintenance schedules depend on breaker operation cycles and duty severity. Vacuum breakers require inspection every 10,000 operations or five years, while SF6 breakers follow duty-based intervals. Regular torque checks prevent connection loosening due to thermal cycling, and relay testing ensures protection systems remain functional. Tracking operations and performing condition-based maintenance improves reliability and reduces unnecessary servicing. These practices maintain optimal performance and prevent failures that could impact plant availability.

Common Pitfalls and Troubleshooting

Incomplete maintenance records hinder diagnostics and planning. Proper documentation enables trend analysis and predictive maintenance. Incorrect racking procedures can damage equipment and pose safety risks, requiring proper training and adherence to procedures. Monitoring contact resistance trends helps detect degradation early, with significant increases indicating maintenance needs. Addressing these issues proactively prevents failures, improves safety, and ensures consistent performance of Metal-Clad Withdrawable Switchgear in demanding operational environments.

Conclusion

In conclusion, when it comes to power plant applications that need high reliability, operational flexibility, and full protection for personnel, Metal-Clad Withdrawable Switchgear is the clear winner. The technology has been used successfully in a wide range of power plants, from coal-fired base load plants to renewable energy installations. This shows that it can be used in a variety of situations to meet different operational and financial needs. Quality implementations that meet IEEE and IEC standards provide decades of reliable service when backed up by the right maintenance programs. This makes the higher initial investment costs worthwhile because of the better lifecycle economics. As safety rules get stricter and power markets get more competitive, designs that can be taken out of service become more valuable. This makes them the first choice for smart facility managers, utility planners, and engineering contractors.

FAQ

1. What advantages does withdrawable switchgear offer over fixed designs?

Metal-Clad Withdrawable Switchgear construction makes maintenance much easier and faster by letting you take out the circuit breaker without messing up the primary connections. This feature cuts planned outages from hours to minutes and makes work safer for workers by letting maintenance be done away from live equipment. When compared to fixed installations, which need longer repair times, being able to quickly replace failed parts during unplanned outages reduces generation losses.

2. Can metal-clad switchgear be customized for specific plant requirements?

Customization that goes all the way around meets the specific needs of each facility, such as voltage ratings that aren't standard, unique protection schemes, harsh environmental conditions, and integration with other systems. Our engineering team works with buyers to create the best solutions, which include their preferred circuit breakers, custom bus configurations, and accessories that are made just for their needs. Manufacturing flexibility lets changes be made to specific projects without the longer lead times that custom designs might require.

3. Which international standards govern quality metal-clad withdrawable switchgear?

In North America, IEEE C37.20.2 sets the standards for Metal-Clad Withdrawable Switchgear, and IEC 62271-200 sets the standards for metal-enclosed equipment around the world. For arc-resistant construction, the IEEE C37.20.7 standards are used, and for installations in areas prone to earthquakes, the IEEE 693 standards are used for seismic qualification. Manufacturers of high-quality goods make sure their products meet all safety standards and provide written proof that they do so, which meets the needs of regulators, insurance companies, and engineers.

Partner with Xi'an Xikai for Your Switchgear Requirements

If you need help with the electrical infrastructure of your power plant, Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. is ready to help with Metal-Clad Withdrawable Switchgear solutions that have been tried and tested over decades of excellent manufacturing. Our KYN28-12 product line has a 12kV rated voltage, full safety interlocks, and is compatible with popular circuit breaker brands like ABB VD4 and VS1. Its performance has been proven through strict testing protocols. Our engineering team helps with applications from the initial specification development stage through commissioning and beyond, making sure that the best equipment is chosen and that the system works well together. Your investment will be protected for a long time thanks to a full warranty, quick service after the sale, and the availability of spare parts. Contact our technical specialists at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to discuss your specific needs.
