What Is Polymeric Lightning Arrester Working Principle Guide

A Polymeric Lightning Arrester is a surge protector that keeps electrical systems safe by sending overvoltages caused by lightning to ground through metal oxide varistor (MOV) elements inside a polymer shell. Zinc oxide discs have nonlinear resistance properties that allow them to change from having high resistance when the voltage is normal to having low resistance during surge events. This stops the voltage from going up too high. The polymer housing, which is usually silicone rubber, gives these arresters their mechanical strength, a hydrophobic surface, and resistance to pollution. This makes them especially useful in harsh industrial settings where ceramic designs are easily broken.

​​​​​​​

Introduction

Lightning strikes and exchanging surges, which can shut down imperative hardware in milliseconds, are continuously a risk to the electrical framework. For individuals who run information centers, clinics, or manufacturing plants, a single voltage spike can cause costly downtime, broken hardware, and security frameworks that do not work properly. Utility companies are dependable for keeping the framework solid, so they require surge assurance that works the same way in all sorts of climate, from salt mist on the coast to warm weather in the forsake. When building firms indicate parts for huge ventures, they require arrangements that strike a adjust between specialized execution and the ease of procurement.

This detailed guide explains how Polymeric Lightning Arrester units work, why they're way better than more seasoned advances, and what acquiring groups ought to see for in these gadgets. We'll see at the electrochemical forms that happen interior arrester centers, compare the benefits of diverse sorts of lodging materials, and provide you step-by-step enlightening for establishment and upkeep. Understanding how polymer-housed metal oxide arresters work will offer assistance you make choices that ensure both gear and budgets, whether you're supplanting ancient ceramic units or arranging unused substations.

Understanding Polymeric Lightning Arresters: Definition and Working Principle

What Defines a Polymeric Surge Arrester

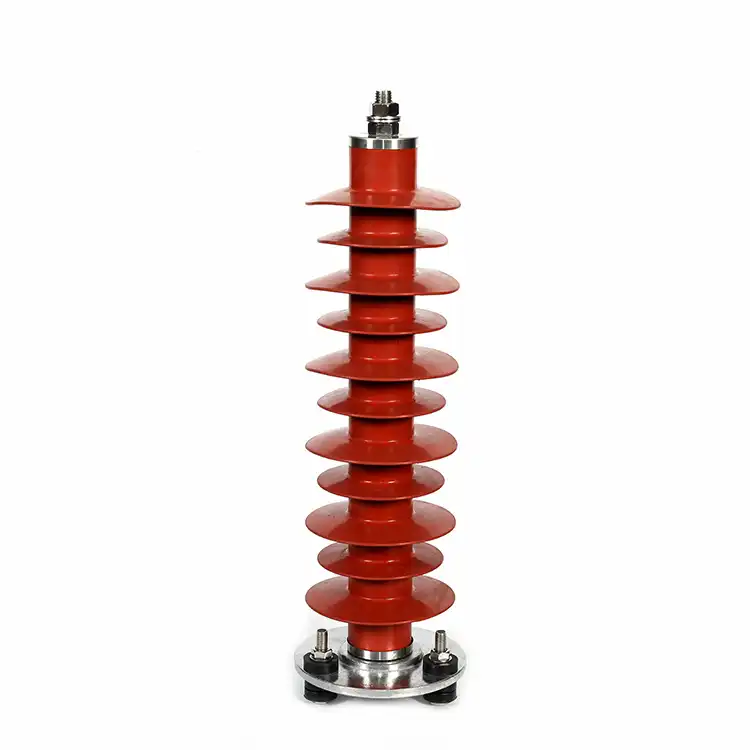

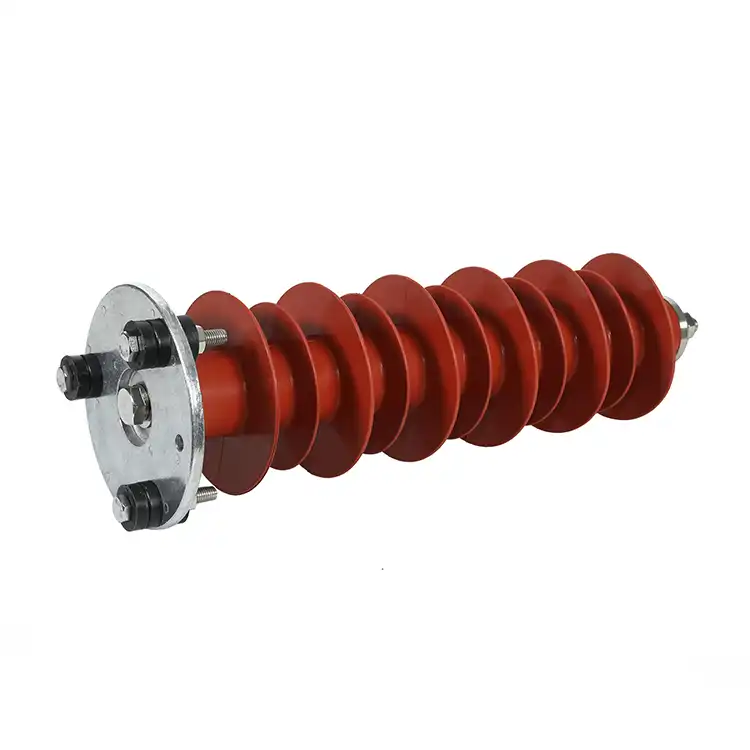

A Polymeric Lightning Arrester combines zinc oxide varistor innovation with UV-resistant silicone elastic lodgings, supplanting conventional porcelain or ceramic plans. The polymer lodging gives electrical cover, mechanical security, and natural resistance. Created in the 1980s, this plan moves forward security and diminishes weight, making establishment less demanding and more solid in seismic or high-impact situations. These arresters are broadly utilized in frameworks from 3kV to 800kV, counting substations, mechanical plants, and touchy electronic offices uncovered to contamination or unforgiving working conditions.

Core Working Mechanism

The framework depends on zinc oxide (ZnO) varistors whose resistance changes with voltage. Beneath typical conditions, they permit as it were microampere spillage due to tall impedance. Amid lightning or exchanging surges, resistance drops right away, permitting huge surge streams to pass securely to ground. The Polymeric Lightning Arrester limits voltage rise, ensuring associated gear. In models like YH10W-102/266W, surge voltage is altogether diminished compared to gap-type arresters. The silicone lodging too disseminates warm productively, anticipating warm harm amid rehashed surge events.

Material Science Behind Polymeric Housings

Silicone rubber housings contain hydrophobic additives that migrate to the surface, forming a water-repellent layer that prevents leakage currents even in polluted or wet environments. This ensures stable insulation performance over time. The material also absorbs mechanical shock, making it resistant to earthquakes and impact compared to brittle ceramic types. Flame-retardant properties meeting UL94 V-0 standards ensure safe pressure relief instead of explosive failure. These characteristics improve long-term reliability and safety in high-risk electrical installations.

Comparing Polymeric Lightning Arresters: Advantages over Traditional Types

Material Properties and Structural Benefits

Traditional ceramic and FRP arresters are heavy and fragile, making installation difficult and risky. Ceramic units can be three to five times heavier and prone to breakage during transport or mounting. In contrast, a Polymeric Lightning Arrester is about 40% lighter while maintaining electrical performance. Its flexible silicone housing resists corrosion from chemicals, pollution, and salt exposure, lasting up to 25 years. Field data shows polymer types outperform ceramic units in harsh industrial environments with significantly lower failure rates.

Electrical Performance Metrics

Polymeric arresters provide lower residual voltage due to the absence of air gaps, improving protection for connected equipment. They typically reduce surge voltage by 10–15% compared to gap-type designs. ZnO elements can absorb high-energy impulses exceeding 100kA without failure. Thermal recovery is also faster, with surface temperatures normalizing within minutes. Additionally, hydrophobic surfaces maintain insulation performance even under heavy pollution, reducing maintenance frequency compared to ceramic systems that require regular cleaning in contaminated environments.

Environmental and Safety Considerations

Ceramic arresters can shatter violently under internal failure, creating hazardous debris. In contrast, a Polymeric Lightning Arrester contains flexible housing that safely vents pressure and prevents fragmentation. This improves personnel and equipment safety in substations. Environmentally, polymer materials are free from heavy metals and halogens and are easier to recycle. Lifecycle assessments show significantly lower carbon emissions compared to ceramic production due to the absence of high-temperature kiln processing, making them more sustainable for modern grid applications.

Installation, Maintenance, and Common Issues of Polymeric Lightning Arresters

Step-by-Step Installation Procedures

Proper installation of a Polymeric Lightning Arrester starts with confirming site conditions match rated parameters. It can operate up to 4,000 m altitude, but reduced air density requires creepage adjustment. Temperature must remain between -40°C and +85°C, and pollution levels above 0.1 mg/cm² require extended-creepage models. Installation includes rigid foundation support, correct lifting using metal fittings only, precise torque on terminals, controlled electrical clearances, and grounding resistance below 5 ohms for effective surge protection.

Routine Inspection and Cleaning Practices

Preventive maintenance ensures long-term reliability. Inspections are recommended every 12 months, or every 6 months in harsh environments. Key checks include surface integrity, hydrophobicity performance, and hardware condition. Water-beading tests verify silicone performance, while thermography detects overheating connections. Cleaning should use mild detergent and deionized water with low-pressure rinsing under 3 MPa. Unlike ceramic types, polymer arresters are self-cleaning and can operate years without washing in moderate pollution environments.

Troubleshooting Common Operational Issues

Common issues include partial discharge, surface damage, and leakage current rise. PD detection above 10 pC may indicate moisture ingress or MOV degradation. Sealed designs with EPDM gaskets reduce failure risk. Physical damage from animals requires replacement if shed loss exceeds 5%, as insulation performance may decline. Leakage current monitoring is critical; increases over 50% from baseline suggest aging or surge stress. Clamp-on sensors and SCADA integration support predictive maintenance and early fault detection.

Procurement Insights: Selecting and Buying Polymeric Lightning Arresters

Key Technical Specifications to Evaluate

It is important that voltage ratings match the parameters of the system, but it's also helpful to know how rated voltage (Ur), maximum continuous operating voltage (MCOV), and DC reference voltage (U1mA) are connected for a Polymeric Lightning Arrester. The MCOV is the highest RMS voltage that the arrester can continuously handle without getting too hot, which is usually between 80 and 85% of the rated voltage. Our YH10W-102/266W has an MCOV of about 82kV, which makes it good for systems that have temporary overvoltage factors of up to 1.4 per unit during ground faults or load rejection.

Nominal discharge current (usually 5kA or 10kA) and high-current impulse values (65kA to 100kA) must be verified. Protective gear for important infrastructure should have 10kA class arresters that can handle 100kA of current to ensure survival during direct hits. The choice of creeping distance is based on IEC 60815-1 pollution severity classifications:

• Light Pollution (16-20mm/kV): In rural areas that aren't near factories or the coast
• Medium Pollution (20-25mm/kV): Light industrial parks and suburbs
• Heavy Pollution (25-31mm/kV): Dusty coastal, desert, or industrial areas
• Very Heavy Pollution (>31mm/kV): Mines, chemical plants, and seaports

Compliance Certifications and Standards

The performance of arresters is governed by international standards. For surge arresters without gaps, IEC 60099-4 is the main reference. This standard spells out how to test:

• Tests of operating duty that simulate being exposed to lightning for 20 years
• Long-duration current impulse tests (2000μs) to make sure the energy is being absorbed
• Measurements of partial discharge to make sure the insulation is solid
• Pollution tests with fake fog and salt spray

Our factory keeps its ISO 9001:2015 certification by having audits done every three months by recognized organizations. Each production batch goes through 100% routine testing, which includes checking the DC reference voltage, measuring the AC leakage current at MCOV, and doing high-voltage impulse tests. All testing is documented and can be linked to a specific serial number. Type test reports from independent labs like KEMA (Netherlands) or CPRI (India) validate compliance with IEEE C62.11 and GB/T 11032 standards.

Supplier Comparison and Selection Criteria

ABB, Siemens, and Schneider Electric dominate high-voltage transmission applications and provide considerable technical assistance. These brands charge 30–50% more than specialist manufacturers because to their complete warranties and worldwide service networks. Their products excel in HVDC converter stations and 500kV+ substations.For medium-voltage (220kV class) applications, regional experts like Xi'an Xikai are cost-effective. Customizing creepage distances, voltage ratings, and connection types fast and without minimum order penalties is our edge. Commissioning on-site and 24/7 troubleshooting with an expert are technical support. For orders above 1,000 units, 60-month guarantees may be negotiated for manufacturing defects.

Bulk Purchasing and Logistics Considerations

Bulk purchases save money and improve the supply chain. Orders above 500 pieces get 15-20% reductions, and consolidated shipping saves more. We have 35kV, 110kV, and 220kV buffers for urgent replacements within two weeks. Expedited processing may cut custom configuration manufacturing time from 6 to 8 weeks to 4 weeks.Plywood containers with shock-mounted cradles and desiccant packs transport our arresters below 40% relative humidity. International ISPM 15 conformity is achieved in export packaging. Turnkey logistics including import tariffs and drayage to buyer-designated warehouses is available at major US ports including Los Angeles, Houston, and New York on DDP conditions. First-time transactions may use L/C or existing accounts can use net-60.

Future Trends and Innovations in Polymeric Lightning Arrester Technology

Advanced Materials and Design Evolution

Silica nanoparticle-containing composite materials increase Polymeric Lightning Arrester housing performance. These additions improve tracking resistance 25% and thermal conductivity for faster surge cooling compared to silicone. Researchers are also creating self-healing polymers that repair microscopic fractures with reversible chemical linkages, possibly extending product life beyond 40 years. MOV element evolution optimizes grain structure via controlled sintering. Recent zinc oxide formulations include rare-earth dopants like lanthanum and yttrium to reduce voltage nonlinearity. The innovation decreases residual voltages by 8–12% without affecting energy absorption. Our R&D pipeline is piloting fourth-generation MOV blocks for next-generation arrester systems by 2025.

Smart Monitoring and IoT Integration

Digitalization transforms passive protection devices into active sensors. We're making smart arresters with sensors built in that measure:

• Leakage current in real time with a resolution of 0.1µA
• Surge discharge energy for each event with time stamping
• Taking the temperature of the housing at several locations to find hotspots
• Stress on the body's structure through accelerometers tracking wind or earthquake loads

Sending data using NB-IoT or LoRaWAN protocols lets operators monitor equipment from afar without needing separate communication systems. Cloud-based analytics platforms use machine learning to predict remaining useful life, triggering maintenance alerts. Beta deployments in Texas distribution networks reduced arrester failures by 35% through predictive replacement before catastrophic events occur.

Market Growth Projections and Strategic Implications

The global arrester market is projected to grow at a rate of 6.8% per year until 2030, driven by grid modernization and renewable energy expansion. Ceramic types are losing market share to polymeric designs at an accelerating rate; by 2028, 70% of new installations will be polymeric. As infrastructure ages, especially in the US where substation equipment averages 38 years old, replacement demand creates ongoing procurement opportunities.Electrification programs in Southeast Asia, Africa, and Latin America represent growth frontiers. Polymeric arresters are preferred here because they are easier to install, cost less, and resist tropical humidity better than ceramic alternatives. Regulatory trends are also mandating upgrades to grid resilience; for example, California now requires transmission operators in high-fire-risk zones to install arresters that can handle 150kA impulses to prevent equipment failures from starting wildfires.

Conclusion

A Polymeric Lightning Arrester is an advanced technology that is still changing, but it solves the main problem of keeping electrical infrastructure safe from short-term overvoltages. The working principle combines the nonlinear conductivity of zinc oxide varistors with the mechanical strength and pollution resistance of polymer housings to produce better performance than traditional ceramic designs. These devices are made to meet the strict requirements of modern power systems, offering low weight for easier installation and shatterproof construction for enhanced personnel safety.

Procurement decisions require weighing technical requirements, supplier abilities, and total cost of ownership. Knowing the voltage ratings, discharge current capacity, and creepage distance ensures the right application, while evaluating certifications lowers long-term risks. As we move toward smart arrester technologies with integrated monitoring, proactive maintenance methods can cut down on unplanned downtime and ensure grid stability for years to come.

FAQ Section

1. What is the expected service lifespan of polymeric surge arresters?

Well-maintained Polymeric Lightning Arrester units typically provide 25 to 30 years of service in normal conditions. The actual lifespan depends on surge frequency, pollution severity, and environmental conditions. Most units last longer than 30 years if they have fewer than 20 significant discharge events (>5kA) and are used within their rated temperature ranges. Periodic testing of leakage current and DC reference voltage lets replacements be based on condition instead of just picking a time to retire.

2. Are polymer housings suitable for extreme climatic zones?

Normal silicone mixtures work well in temperatures ranging from -40°C to +85°C, covering both arctic and desert environments. Coastal installations are naturally resistant to salt fog, so they don't need additional surface treatment. Because the air dielectric strength is lower at elevations higher than 2,000 meters, creepage distances may need to be longer. Special compound formulations are available for equatorial regions with high UV exposure or areas with industrial pollution worse than Class IV levels.

3. What warranty and service options do leading manufacturers provide?

Standard industry warranties cover manufacturing flaws for 24 months, but longer terms can be negotiated for big projects. Full warranties often cover replacements for problems caused by lightning in the first five years, which is helpful for high-lightning-density areas. Service packages may include help with commissioning, regular testing, and emergency replacement stock. Check how quickly manufacturers respond to technical support requests and how easy it is to get replacement parts, as these impact total cost of ownership.

Partner with Xi'an Xikai for Reliable Surge Protection Solutions

Xi'an Xikai is ready to be your reliable Polymeric Lightning Arrester supplier. They have been making these products for 20 years and are very good at engineering new things. Our YH10W-102/266W series shows the performance benefits we've been talking about all along: better surge protection, longer service life, and the ability to work in tough conditions. Our team can help you with any project, whether it's upgrading substation infrastructure, protecting industrial facilities, or choosing parts for renewable energy projects, by creating solutions that fit your budget.

We know that procurement is more than just getting the right product; it includes things like dependability of delivery, technical support, and the value of a long-term partnership. We maintain strict quality control on our automated production lines, ensuring every arrester meets IEC 60099-4 and IEEE C62.11 standards through comprehensive testing protocols. Flexible customization lets you change voltage ratings, creepage distances, and connectors without minimum order penalties, streamlining specification management for EPC firms.

Global logistics capabilities deliver to your timeline, with standard lead times of 6-8 weeks and expedited options for urgent requirements. Our technical team—accessible at serina@xaxd-electric.com, amber@xaxd-electric.com, and luna@xaxd-electric.com—provides 24/7 support for application engineering and troubleshooting. Experience the Xi'an Xikai difference: proven reliability, responsive service, and competitive value. Contact us today to discuss your surge protection needs and discover why contractors across 15+ countries trust our solutions to safeguard their critical infrastructure.

References

1. International Electrotechnical Commission. "Surge Arresters – Part 4: Metal-Oxide Surge Arresters Without Gaps for A.C. Systems." IEC Standard 60099-4:2014, Fourth Edition, 2014.

2. Institute of Electrical and Electronics Engineers. "IEEE Standard for Metal-Oxide Surge Arresters for AC Power Circuits (>1 kV)." IEEE Standard C62.11-2012, Revision of IEEE Std C62.11-2005, 2012.

3. Hinrichsen, Volker. "Metal-Oxide Surge Arresters: Fundamentals." Siemens AG Energy Sector, 2012.

4. Lahti, Kari, et al. "Aspects of the Polymeric Housed Metal Oxide Surge Arrester." CIGRE Session Papers, Study Committee 33, Paris, France, 1998.

5. Chromík, Štefan, et al. "Diagnostics of Polymer-Housed Metal-Oxide Surge Arresters by Electrical Methods." Electric Power Systems Research, Volume 141, December 2016, pp. 125-133.

6. McDermid, William. "Arrester Monitoring: What Are We Really After?" Proceedings of the 2009 IEEE/PES Power Systems Conference and Exposition, Seattle, Washington, March 2009, pp. 1-5.
