Why SF6 Circuit Breaker Is Used in High Voltage Systems

Circuit breakers are required in tall voltage frameworks so that they can dependably halt gigantic blame streams without influencing security or productivity. SF6 Circuit Breaker innovation has ended up the best choice since sulfur hexafluoride gas has incredible dielectric quality (almost 2.5 to 3 times that of air) and superior arc-quenching capacities. Because of this, these gadgets can be made small, do not require much upkeep, and work dependably, indeed when they're powered by a portion of electrical power. They are basic for securing transmission systems, mechanical offices, and basic infrastructure around the world.

​​​​​​​

Understanding SF6 Circuit Breakers

When there are electrical issues in high-voltage systems, a bend can frame that can reach temperatures of more than 20,000°C, which is exceptionally perilous for both individuals and equipment. One intelligent way that SF6 Circuit Breaker units bargain with this issue is by utilizing the uncommon properties of sulfur hexafluoride gas.

How SF6 Gas Extinguishes Electrical Arcs

As long as the contacts are isolated amid a fault condition, the circular segment intrusion prepare begins. Since SF6 gas is exceptionally electronegative, it rapidly takes free electrons from the ionized bond column. This taking in of electrons speeds up the recombination of particles, which cools the bend and reestablishes the dielectric quality in milliseconds. The gas has astounding thermal conductivity, which implies it gets freed of warm rapidly whereas remaining chemically steady indeed at exceptionally high temperatures. Not at all like oil or air-based frameworks, SF6 doesn't donate off hot gasses or deliver byproducts that can capture fire. This makes it more secure to utilize for both indoor and outdoor installations.

Main Types and Design Configurations

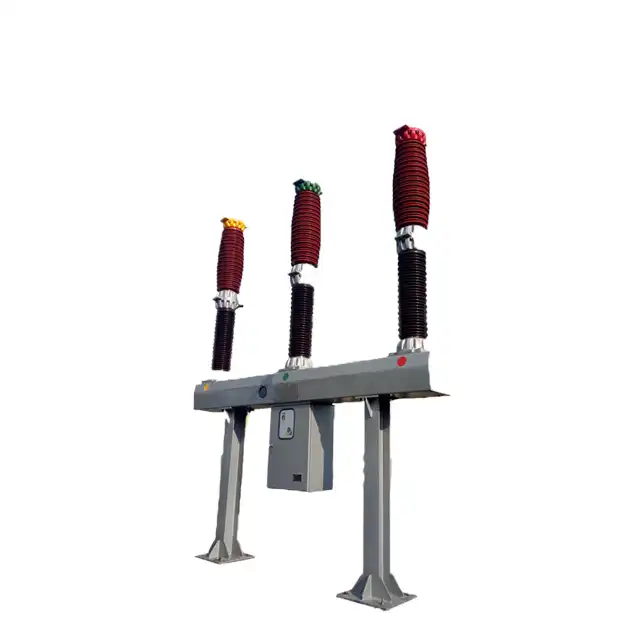

Circuit breaker plans change by voltage and application. Single interrupters suit medium voltage up to 72.5kV, whereas higher voltages over 145kV require twofold interrupters to convey push and increment interference capacity. The LW25 open air porcelain SF6 Circuit Breaker underpins 126kV/145kV frameworks with SF6 cover and different working components. Spring frameworks self-charge without outside power, water-powered frameworks give steady drive utilizing put away vitality, and pneumatic sorts convey fast reaction by means of compressed air, guaranteeing dependable execution over differing lattice conditions and environments.

Key Advantages Driving Industry Adoption

Modern foundation favors compact, dependable gear. SF6 innovation diminishes substation measures by up to 50%, bringing down installation and establishment costs. The SF6 Circuit Breaker benefits from inactive gas that avoids oxidation, empowering sealed-for-life plans with negligible support over 25 a long time. The LW25 show experiences thorough testing, counting thousands of operations and extensive current trials, guaranteeing toughness over climates. Lower working commotion suits urban establishments, whereas the nonattendance of oil dispels fire dangers, making SF6 frameworks more secure, cleaner, and more proficient for long-term framework applications.

Why SF6 Circuit Breakers Are Preferred in High Voltage Systems

To choose the right circuit protection technology, you have to weigh a number of performance factors against the needs of the application. SF6 Circuit Breaker technology is better at solving the problems that come up with high voltage systems than other options.

Superior Dielectric Strength and Thermal Stability

SF6 gas offers remarkable dielectric quality, permitting compact interrupter plans without compromising security. This makes the SF6 Circuit Breaker perfect for transmission voltages over 145kV, where gear estimate influences fetched and format. Its warm solidness guarantees reliable circular segment intrusion from -30°C to 50°C over differing situations. Amid flaws, minor deterioration happens, but coordinated filtration frameworks keep up gas virtue over time. This steadiness underpins long-term benefit and solid execution, guaranteeing security indeed beneath extraordinary working conditions and fluctuating natural temperatures.

Comparison with Vacuum and Air Technologies

Vacuum breakers perform well up to 40.5kV but confront restrictions at higher voltages due to complexity and potential overvoltage amid exchanging. Discuss breakers require regular upkeep and possess bigger space. The SF6 Circuit Breaker bridges these holes, advertising dependable interference at transmission levels with compact design and decreased support. Its delicate exchanging minimizes transitory overvoltages, securing touchy gear. Whereas air-insulated frameworks stay in specialty applications, SF6 innovation conveys prevalent adjust between execution, impression, and unwavering quality in present day high-voltage systems.

Environmental Considerations and Emission Reduction Initiatives

SF6 has tall worldwide warming potential, inciting strict controls and development. Cutting edge SF6 Circuit Breaker plans utilize fixed frameworks with spillage rates underneath 0.1% and coordinates checking for weight control. Reusing programs recuperate gas at end-of-life, decreasing outflows. Producers moreover investigate elective gas blends with lower natural affect, in spite of the fact that selection remains restricted at transmission levels. In spite of concerns, SF6 remains prevailing due to demonstrated unwavering quality, whereas continuous investigate points to adjust natural duty with high-performance necessities in future framework technologies.

Energy Efficiency Benefits

Energy efficiency in switching equipment includes operational consumption and system impact. The SF6 Circuit Breaker reduces auxiliary energy use through optimized spring or hydraulic mechanisms that store energy without continuous power. Compact designs shorten conductor paths, lowering resistive losses in substations. Although individual savings are small, cumulative efficiency across large networks is significant. Reliable fault interruption prevents cascading failures and load shedding, preserving system stability and reducing energy waste. These benefits contribute to overall efficiency improvements in modern electrical infrastructure.

Comparing SF6 Circuit Breakers with Other Technologies

People who work in procurement should know how different breaker technologies fit with different operational needs. When you look at dielectric properties, reliability metrics, maintenance needs, and lifecycle economics, you can see that there are trade-offs between performance.

Dielectric Properties and Interruption Performance

SF6 gas enables rapid dielectric recovery within microseconds, allowing reliable interruption of fault currents exceeding 50kA. This makes the SF6 Circuit Breaker essential for protecting critical grid components. Vacuum systems achieve similar recovery at lower voltages but require complex configurations at higher levels. Clean air technologies offer reduced environmental impact but need larger designs and higher pressure, limiting adoption. SF6 remains unmatched in high-voltage performance, ensuring effective arc suppression and system protection.

Reliability and Mechanical Endurance

Mechanical endurance ranges from 2,000 to 10,000 operations depending on design standards. High-quality SF6 Circuit Breaker units achieve top classifications due to minimal contact wear and sealed environments preventing oxidation. Compared to oil and air breakers, SF6 systems require less maintenance and deliver consistent performance. Vacuum breakers excel in frequent switching but lack high-voltage fault capability. SF6 technology remains the most reliable option for demanding applications requiring both endurance and high interruption capacity.

Maintenance Requirements and Lifecycle Costs

Lifecycle costs include purchase, maintenance, and disposal. The SF6 Circuit Breaker has a higher initial cost but lower long-term maintenance due to sealed gas systems. Routine tasks focus on lubrication, gas pressure checks, and external inspections. Modular designs like LW25 reduce downtime during servicing. Vacuum systems require less routine maintenance but may need earlier replacement after faults. SF6 systems balance cost and durability, offering strong long-term value despite environmental handling requirements at end-of-life.

Procurement Guide for SF6 Circuit Breakers

To buy equipment successfully, you have to find a balance between technical requirements and budget limits, while also making sure that the supplier is reliable and follows all the rules. Structured evaluation processes that take into account both short-term needs and long-term operational goals are helpful for procurement teams.

Essential Technical Specifications

Voltage ratings must align with system levels, while current capacity should exceed expected loads. The SF6 Circuit Breaker offers options up to 4000A and supports high fault currents. Mechanism selection depends on operational needs, with spring, hydraulic, or pneumatic systems offering different advantages. Environmental specifications, including temperature and altitude ratings, ensure reliable operation in diverse conditions. Proper specification prevents failures and supports long-term system stability.

Certifications and Compliance Standards

Compliance ensures safety and reliability. The SF6 Circuit Breaker must meet IEC 62271-100 and relevant IEEE standards, verified through independent testing. Certifications like ISO 9001 and ISO 14001 confirm quality and environmental management. Specialized approvals such as ATEX are required for hazardous environments. Proper certification reduces risk, ensures regulatory compliance, and supports global project deployment.

Supplier Selection and Order Management

Choosing experienced suppliers ensures long-term reliability. Established manufacturers provide technical support, spare parts, and customization for the SF6 Circuit Breaker. Lead times vary from standard to custom designs, while bulk orders offer cost advantages. Clear specifications during procurement prevent delays and cost overruns. Strong supplier relationships improve project execution and lifecycle support.

Maintenance and Troubleshooting of SF6 Circuit Breakers

Long-term dependability depends on regular maintenance that finds problems before they get worse and affect performance. Active programs make equipment last longer while keeping the safety margins needed for high voltage uses.

Routine Inspection Procedures

Regular inspections include checking insulators, mechanisms, and connections. Gas pressure monitoring is critical for SF6 Circuit Breaker operation, with modern systems integrating SCADA tracking. Contact resistance tests identify wear, while visual checks detect damage. Consistent monitoring ensures early detection of issues and reliable long-term performance.

Gas Handling Best Practices

Handling SF6 requires specialized equipment and trained personnel. The SF6 Circuit Breaker uses recovery systems to recycle gas and maintain purity. Leak detection methods ensure environmental compliance. Proper procedures protect personnel and maintain system integrity, supporting safe operation and regulatory adherence.

Common Faults and Diagnostic Approaches

Typical issues include contact wear, mechanism failure, and control faults. The SF6 Circuit Breaker uses diagnostics such as resistance measurement and timing analysis to identify problems. Predictive monitoring detects early signs of failure, enabling timely maintenance. Structured troubleshooting ensures reliability and minimizes operational disruptions.

Conclusion

SF6 Circuit Breaker units have established themselves as reliable workhorses for high voltage systems through proven performance, compact designs, and minimal maintenance requirements. The technology addresses critical needs across utility grids, industrial facilities, and renewable energy installations by providing dependable fault interruption with superior arc-quenching characteristics. While environmental considerations drive ongoing research into alternative gases, current SF6 equipment delivers unmatched reliability at transmission voltages. Careful procurement focused on appropriate specifications, supplier capabilities, and lifecycle economics ensures optimal equipment selection, while disciplined maintenance practices maximize operational lifespans and protect infrastructure investments.

Frequently Asked Questions

1. Why is SF6 gas preferred for high voltage circuit breakers?

SF6 gas has a dielectric strength that is 2.5 times higher than air. This lets designs be smaller while still keeping safety margins. Its excellent arc-quenching abilities and chemical stability make it a reliable way to stop faults across a wide range of temperatures. The sealed gas environment stops contact oxidation, which means that maintenance intervals are much longer than with atmospheric breakers.

2. Are there environmentally friendly alternatives to SF6 breakers?

Combining CO2 with fluorinated compounds to make alternative gases lowers the impact on global warming by more than 90% while keeping performance levels acceptable at distribution voltages. For transmission purposes, these technologies are still changing, but the SF6 Circuit Breaker is still the best choice when reliability is very important. Stringent leak prevention and end-of-life gas recovery make sure that existing SF6 installations don't have a big effect on the environment.

3. What is the expected lifespan of an SF6 circuit breaker?

When properly maintained, units usually last between 25 and 30 years, and some installations last longer than 40 years. Lifespan is affected by how often faults happen, the environment, and the quality of maintenance. The sealed gas system and low contact erosion during normal operations contribute to exceptional longevity compared to older technologies.

Partner with Xi'an Xikai for Your High Voltage Protection Needs

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. stands ready to support your circuit breaker procurement with comprehensive technical expertise and proven manufacturing capabilities. Our LW25 Outdoor Porcelain Type SF6 Circuit Breaker delivers reliable performance for transmission systems from 126kV to 145kV, backed by ISO 9001-certified quality assurance and rigorous testing protocols. As a leading manufacturer serving State Grid systems, metallurgy, petrochemicals, and renewable energy sectors across 30+ countries, we understand the operational demands facing facility operators, utility companies, and EPC firms. Our engineering team provides customized solutions tailored to your voltage ratings, environmental conditions, and operational preferences, whether spring, hydraulic, or pneumatic mechanisms best suit your needs. Contact our specialists at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to discuss how our plateau-rated equipment and patented technologies can enhance your grid reliability while optimizing lifecycle costs. Visit xaxd-electric.com to explore our complete portfolio and request detailed technical specifications that match your project requirements.

References

1. IEEE Standards Association. (2019). IEEE Guide for Specifications for High-Voltage Circuit Breakers (Over 1000V). IEEE Std C37.04-2018.

2. International Electrotechnical Commission. (2021). High-voltage switchgear and controlgear - Part 100: Alternating current circuit-breakers. IEC 62271-100:2021.

3. Kiethly, J.R., & Dufournet, D. (2017). SF6 Circuit Breaker Technology and Environmental Perspectives. Electric Power Systems Research, 143, 258-267.

4. National Electrical Manufacturers Association. (2020). Application Guide for AC High-Voltage Circuit Breakers. NEMA SG 4-2020.

5. Ryan, H.M., & Jones, G.R. (2018). SF6 Switchgear: Design, Performance, and Environmental Considerations. Power Engineering Journal, 32(4), 189-204.

6. Zhang, L., Wang, X., & Chen, S. (2022). Comparative Analysis of Circuit Breaker Technologies for Transmission Systems. IEEE Transactions on Power Delivery, 37(2), 1156-1165.
