Why Use a Zero Sequence Current Transformer for Ground Faults?

Ground faults are among the most damaging events in medium and high-voltage power systems. A zero sequence current transformer (ZSCT) gives protection engineers a direct, reliable way to detect these faults before they escalate into equipment failures or safety incidents. By measuring the vector sum of all three phase currents, a ZSCT identifies even small residual currents that conventional current transformers miss. For switchgear manufacturers and power automation equipment suppliers, integrating a zero sequence current transformer into the protection relay circuit is one of the most cost-effective decisions in panel design.

​​​​​​​

Understanding Zero Sequence Current Transformers

What Is a Zero Sequence Current Transformer?

A zero sequence current transformer is an electrical device that looks like a ring or a window. All three phase wires pass through it at the same time. When everything is equal, the magnetic fields cancel each other out, and the secondary output is zero. When there is an earth fault, the vector sum of the three currents stops being zero, and the transformer sends a proportional signal to the protection relay. Because of this, the zero sequence current transformer is the only one that can find earth faults in both resistance-grounded and strongly grounded systems.

Core Types and Configurations

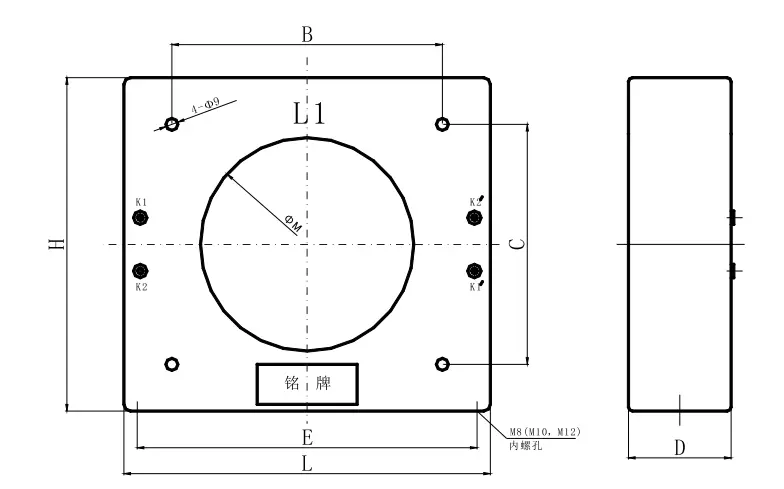

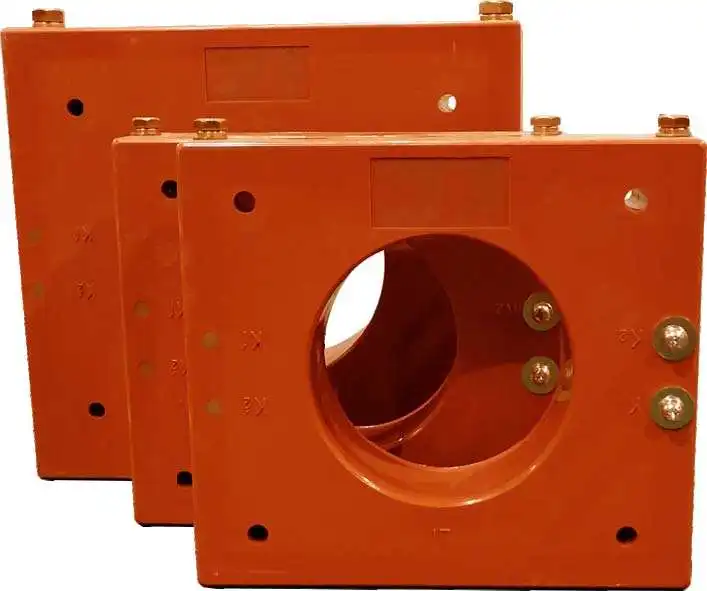

The market is mostly made up of two types. All of the wires in the core balance type go through a single toroidal core. This makes it small enough to fit inside medium-voltage switchgear panels. The window type has a rectangular hole and works with bigger bundles of cables in distribution boards. The LJ-¥75 and LJZ series from Xi'an Xikai follow both formats. Their nominal inner diameters range from ¥65 mm to ¥300 mm, and they can handle 660 V low-voltage cabinets up to 11 kV medium-voltage switchgear.

Voltage Level Selection

It comes down to the estimated insulation level of the system to decide between a low-voltage unit and a medium-voltage zero sequence current transformer. Xi'an Xikai's LJZ-4 series is made for 4 kV systems, while the LXB-Υ120/150 and similar types are made for 11 kV networks and have an epoxy resin cast, fully sealed electromagnetic design. The epoxy coating gives the device stable dielectric strength (it can handle 2,000 V for one minute) and partial discharge performance below 5 pC, which is important when the device has to stay in a live panel for fifteen years or more.

Why ZSCTs Are Essential for Ground Fault Detection

Limitations of Conventional Methods

The difference between the three CT outputs is used to figure out the leftover current in traditional three-phase current transformer methods. Any difference in the CT features makes the residual reading less accurate. That built-up error can completely drown out the fault signal at low fault current levels, like 2 A primary acting current in a high-resistance grounded network. By design, this buildup mistake is taken care of by the direct measurement method of a zero sequence current transformer.

Sensitivity and Speed Advantages

When paired with a DD-11/60 switch set to 15 mA secondary current, the right zero sequence current transformer can handle primary residue currents as low as 2 A. The LJZ-65 model, when paired with a DL-11/2 relay, creates a main acting current of 60 A for low-voltage MCC feeds. This is enough to catch high-impedance ground paths before they turn into phase-to-ground short circuits. This speed advantage directly leads to less damage from cable burns and fewer insurance claims.

Cost-Effectiveness in Practice

In a residual scheme, three separate CTs and the summation wiring are replaced by a single zero sequence current transformer. That cuts down on the cost of materials, the work of connecting, and the chance of mistakes all at once. OEMs of switchgear say that switching from residual CT plans to specialized earth fault CTs cuts down on the time it takes to put together panels. The saves add up over the course of a year's worth of framework purchases; even small cuts in the cost per panel add up when several hundred panels are made each year.

Selecting the Right Zero Sequence Current Transformer for Your System

Key Technical Parameters

When choosing a zero sequence current transformer, the rated primary current range, accuracy class, secondary load, and inner opening are the first four things that you need to know. The ZSCT line from Xi'an Xikai has one-way or five-way secondary outputs and a primary current range of 20 A to 1,000 A. There are 0.2S, 0.5, 5P, and 10P grades for accuracy classes that follow GB 20840.2-2014 and IEC 61869-1 and 61869-2. You can connect directly to electromechanical switches or digital defense IEDs without using extra matched transformers with secondary burden choices.

Before engineers choose a zero sequence current transformer for a switchgear project, they usually look at these main factors:

• Aperture compatibility: The cable bundle or bus bar must pass through the core window without mechanical stress. Aperture options from Φ65 mm to Φ300 mm cover most panel configurations.
• Accuracy class alignment: Measurement circuits in revenue-grade switchgear require 0.2S or 0.5 class. Pure protection circuits can use 5P or 10P, which allows a larger core cross-section and higher accuracy at low fault currents.
• Secondary burden matching: The LJZ-4's three-tap winding (ratio 200, 100, and 40) allows the same physical unit to serve relays with different sensitivity settings, reducing the number of distinct part numbers in the bill of materials.

These factors have a direct effect on whether the finished panel passes type tests and on whether the protection relay for the end customer works properly at the minimum fault current.

ZSCT vs. Other Earth Fault Detection Devices

A ring current transformer and a zero sequence current transformer look the same, but they are used for different things. For your safety, ring CTs are used in low-voltage RCD circuits to detect milliampere-level leaks. Medium-voltage switchgear has ZSCTs that measure leftover currents at the ampere level to protect the equipment. Differential current transformers find the difference in current between two places in a circuit. They are used for protecting transformers, not feeders from earth faults. Knowing this difference keeps you from applying the wrong thing to the right place and getting rejected type test results.

Supplier and Procurement Considerations

The State Grid and Southern Grid qualified vendor lists are usually used by procurement teams at switchgear manufacturers to check the credentials of suppliers. ISO 9001 and ISO 14001 are two standards that Xi'an Xikai has. The company has sold instrument transformers to grid-connected projects in China, South Asia, Southeast Asia, and the Middle East. Within the normal one to two month tooling cycle, test models can be made for new specs. With monthly buy orders and annual framework deals, you can keep your inventory low while still making sure you always have a supply.

Installation, Testing, and Maintenance Best Practices

Installation Procedure

The zero sequence current transformer should be put on the cable after the phase conductors are dressed but before the final termination. Let all three phase conductors go through the hole. If the system design doesn't say to do so, don't run the neutral wire through the core. Including the neutral in the measurement makes it useless. Check the markings on S1 and S2 for polarity before you connect to the relay. Before it is turned on, a 2,500 V megger must show that the insulation resistance between the wire and the clamp is higher than 100 MΩ.

Testing and Calibration

Use a main injection test set to inject a known leftover current after installation. Make sure the relay works at the pickup level that was given. The main working current for a LJZ-4 set up at ratio 200 with a DL11/0.2 relay set to 0.1 A must not be more than 10 A. In the panel test record, write down the values that were found and those that were left. IEC 61869-2 says that accuracy must be checked at 5%, 20%, 100%, and 120% of the rated current. All four points must be run.

Routine Maintenance

Check concrete surfaces once a year for cracks or lines that look like tracks. Check the tightness of the terminals against the torque specs given by the maker. For every three years or after any through-fault event, you should check the insulation resistance. The fully sealed epoxy resin construction of Xi'an Xikai's ZSCT range keeps out moisture and lowers the number of times it needs to be cleaned compared to open-core designs. This is useful in marine or high-humidity installation settings.

Conclusion

A zero sequence current transformer gives a clear, direct path from an earth fault to relay operation. Because of how it's built, it wipes out balanced load currents and boosts only the signal that counts, which is the ground fault current. The zero sequence current transformer has accuracy classes from 0.2S to 10P, secondary outputs of 1 A or 5 A, and aperture sizes that fit standard panel layouts without any changes being made. It is used by switchgear OEMs who need to define protection and measurement circuits. It is still one of the most reliable tools for protecting against ground faults in 11 kV and 400 V distribution systems when used with the right receiver and set up properly.

FAQ

1.What is the difference between a zero sequence current transformer and a standard CT?

A standard current transformer measures one phase current and requires three units plus summation wiring to derive a residual signal. A zero sequence current transformer passes all three phase conductors through one core and measures the vector sum directly, which removes cumulative CT mismatch errors and improves sensitivity at low fault current levels.

2.What accuracy class should I specify for earth fault protection?

For pure protection applications, 5P or 10P class is standard. If the same unit must also feed a measurement circuit, specify 0.5 or 0.2S. Xi'an Xikai's ZSCT range supports all four classes under GB 20840.2-2014 and IEC 61869-1/2.

3.Can a zero sequence current transformer detect high-impedance faults?

Yes, when matched with a sensitive relay. The LJZ-Φ65 with a DD-11/60 relay produces a primary acting current of 2 A at 15 mA secondary setting, which covers most high-resistance earth fault scenarios in medium-voltage distribution.

4.What aperture size fits a typical 11 kV cable?

Single-core 11 kV cables in the 185–300 mm² range typically require a Φ150 mm or Φ120 mm aperture. Always verify the dressed cable bundle diameter including the sheath before specifying the core window size.

5.How do I verify polarity after installation?

Apply a short-duration DC pulse to the primary conductors and observe the secondary deflection direction on a galvanometer connected to S1–S2. Correct polarity gives a positive deflection on the forward pulse.

Get a Quote from Xi'an Xikai for Your Zero Sequence Current Transformer Needs

Zero sequence current transformers from Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. have been tested to meet the requirements of GB 20840.2-2014 and IEC 61869-1/2. Their main current rates range from 20 A to 1,000 A, and their aperture sizes range from Φ65 mm to Φ300 mm. Our engineering team can do new-specification sampling in one to two months and annual framework orders with releases every month. As a reliable company that makes zero sequence current transformers, we encourage switchgear OEMs to get in touch with us. Please email serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com, or go to xaxd-electric.com to get in touch with us.

References

1. International Electrotechnical Commission. IEC 61869-2: Instrument Transformers – Additional Requirements for Current Transformers. IEC, 2012.

2. International Electrotechnical Commission. IEC 61869-1: Instrument Transformers – General Requirements. IEC, 2007.

3. Blackburn, J. L., & Domin, T. J. Protective Relaying: Principles and Applications. CRC Press, 2014.

4. Anderson, P. M. Analysis of Faulted Power Systems. IEEE Press, 1995.

5. State Administration for Market Regulation of China. GB 20840.2-2014: Instrument Transformers – Part 2: Additional Requirements for Current Transformers. Standards Press of China, 2014.

6. Glover, J. D., Sarma, M. S., & Overbye, T. J. Power Systems Analysis and Design. Cengage Learning, 2017.
