Zero Sequence Current Transformer Buyer’s Guide for 2026

If you're sourcing ground fault protection components for medium-voltage switchgear in 2026, choosing the right zero sequence current transformer is one of the most consequential decisions your technical and procurement teams will make. This guide covers selection criteria, core specifications, installation fundamentals, and supplier considerations — written specifically for switchgear OEM manufacturers who need precision, dimensional fit, and delivery consistency across annual procurement cycles.

Understanding Zero Sequence Current Transformers: Principles and Applications

A zero sequence current transformer has a simple idea behind how it works: it wraps all three phase wires at the same time. When everything is balanced, the vector sum of the three-phase currents is zero. When there is a ground fault, like when the insulation on a wire breaks, that sum stops being zero. The transformer then turns the remaining current into a secondary signal that can be measured and sets off safety relays within milliseconds.

How ZSCTs Differ from Standard CTs

For measuring or safety, standard current transformers measure the currents in each phase. On the other hand, a zero sequence current transformer only checks the mismatch between all three phases at the same time. It can pick up on earth leakage events that a regular CT would miss by a huge amount. This difference has a direct effect on how relays work together and how protection schemes are designed for switchgear OEM applications.

Where ZSCTs Are Applied

The main use is to protect against ground faults, which can happen anywhere from 11kV distribution feeders to 400V motor control centers. Zero sequence current transformers and overcurrent switches (like the DL-11 series) work together in industrial switchgear panels to find main residual currents as low as 10A. In systems with resistance grounding, they find small problems before they get worse and cause arc flashes.

Why Accuracy Class Matters in Switchgear OEM Design

When it comes to measurement circuits, metering accuracy is controlled by classes like 0.2S and 0.5. When there is a fault in a safety circuit, classes 5P and 10P set the maximum mistake that can happen. If you choose the wrong class for your relay type, it could cause trip times to be pushed back or cause nuisance trips, both of which are expensive in panel manufacturing.

Comparing Zero Sequence Current Transformers: Types and Performance Factors

Not every zero sequence current transformer is made the same, and the differences between the different types have real effects on how switchgear cabinets are put together.

Core Balance vs. Window Type

All three conductors are wrapped around a single toroidal core in the core balance type. This is the standard choice for most medium-voltage panels. The window type has a bigger opening for wire bundles, which makes it good for adding to existing equipment. For medium-voltage settings inside, both types can be made with epoxy resin casting.

Accuracy Class and Burden Selection

Here are the main things that your tech team should agree on before sending out a buy order:

• Accuracy class: 5P or 10P for protecting against earth faults; 0.2S or 0.5 for electricity metering systems
• Secondary burden: Must match the impedance of the relay input; mismatches cause ratio errors that lower sensitivity.
• Transformation ratio: Xikai's LJZ-4 series has four different tap ratios (200, 100, and 40) on a single unit, so the same transformer body can be used for different relay sets.

These factors have an effect on each other. For instance, if you pick a 5P20 class transformer with a burden rating that is too low for a sensitive earth fault relay, the combined errors at low fault current levels will be too high to accept. They should come from your study of relay teamwork, not the other way around.

Comparing Core Materials: Silicon Steel vs. Nanocrystalline

Silicon steel cores have been the standard for decades because they are reliable, cheap, and easy to find. Nanocrystalline (microcrystalline) cores work better in high-frequency noise environments and have lower magnetizing current. They are also more linear at low flux densities. Nanocrystalline cores are worth the extra cost for switchgear OEMs that want to use sensitive earth fault detection in variable-frequency drive applications.

Procurement Essentials: Specifications, Standards, and Supplier Selection

OEM switchgear manufacturers who handle yearly framework contracts need to be sure that vendors meet technical requirements and can be trusted.

Key Technical Specifications to Confirm

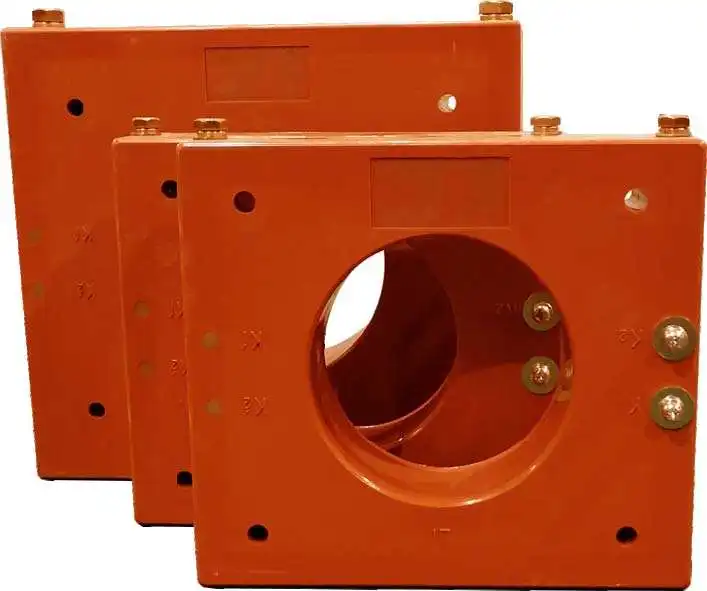

The zero sequence current transformer line from Xi'an Xikai includes the following common features:

• Rated voltage: 11kV input and 400V output
• Frequency: 50/60 Hz
• Rated primary current: 20A to 1000A
• Rated secondary current: 5A or 1A
• Construction: Made of epoxy resin and an electromagnetic design that is fully enclosed
• Standards compliance: GB 20840.2-2014, IEC 61869-1, and IEC 61869-2

When tested with a 2500V megohmmeter, the transformer has a high insulation resistance of more than 100MΩ. It can also withstand a 2000V AC withstand test for one minute without breaking down or flashover. These aren't just marketing claims; the numbers have been checked and can be linked to national and IEC standards.

What to Ask a ZSCT Supplier Before Ordering

Make sure of the following before choosing a zero sequence current transformer provider for your power line:

• MOQ for custom winding configurations: Two- or three-tap designs usually have higher MOQs. Know the limit before you design them into your panel.
• Lead time for new specifications: From prototype to accepted sample usually takes four to eight weeks; plan for this in your program for qualifying panels.

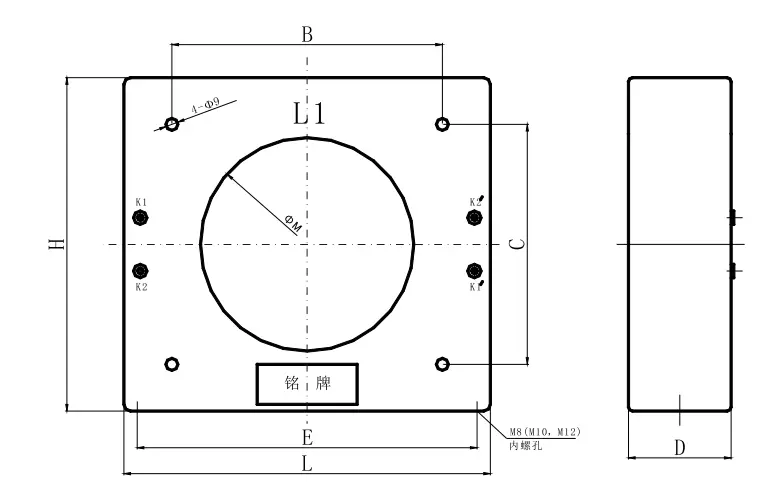

• Dimensional drawings with tolerances: The cabinet cutout size is fixed, and the transformer has to fit, end of story.
• Certification traceability: IEC 61869-2 type test reports should be available, not just declarations of conformity.

Suppliers that are already on the approved seller lists for State Grid and Southern Grid give buyers more trust, especially for projects that need to go through grid operator acceptance testing.

2026 Market Considerations

After being unstable in the past, the costs of materials for copper and silicon steel have stayed the same through 2025 and 2026. For stock items, lead times from Chinese manufacturers for standard catalog zero sequence current transformers are about two to four weeks. Lead times for custom multi-ratio units are six to ten weeks. Locking in specifications and dimensional standards early in the design phase can help you avoid expensive change orders in the middle of the year for annual framework contracts with monthly purchase orders.

Installation and Maintenance Guide for Zero Sequence Current Transformers

When technical goals are met by proper installation, success in the real world is achieved. If you don't install a transformer correctly, even one that is well-made, it won't work right.

Pre-Installation Checks

Before you mount a zero sequence current transformer, make sure three things: the outer diameter of the cable fits inside the transformer window (varies by model; Xikai core diameters range from Φ65mm to Φ300mm); the secondary terminal polarity markings (S1, S2, S3, S4) match your relay wiring diagram; and the mounting orientation matches the manufacturer's instructions; some toroidal cores are orientation-sensitive.

Wiring and Grounding

All three phase wires should go through the body of the transformer. Do not let the neutral wire go through. This is the most common wiring mistake in zero sequence current transformer setups, and it makes the measurement useless. The secondary circuit should only be grounded in one place. Grounding it twice causes currents to flow back and forth, which causes ratio mistakes.

Maintenance Schedule

A zero sequence current transformer made of epoxy resin doesn't need much upkeep over time. Checks sent once a year should include:

• Checking the epoxy housing visually for cracks or water getting in
• Check the torque on the secondary terminals (loose connections are the most common cause of open-circuit secondary problems)
• Checking the load and continuity of the secondary circuit against the design values

Future Trends in Ground Fault Detection Technology

It's not that zero sequence current transformers are changing what they do to protect, but the machines themselves are.

Digital Output and IoT Integration

Ground fault sensors of the next generation are starting to build digital outputs (IEC 61850 GOOSE messaging) right into the body of the transformer. In this way, the analog relay interface is completely removed, and security methods can be changed using software. For switchgear OEMs working on smart grid projects, making sure your panels have digital-output sensors puts them ahead of changes to specifications.

Compact Designs for High-Density Panels

Manufacturers of transformers are making 40mm to 60mm window zero sequence current transformers that can fit into secondary compartments that were too small for regular units before. This is especially true for naval and rail uses where cabinet form factors are getting smaller. Smaller sizes are possible with nanocrystalline cores that don't lose any sensitivity.

Regulatory Direction

The IEC Technical Committee 38 is still working to improve the IEC 61869 set of standards. They are currently working on IEC 61869-13, which is about instrument transformer hacking, and low-power instrument transformers. When new panel approvals refer to updated transformer standards, OEM makers who keep up with these changes can avoid having to do expensive redesigns.

Conclusion

In 2026, there are four realistic questions that will help you choose the right zero sequence current transformer for your switchgear panels: Does the accuracy class meet the needs of your relay coordination? Does the secondary burden match the impedance of the input to the relay? Does the envelope fit the way your cabinet is designed? And can your supplier meet your monthly order schedule without affecting the ability to track the type of goods? If you get those four questions right, the rest of the protocol will make sense. Each of these needs is directly met by Xi'an Xikai's zero sequence current transformer product line, which has main currents ranging from 20A to 1000A, two secondary outputs of 5A or 1A, and full IEC 61869-2 compliance in epoxy resin construction.

FAQ

1.What is the difference between a zero sequence current transformer and a standard CT?

A normal CT measures the current in one wave on its own. A zero sequence current transformer checks the vector sum of all three phase currents at the same time. This sum should be zero, but if it's not, it means there is a ground fault. Because of this, zero sequence current transformers are perfect for protecting against earth leaks, while normal CTs take care of overcurrent and metering.

2.Which accuracy class should I specify for an earth fault protection relay?

5P or 10P classes are good for protecting against earth faults. The number shows the largest error that can be made at the rated accuracy limit factor. 5P is usually better for sensitive earth fault relays that work at low fault current levels. In order to work, metering circuits need 0.2S or 0.5 class.

.3What secondary current rating should I choose — 5A or 1A?

Most electrical and solid-state switches made to the DL-11 standard can work with the 5A secondary. The 1A secondary works with current digital relays and lowers the amount of power lost in long secondary wire runs. Check the rating of your relay input before you specify.

4.Can I retrofit a zero sequence current transformer onto an existing cable without de-energizing?

Designs with a split or open core can be installed on live wires. But you should always check the model's grade for live installation and follow any safety rules that apply. When the transformer is on, you should never open a secondary circuit.

5.What MOQ applies to multi-tap or dual-secondary ZSCT configurations?

MOQ changes based on manufacturer and complexity of winding. Most standard store items don't have a minimum order quantity. Custom configurations with more than one tap, like the LJZ-4 series' S1-S2/S1-S3/S1-S4 tap choices, might have a minimum order size. During the design phase, talk to your supplier about how many prototypes you will need.

Get a Zero Sequence Current Transformer Quote from Xi'an Xikai

The zero sequence current transformer supplier team at Xi'an Xikai works directly with switchgear OEM manufacturers to make sure that specifications are met, that measurements are correct, and that deliveries happen every month. Our goods are compliant with IEC 61869-2 and GB 20840.2-2014 and can handle main currents of 20A to 1000A. They come in an epoxy resin cast design and have either 5A or 1A secondary outputs. Send an email to serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to get datasheets, sample arrangements, or annual framework prices from our team. You can see the full list of products at xaxd-electric.com.

References

1. IEC 61869-2: Instrument Transformers – Additional Requirements for Current Transformers. International Electrotechnical Commission, 2012.

2. GB 20840.2-2014: Instrument Transformers – Part 2: Additional Requirements for Current Transformers. Standardization Administration of China, 2014.

3. IEEE Std C57.13-2016: IEEE Standard Requirements for Instrument Transformers. IEEE Power and Energy Society, 2016.

4. Blackburn, J.L. & Domin, T.J. Protective Relaying: Principles and Applications, 4th ed. CRC Press, 2014.

5. IEC 61869-1: Instrument Transformers – Part 1: General Requirements. International Electrotechnical Commission, 2023.

6. Anderson, P.M. Power System Protection. Wiley-IEEE Press, 1999.
