Why Use an Indoor Voltage Transformer for Accurate Metering?

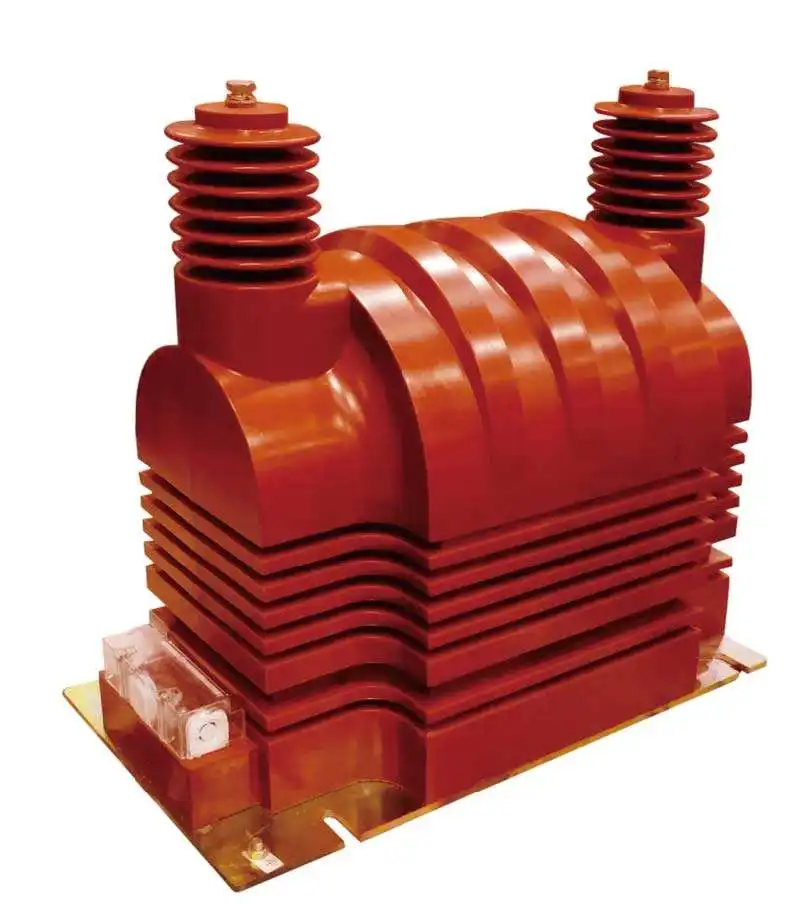

An indoor voltage transformer (also called a potential transformer) steps down high primary voltages to safe, standardized secondary levels so that meters, relays, and monitoring systems can read them accurately. Because these devices operate inside enclosed switchgear panels, they are shielded from moisture, dust, and temperature swings that routinely degrade measurement quality outdoors. For switchgear manufacturers and power automation suppliers who need precise, repeatable voltage signals for both metering and protection circuits, choosing the right indoor voltage transformer is a direct investment in billing accuracy, grid safety, and long-term equipment performance.

Understanding Indoor Voltage Transformers and Their Role in Accurate Metering

If you want to know what an indoor voltage transformer does and why the setting in which it works affects every performance number on the datasheet, then you can compare choices or write a purchase order.

How the Electromagnetic Principle Drives Accuracy

Faraday's law of induction tells us how an indoor voltage transformer works. When you connect the primary winding to the high-voltage bus, it makes the secondary winding experience a proportional voltage. The step-down factor is based on the turns ratio. The ratio error and phase shift stay within the strict limits set by IEC 61869-2 and GB 20840.2-2014 because the core never saturates when it's working normally. The hysteresis loss is kept low by a silicon steel core that is arranged along its grain. This directly allows 0.2-class accuracy over a wide load range of 1% to 120% of rated voltage.

Typical Applications Inside Switchgear Panels

Manufacturers of switchgear put indoor potential transformers into medium-voltage panels for three main reasons: to measure energy for income, to connect feeder safety relays, and to check the voltage on the bus for automatic transfer schemes. For instance, a 35 kV internal voltage transformer with two secondary windings lets the measuring winding and the protection winding work separately. This keeps the protection circuit load from affecting the accuracy of the meters.

Why the Controlled Indoor Environment Matters

The temperature changes much less inside a metal-enclosed switching box than outside. Humidity is controlled, and pollution levels are low. Because of these stable conditions, an epoxy-resin-cast indoor voltage transformer can keep its partial discharge below 10 pC for the whole time it is in use. That level of dielectric stability is hard to reach in outdoor designs that have to deal with UV light and cycles of condensation.

Why Choose Indoor Voltage Transformers Over Outdoor Types for Metering Accuracy?

A lot of engineers use outdoor-rated units because they look like they can be used with any other type of unit. However, the performance difference in metering applications can be measured and is well known.

Environmental Interference and Measurement Error

Field studies published in IEEE Transactions on Power Delivery show that changes in ambient temperature of up to 20 °C can cause ratio mistakes of more than 0.1% in outdoor transformers that are not adjusted. Inside a panel, an indoor voltage generator made for temperatures between -40 °C and +70 °C keeps its accuracy class because the cabinet smooths out changes in the outside temperature.

Noise Performance and Signal Clarity

A lot of the time, oil insulation or open-air porcelain designs are used in outdoor units. Both of these things can cause noise that affects digital security switches through capacitive coupling. Epoxy-resin-cast indoor voltage transformers don't have any oil or air gaps, so there is less electromagnetic interference on the secondary signal lines. This is very important when the secondary feeds a digital energy management system or a smart meter that needs to bill in 0.2S class.

Safety Standards and Compliance

IEC 61869-1 and IEC 61869-2 say that indoor potential transformers must pass a 70 kV power-frequency withstand test for one minute and show that the partial discharge is less than 10 pC at 1.2× rated voltage. These test limits are tighter than many general-purpose outdoor standards. This means that the indoor-certified unit is the best choice for protected switchgear where people work close to powered equipment.

Key Factors Influencing the Performance and Lifespan of Indoor Voltage Transformers

It's not enough to just choose the right accuracy class and secondary burden. Getting a long service life from a device rests on making sure it works well in real life.

Accuracy Class Selection for Metering vs. Protection

IEC 61869-2 sets different levels of accuracy for measuring windings and protection windings. Revenue meters are in class 0.2 or 0.5, and protection relays are in class 3P or 5P. A dual-wound indoor voltage transformer has two windings on a single core. This saves room on the panel and makes soldering easier. On high-load feeders, billing mistakes worth thousands of dollars every year can happen if the wrong class is chosen for a metering winding.

Secondary Burden and Load Matching

Volt-amperes (VA) are used to measure the output of every indoor voltage generator. Connecting a total burden that is less than the rated VA makes the unit more accurate. Connecting a burden that is more than the rated VA raises the ratio error and phase displacement, which takes the unit out of its claimed accuracy class. Before checking the VA grade on the order, procurement engineers should add up the load of all the devices connected to the secondary, such as meters, relays, and cables.

Installation Practices and Maintenance Intervals

Epoxy-resin-cast internal voltage transformers don't need to have their oil levels or liquid levels checked. A normal inspection plan includes checking the torque at the terminals, the resistance of the secondary wiring insulation, and looking for cracks on the resin body's surface. If you stick to this plan every three to five years, a unit with a 30-year design life will keep working as accurately as the day it was made.

Comparing Indoor Voltage Transformer Options for Switchgear OEM Buyers

Manufacturers of switchgear that make a lot of medium-voltage panels need a supplier that can match product specs to their cabinet sizes and delivery times, not just name a brand.

Silicon Steel vs. Amorphous Core: Performance Differences

Cores made of grain-oriented silicon steel give accurate ratios across the whole measurement range and have been used for a long time in IEC-certified indoor voltage transformers with a rating of up to 35 kV. Nanocrystalline (amorphous) cores have less no-load loss, but they cost more to make and work better in high-frequency uses. For standard 50/60 Hz indoor switchgear, silicon steel is still the most common core material because it has a well-known and predictable relationship between temperature and accuracy.

Single-Ratio vs. Dual-Ratio Configurations

When you change taps on some bus setups, you need to measure voltage at two different nominal values. For example, 35 kV and 10 kV on the same feeder after a tap change. A dual-ratio indoor potential transformer with a chosen main tap can handle both levels without having to replace the unit, which lowers the cost of retrofitting the cabinet. The 35 kV indoor voltage transformer from Xi'an Xikai has a primary input of 35 kV and a secondary output that is referenced to 10 kV. The primary current rating can be 600 A or 800 A.

Custom MOQ and Lead Time Considerations

MOQ flexibility on non-standard winding setups is often a problem for switchgear OEM buyers who have yearly framework contracts with monthly purchase orders. When suppliers can make small batches of prototypes in four to six weeks, engineering teams can test out new cabinet designs before committing to mass production. For new orders, Xi'an Xikai has sample production cycles that last four to eight weeks and normal unit wait times that last twelve weeks.

Procurement Best Practices for Indoor Voltage Transformers in B2B Markets

Just making sure the specs are correct is only half the job. Project plans and total cost of ownership are kept safe by managing the supply chain around it.

These steps in the buying process help lower the risk of not meeting specifications and keep projects on schedule:

• Lock the accuracy class and VA rating early. Changing these after the cabinet layout is approved forces a re-routing of secondary wiring and a new partial-discharge test. Confirm 0.2/0.5 for metering and 3P/5P for protection before issuing the drawing package.
• Request type-test reports, not just certificates. A certificate number is a starting point; the actual type-test report from an accredited laboratory shows partial-discharge values, accuracy tables, and withstand results that confirm the unit meets IEC 61869-2 and GB 20840.2-2014 in practice.

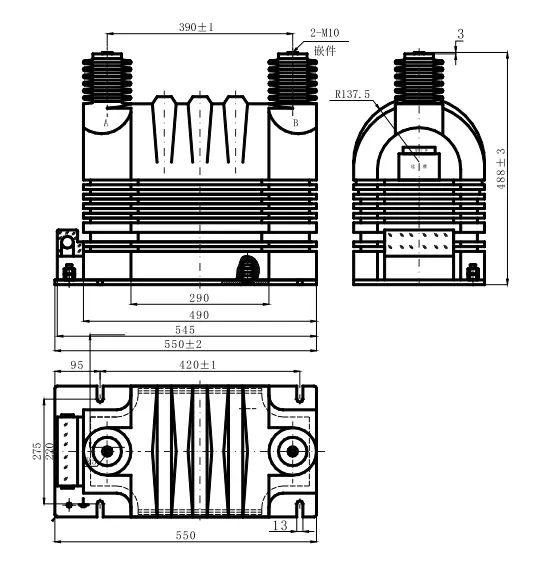

• Verify dimensional fit against the cabinet drawing. A compact 400 mm × 300 mm × 200 mm footprint fits most 35 kV panel designs, but confirming clearance to live parts and grounding bus before ordering prevents costly rework.

All of these steps are meant to protect both the technical performance of the final panel and the buying team's promises to deliver to the end customer. Working with a provider that has ISO 9001, ISO 14001, and ISO 45001 certifications gives a level of quality that can be checked.

Conclusion

Medium-voltage switchgear can measure energy in a way that is exact, safe, and legal with the help of an indoor voltage generator. It is insulated with epoxy resin, has a dual-wound secondary design, and meets IEC 61869-2 and GB 20840 standards.2-2014 are not details about specifications that can be given up for a lower unit price. They are the technical base that keeps readings in the 0.2-class band, shields measurement noise from relay inputs, and ensures the switchgear panel lasts decades instead of years. The most important part of designing a safety and metering circuit is choosing the right indoor voltage transformer from a seller who can meet your cabinet measurements, shipping schedule, and accuracy needs.

FAQ

1.How often should an indoor voltage transformer be inspected to maintain metering accuracy?

Epoxy-resin-cast units require no oil maintenance. A visual inspection and secondary insulation resistance check every three to five years is sufficient for most indoor switchgear environments. If partial-discharge readings have increased during a routine panel test, schedule an earlier inspection to identify any resin surface degradation.

2.Can an indoor voltage transformer be installed outdoors with a protective enclosure?

Technically possible, but not recommended for revenue metering. The indoor accuracy class is verified under controlled temperature and humidity conditions. Placing the unit in an outdoor enclosure introduces thermal cycling that the design was not type-tested for, which may shift the ratio error outside the declared accuracy class.

3.What are the early signs that a potential transformer is losing measurement accuracy?

Watch for increasing discrepancy between the metering winding reading and a reference instrument, higher-than-expected secondary burden due to wiring degradation, or elevated partial-discharge levels during commissioning tests. These signs indicate the unit needs re-verification against its original accuracy certificate.

4.What is the difference between a 0.2 and a 0.5 accuracy class indoor voltage transformer?

Class 0.2 allows a maximum ratio error of ±0.2% at rated burden, making it suitable for revenue-grade billing. Class 0.5 permits ±0.5% ratio error and is appropriate for general energy monitoring where billing-grade precision is not required. Always confirm the accuracy class with your metering authority before finalizing the specification.

Partner with Xi'an Xikai for Your Indoor Voltage Transformer Supply

The indoor voltage transformers made by Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. are approved to IEC 61869-1/2 and GB 20840.2-2014. They have accuracy classes from 0.2P to 5P and wait times of twelve weeks for standard units. As a reliable indoor voltage transformer maker, we offer OEM switchgear builders a range of MOQ choices and can make changes to the sizes of our products. You can email our team directly at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to get datasheets or talk about your needs. Click on xaxd-electric.com to find out more.
