Why Choose an indoor Voltage Transformer for Your Power Needs?

If you manage power distribution for a switchgear manufacturer or an industrial facility, you already know how much rides on accurate voltage measurement. Choosing the right indoor voltage transformer is not just a technical decision — it affects metering accuracy, protection reliability, and long-term operating costs. An indoor voltage transformer steps high system voltage down to a safe, measurable secondary level for metering and protection circuits, all within a controlled enclosure. For switchgear OEM manufacturers supplying markets in South Asia, Southeast Asia, or the Middle East, selecting a well-engineered indoor voltage transformer directly determines whether your panel meets grid operator specifications.

Understanding Indoor Voltage Transformers and Their Working Principle

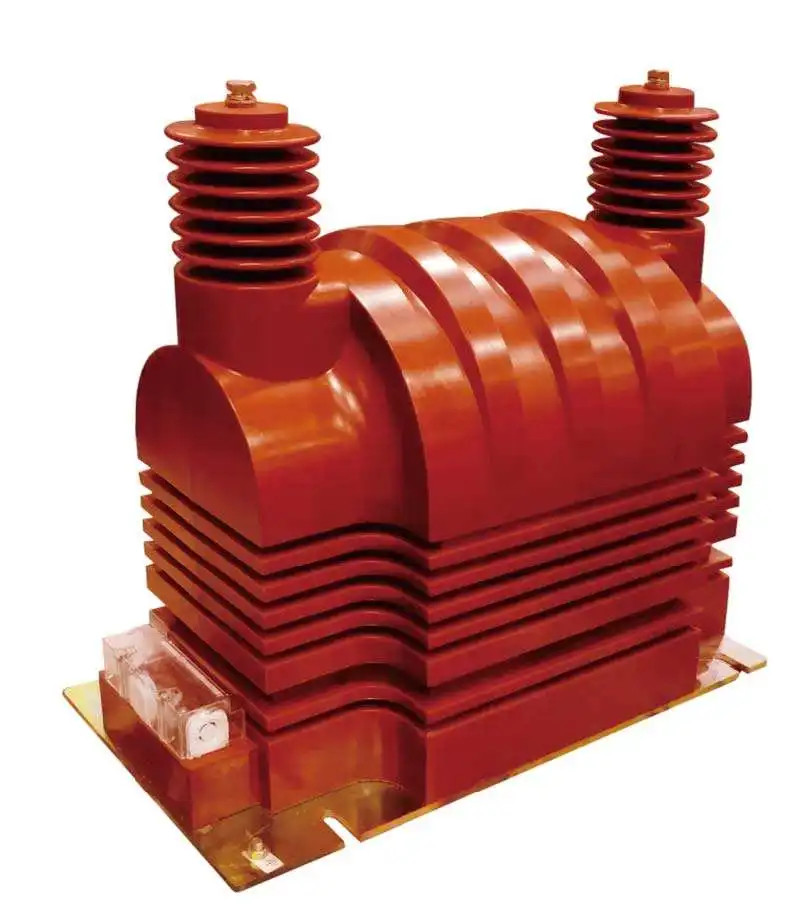

What Is an Indoor Voltage Transformer?

An indoor voltage transformer, also known as a potential transformer (PT), is an instrument transformer that lowers high voltage to a standard secondary voltage, usually 100V or 110V, that can be used by metering switches and safety circuits. In contrast to power transformers, these units put accuracy over capacity, which makes them necessary parts of medium-voltage switchgear panels. With primary and secondary windings wrapped around a magnetic core, they work on the principles of electromagnetic induction.

Common Types Used in Switchgear Applications

Inside electrical equipment, there are two main types: epoxy resin cast (dry-type) and oil-immersed. Modern switchgear is mostly made of epoxy resin cast indoor voltage transformers, which don't leak oil, don't get dirty or wet, and can fit into small panels. The Xi'an Xikai 35kV indoor voltage transformer uses fully enclosed vacuum-cast epoxy resin to achieve partial discharge levels below 10pC, which is a key measure for the long-term health of insulation inside metal-clad cubicles.

Working Principle and How It Compares to Outdoor Units

An indoor voltage transformer keeps the voltage ratio between the primary and secondary windings constant. The accuracy and loss are directly related to the material of the core. Xikai 35kV models use grain-oriented silicon steel cores that have low hysteresis loss and stable ratio performance when the load changes from 1% to 120% of the maximum voltage. Outdoor units usually need weatherproof housing and oil cooling, which makes them heavier and more difficult to maintain. In contrast, indoor units work reliably in the controlled environment of a switchgear cabinet, where humidity and temperature are kept in check.

Comparing Indoor vs. Outdoor Voltage Transformers: Which Suits Your Needs?

Environmental and Installation Differences

Indoor voltage transformers are made to be put in control rooms, substations, or switchgear that is enclosed or covered in metal. Their bodies are made of epoxy and can withstand temperatures from -40°C to +70°C without the need for extra protection. Outdoor potential transformers need polymer housings that are resistant to UV light and bad weather. They are also usually bigger and heavy. For switchgear makers putting together panels for indoor substations or industrial facilities, an indoor unit's small size is not just a choice; it's a necessity.

Total Cost of Ownership

When you think about how much they cost to install, how often they need to be serviced, and how long they last, indoor voltage transformers have a lower total cost of ownership in controlled environments. Because it is made of sealed resin, the Xi'an Xikai 35kV type can work for more than 30 years without needing any regular maintenance. Outdoor oil-type units need to have their oil sucked out, topped off, and the bushings checked every so often. These maintenance cycles add a lot of labor and material costs over 10 years that dry-type indoor units don't have.

Brand Reference Points for OEM Procurement

ABB, Siemens, and Schneider Electric all make indoor instrument transformers for medium-voltage uses, and their products are often listed as approved suppliers by State Grid and Southern Grid. It is the same for Xi'an Xikai indoor voltage transformers that meet IEC 61869-1/2 and GB 20840.2-2014 standards that these brands follow, while also allowing for free customization for multi-winding setups and non-standard voltage ratios. This is an area where big international brands usually charge a lot for small orders or take a long time to deliver.

Installation, Maintenance, and Safety Tips for Indoor Voltage Transformers

Site Preparation and Mounting Guidelines

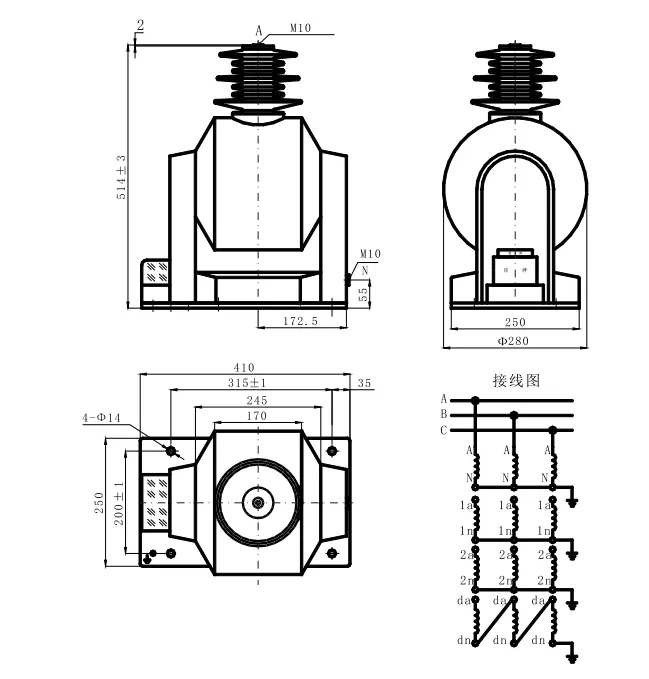

Before putting an indoor voltage transformer in a switching panel, make sure that the cabinet's inner dimensions are big enough to fit the unit. The Xi'an Xikai 35kV type is about 400mm x 300mm x 200mm, which means it can fit in normal medium-voltage cubicle designs. Make sure there is enough space for the secondary terminal wiring and that the mounting surface is level and rigid. If fixing torque values are not followed, vibration from a nearby circuit breaker can damage the terminals over time.

Routine Maintenance Checklist

A sealed epoxy resin indoor voltage transformer doesn't need much maintenance, but it should still be checked on a regular basis to make sure it's working properly. For yearly inspections, here are the checks that should be done:

• Visual inspection of epoxy body: Look for surface cracks, discoloration, or tracking marks that may indicate partial discharge activity over time.
• Terminal connection check: Verify secondary terminal tightness and inspect for signs of corrosion or overheating at connection points.
• Secondary circuit continuity test: Confirm that metering and protection circuits connected to the transformer are intact and correctly loaded.
• Insulation resistance measurement: Use a 2.5kV megger between primary and secondary, and between secondary and earth, to confirm insulation integrity.

These checks can stop measurement drift or sudden relay misoperation caused by worn-out connections. They take less than 30 minutes per unit.

Safety Standards and Compliance

Indoor voltage transformers used in medium-voltage switchgear need to meet the general requirements of IEC 61869-1 and the particular requirements for inductive voltage transformers of IEC 61869-3, or their GB versions. The Xi'an Xikai 35kV unit passes the power frequency withstand test at 70kV for 1 minute and the normal partial discharge test. Make sure that the secondary circuits are matched to the rated VA output of the transformer so that they don't go over the accuracy class limits or cause open-circuit dangers on the safety windings.

Selecting the Best Indoor Voltage Transformer for Your Business

Key Technical Parameters to Evaluate

To choose the right indoor voltage transformer for integrating switchgear, you need to pay close attention to a number of factors that affect each other. If you're measuring income, the accuracy class needs to be 0.2S or 0.5P. For protection relay circuits, the accuracy class needs to be 3P or 5P. The secondary burden (VA rating) should meet the linked metering and relay load. A burden that is too small will cause accuracy to drop, while a burden that is too big will waste money. There must be a match between the voltage ratio, main current rating, and physical measurements of the switchgear before an order is made.

Customization and OEM Procurement Considerations

These days, all modern switchgear has to have multi-winding configurations, like a single unit with one metering winding (0.2S class) and one protection winding (5P class). Xi'an Xikai can make unique winding designs, but it takes 4 to 8 weeks to make a prototype for new requirements. Manufacturers of switchgear can keep their inventory low with monthly purchase orders and annual framework agreements that ensure a steady supply. The Xikai 35kV indoor voltage transformer has a dual-ratio secondary output, which lets panel designers be flexible without having to buy two separate units.

Certifications and Quality Assurance

Before being sent out, every Xi'an Xikai internal voltage transformer goes through a full set of standard tests. These include a power frequency withstand at 70kV for one minute, a partial discharge measurement, verification of the ratio and phase displacement, and proof of the secondary burden. The factories that make things are certified to ISO 9001, ISO 14001, and ISO 45001 standards. High-purity copper windings are used, and voids are filled with vacuum-cast epoxy resin. This process is directly linked to the sub-10pC partial discharge performance that switchgear integrators depend on for long service intervals.

Applications and Future Trends of Indoor Voltage Transformers

Where Indoor Voltage Transformers Are Deployed Today

Where precise voltage sensing is essential, indoor voltage transformers are used in the industry and service sectors. In 35kV industrial substations, the Xi'an Xikai PT offers stable metering for billing energy and feeds relay safety systems that quickly shut down problems. 0.2S class indoor voltage transformers make it easier for operators and utilities to agree on bills in rail transit power supply systems, where measurement accuracy has a direct effect on managing the pulling load. The dual-ratio configuration allows for both normal grid metering and islanding detection protection at the same time in renewable energy collection substations.

Emerging Technology Directions

The market for indoor voltage transformers is going toward secondary outputs that are digital and work with IEC 61850 process bus designs. More and more, new substation designs include merging units that change analog secondary signals to digital sampled values. Xi'an Xikai's research and development program, which has over 15 patents in the field of instrument transformer technology, is working hard to make digital versions of the 35kV indoor platform. Amorphous metal core materials are also getting more attention because they have lower no-load losses than traditional grain-oriented silicon steel. This is important to think about because grid operators want all substation equipment to be more efficient.

Conclusion

An indoor voltage transformer is a precise tool that has a direct effect on the accuracy of meters, the speed with which safety systems respond, and the general dependability of switchgear. To pick the right unit, you need to make sure that its accuracy class, secondary burden, and physical dimensions fit your panel design. You should also work with a manufacturer that can meet both standard and custom requirements and deliver on time. The 35kV indoor voltage transformer from Xi'an Xikai is in line with IEC 61869 and GB 20840.2-2014 standards, has 0.2-class measuring accuracy, and fits standard medium-voltage cell sizes. If you're an OEM maker of switchgear and need a reliable, technically skilled seller, Xikai has the products and the buying options to fit your production schedule.

FAQ

1.What accuracy class should I specify for revenue metering applications?

For revenue metering and energy billing connected to grid operator requirements, specify 0.2S or 0.5 class accuracy. The 0.2S designation indicates accuracy is maintained across a wider secondary burden range, which is important when multiple meters share one transformer output. The Xi'an Xikai 35kV indoor voltage transformer supports both 0.2/0.5 metering classes and 3P/5P protection classes within a single multi-winding unit.

2.Can the Xi'an Xikai 35kV unit support dual-winding configurations?

Yes. The 35kV indoor voltage transformer supports dual-wound secondary coils — one for metering circuits and one for protection relay circuits — within a single compact unit. This reduces panel space requirements and simplifies secondary wiring compared to installing two separate transformers.

3.What is the minimum order quantity for custom winding specifications?

Xi'an Xikai accepts OEM orders with flexible MOQ arrangements, including prototype samples for new winding configurations. Prototype lead times are typically 4 to 8 weeks. Contact the sales team directly to confirm MOQ thresholds for specific configurations and annual framework pricing.

4.How do I verify the transformer meets my switchgear's dimensional requirements?

The standard Xikai 35kV indoor unit measures approximately 400mm × 300mm × 200mm. Custom dimensional profiles are available for non-standard cubicle designs. Request the dimensional drawing and mounting template from the technical team before finalizing your panel layout.

Partner with Xi'an Xikai for Your Indoor Voltage Transformer Supply

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. makes indoor voltage transformers that meet the standards of IEC 61869 and GB 20840.2-2014. Their accuracy ranges from 0.2S to 5P, and they can match the secondary loads to your switchgear design. As a reliable indoor voltage transformer supplier, Xikai offers annual framework agreements, a flexible MOQ for custom windings, and a turnaround time of 4 to 8 weeks for prototypes. To get a quote and review of your specifications, email serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com right now, or go to xaxd-electric.com.
