400V Self-healing Capacitor-cylindrical BKMJ0.46-30-3

1.Rated Voltage(Ue)：250v~525v, up to 2000v
2.Frequency：50/60Hz
3.Compact design，equipped with grounding bolt
4.Potting material: PU resin (soft resin)
5.Easy installation and wiring
6.Small size, Light weight
7.Self-healing, Maintenance-free
View details
50KVAR Self-healing Capacitor for PFC(Power factor correction)-square BKMJ

1.Rated Voltage(Ue)：100v~1000v
2.Installation Indoor
3.Case material Galvanized steel sheet
4.Output Range 10~100kvar
5.Frequency 50/60Hz
6.Connection configuration D, Y, YN, III
7.Terminal Block ：M6, M8, M10 (According to capacitor power)
8.Lose tanδ<0.001 (20°C 50Hz)
9.Temprature -25°C~50°C
10.Highest Altitude 2000m
11.Capacitor (to wall) pitch ≥50mm
12.Capacitance Deviation -5%~+10%
View details
BKMJ0.4KV Submerged Arc Furnace Capacitor

1.Frequency 60Hz
2.Capacitance Deviation -5%~+10%
3.Max Current 2.5×In
Equipped with discharge resistors
4.Integrated with independent over-voltage protection devices
5.Superior self-healing performance and extended service life
6.Low-loss factor, dry-type design with leakage-free construction
7.Equipped with discharge resistors
View details
10KV High voltage Shunt High-Voltage Capacitors

1.Rated Voltage:6kV,10kV,35kV
2.Rated Capacity:1-100Mvar(per bank)
3.The capacitor is mainly consisted of container and device body.
4.The core is consisted of severalelements and insulation parts. The element is rolled, pressed andmade of two aluminum foilsand somepiece of thin dielectric polypropylene films sandwiched betweenthe two aluminum foils. In order to reach the differentdemand of voltage and capacity, the elements in core is connected by someseriesand parallelmethod. The technology of aluminum foiledge folding and protruding weldingare used to reduce the loss and increase the performance of partial discharging.
View details

10kV 22kV outdoor line compensation

1.Rated Voltage:6kV,10kV,35kV 2.Rated Capacity:1-100Mvar(per bank) 3.Reactive Power Compensation: Offsets lagging reactive power generated by inductive loads (e.g., motors, transformers), improving power factor (typically targeting ≥0.95) 4.Voltage Support: Compensates for voltage drops in long-distance transmission by injecting capacitive reactive power

Send Inquiry

Download

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

1.Optimizing Grid Performance with 10kV 22kV Outdoor Line Compensation Solutions

In today’s demanding power networks, maintaining stable voltage and minimizing energy loss is critical. Our 10kV 22kV outdoor line compensation systems are engineered to address these challenges head-on. Designed for utilities and grid operators, these solutions enhance grid efficiency, reduce technical losses, and ensure reliable performance in harsh outdoor environments. Whether you’re upgrading aging infrastructure or integrating renewable energy sources, our modular, corrosion-resistant units deliver precise reactive power management. With decades of expertise in high-voltage equipment, we combine innovation with rugged durability to keep your operations running smoothly.

2.Product Overview

The product devices stabilize medium-voltage grids by dynamically adjusting reactive power flow. Key functions include:

Voltage Regulation: Compensate for drops in long-distance lines (±1% accuracy).
Power Factor Correction: Boost grid efficiency to ≥0.95.
Harmonic Mitigation: Reduce distortion from industrial loads.
Loss Reduction: Achieve up to 98% compensation accuracy.

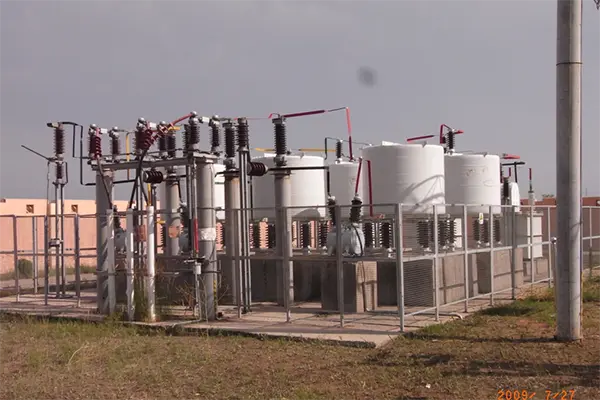

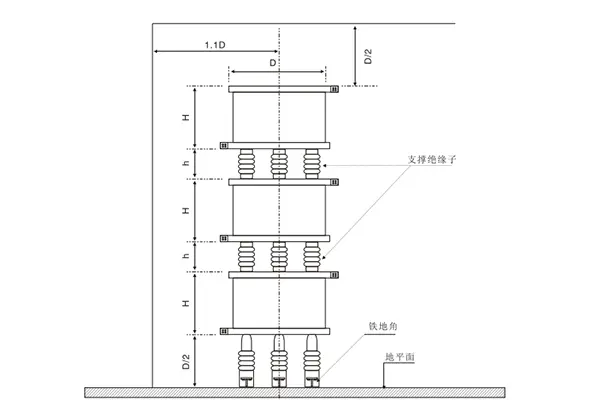

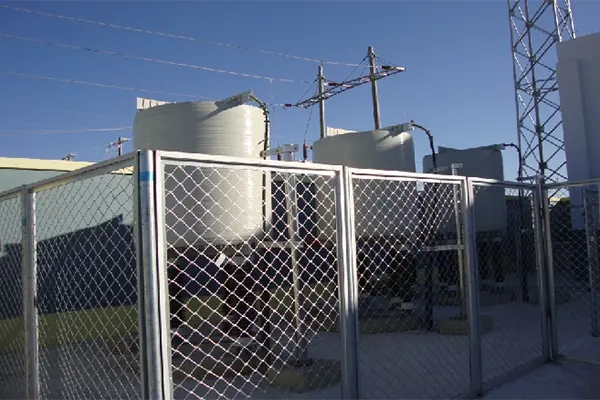

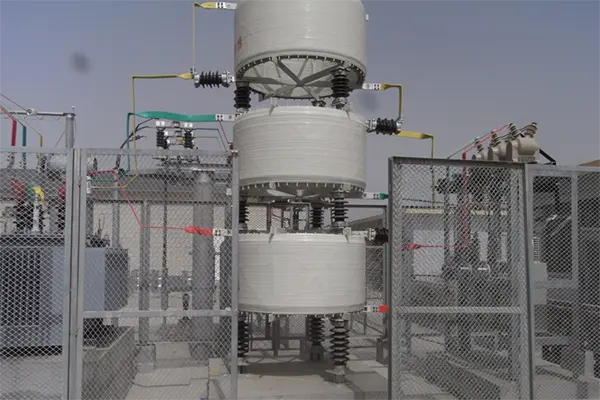

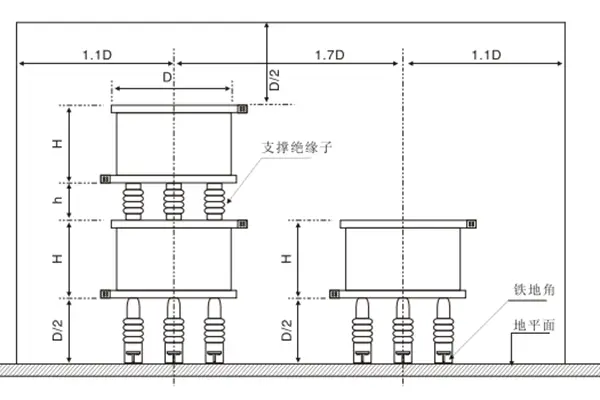

Air core reactor

3.Technical Specifications

Parameter	Specification
Rated Voltage	6kV, 10kV, 35kV
Capacity Range	1–100 Mvar per bank
Operating Temp	-40°C to +55°C
Protection Rating	IP55 (dust/water resistant)
Compliance	IEC 60282, IEEE C37.99, CE, RoHS

No.	Type	Length（mm)	width (mm)
1	TBB10-1002/334AK-5%	3500	1800
2	TBB10-2004/334AK-1%	3800	1800
3	TBB10-2004/334AK-5%	3800	1800
4	TBB10-2004/334AK-12%	3900	1800
5	TBB10-4008/334AK-1%	4400	1800
6	TBB10-4008/334AK-5%	4400	1800
7	TBB10-4008/334AK-12%	4500	2000
8	TBB10-6012/334BL-1%	4200	2500
9	TBB10-6012/334BL-5%	4200	2500
10	TBB10-6012/334BL-12%	4400	2500
11	TBB10-8016/334BL-5%	4600	2500
12	TBB10-8016/334BL-12%	4600	2500
13	TBB10-10020/334BL-5%	4800	2500
14	TBB10-10020/334BL-12%	4800	2500
15	TBB10-1002/334AKW-5%	4000	2500
16	TBB10-2004/334AKW-1%	4000	2500
17	TBB10-2004/334AKW-5%	4300	2500
18	TBB10-2004/334AKW-12%	4500	2500
19	TBB10-4008/334AKW-1%	4500	2500
20	TBB10-4008/334AKW-5%	4500	3000
21	TBB10-4008/334AKW-12%	4800	3000
22	TBB10-6012/334BLW-1%	5000	3000
23	TBB10-6012/334BLW-5%	5000	3000
24	TBB10-6012/334BLW-12%	5500	3600
25	TBB10-8016/334BLW-5%	5300	3000
26	TBB10-8016/334BLW-12%	6000	3600
27	TBB10-10020/334BLW-5%	5600	3000
28	TBB10-10020/334BLW-12%	6000	3600
29	TBB35-10008/417ACW-5%	6500	8000
30	TBB35-10008/417ACW-12%	7000	9300
31	TBB35-20040/334ACW-5%	7400	8500
32	TBB35-20040/334ACW-12%	7650	9300
33	TBB35-30000/500AQW-5%	7500	6000
34	TBB35-30000/500AQW-12%	7500	6000
35	TBB35-40032/417AQW-5%	7500	5500
36	TBB35-40032/417AQW-12%	7500	5500
37	TBB35-60000/500AQW-5%	9500	6000
38	TBB35-60000/500AQW-12%	9500	6000
39	TBB66-18000/500AQW-5%	9000	9300
40	TBB66-18000/500AQW-12%	9000	9300
41	TBB66-20016/417AQW-5%	9000	9300
42	TBB66-20016/417AQW-12%	9000	9300
43	TBB35-60000/500AQW-5%	10000	7000
44	TBB35-60000/500AQW-12%	10000	7000

4.Key Advantages

1. Built for Extreme Conditions

Stainless steel enclosures and silicone rubber insulation ensure 20+ years of service in deserts, coastal areas, or icy climates.

2. Smart Grid-Ready

IoT-enabled models offer remote monitoring via SCADA integration for real-time adjustments.

3. Energy-Efficient Design

Low-loss capacitors and advanced cooling systems cut operational costs by 15–30%.

4. Modular Flexibility

Expand capacity incrementally with 10kV 22kV outdoor line compensation without overhauling existing infrastructure.

5.Applications

Renewable Integration: Stabilize grids with solar/wind farms.
Industrial Parks: Correct power factor for motor-heavy facilities.
Urban Networks: Prevent brownouts during peak demand.

Be used in a wide range of industries.

Industrial Plants

Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.

Substation

Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.

Commercial Buildings

Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.

6.How It Works?

1. Sensing: Detects voltage dips or reactive power deficits.

2. Activation: Deploys capacitive banks to inject corrective power.

3. Monitoring: Continuous feedback ensures optimal grid parameters.

7.Why Choose Us?

🏆 30+ Years in High-Voltage Systems: Trusted by utilities in 40+ countries.
🔬 R&D Leadership: 15 patents in reactive power tech.
🌱 Eco-Friendly Production: Zero wastewater discharge, 90% recycled packaging.
