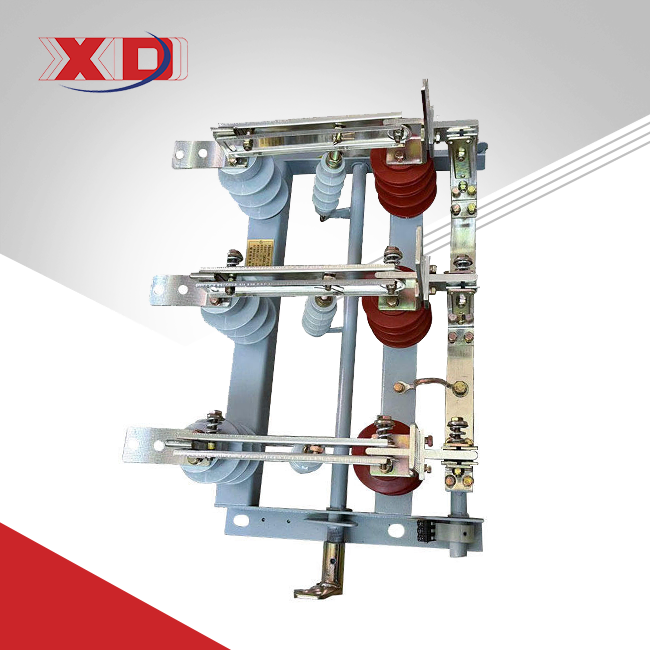

GN24 High Voltage Disconnect Switch
2.Rated Current:400,630,1000,1250A
3.isolates and transfers live/dead bus circuits under no-load
4.Features integrated earthing switch and through-wall mounting
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1.GN24 High Voltage Disconnect Switch: Reliable Power Grid Protection
When managing high-voltage transmission networks, safety and reliability are non-negotiable. The GN24 High Voltage Disconnect Switch delivers precisely that—a robust solution for isolating live circuits, transferring bus connections, and ensuring worker safety during maintenance. Designed for 12kV systems with current ratings up to 1250A, this switch combines IEC-compliant engineering with rugged construction to withstand extreme outdoor conditions. Let’s explore why utilities and grid operators worldwide trust the GN24 for mission-critical applications.
2.Technical Specifications
- Rated Voltage: 12kV
- Current Capacity: 400A, 630A, 1000A, 1250A
- Operation Type: Horizontal pantograph mechanism
- Safety Features: Integrated earthing switch, dual-break insulation
- Mounting: Through-wall or gantry installation
- Standards Compliance: IEC 62271-1/3, IEEE C37.30
| Model | Rated voltage (kV) | Rated current (A) | Rated short-time withstand current (kA/4s) | Rated peak withstand current (KA) |
| GN24-12D/400 | 12 | 400 | 12.5 | 31.5 |
| GN24-12DC/400 | 12 | 400 | 12.5 | 31.5 |
| GN24-12D/630 | 12 | 630 | 20 | 50 |
| GN24-12DC/630 | 12 | 630 | 20 | 50 |
| GN24-12D/1000 | 12 | 1000 | 31.5 | 80 |
| GN24-12DC/1000 | 12 | 1000 | 31.5 | 80 |
| GN24-12D/1250 | 12 | 1250 | 40 | 100 |
| GN24-12DC/1250 | 12 | 1250 | 40 | 100 |
3.Key Features & Advantages
1. Unmatched Durability
The product uses hot-dip galvanized steel and silicone rubber insulation to resist corrosion, UV exposure, and temperature fluctuations (-40°C to +55°C). Its sealed bearings and self-lubricating joints ensure smooth operation even after 10,000 mechanical cycles.
2. Enhanced Safety
- Dual-Break Insulation: Creates two visible isolation gaps for maintenance safety.
- Interlock System: Prevents accidental closure of the earthing switch under load.
- Low Leakage Current: <1μA at rated voltage minimizes arc risks.
3. Smart Grid Readiness
Optional IoT sensors enable real-time monitoring of contact temperature, blade position, and environmental conditions—ideal for integration with SCADA systems.
4.Where It's Used？
Be used in a wide range of industries.
Industrial Plants
Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.
Substation
Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.
Commercial Buildings
Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.
5.How It Works？
The horizontal pantograph design uses a rotating insulator column to lift the conductive blade, creating a clear isolation gap. The earthing switch provides a safe discharge path for residual currents. All operations are manual or motorized (optional), with mechanical indicators for blade status.
6.Built to Last: Manufacturing & Quality
Every product undergoes:
- Material Testing: X-ray inspection of cast components.
- Dielectric Tests: 36kV power frequency withstand voltage for 1 minute.
- Endurance Trials: 10,000 mechanical cycles under load.
Our ISO 9001-certified factories use automated CNC machining for precision-tolerance parts, while 3D laser alignment ensures perfect contact alignment.
7.Why Choose Us?
- Certified Excellence: ISO 9001, ISO 14001.
- Proven Expertise: 15+ patents in high-voltage switchgear design.
- Global Support: 24/7 technical assistance in 12 languages.
- Eco-Friendly: SF6-free design reduces carbon footprint.
8.FAQs
1. What certifications does the GN24 hold?
It meets IEC standards.
2. Can it handle heavy ice buildup?
Yes—the blade design includes a de-icing gap, and arctic-grade lubrication ensures smooth operation at -40°C.
3. What’s the delivery lead time?
Standard orders ship in 4 weeks; urgent batches (50+ units) in 2 weeks via air freight.
9.Contact Us
Email our engineers at xaxd_electric@163.com for datasheets, CAD models, or project-specific configurations.
Optimize your grid’s safety and uptime with the GN24 High Voltage Disconnect Switch—where innovation meets reliability.
