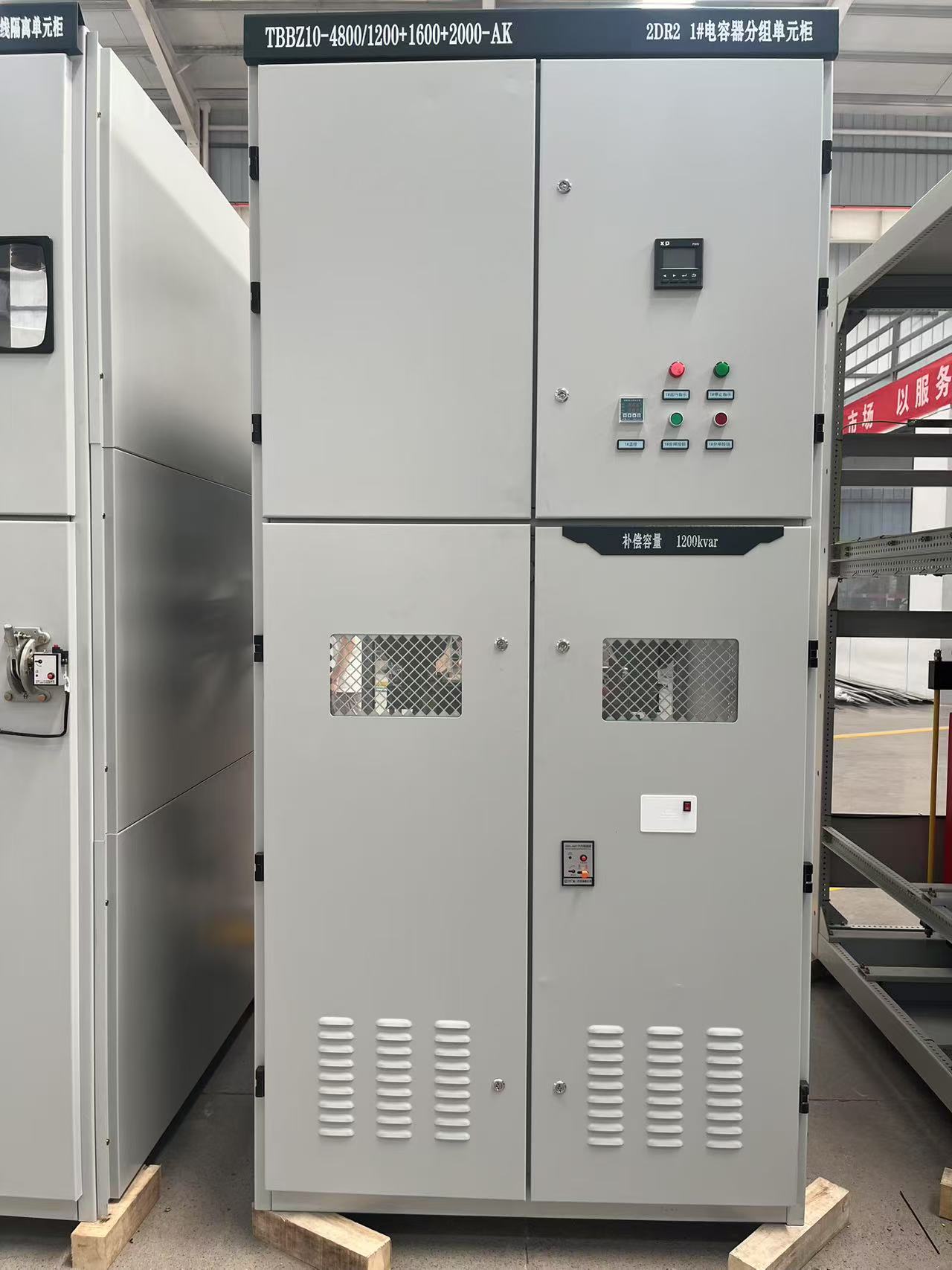

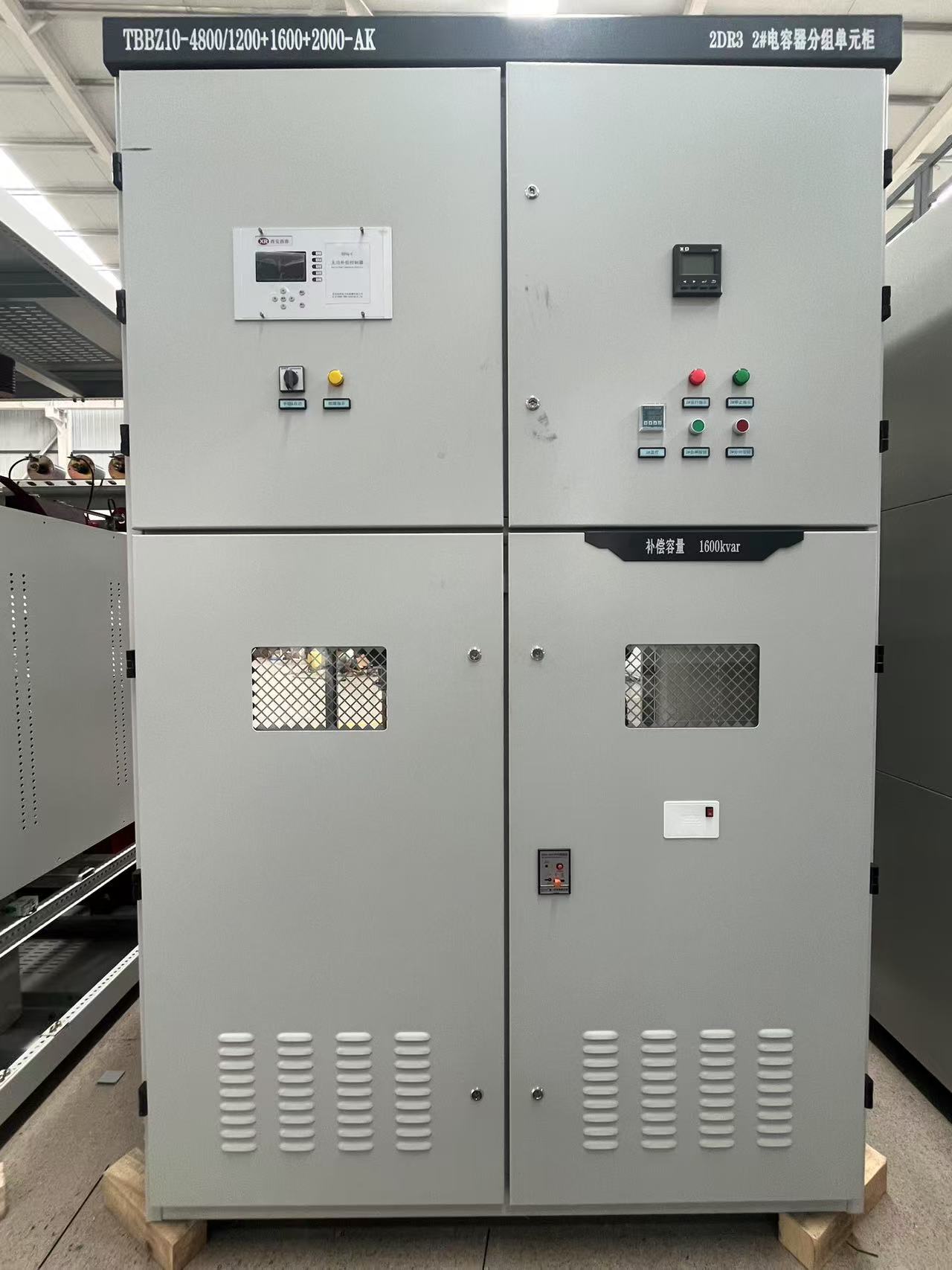

11 kV Capacitor Bank - Advanced Power Factor Correction Solution

Product Introduction

When you need reliable power factor correction for your medium-voltage electrical system, our 11 kv capacitor bank delivers the performance you demand. This specialized electrical assembly operates at 11,000 volts and provides essential reactive power compensation for industrial facilities and distribution networks. Our 11 kv capacitor bank reduces utility penalties, improves voltage stability, and maximizes your electrical infrastructure efficiency. With advanced self-healing technology and robust construction, you get dependable power quality improvement that protects your investment for years to come.

You'll benefit from automatic reactive power compensation that significantly improves your load power factor. Our system reduces network losses while delivering high efficiency and energy savings. The advanced design controls system harmonics according to your specific requirements. By reducing reactive current, you save on transformer capacity costs and improve overall transformer output. The voltage priority control feature uses the capacitor's regulation function to enhance voltage pass rates across your entire electrical network.

Technical Specifications

Main Features and Advantages

Self-Healing Technology: Our capacitors feature advanced self-healing properties that automatically isolate internal breakdowns, ensuring continuous operation and extended service life.

Superior Dielectric System: The all-film polypropylene construction with biodegradable synthetic fluid provides excellent partial discharge resistance and environmental safety.

Flexible Configuration Options: Available in both internally fused and externally fused configurations to match your specific application requirements and budget considerations.

Robust Protection: Internal discharge resistors safely reduce residual voltage, while specialized fusing technology prevents tank rupture during fault conditions.

Low Maintenance Design: Engineered for minimal maintenance with annual inspection schedules and predictable 15-20 year service life under proper operating conditions.

Harmonic Resilience: Optional detuned reactor configurations protect against harmonic amplification in networks with non-linear loads.

Practical Applications

Your 11 kv capacitor bank serves multiple critical applications across various industries. Distribution substations use these systems to maintain optimal power factor and reduce transmission losses. Heavy industrial facilities rely on them to offset reactive power from large induction motors and transformers.

Manufacturing plants benefit from reduced utility power factor penalties and improved voltage stability during peak demand periods. Mining operations use these banks to support arc furnaces and large motor drives. Commercial buildings integrate them into their electrical infrastructure to maximize transformer capacity utilization.

Power generation facilities employ these systems to optimize grid connection efficiency. Water treatment plants use them to support pump motor operations and maintain stable voltage profiles.

How It Works

Your system operates by providing leading reactive current that neutralizes the lagging inductive current from motors, transformers, and other inductive loads. Multiple capacitor units connect in star or double-star configurations to inject reactive power (kVAR) directly into your electrical network.

The capacitor bank automatically responds to changing load conditions, providing reactive power compensation where and when you need it most. This local reactive power source reduces the burden on your supply grid and improves overall system efficiency.

Advanced control systems monitor power factor continuously and switch capacitor steps as needed. Protection relays guard against over-voltage, unbalance, and harmonic conditions that could damage the equipment.

Manufacturing Excellence

Xi'an Xikai Medium and Low Voltage Electric Co., Ltd. brings decades of expertise to every 11 kv capacitor bank we manufacture. Our state-of-the-art production facility maintains strict quality standards throughout the manufacturing process.

We use premium polypropylene film dielectrics and environmentally safe impregnants in all our products. Every unit undergoes comprehensive testing including high-voltage insulation tests, capacitance verification, and thermal cycling validation.

Our quality management system meets ISO9001 standards, ensuring consistent product performance and reliability. We maintain full traceability for all materials and components used in production.

Why Choose Us

Proven Track Record: Our products serve customers across multiple industries with documented performance and reliability records spanning decades.

Technical Innovation: We participate in national 863 projects and continuously invest in research and development to advance capacitor technology.

Comprehensive Support: From initial consultation through installation and maintenance, our technical team provides expert guidance and support.

Quality Assurance: All products meet or exceed international standards with comprehensive testing and certification documentation.

Customization Capability: We provide tailored solutions based on your specific voltage levels, kVAR requirements, and environmental conditions.

Global Standards Compliance: Our manufacturing processes and products comply with IEC, IEEE, and national standards worldwide.

FAQ

Q: What's the difference between internally and externally fused units?

A: Internally fused units isolate individual faulty elements while maintaining operation, ideal for larger banks. Externally fused units disconnect the entire unit during faults - simpler and more economical for smaller installations.

Q: Do I need reactors with my capacitor bank?

A: If your system has variable frequency drives or UPS equipment, reactors prevent harmonic resonance that could damage capacitors. We recommend 6% or 7% detuned reactors for such applications.

Q: How long do these capacitor banks last?

A: With proper installation and maintenance, expect 15-20 years of service life. Operating temperature and harmonic exposure are the primary factors affecting longevity.

Q: What maintenance do these units require?

A: Annual visual inspections, thermal imaging for connection integrity, and capacitance measurements. Our maintenance guidelines ensure optimal performance throughout the service life.

Contact Us

Ready to improve your power factor and reduce operating costs? Our technical experts are standing by to help you select the perfect capacitor bank solution for your application.

Email: serina@xaxd-electric.com

Contact us today for detailed specifications, custom configurations, and professional installation support. We'll help you maximize your electrical system efficiency with our proven 11 kv capacitor bank technology.
