Power Capacitor Bank - Advanced Reactive Power Solutions

Product Introduction

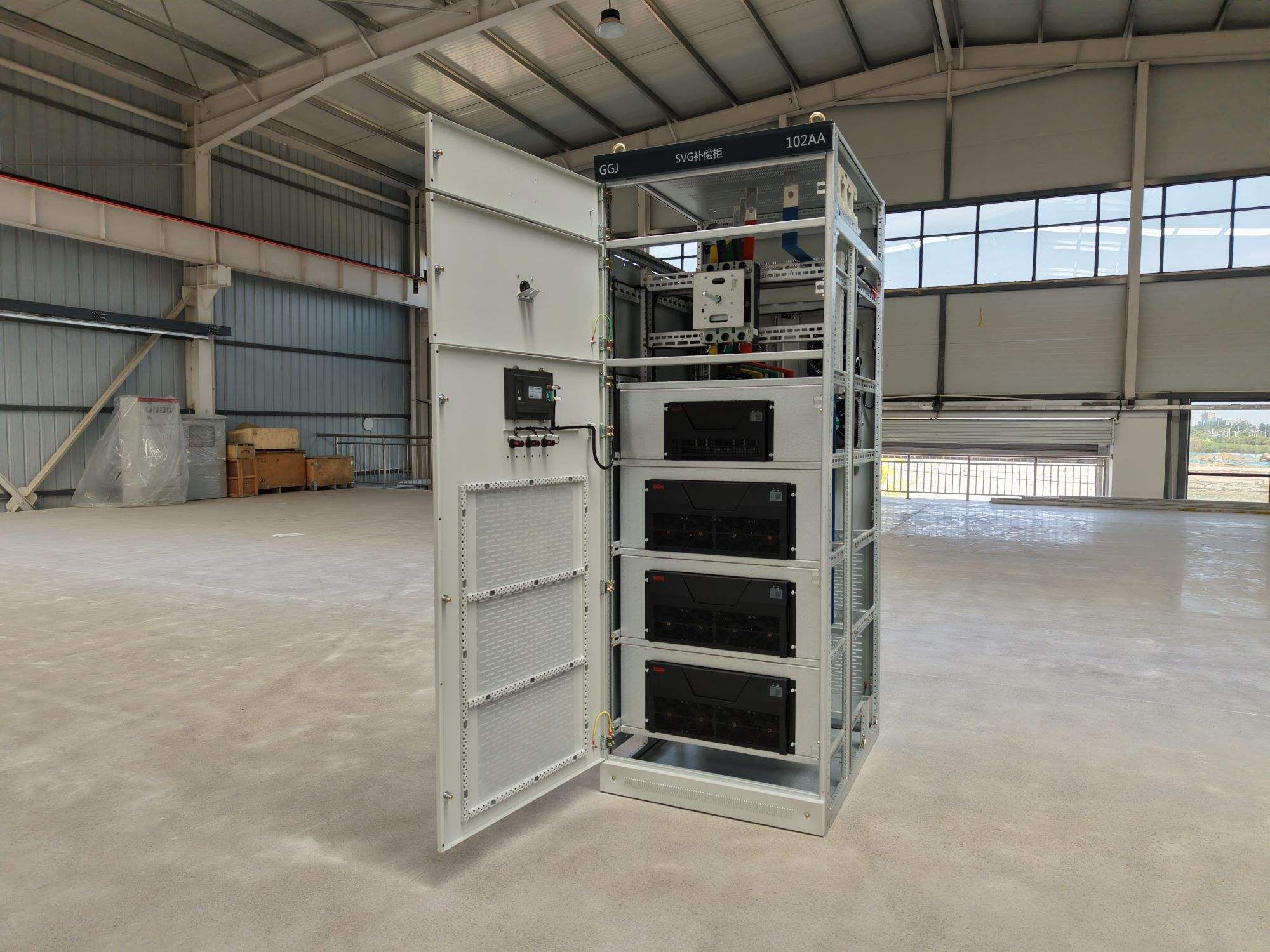

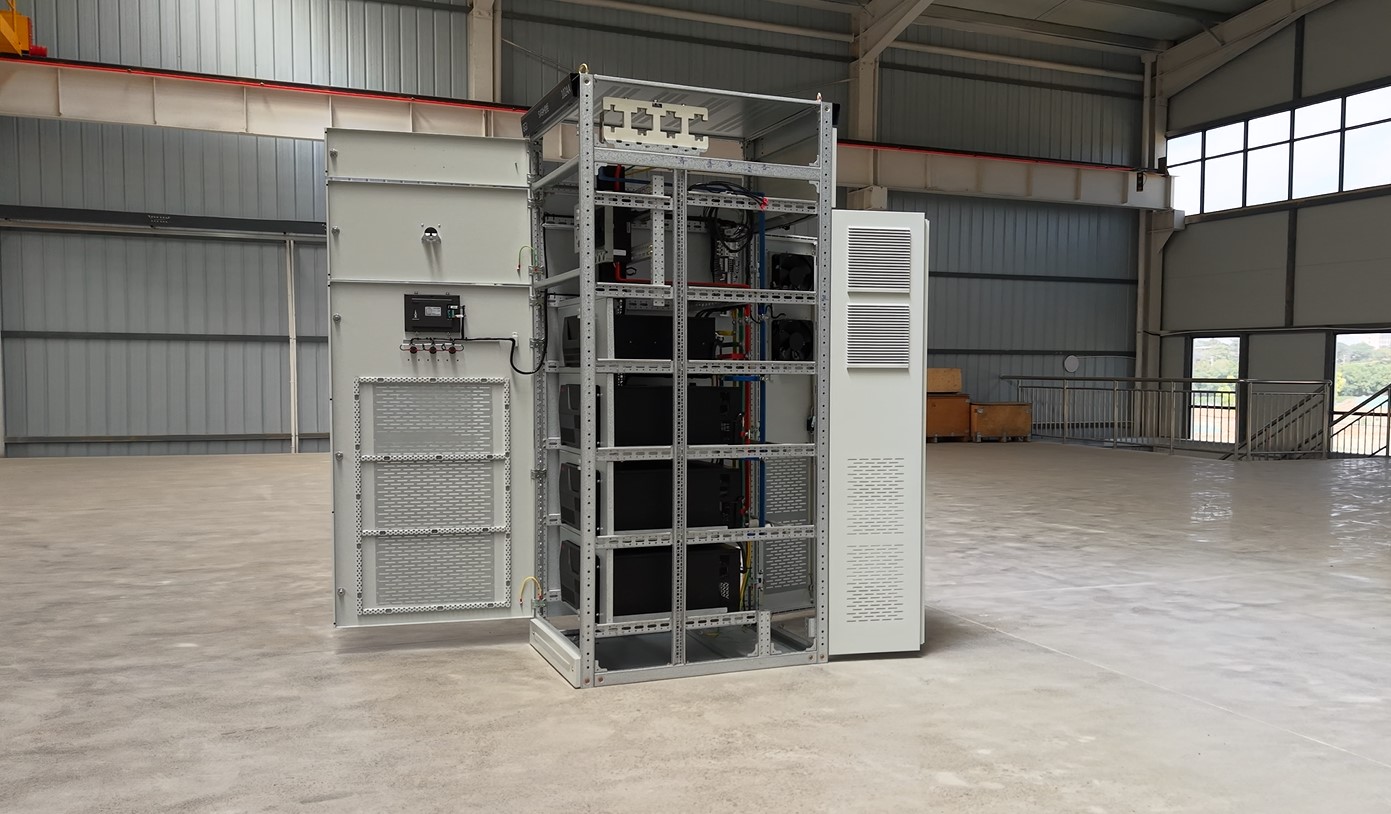

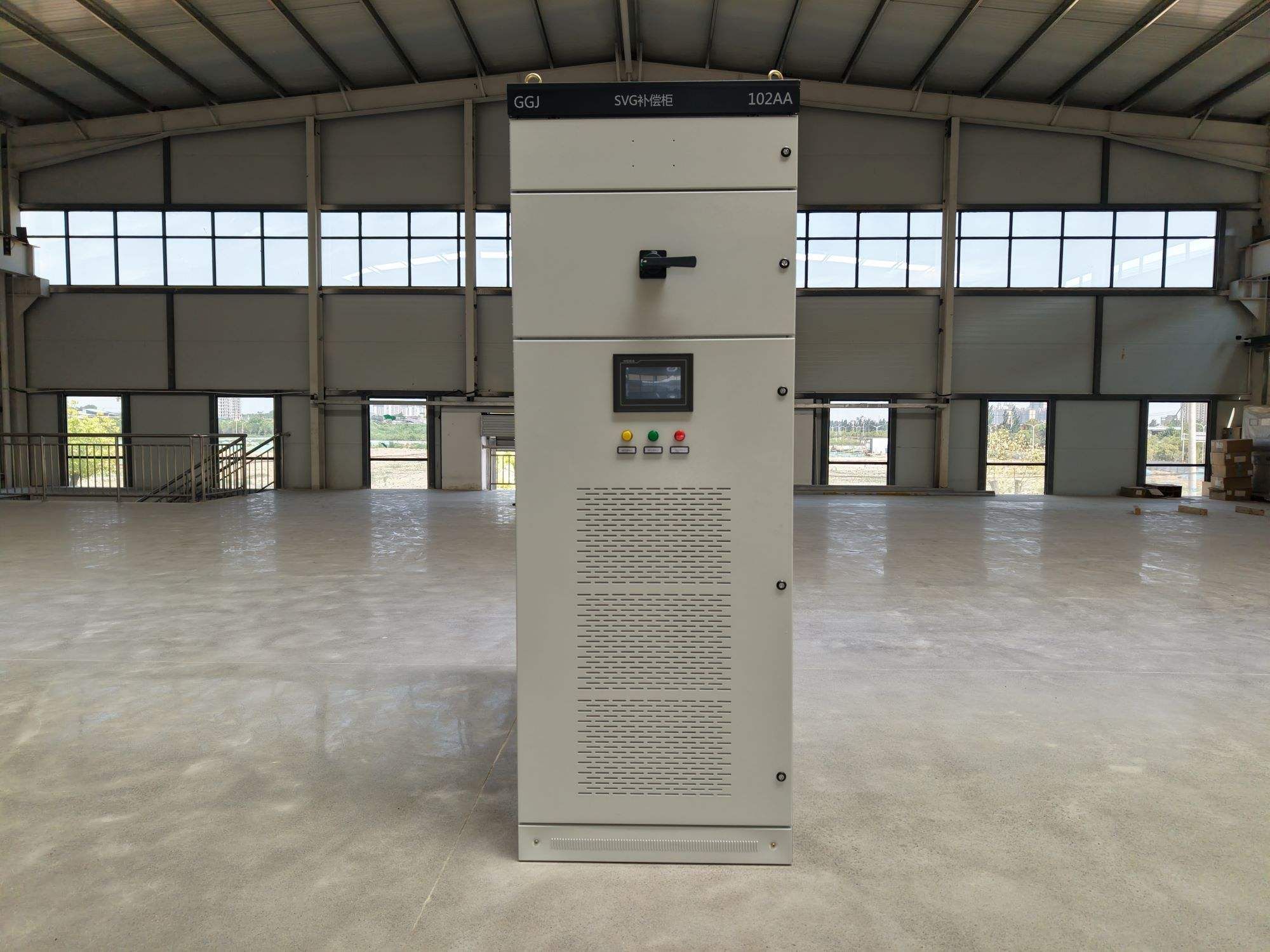

When your facility faces rising electricity costs and power quality issues, our advanced power capacitor bank delivers the solution you need. This sophisticated electrical system combines multiple capacitor units in optimized configurations to provide reactive power compensation and voltage regulation for your electrical network. Our power capacitor bank automatically compensates for load reactive power, dramatically improving your power factor from typical levels of 0.7-0.8 to an optimal 0.95-0.99. You'll immediately notice reduced network losses, enhanced energy efficiency, and significant cost savings on your utility bills through eliminated power factor penalties.

Technical Specifications

Main Features and Advantages

Advanced Harmonic Protection: Our systems integrate detuned iron-core reactors with 7% or 14% detuning factors. This prevents dangerous harmonic resonance that could damage your equipment.

Self-Healing Technology: Metallized polypropylene capacitors feature self-healing capabilities. They automatically recover from minor dielectric breakdowns without system shutdown.

Modular Design Philosophy: You can easily expand your reactive power capacity. Our rack-based construction simplifies maintenance and future upgrades.

Comprehensive Safety Features: Built-in overpressure disconnectors and discharge resistors reduce voltage to safe levels within 60 seconds. HRC fuses provide additional protection against overcurrents.

Intelligent Control Systems: Automatic Power Factor Correction (APFC) controllers monitor your load in real-time. They switch capacitor stages on and off based on actual demand.

Practical Applications

Industrial Manufacturing Facilities: Your motors and transformers create inductive loads that demand reactive power. Our power capacitor bank neutralizes this demand, freeing up transformer capacity and reducing energy costs.

Utility Grid Substations: High-voltage installations provide bulk reactive power for transmission networks. They maintain voltage stability across long-distance power lines and reduce technical losses.

Renewable Energy Integration: Wind and solar installations require power quality compliance. Our systems ensure your renewable projects meet strict Grid Code requirements for voltage control and reactive power capability.

Commercial Buildings: Large facilities with extensive HVAC and lighting systems benefit from improved power factor. You'll see reduced demand charges and enhanced electrical system efficiency.

How It Works

Your electrical system naturally contains inductive loads like motors and transformers. These create a phase shift between voltage and current, resulting in poor power factor. Our power capacitor bank injects leading reactive current that cancels out the lagging current from inductive equipment.

The system continuously monitors your power factor through precision measuring instruments. When reactive power demand increases, the controller automatically switches additional capacitor stages online. As demand decreases, it disconnects unnecessary stages to prevent over-compensation.

This dynamic response maintains optimal power factor regardless of load variations. You achieve maximum efficiency while protecting your equipment from voltage fluctuations.

Manufacturing Excellence

Xi'an Xikai Medium And Low Voltage Electric Co., Ltd. brings decades of expertise to every power capacitor bank we manufacture. Our ISO9001-certified facility ensures consistent quality throughout the production process.

We utilize advanced testing protocols to verify each component meets our stringent performance standards. Every unit undergoes comprehensive electrical testing before shipment, guaranteeing reliable operation in your facility.

Our engineering team designs each system specifically for your operating conditions. We consider factors like ambient temperature, altitude, and harmonic content to optimize performance.

Why Choose Us

Proven Track Record: Our products serve customers across power generation, industrial manufacturing, and utility sectors. We understand the unique challenges you face in maintaining electrical system efficiency.

Technical Support: Our experienced engineers provide comprehensive support from initial system design through commissioning and maintenance. You're never alone when working with our team.

Quality Assurance: We maintain ISO9001, ISO14001, and OHSAS18001 certifications. Every product meets national and international standards for performance and safety.

Competitive Pricing: Direct manufacturing capabilities allow us to offer premium quality systems at competitive prices. You receive maximum value for your investment.

FAQ

Q: How quickly will I see return on investment?

A: Most customers achieve ROI within 12-24 months through eliminated power factor penalties and reduced demand charges.

Q: What maintenance does the system require?

A: Annual inspections should include checking terminal connections, measuring capacitance values, and verifying protection device operation.

Q: Can the system handle harmonic distortion?

A: Yes, our detuned designs with series reactors prevent harmful resonance conditions caused by harmonic-generating equipment.

Q: How do you size the system for my facility?

A: We analyze your electrical load profile, existing power factor, and system characteristics to determine optimal sizing.

Q: What happens if a capacitor fails?

A: Individual fuse protection isolates failed units while maintaining system operation. Our modular design enables quick replacement.

Contact Us

Ready to optimize your electrical system efficiency? Our technical team stands ready to design the perfect power capacitor bank solution for your facility.

Contact us today for a comprehensive power quality assessment and customized proposal.

Email: serina@xaxd-electric.com

Let us help you reduce energy costs and improve electrical system performance with our advanced reactive power compensation solutions.
