25 kvar capacitor bank
2. Reduce network loss, high efficiency and energy saving;
3. Control harmonics of the system or control harmonics according to user requirements;
4. Reduce reactive current, save transformer capacity cost, improve transformer output.
5. Voltage priority control, the voltage regulation function of the capacitor can be used to improve the voltage pass rate.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

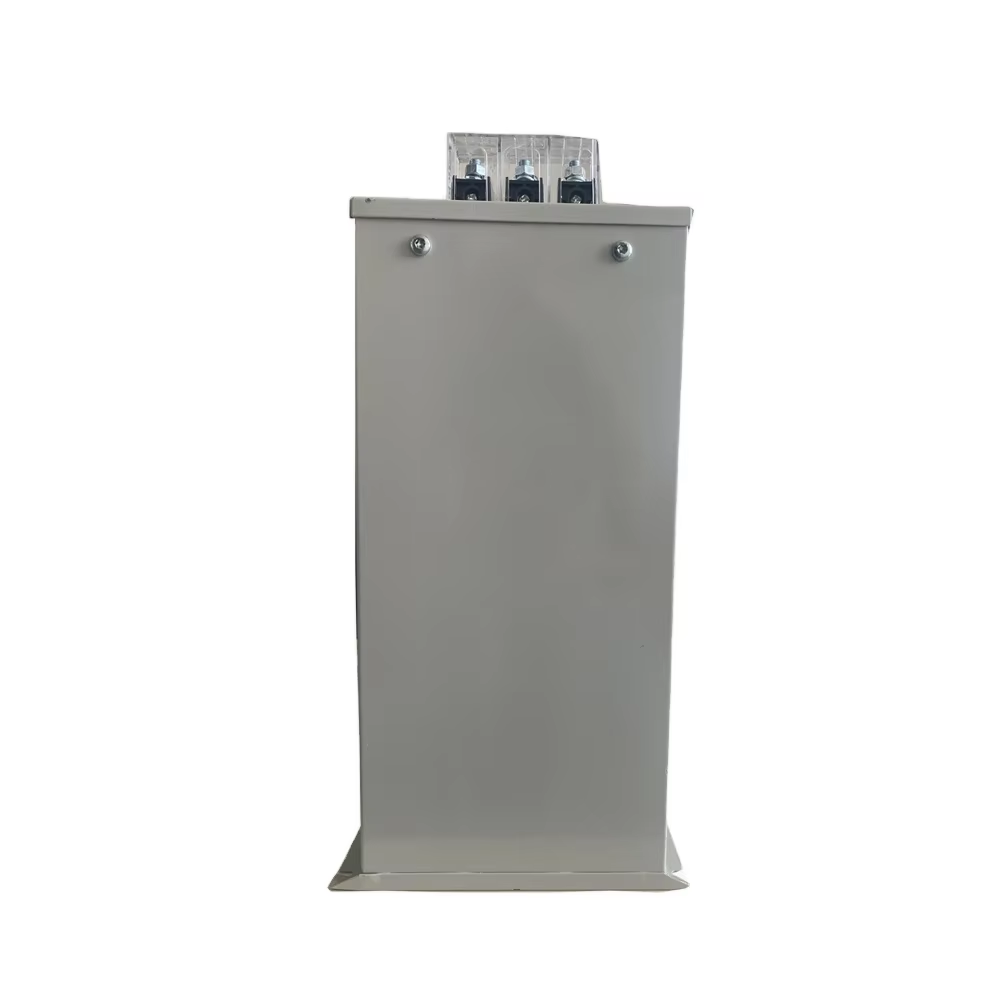

25 kVar Capacitor Bank - Professional Power Factor Correction Solution
Product Introduction
Looking for reliable power factor correction? Our 25 kvar capacitor bank delivers exceptional reactive power compensation for your industrial applications. This advanced electrical component injects 25 kilovars of leading reactive power into your power system. It effectively corrects lagging power factors caused by inductive loads like motors and transformers. You'll eliminate costly utility penalties while optimizing your transformer capacity. Our 25 kvar capacitor bank reduces current flow in upstream cables, minimizing I²R losses and voltage drops across your distribution network.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 25 kVAR |
| Frequency | 50/60 Hz |
| Voltage Rating | 400V / 415V / 440V (3-phase) |
| Dielectric Technology | Metallized Polypropylene (MKP) Film |
| Capacitance Tolerance | -5% to +10% |
| Overcurrent Capability | 1.3x to 1.5x rated current |
| Operating Temperature | -25°C to +55°C (Class D) |
| Design Life | 100,000+ hours |
| Discharge Time | <50V within 1 minute |
| Dielectric Losses | tan δ < 0.2W/kvar |
| Protection | Overpressure disconnector included |
| Casing Material | Aluminum cylindrical design |
| Standards Compliance | IEC 60831-1/2 |
Main Features and Advantages
Our capacitor banks feature self-healing MKP dielectric systems for maximum reliability. You get dry-type resin impregnation that eliminates oil leakage risks completely. The aluminum cylindrical casing provides superior heat dissipation for extended operation.
Built-in overpressure disconnectors act as safety fuses. They prevent case rupture during fault conditions. Integrated discharge resistors ensure safe maintenance by reducing voltage quickly.
Low dielectric losses mean efficient operation and minimal heat generation. The robust construction withstands harsh industrial environments. You'll experience consistent performance across temperature variations.
Practical Applications
Automatic Power Factor Correction Panels: Your manufacturing plant benefits from centralized banks with multiple units. Controllers dynamically match load fluctuations. This prevents leading power factor during off-peak hours.
Direct Motor Compensation: Connect directly with 30-50 kW induction motors. Mining and cement industries use this configuration. You reduce cable sizing requirements and switchgear costs upstream.
Harmonic-Rich Environments: Pair with detuned reactors in high-distortion networks. This 25 kvar capacitor bank configuration prevents resonance. You maintain effective compensation while protecting against harmonic amplification.
How It Works
The capacitor stores electrical energy in its dielectric field. When connected to your power system, it releases leading reactive power. This counteracts the lagging reactive power from inductive loads.
Your power factor improves toward unity (1.0). The apparent power demand decreases significantly. Current flow reduces throughout your electrical system. Energy efficiency increases while utility penalties disappear.
The self-healing technology automatically isolates minor dielectric breakdowns. Operation continues without interruption. This ensures long-term reliability in demanding applications.
Manufacturing Excellence
Xi'an Xidian Medium and Low Voltage Electric Co., Ltd. brings decades of expertise to every unit. Our comprehensive product range covers 0.4kV-40.5kV applications. We maintain ISO9001, ISO14001, and OHSAS18001 certifications.
Our quality control follows strict IEC 60831 protocols. Every 25 kvar capacitor bank undergoes rigorous testing. Capacitance tolerance verification ensures precise performance. Voltage withstand tests guarantee insulation integrity.
We conduct thermal stability tests under maximum operating conditions. Random destruction testing verifies safety disconnector functionality. Your equipment receives proven protection against catastrophic failures.
Why Choose Us
Proven Track Record: Our products meet domestic and international advanced levels. We earned recognition as a famous brand in China.
Complete Solutions: Beyond individual units, we provide system integration services. Our team designs custom power factor correction solutions.
Technical Support: Our engineers assist with harmonic analysis and sizing calculations. You receive ongoing support throughout the product lifecycle.
Quality Assurance: Comprehensive testing ensures reliability. We stand behind our products with solid warranties and responsive service.
FAQ
Q: What's the expected lifespan?
A: Quality units offer 100,000 to 130,000 hours of design life. Proper operating conditions within rated temperature and voltage limits are essential.
Q: Can I use standard units in high-harmonic networks?
A: No. You need higher voltage-rated capacitors with harmonic reactors. Standard units will overheat and fail from harmonic currents.
Q: How often should I check discharge resistors?
A: Check resistors during annual maintenance cycles. Faulty resistors create safety hazards as capacitors remain charged.
Q: What causes capacitor swelling?
A: Bulging indicates overpressure disconnector activation or internal pressure buildup. Replace these units immediately.
Q: What contactors should I use?
A: Use capacitor-duty contactors with pre-insertion resistors. They limit massive inrush currents up to 200x rated current.
Contact Us
Ready to improve your power factor with our 25 kvar capacitor bank solutions? Our technical team stands ready to assist with your specific requirements. We'll help you calculate the right configuration for your application.
Contact us today for detailed specifications and pricing:
Email: serina@xaxd-electric.com
Let us help you achieve optimal power factor correction and significant energy savings.
