24Kv capacitor bank

High-Performance 24Kv Capacitor Bank Solutions

Product Introduction

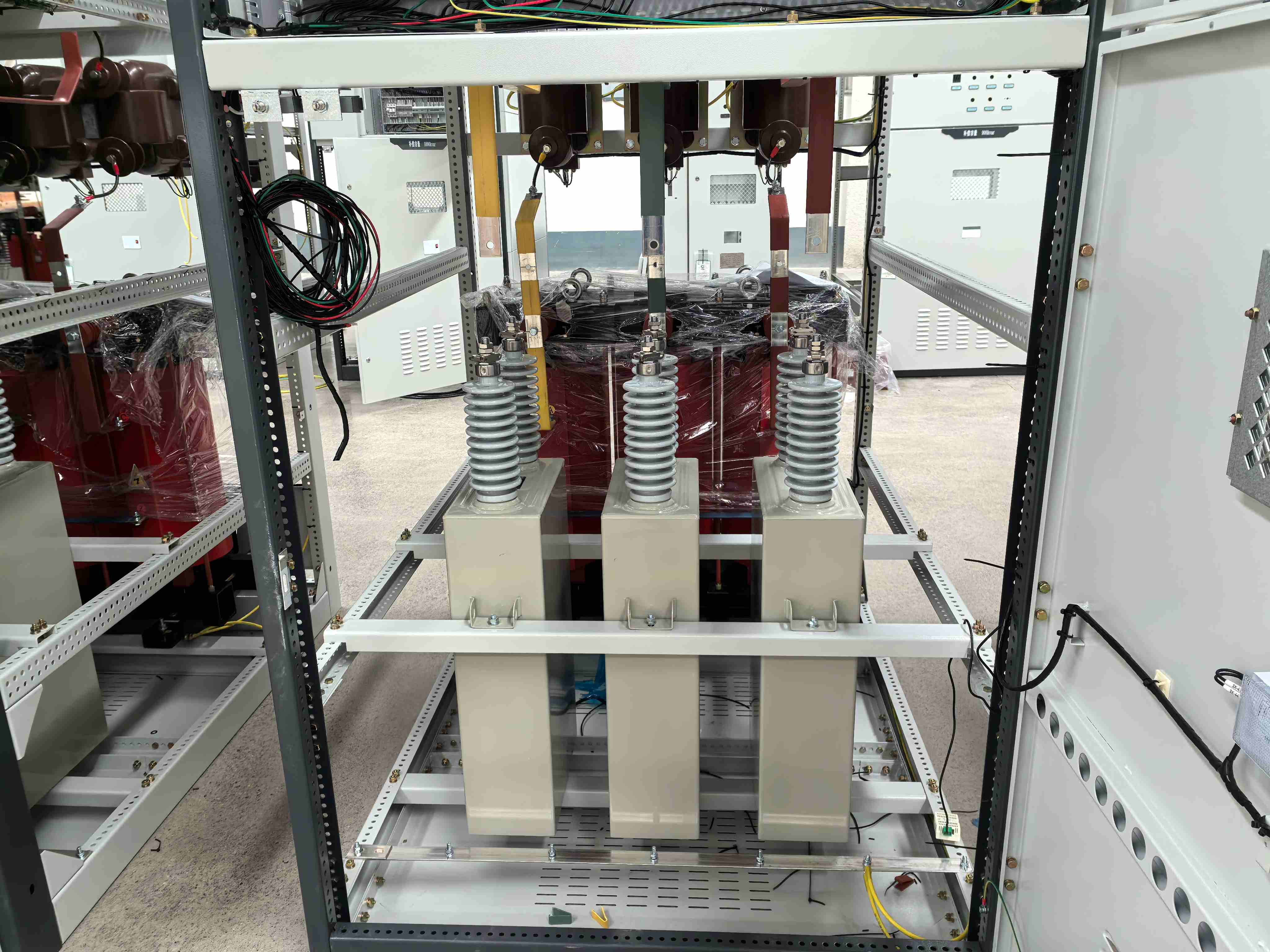

When your electrical system needs reliable reactive power compensation at 24 kilovolts, our 24Kv capacitor bank delivers exceptional performance and long-lasting value. This advanced medium voltage power factor correction solution helps you reduce energy costs and maintain stable voltage levels throughout your facility. Our engineered system combines high-quality capacitor units with intelligent protection schemes to ensure optimal power quality for your operations.

You get more than just reactive power compensation. Our solution improves your overall electrical system efficiency while meeting strict utility requirements. Whether you're managing an industrial facility or utility substation, this investment pays for itself through reduced demand charges and improved equipment performance.

Technical Specifications

Main Features and Advantages

Superior Dielectric Performance: Your system benefits from advanced all-film capacitor technology that provides excellent thermal stability and extended service life. The non-PCB synthetic dielectric fluid ensures environmental compliance.

Comprehensive Protection: Built-in protection systems include neutral unbalance detection and individual element fusing options. This protects your investment from internal faults and system disturbances.

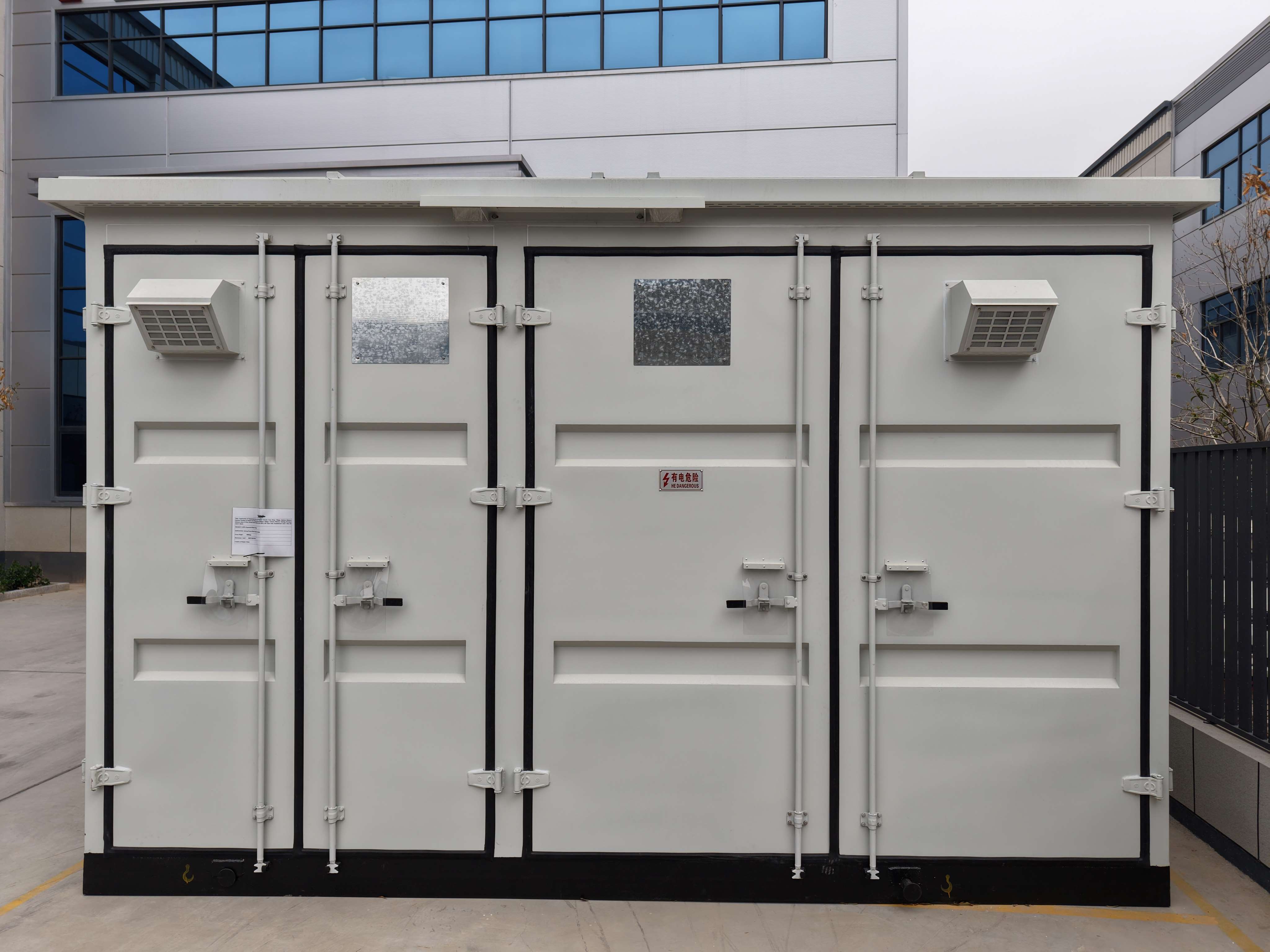

Robust Construction: Weather-resistant enclosures with galvanized steel construction handle harsh industrial environments. Outdoor units feature high-creepage porcelain bushings for pollution resistance.

Flexible Configuration: Available in single-step or multi-step automatic configurations to match your specific reactive power requirements and load variations.

Practical Applications

Industrial Manufacturing: Perfect for facilities with large motor loads, welding equipment, and variable frequency drives. Your power factor improves significantly while reducing utility penalty charges.

Renewable Energy Systems: Wind and solar collection substations use our 24Kv capacitor bank systems to maintain grid code compliance and provide voltage support at the point of common coupling.

Utility Distribution: Municipal and cooperative utilities install these systems to maintain voltage profiles along distribution feeders and defer costly infrastructure upgrades.

Mining Operations: Heavy machinery and processing equipment create significant reactive power demands that our systems handle reliably in challenging environments.

How It Works

Your 24Kv capacitor bank operates by storing and releasing reactive energy to offset the lagging power factor caused by inductive loads. When motors and transformers draw reactive current from the grid, our system supplies this locally.

The automatic control system monitors your power factor continuously. It switches capacitor steps in and out based on real-time demand. This maintains optimal power factor while preventing leading power factor conditions that could damage equipment.

Internal reactors limit inrush current during switching operations. This protects both the capacitors and your switchgear from damaging current surges that could occur during energization.

Manufacturing Excellence

Xi'an Xidian Medium and Low Voltage Electric Co., Ltd. brings decades of power equipment expertise to every unit we manufacture. Our ISO 9001 certified quality management system ensures consistent performance and reliability.

We test every capacitor unit through comprehensive electrical and thermal testing procedures. Our factory quality control includes capacitance verification, dielectric loss measurement, and high-voltage withstand testing.

Our engineering team designs each system to your specific requirements. We consider your load characteristics, harmonic levels, and environmental conditions to optimize performance.

Why Choose Us

Proven Track Record: Our company serves customers across power generation, industrial, and utility sectors with reliable medium voltage solutions. You get the benefit of our extensive field experience.

Complete System Integration: We provide everything from initial system design through commissioning and ongoing support. Your project benefits from single-source accountability.

Quality Certifications: ISO 9001, ISO 14001, and OHSAS 18001 certifications demonstrate our commitment to quality, environmental responsibility, and safety excellence.

Technical Support: Our engineering team provides ongoing technical assistance throughout your system's operational life. You have access to expert support when you need it.

FAQ

Q: What maintenance does a 24Kv capacitor bank require?

A: Perform visual inspections quarterly to check for leaks or damage. Annual electrical testing includes capacitance verification and connection torque checks.

Q: How do I select the right capacity for my facility?

A: We analyze your load characteristics and power factor requirements to determine optimal sizing. Our engineers provide detailed calculations based on your specific needs.

Q: Can the system handle harmonic distortion?

A: Yes, we can provide detuned reactor configurations to prevent resonance with harmonic frequencies common in industrial facilities.

Q: What's the typical installation timeline?

A: Standard systems ship within 6-8 weeks. Installation typically takes 2-3 days depending on configuration complexity.

Q: Do you provide commissioning services?

A: Yes, our certified technicians provide complete commissioning and startup services to ensure optimal system performance.

Contact Us

Ready to improve your power factor and reduce energy costs? Our experienced team is here to help you select the right 24Kv capacitor bank solution for your specific requirements.

Contact our technical sales team today to discuss your reactive power compensation needs. We'll provide detailed proposals and technical specifications tailored to your facility.

Email: serina@xaxd-electric.com

Let us help you achieve optimal power quality and energy efficiency with our proven medium voltage capacitor bank solutions.
