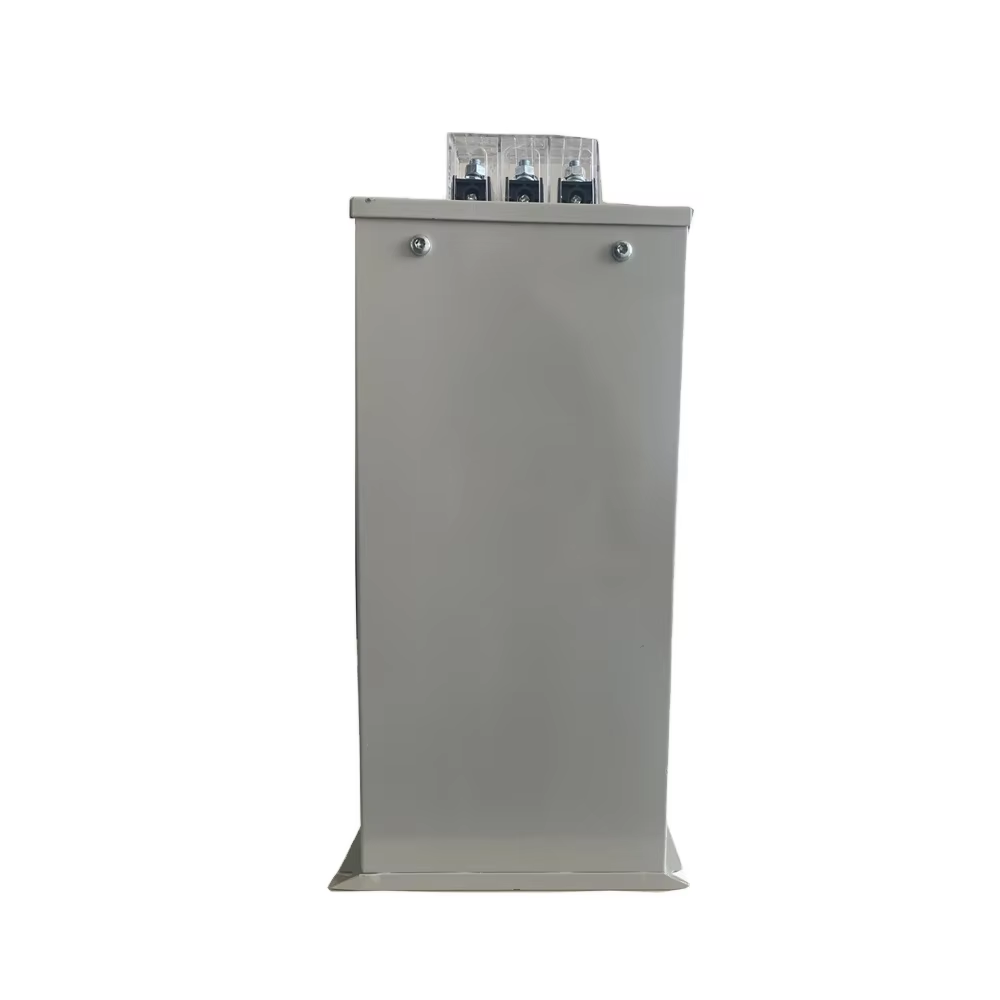

40 kvar capacitor bank

40 kVAR Capacitor Bank - Professional Power Factor Correction Solution

Product Introduction

Are you struggling with high electricity bills and power quality issues? Our 40 kvar capacitor bank provides the perfect solution for your power factor correction needs. This specialized electrical assembly delivers 40 kilovars of capacitive reactive power to offset inductive loads in industrial and commercial facilities. You can eliminate utility penalties, reduce energy costs, and improve overall system efficiency with our advanced power factor correction technology.

Our capacitor bank automatically compensates for reactive power loads. It improves your facility's power factor significantly. You'll reduce network losses while achieving high efficiency and energy savings. The system effectively controls harmonics according to your specific requirements. It also reduces reactive current and saves transformer capacity costs.

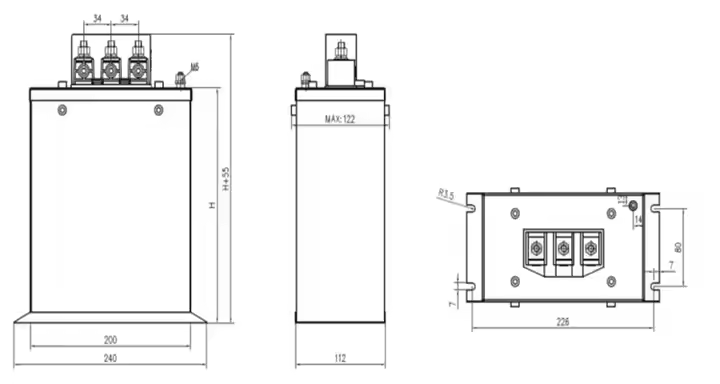

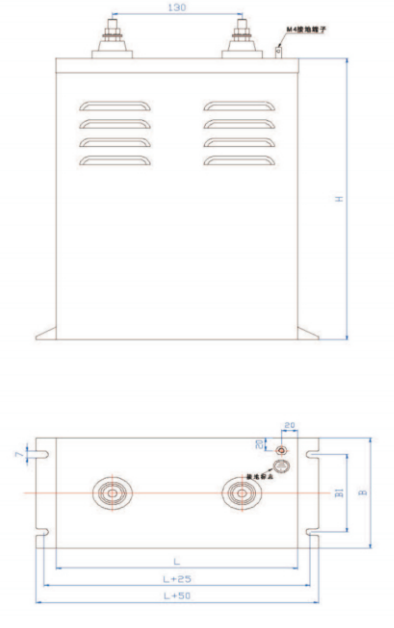

Technical Specifications

Main Features and Advantages

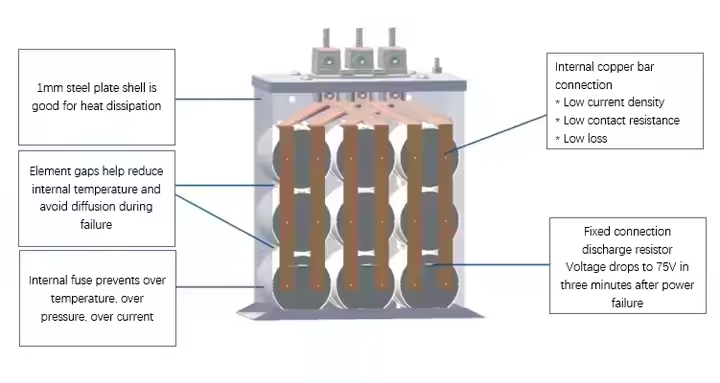

Self-Healing Technology: Our capacitors feature advanced self-healing capabilities. Internal dielectric breakdowns automatically repair themselves. This ensures long-term reliability and minimal maintenance requirements.

Overpressure Protection: Built-in tear-off fuses disconnect the unit during fault conditions. This prevents chassis rupture and ensures safe operation.

High Inrush Current Resistance: The system withstands up to 200 times rated current. You get reliable performance even during switching operations.

Superior Enclosure Design: Aluminum or steel housing provides excellent protection. Your investment stays protected in harsh industrial environments.

Minimal Heat Generation: Low dielectric loss factor reduces thermal stress. This extends equipment life and improves efficiency.

Practical Applications

Industrial Manufacturing: Perfect for facilities with heavy induction motors like crushers and extruders. The 40 kvar capacitor bank provides local compensation when connected directly to motor terminals. You'll reduce current flow through upstream cables and free up valuable transformer capacity.

Commercial Infrastructure: Ideal for shopping malls and data centers as part of centralized APFC systems. The unit dynamically engages to offset fluctuating loads from chillers and elevators. You maintain compliance with utility power factor requirements effortlessly.

Harmonic-Rich Environments: When paired with detuned reactors, our capacitor bank works excellently in facilities with Variable Frequency Drives. This configuration prevents resonance and protects your system from harmonic amplification.

How It Works

The capacitor bank generates leading reactive power to counteract lagging reactive power from inductive loads. When motors and transformers create inductive reactive current, our system provides an equal and opposite capacitive current. This brings your power factor closer to unity.

You can install it as a fixed unit for constant loads or integrate it into automatic switching systems. The varometric controller monitors real-time power factor and switches the 40 kvar capacitor bank as needed. This ensures optimal power factor correction throughout varying load conditions.

Manufacturing Excellence

Xi'an Xikai Medium And Low Voltage Electric Co., Ltd. brings decades of expertise to every unit. Our company specializes in medium and low voltage power distribution equipment. We maintain strict quality control throughout the manufacturing process.

Our products meet national standards and industry requirements. We've passed ISO9001 quality management certification. You receive equipment that performs reliably in demanding applications.

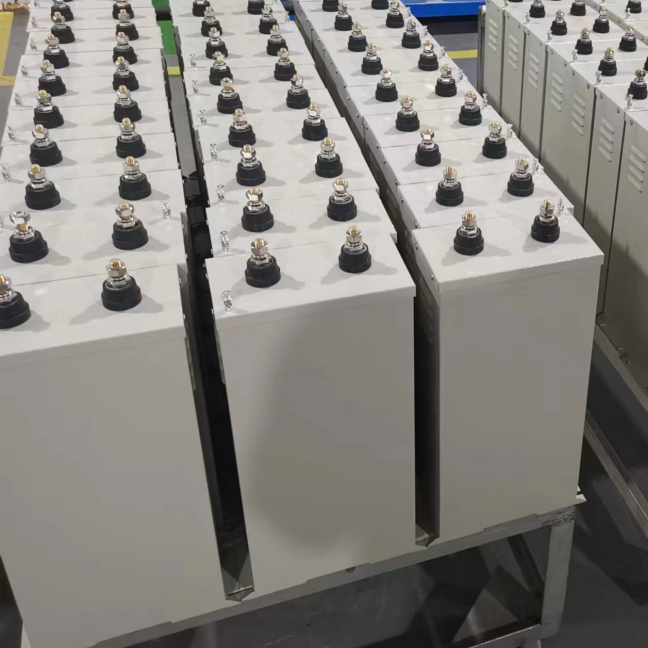

We use premium materials and advanced manufacturing techniques. Every capacitor bank undergoes rigorous testing before shipment. You get consistent quality and performance you can trust.

Why Choose Us

Comprehensive Product Range: We offer complete power distribution solutions beyond capacitor banks. Our product line includes high and low voltage switchgear, transformers, and circuit breakers.

Technical Expertise: Our experienced team provides professional technical support. We help you select the right configuration for your specific application.

Quality Assurance: All products undergo thorough testing including capacitance measurement, dielectric strength testing, and thermal stability verification.

Customization Available: We provide tailored solutions to meet your unique requirements. Our engineering team works with you to optimize system performance.

Proven Track Record: Our products serve customers across power, metallurgy, petrochemical, and construction industries successfully.

FAQ

Q: How long will my capacitor bank last?

A: High-quality MKP capacitors have a design life of 100,000 to 130,000 hours (approximately 10-15 years). Replace the unit if capacitance drops below 85% of initial value.

Q: Can I use this in facilities with many VFDs?

A: You need a detuned version for facilities with high harmonic distortion (THDi > 15-20%). Standard capacitors may cause resonance issues with variable frequency drives.

Q: What cable size do I need?

A: At 400V, you need cables rated for approximately 83A (considering harmonics and inrush current). Typically, 25mm² or 35mm² copper cables work well.

Q: Why might my capacitor bank make noise?

A: Loud humming usually indicates loose connections or excessive harmonic currents. Contact our technical team for immediate assessment and solutions.

Q: What's the return on investment?

A: Most customers see payback within 6 to 18 months through eliminated utility penalties and reduced energy losses.

Contact Us

Ready to improve your power factor and reduce energy costs? Our technical team is here to help you select the perfect solution. We provide comprehensive support from initial consultation through installation and maintenance.

Contact our experts today to discuss your power factor correction needs:

Email: serina@xaxd-electric.com

Let us help you optimize your electrical system with our reliable 40 kvar capacitor bank solutions. Experience the difference professional power factor correction makes for your facility.
