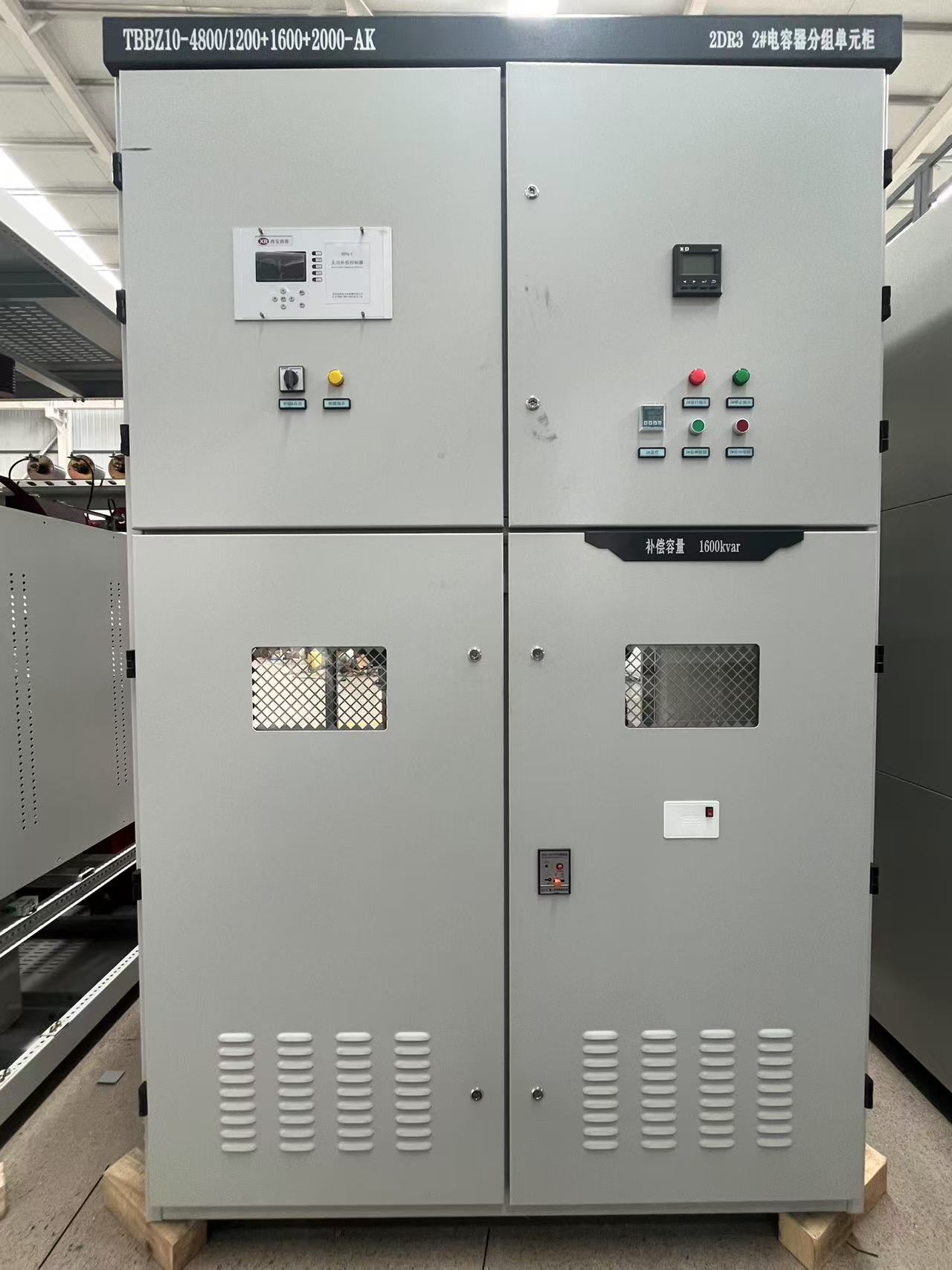

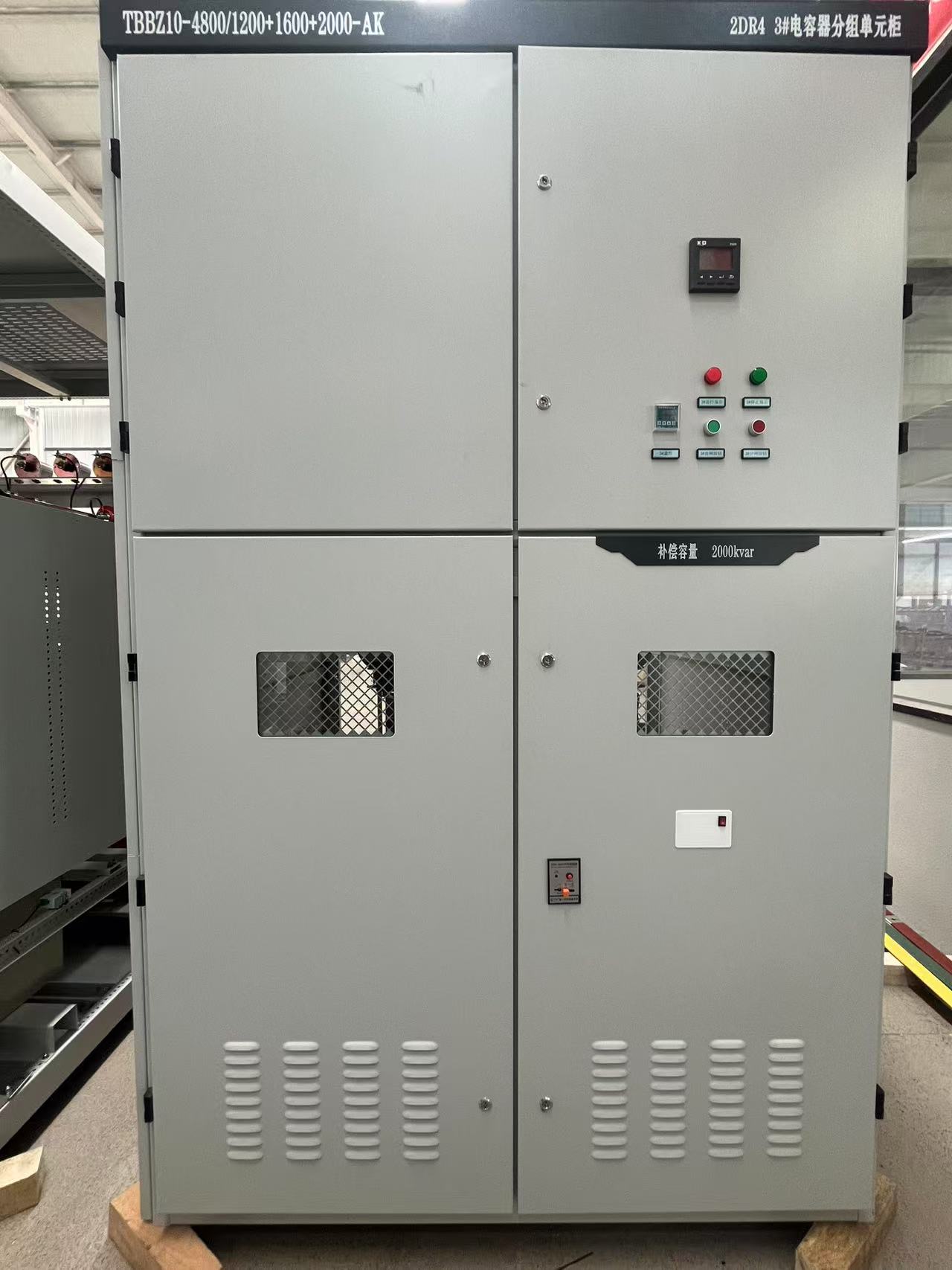

Auto Capacitor Bank - Advanced Power Factor Correction Solutions

Product Introduction

When your facility faces rising electricity bills due to poor power factor penalties, our auto capacitor bank provides the intelligent solution you need. This advanced Automatic Power Factor Correction (APFC) system automatically switches capacitor stages to maintain optimal power factor close to unity (0.99). Unlike fixed capacitors, our auto capacitor bank uses intelligent microprocessor-based controllers to detect real-time reactive power demand and engage the precise number of capacitor steps required. Your facility will benefit from eliminated utility penalties, reduced cable overheating, stabilized voltage levels, and freed transformer capacity for future expansion.

Technical Specifications

Main Features and Advantages

Intelligent Microprocessor Control: Your system receives real-time monitoring and automatic adjustment based on load conditions, ensuring optimal power factor at all times.

Modular Design: You can easily expand or modify the system as your facility grows, with individual capacitor steps ranging from 5kVAR to 100kVAR per stage.

Harmonic Filtering: Our detuned reactor options protect your equipment from harmonic resonance while improving overall power quality.

Multiple Switching Technologies: Choose between contactor-switched for stable loads or thyristor-switched for rapidly changing industrial applications.

Advanced Protection: Built-in protection against overvoltage, undervoltage, overcurrent, and capacitor failure ensures long-term reliability.

Practical Applications

Heavy Industrial Manufacturing: In steel plants and automotive facilities with arc furnaces and welding machines, you'll experience immediate voltage stabilization and reactive power compensation during load fluctuations.

Commercial Infrastructure: Data centers and hospitals benefit from clean power delivery, maximizing backup generator efficiency and protecting sensitive equipment from power quality issues.

Mining Operations: Harsh environments with crushers and conveyors require our ruggedized enclosures that reduce transmission losses over long cable runs while withstanding extreme conditions.

Manufacturing Plants: Assembly lines with extensive VFD usage and robotics maintain stable voltage to prevent logic errors in PLCs and automation equipment.

How It Works

Your auto capacitor bank continuously monitors power factor through current transformers and voltage sensors. The intelligent controller calculates reactive power requirements and automatically switches capacitor steps in or out. When inductive loads increase reactive power demand, capacitors engage to provide local compensation. As loads decrease, capacitors disconnect to prevent leading power factor conditions. This seamless operation maintains your target power factor without manual intervention.

Manufacturing Excellence

Xi'an Xidian Medium and Low Voltage Electric Co., Ltd. brings decades of expertise in power distribution equipment manufacturing. Our comprehensive quality management system includes ISO9001, ISO14001, and OHSAS18001 certifications. Each auto capacitor bank undergoes rigorous testing to meet national and international standards, ensuring reliable performance in demanding industrial environments.

Our manufacturing facility produces over 100 varieties across 9 product categories, with technical indicators meeting all relevant standards. Products achieve famous brand recognition in China, reflecting our commitment to excellence and innovation.

Why Choose Us

Proven Track Record: With rated voltages from 0.4kV to 40.5kV and currents up to 4000A, we handle projects of any scale across multiple industries.

Complete Solutions: Beyond equipment supply, we provide system integration services, customized designs, and comprehensive technical support throughout your project lifecycle.

Quality Assurance: Our products meet stringent quality standards with extensive testing and certification, ensuring long-term reliability and performance.

Technical Support: Our engineering team provides ongoing assistance for installation, commissioning, and maintenance to maximize your investment return.

High-Altitude Performance: Specialized designs operate reliably at altitudes up to 4000m, serving projects in challenging geographic locations.

FAQ

Q: How do I choose between contactor-switched and thyristor-switched systems?

A: For stable loads like HVAC and lighting, contactor switching offers cost-effective operation. Rapidly changing loads such as cranes and welding equipment require thyristor switching to avoid equipment damage and voltage flicker.

Q: Can the system handle harmonic-rich environments?

A: Yes, our detuned reactor options (7% or 14%) prevent harmonic resonance and protect against overheating in environments with non-linear loads.

Q: What maintenance does the system require?

A: Annual maintenance includes checking terminal connections, cleaning filters, and measuring capacitance. With proper care, systems operate reliably for 10-15 years.

Q: How do you calculate the required kVAR capacity?

A: We analyze your energy bills and load profiles to determine optimal sizing using the formula: kVAR = kW × (tan(arccos(current PF)) - tan(arccos(target PF))).

Contact Us

Ready to improve your facility's power factor and reduce energy costs? Our technical team is here to design the perfect auto capacitor bank solution for your specific requirements.

Email: serina@xaxd-electric.com

Contact us today for a comprehensive power quality assessment and customized proposal. Let us help you achieve optimal power factor correction and significant energy savings.
