high voltage capacitor banks
● The device allows continuous operation at a steady state overcurrent of 1.3 times the rated 2 TBBZ High Voltage Reactive Power Automatic Compensation Device Operation Instructions current due to overvoltage and higher harmonics.
● The difference between the actual capacitance of the device and its rated capacitance shall not exceed (0~+10) % of the rated value, and the ratio of the maximum capacitance to the minimum capacitance between any two terminals of the device shall not exceed 1.06.
● The device can limit the inrush current generated by the capacitor bank instantaneously to less than 20 times the rated current of the capacitor bank.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

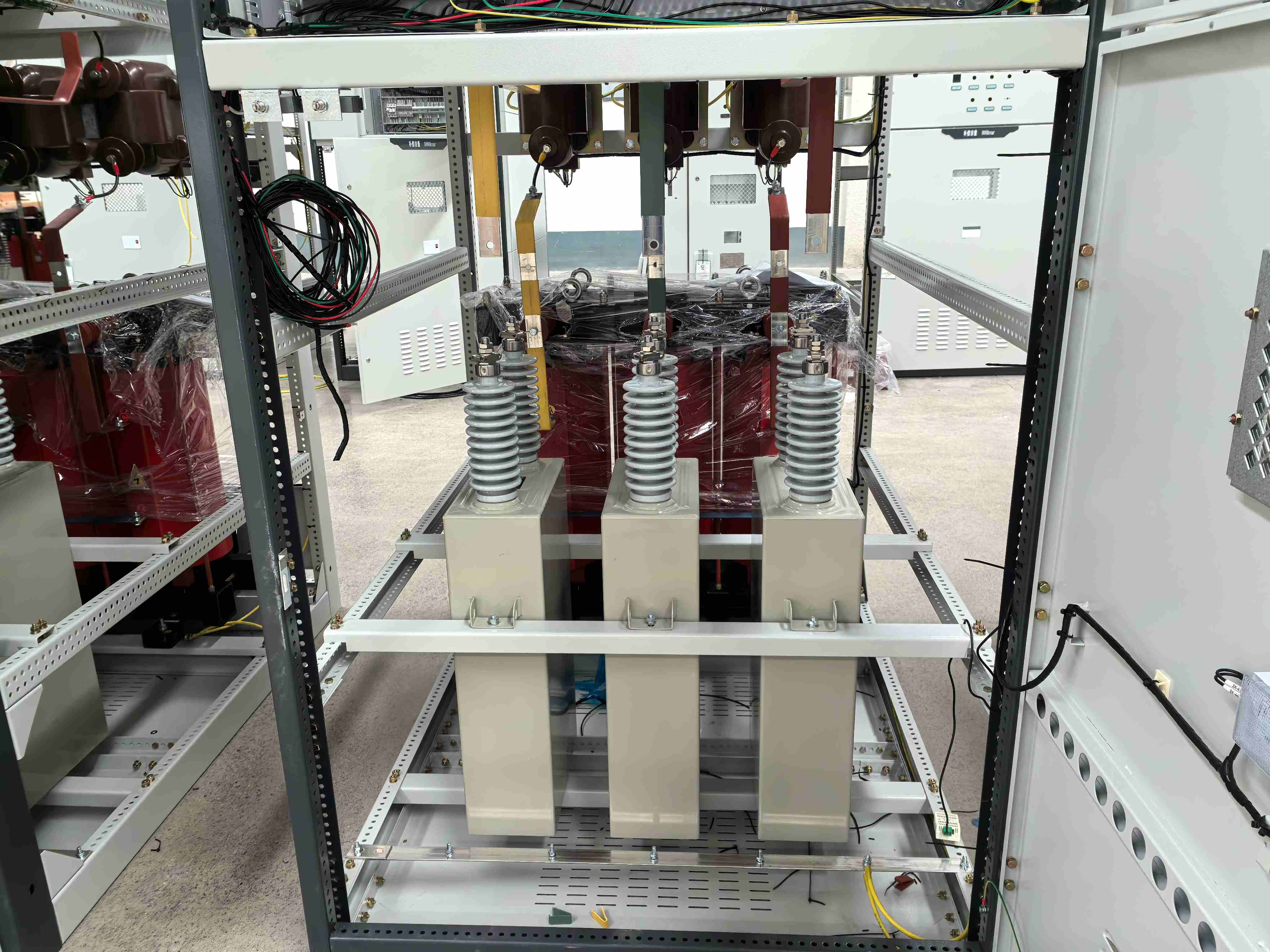

High Voltage Capacitor Banks - Advanced Power Factor Correction Solutions
Product Introduction
When you're dealing with power quality challenges in transmission and distribution networks, high voltage capacitor banks provide the reliable reactive power compensation you need. These sophisticated assemblies of capacitor units are engineered to operate efficiently in electrical systems above 1kV, delivering superior power factor correction and voltage stabilization. Our high voltage capacitor banks feature advanced all-film polypropylene dielectrics and biodegradable insulating fluids, ensuring optimal performance across diverse operating conditions while meeting the strictest international standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage Range | 11kV - 40.5kV |
| Current Rating | 630A - 4000A |
| Operating Voltage | Up to 1.1 times rated voltage continuous |
| Peak Voltage (with harmonics) | Maximum 1.2√2Un |
| Steady State Overcurrent | 1.3 times rated current continuous |
| Capacitance Tolerance | (0~+10)% of rated value |
| Operating Temperature | -50°C to +55°C |
| Altitude Capability | Up to 4000m above sea level |
| Dielectric Losses | < 0.1 to 0.2 W/kvar |
| Discharge Time | Residual voltage < 50V within 10 minutes |
| Standards Compliance | IEC 60871-1, IEEE 18, CSA C22.2 No. 190 |
Main Features and Advantages
Superior Dielectric Technology: Our capacitor banks utilize premium all-film polypropylene dielectrics impregnated with non-PCB synthetic fluids, delivering exceptional thermal stability and low dielectric losses.
Robust Construction: Featuring stainless steel casings with high-grade porcelain or polymer bushings, these units are designed for extended service life in challenging environments.
Advanced Safety Features: Integrated internal discharge resistors ensure safe maintenance procedures, while inrush current limiting keeps transient currents below 20 times the rated value.
Flexible Configuration Options: Available in both internally fused and externally fused configurations to meet your specific protection requirements.
High Altitude Performance: All products meet demanding requirements for installations up to 4000 meters above sea level.
Practical Applications
Utility Substations: Our units excel in open-rack configurations within outdoor substations, providing bulk reactive power compensation that improves voltage profiles on long transmission lines and increases active power transfer capability.
Heavy Industrial Plants: Perfect for steel mills, mining operations, and petrochemical facilities using Electric Arc Furnaces or large rolling mills. The metal-enclosed designs effectively mitigate voltage flickering and compensate for highly inductive loads.
Renewable Energy Integration: Essential for wind and solar farm collector substations, these banks help meet strict Grid Code requirements and enable Low Voltage Ride Through capabilities during varying generation conditions.
How It Works
The system operates by generating leading reactive current that neutralizes the lagging current produced by inductive loads like motors and transformers. This reactive power compensation brings your power factor closer to unity, reducing total system current and minimizing I²R losses throughout your electrical infrastructure.
When connected to your network, the capacitive reactance provides instantaneous voltage support during peak demand periods. The modular design allows for precise reactive power adjustment, ensuring optimal system performance across varying load conditions.
Manufacturing Excellence
Xi'an Xidian Medium and Low Voltage Electric Co., Ltd. brings decades of expertise in power distribution equipment manufacturing. Our comprehensive product portfolio spans 9 categories and 34 series, with over 100 varieties of electrical equipment.
We maintain rigorous quality standards through our ISO9001 quality management system, ISO14001 environmental management system, and OHSAS18001 occupational health and safety certifications. Every product undergoes extensive testing to ensure compliance with national and international standards.
Why Choose Us
Proven Track Record: Our products have earned recognition as famous brand products in China, demonstrating consistent quality and reliability in demanding applications.
Comprehensive Solutions: Beyond individual components, we provide complete system integration services tailored to your specific requirements.
Technical Excellence: Our engineering team combines deep industry knowledge with cutting-edge technology to deliver solutions that exceed expectations.
Global Standards Compliance: All products meet or exceed international standards, ensuring seamless integration into existing systems worldwide.
FAQ
Q: How do I determine the right capacity for my application?
A: Capacity selection depends on your system's reactive power requirements, load characteristics, and power factor targets. Our engineering team can perform detailed load analysis to recommend optimal sizing.
Q: What maintenance is required for these units?
A: Regular visual inspections, temperature monitoring, and periodic electrical testing ensure optimal performance. We provide comprehensive maintenance guidelines with each installation.
Q: Can these banks operate in polluted environments?
A: Yes, our units feature appropriate creepage distances and specialized bushings designed for operation in contaminated atmospheric conditions.
Q: What protection schemes are recommended?
A: Protection typically includes overcurrent protection, unbalance protection, and overvoltage protection. We can recommend specific schemes based on your system configuration.
