Power Correction Capacitor Bank - Professional Industrial Solution

Product Introduction

Our power correction capacitor bank is an advanced electrical solution designed to optimize your power system's efficiency and reduce operational costs. This sophisticated assembly combines high-grade capacitor units, intelligent controllers, and protective components to automatically correct power factor issues in industrial facilities. With growing energy costs and stricter utility penalties for poor power factor, investing in a quality power correction capacitor bank has become essential for maintaining competitive operations.

The system works by supplying reactive power (kVAR) directly to your electrical network. This reduces the reactive current demand from your utility provider. Your facility benefits from improved voltage stability, reduced energy losses, and elimination of power factor penalty charges. Our solution integrates seamlessly with existing electrical infrastructure while providing long-term reliability and performance.

Technical Specifications

Main Features and Advantages

Intelligent Control System: Our advanced Power Factor Controller continuously monitors your electrical system. It automatically switches capacitor steps on and off based on real-time demand. This ensures optimal power factor correction without manual intervention.

Self-Healing Capacitor Technology: We use premium metallized polypropylene film capacitors with self-healing properties. When minor dielectric breakdown occurs, the metallized layer vaporizes around the fault area. This restores insulation integrity and prevents total capacitor failure.

Harmonic Protection: Optional detuned reactors protect against harmonic resonance. This feature is crucial for facilities with variable frequency drives, LED lighting, or other non-linear loads. The reactors prevent dangerous voltage amplification at harmonic frequencies.

Robust Construction: Heavy-duty contactors handle high inrush currents during switching operations. Quality components ensure reliable operation under challenging industrial conditions. Forced ventilation maintains optimal operating temperatures.

Modular Design: Our banks feature expandable modular construction. You can easily add or remove capacitor steps to match changing facility requirements. This flexibility protects your investment as your business grows.

Practical Applications

Manufacturing Facilities: Metal processing plants, automotive assembly lines, and textile factories benefit significantly from our power correction capacitor bank systems. These facilities typically operate numerous inductive motors that create power factor issues.

Commercial Buildings: Office complexes, shopping centers, and hospitals with extensive HVAC systems see immediate improvements in electrical efficiency. Our systems reduce demand charges and improve voltage stability for sensitive equipment.

Data Centers: Critical facilities require stable power quality for uninterrupted operations. Our solutions maintain consistent voltage levels while reducing cooling costs through improved electrical efficiency.

Water Treatment Plants: Pump stations and treatment facilities with multiple motor-driven pumps achieve substantial energy savings. The improved power factor reduces stress on transformers and electrical infrastructure.

How It Works

Your electrical system naturally develops a lagging power factor due to inductive loads like motors and transformers. These devices require both real power (kW) and reactive power (kVAR) to operate properly. Utilities charge penalties when reactive power demand becomes excessive.

Our intelligent controller continuously measures your facility's power factor. When the power factor drops below the setpoint (typically 0.95), the controller activates capacitor steps. These capacitors supply reactive power locally, reducing the reactive current drawn from the utility grid.

The controller deactivates capacitor steps when reactive power demand decreases. This prevents over-compensation that could create leading power factor conditions. The automatic operation ensures optimal power factor correction under all load conditions.

Manufacturing Excellence

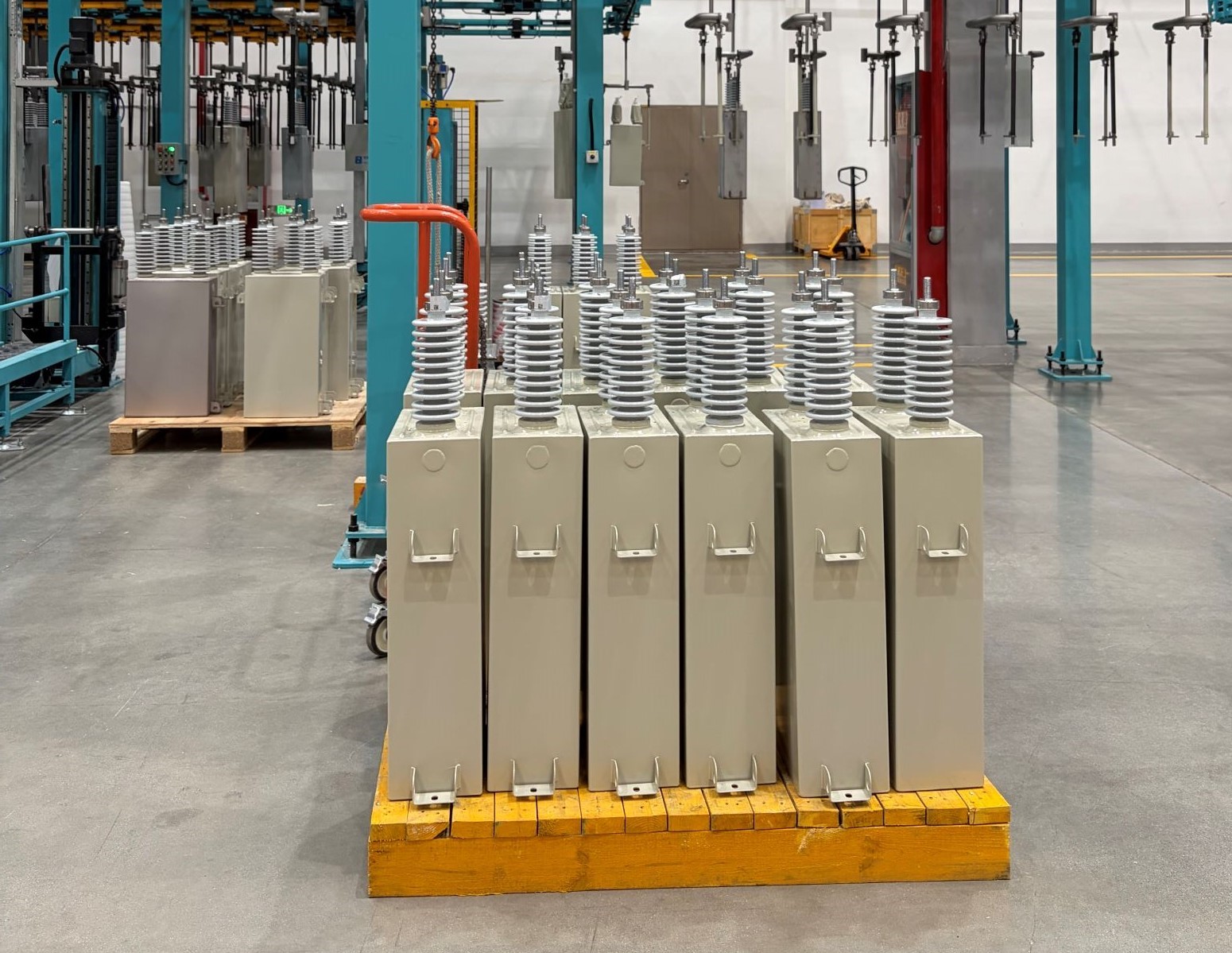

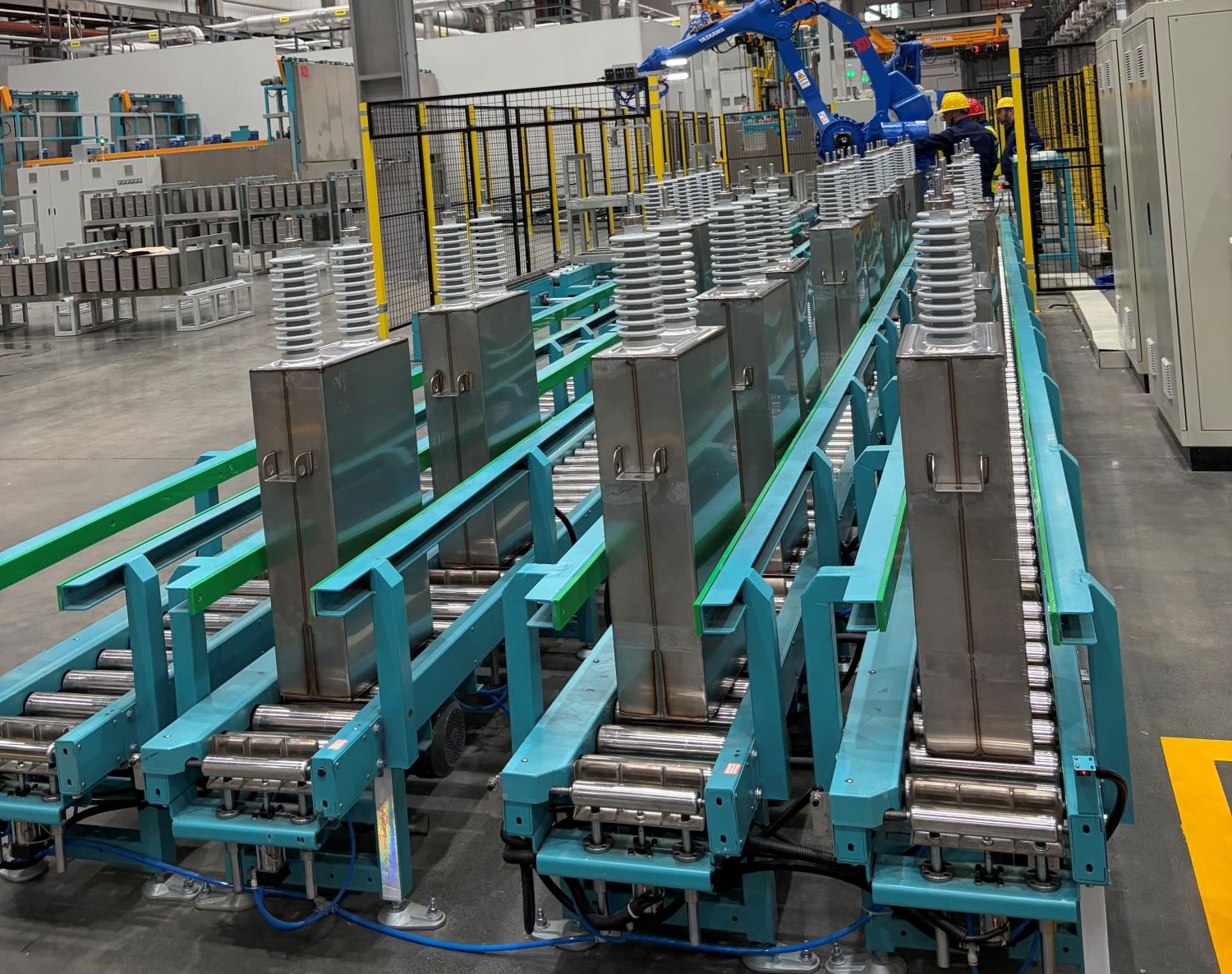

At Xi'an Xikai Medium And Low Voltage Electric Co.,Ltd., we maintain strict quality standards throughout our manufacturing process. Our production facility operates under ISO9001 quality management certification. Every power correction capacitor bank undergoes comprehensive testing before shipment.

Our engineering team designs each system to meet specific customer requirements. We consider your facility's load characteristics, harmonic content, and operational patterns. This customized approach ensures optimal performance and maximum return on investment.

We source premium components from certified suppliers. Capacitors undergo rigorous testing including impulse voltage tests and thermal stability verification. Protection devices are calibrated to precise specifications for reliable fault protection.

Why Choose Us

Proven Experience: With decades of experience in power distribution equipment, we understand the unique challenges facing industrial facilities. Our solutions address real-world problems with practical, cost-effective approaches.

Technical Support: Our engineering team provides comprehensive pre-sales consultation and post-installation support. We help you select the optimal system configuration and provide ongoing technical assistance.

Quality Assurance: Every system includes comprehensive warranties and performance guarantees. Our quality management systems ensure consistent product reliability and customer satisfaction.

Custom Solutions: We don't believe in one-size-fits-all approaches. Each power correction capacitor bank is engineered to match your specific requirements and operating conditions.

FAQ

Q: How quickly will I see energy savings after installation?

A: You'll notice immediate reductions in demand charges and power factor penalties. Most customers see 5-15% reduction in electrical costs within the first billing cycle.

Q: Can the system handle varying load conditions automatically?

A: Yes, our intelligent controller continuously monitors power factor and adjusts capacitor switching automatically. No manual intervention is required during normal operation.

Q: What maintenance is required for optimal performance?

A: Annual inspection includes checking electrical connections, cleaning ventilation filters, and verifying controller operation. Capacitor testing every 3-5 years ensures continued reliability.

Q: How do I know if I need harmonic filtering?

A: Facilities with significant non-linear loads (VFDs, rectifiers, LED lighting) typically require detuned reactors. Our engineers can perform harmonic analysis to determine requirements.

Q: What happens if individual capacitors fail?

A: The modular design allows continued operation with reduced capacity. Failed units can be replaced without shutting down the entire system.

Contact Us

Ready to improve your facility's power efficiency with our professional power correction capacitor bank solutions? Our technical specialists are here to help you select the optimal system for your specific requirements.

Get Expert Consultation: Contact our engineering team for a comprehensive power factor analysis and system recommendation.

Email: serina@xaxd-electric.com

Let us help you reduce energy costs, eliminate utility penalties, and improve your electrical system's reliability with our proven solutions.
