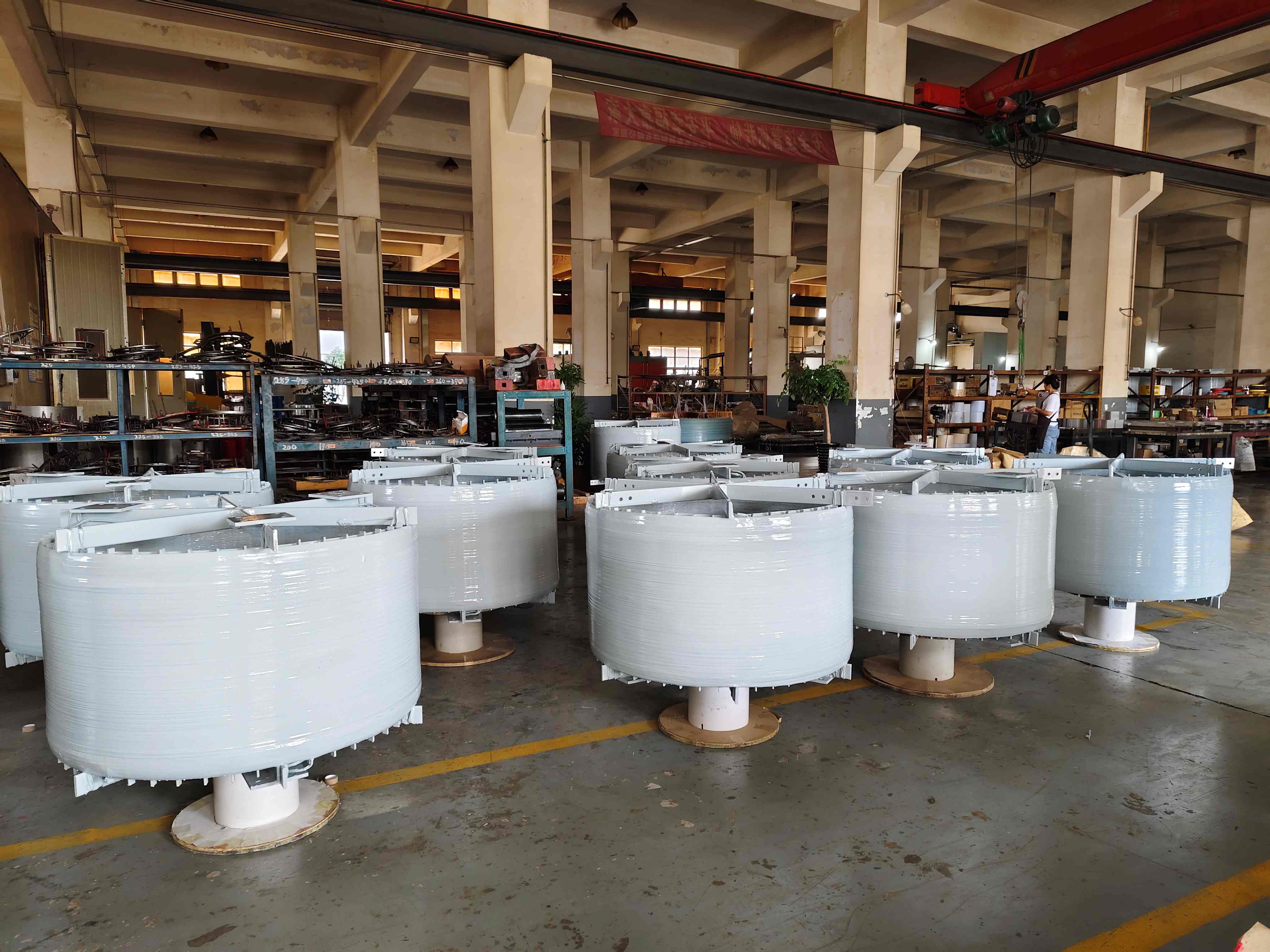

CKGKL Reactor for Outdoor Installation
2.Reactor connected in series with the capacitors suppress harmonic voltage amplification.
3. reduce system waveform distortion .
4.limit inrush currents during capacitor switching.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
CKGKL Reactor for Outdoor Installation
Product Introduction
The CKGKL Reactor for Outdoor Installation is a specialized dry-type air-core series reactor designed for harsh outdoor environments. This advanced electrical component connects in series with shunt capacitor banks in power systems ranging from 6kV to 35kV. Your power system needs reliable harmonic suppression and capacitor protection that can withstand extreme weather conditions. This reactor solves critical challenges like insulation degradation from UV radiation, moisture ingress, and temperature fluctuations using advanced hydrophobic coating technologies.
Our CKGKL Reactor for Outdoor Installation features aluminum windings optimized for weight reduction and cost efficiency. The air-core design eliminates magnetic saturation issues while providing consistent performance. You get superior environmental protection without compromising electrical performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 6kV - 35kV |
| Rated Current | 630A - 4000A |
| Insulation Class | F/H Class |
| Winding Material | Aluminum Conductor |
| Core Type | Air-Core Design |
| Temperature Rise | ≤ 75K Average |
| Altitude Capability | Up to 4000m |
| Protection Class | Outdoor Installation Grade |
| Coating | UV-Resistant Hydrophobic Silicone |
| Operating Temperature | -40°C to +40°C |
Main Features and Advantages
Your power system benefits from several key advantages with our outdoor reactor solution. The linear volt-ampere characteristic ensures consistent inductance values even under high short-circuit conditions. You never have to worry about magnetic saturation affecting performance.
The specialized insulation system combines multi-layer fiberglass with epoxy resin encapsulation. Our UV-resistant coating prevents tracking and flashovers in harsh weather conditions. This means reduced maintenance costs and extended service life for your installation.
The monolithic cylinder design provides exceptional mechanical strength. You get reliable operation even under high dynamic short-circuit forces. The lightweight aluminum construction reduces installation costs while maintaining optimal electrical performance.
Practical Applications
Our CKGKL Reactor for Outdoor Installation serves critical applications across multiple industries. Wind and solar farms rely on these reactors for harmonic filtering and capacitor protection in remote locations. The robust outdoor design eliminates expensive indoor housing requirements.
Industrial facilities use these reactors in outdoor switchyards for steel mills and mining operations. Electric arc furnaces generate substantial harmonics that our tuned reactor systems effectively filter. You achieve improved power factor in highly polluted electrical environments.
Urban utility distribution nodes benefit from noise reduction compared to iron-core alternatives. The air-core design significantly reduces acoustic emissions in residential areas. Installation in uncovered substations reduces civil engineering costs substantially.
How It Works
The reactor operates by connecting in series with capacitor banks to form precisely tuned filter circuits. Harmonic currents flow through the reactor-capacitor combination rather than into your power system. This protects sensitive equipment from voltage distortion.
During capacitor switching operations, the reactor limits dangerous inrush currents. The controlled impedance prevents overcurrent damage to capacitors and associated equipment. Your system experiences smoother switching transitions and extended component life.
The air-core design provides linear inductance characteristics across all operating conditions. Unlike iron-core reactors, you get consistent performance regardless of current levels or environmental factors.
Manufacturing Excellence
Xi'an Xikai Medium and Low Voltage Electric Co., Ltd. brings over decades of expertise to every reactor we manufacture. Our ISO9001 quality management system ensures consistent product excellence. We maintain strict quality control from raw material selection through final testing.
Our manufacturing facility utilizes advanced winding techniques optimized for aluminum conductors. Each reactor undergoes comprehensive testing including impulse voltage, temperature rise, and mechanical stress verification. You receive products that meet or exceed national and international standards.
We invest continuously in research and development to improve product performance. Our engineering team participates in national projects, bringing cutting-edge technology to every product we deliver.
Why Choose Us
Your partnership with us means access to comprehensive technical support and customized solutions. We understand that every installation has unique requirements. Our engineering team works closely with you to optimize reactor specifications for your specific application.
Our extensive product range covers all voltage classes from 0.4kV to 40.5kV. Whether you need standard configurations or specialized custom designs, we deliver solutions that meet your exact requirements. High-altitude applications up to 4000 meters are fully supported.
We provide complete system integration services beyond individual components. Your project benefits from our experience in switchgear, transformers, and complete power distribution solutions. This integrated approach ensures optimal system performance and simplified procurement.
FAQ
Q: How does the reactor handle magnetic field interference with nearby equipment?
A: The air-core design generates magnetic fields that require proper clearance distances. We provide detailed installation guidelines ensuring metallic equipment stays beyond the recommended distance (typically 1.5x reactor diameter) to prevent eddy current heating.
Q: Why choose aluminum windings over copper for outdoor applications?
A: Aluminum offers excellent weight reduction and cost efficiency for outdoor installations. The larger space availability in outdoor yards accommodates the increased volume requirements. We use bimetallic terminals to prevent galvanic corrosion.
Q: What maintenance does the outdoor coating require?
A: The hydrophobic coating is designed for maintenance-free operation. In heavily polluted or coastal environments, annual visual inspection and cleaning help maintain optimal performance.
Q: Can these reactors withstand seismic activity?
A: Yes, our monolithic design provides exceptional mechanical strength. The structural calculations account for wind loads and seismic requirements typical of outdoor installations.
Contact Us
Ready to enhance your power system with reliable outdoor reactor solutions? Our technical team is ready to discuss your specific requirements and provide customized recommendations.
Contact our experts today at serina@xaxd-electric.com for detailed specifications, pricing, and technical support. We're committed to delivering the perfect reactor solution for your outdoor installation needs.
