Power Filter Capacitor - High-Performance Filtering Solutions for Industrial Applications

Product Introduction

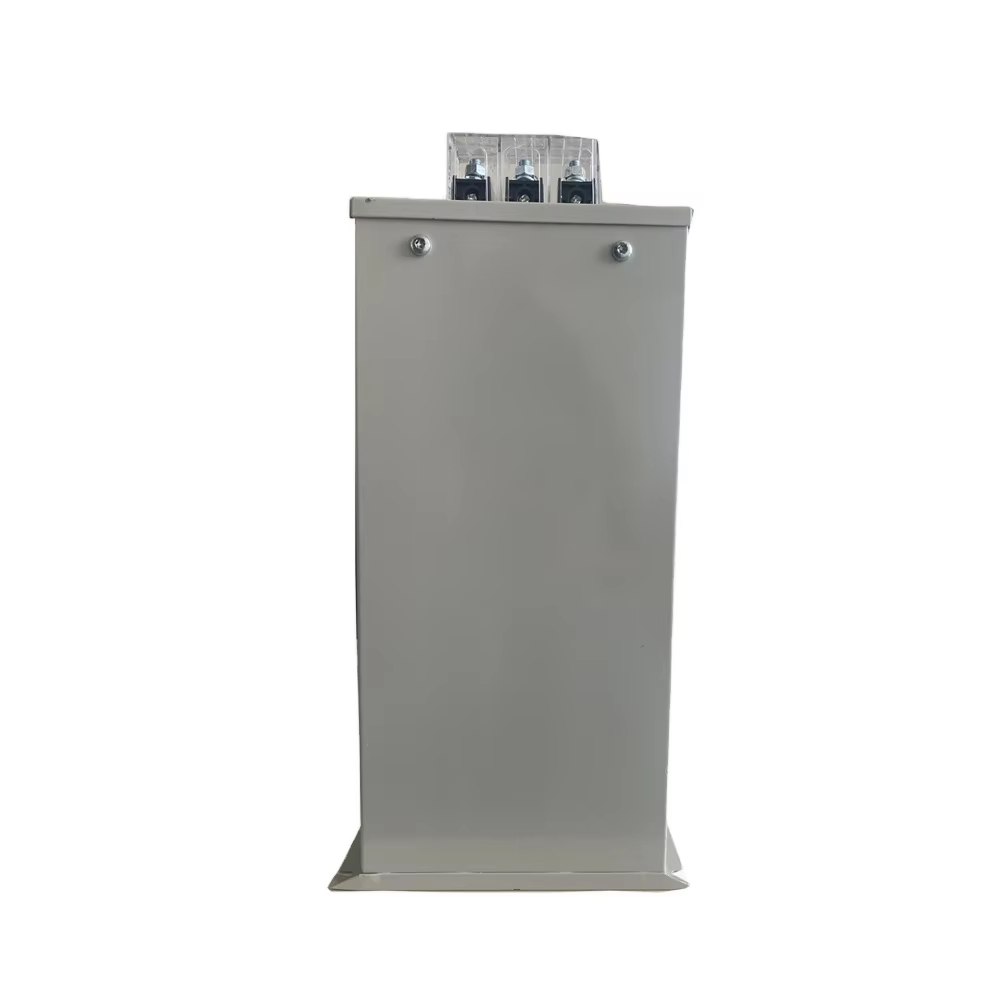

When your industrial power systems face voltage fluctuations and harmonic interference, you need reliable filtering solutions. Our power filter capacitor is a specialized high-performance passive component designed to smooth voltage ripples, absorb high RMS currents, and eliminate electromagnetic interference in demanding power electronics applications. Unlike standard capacitors, our power filter capacitor handles voltages from 450V to several kilovolts while maintaining exceptional stability. You can trust this component to protect your switching devices from voltage spikes and reduce Total Harmonic Distortion (THD) to meet regulatory compliance standards like IEEE 519.

Technical Specifications

Main Features and Advantages

Our capacitors feature heavy-edge metallized polypropylene film (MKP) technology with aluminum enclosures filled with polyurethane resin. This dry-type construction eliminates leakage risks completely.

The self-healing property sets our products apart. When dielectric breakdown occurs, the metallized layer vaporizes around the fault area. This isolates the damage and allows continuous operation without catastrophic failure.

You benefit from extremely low ESR values that minimize heat generation. The low ESL design ensures rapid response to high-frequency switching transients in your power electronics.

Our flame-retardant plastic cases provide additional safety. The robust construction withstands mechanical stress and thermal cycling in industrial environments.

Practical Applications

Industrial Motor Drives and VFDs

Your variable frequency drives require stable DC bus voltage for precise motor control. Our capacitors filter switching noise and provide energy buffering during load transients.

Renewable Energy Systems

Solar inverters and wind power converters depend on reliable filtering. Our power filter capacitor solutions handle high voltage ripples while maintaining grid compliance.

Electric Vehicle Charging Infrastructure

Fast-charging stations generate significant harmonic content. Our capacitors ensure clean power delivery while protecting sensitive control circuits.

Power Quality Enhancement

Industrial facilities use our capacitors for power factor correction and harmonic filtering. This reduces utility penalties and improves overall system efficiency.

How It Works

The capacitor operates as an energy reservoir in your power circuits. During voltage peaks, it charges and stores electrical energy. When voltage drops, it discharges this stored energy to maintain stable output.

In switching power supplies, the capacitor shunts high-frequency noise to ground. This prevents interference from reaching your sensitive loads or propagating back to the grid.

The metallized film construction provides excellent frequency response. Multiple parallel current paths ensure low impedance across wide frequency ranges.

Manufacturing Excellence

Our production facility follows ISO 9001 quality management standards. Each power filter capacitor undergoes rigorous testing including surge voltage capability and thermal cycling validation.

We use advanced winding techniques to minimize internal stress. Precision impregnation processes ensure complete void elimination and optimal dielectric strength.

Quality control includes 100% electrical testing before shipment. Our automated test equipment validates capacitance, ESR, and insulation resistance for every unit.

Environmental testing confirms performance under extreme conditions. This includes temperature cycling, humidity exposure, and vibration resistance verification.

Why Choose Us

Xi'an Xikai Medium And Low Voltage Electric Co., Ltd. brings decades of power distribution expertise to every product. Our comprehensive range covers high and low voltage switchgear, transformers, and protection devices.

You receive complete system integration support beyond individual components. Our engineering team provides custom solutions for your specific application requirements.

We maintain extensive inventory for rapid delivery. Standard products ship within 48 hours while custom configurations typically require 2-3 weeks.

Our technical support team includes experienced power electronics engineers. They provide application guidance and troubleshooting assistance throughout your project lifecycle.

FAQ

Q: What's the difference between your power filter capacitor and standard capacitors?

A: Our capacitors are specifically designed for high-voltage, high-current applications with superior ESR and ripple current ratings for power electronics use.

Q: How do I select the right capacitance value?

A: Capacitance selection depends on your ripple current requirements and allowable voltage ripple. Our engineers can assist with calculations based on your specific circuit parameters.

Q: What mounting options are available?

A: We offer various mounting configurations including bolt-down, DIN rail, and custom bracket assemblies to fit your enclosure requirements.

Q: Do you provide custom voltage ratings?

A: Yes, we manufacture custom voltage ratings from 450V to 5kV. Contact us with your specifications for detailed quotations.

Contact Us

Ready to improve your power system performance? Our technical team is available to discuss your power filter capacitor requirements and provide customized solutions.

Email: serina@xaxd-electric.com

Our application engineers will respond within 24 hours with detailed technical recommendations for your specific project needs.
