10kV Outdoor/Indoor Current Transformer

1.Input voltage:11kV,Output voltage:10kV
2.Frequency:50/60Hz
3.Rated primary current:20~1000A
4.Rated secondary current:5 or 1A
5.Standard:GB 20840.2-2014/IEC 61869-1 & 61869-2
6.The transformer is epoxy resin cast fully-enclosed electromagnetic.It features high accuracy, large capacity, and stable performance.

Send Inquiry

Download

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

1.10kV Outdoor/Indoor Current Transformer: Precision & Durability for Modern Grids

When upgrading or maintaining power systems, reliability starts with choosing the right components. Our 10kV Outdoor/Indoor Current Transformer delivers unmatched accuracy and resilience for substations, industrial plants, and renewable energy projects. Designed to meet GB 20840.2-2014 and IEC 61869 standards, this epoxy resin-cast transformer excels in harsh environments while ensuring stable performance across 50/60Hz networks.

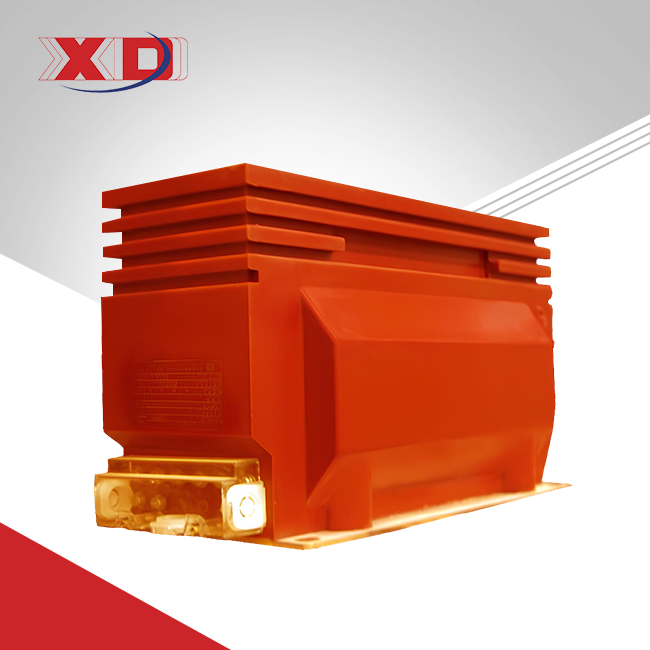

10kV Outdoor/Indoor Current Transformer

2.Technical Specifications

Input/Output Voltage: 11kV/10kV
Frequency: 50/60Hz
Primary Current: 20–1000A
Secondary Current: 5A or 1A
Insulation: Epoxy resin vacuum casting
Standards: GB 20840.2-2014, IEC 61869-1 & 61869-2

Type	Rated primary current(A)	Rated secondary current(A)	Class combination	Rated secondary output (VA)	Short-time themal current(kA/S)	Rated dynamic current(kA)
LZZW3-10、LZZBW-10GY	20	5 or 1A	0.2S/10P15 0.2S/0.5/10P10	15/15/15/15/15	3	7.5
	30				4.5	11.3
	40				6	15
	50				7.5	18.8
	75				11.3	28.1
	100				15	37.5
	150				22.5	56.3
	200				31.5	80
	300				45	113
	400				63	130
	500				80	160
	600
	800
	1000

3.Key Features & Benefits

1. All-Weather Reliability

The fully enclosed, epoxy-sealed design resists moisture, UV rays, and pollution—ideal for coastal regions or high-altitude installations.

2. Smart Grid Ready

Low error rates (±0.2%) and large capacity support real-time monitoring in smart grids, helping reduce energy losses.

3. Space-Saving Flexibility

Compact indoor/outdoor models fit seamlessly into urban substations or pole-mounted switches without costly retrofitting.

4. Long-Term Cost Efficiency

Reduced maintenance needs and a 20+ year lifespan cut downtime and replacement costs.

4.Where It Works Best?

Utility Grids: Accurate load monitoring for 10kV distribution lines.
Industrial Plants: Overcurrent protection for motors and generators.
Renewable Energy: Integration with solar/wind farm inverters.
Rail Networks: Traction power supply monitoring.

5.Built to Last: Manufacturing Excellence

Our 10kV Outdoor/Indoor Current Transformer is crafted using:

Vacuum Casting: Eliminates air pockets for flawless insulation.
Precision Winding: Automated machinery ensures consistent turns ratio.
Rigorous Testing: Partial discharge, thermal cycling, and seismic tests validate durability.

6.Why Partner With Us?

Certified Quality: ISO 9001, ISO 14001, and ISO 45001 certifications.

Global Compliance: Meets IEC standards.

Fast Customization: Modify ratios, mounting, or enclosures in 3–5 days.

5-Year Warranty: Backed by 24/7 technical support.

Certificate

7.FAQs

1. How does epoxy resin improve performance?

The vacuum-cast epoxy creates a moisture-proof barrier, preventing insulation degradation in humid or salty environments.

2. Can this CT work with existing switchgear?

Yes! Our product is compatible with most vacuum circuit breakers and legacy systems.

3. What certifications do you hold?

We’re ISO 9001-certified and comply with IEC 61869. Custom certifications are available upon request.

4. Do you offer bulk order discounts?

Absolutely. Contact us for volume pricing and expedited shipping options.

8.Contact Us

Email our team at xaxd_electric@163.com for quotes or technical details.

Upgrade your grid with a 10kV Outdoor/Indoor Current Transformer that balances precision, durability, and value. Let’s power your next project!

9.Factory Show

10.Equipment Display

Equipment

11.Application Cases

State Grid systems, power engineering, steel and metallurgy, petrochemicals, rail transportation, energy and water conservancy, construction, environmental protection, and renewable energy sectors
